Build Without Limits
COSMOS series, hailed as the ultimate expression of PC case modularity, evolves into the "halo" platform for enthusiasts and modders. With its iconic design language and enhanced modular internals, COSMOS is engineered for boundary-pushers who want limitless control over layout, cooling, and customization.
Brand new COSMOS ALPHA will serve as the aspirational apex of what FreeForm 2.0 stands for — freedom, scale, and personalization without compromise, making it an ALPHA case for all ALPHA builders.
COSMOS ALWAYS LEADING
Sliding Motherboard Tray
Sliding tray design to free up the space inside the case and enable seamless system reconfiguration between air and liquid cooling layouts. Builders can also fine-tune the distance between GPU and side panels with ease – whether to optimize airflow or highlight GPU upfront.
Sliding Adjustable Fan Bracket
Adjustable to accommodate case fans in different sizes, and the sliding design allows users to easily move the fans closer to heat spots for better airflow to cool down the system.
Maximized Compatibility & Space
Supports E-ATX/EEB motherboards, 400mm GPUs, and 240mm PSUs. Tool-free bays support up to 7 drives for effortless expansion. Provides builders with an uncompromised platform for wide-open FreeForm creation.
Product Sheet: Product Sheet_COSMOS ALPHA.pdf
Manual: Manual_COSMOS ALPHA.pdf
Specifications
Product Name
COSMOS ALPHA
Series
COSMOS Series
Color(s)
Black / Silver
Model Number
C700-KGNN-S00
Materials - Exterior
SGCC / Plastic
Materials - Side Panel (Left / Right)
Tempered Glass / Metal
Dimensions (L x W x H)
669 x 330 x 639 mm (Incl. Protrusions), 579 x 260 x 582 mm (Excl. Protrusions)
Weight
31 kg
Volume
88 L (no panel / protrusions / feet) / 140 L (with panel / protrusions / feet)
Motherboard Support
Mini-ITX / Micro-ATX / ATX / E-ATX / EEB
Power Supply Support
ATX
PCI Expansion Slots
8
Drive Bay Support - 2.5" / 3.5" Drive Bays
2 or 2 (CPU Cooler under 165 mm)
I/O Panel - USB Ports
4x USB 3.2 Gen 1 Type-A 5G, 2x USB 3.2 Gen 2x2 Type-C 20G
I/O Panel - Audio
1x 3.5mm Headset Jack (Audio+Mic)
Preinstalled Fans - Front
2x 200x38 mm (Non-ARGB)
Preinstalled Fans - Rear
1x Mobius 120x25 mm (Non-ARGB)
Fan Support - Front
3x 120mm / 3x 140mm / 2x 200mm
Fan Support - Top
3x 120mm / 2x 140mm / 2x 180mm / 2x 200mm
Fan Support - Rear
3x 120mm
Fan Support - Bottom
3x 120mm / 2x 140mm / 2x 180mm / 2x 200mm
Fan Support - Side Mount
3x 120mm / 3x 140mm / 2x 180mm / 2x 200mm
Radiator Support - Top
120 / 140 / 240 / 280 / 360 mm (max thickness 93mm)
Radiator Support - Bottom
120 / 140 / 240 / 280 / 360 mm (max thickness 93mm)
Radiator Support - Side Mount
120 / 140 / 240 / 280 / 360 / 420 / 3x360 mm (max thickness 80mm)
Dust Filters
Yes, Removable
CPU Cooler Clearance
186 mm
PSU Clearance
240 mm
GPU Clearance
400 mm
Cable Routing Behind Tray
53 mm
Included Accessories
VGA card holder, Decorative cover, Right side cable cover
Warranty
2 years
Size
Full Tower
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Powerfully Compact and Cool
The QUBE 340 is a compact Micro-ATX PC case designed for serious performance. Engineered with Cooler Master’s Thermal Excellence, it maximizes airflow to keep your system cool and stable - even with high-TDP components. Designed to accommodate longer GPUs and taller air coolers, it provides rigidity and efficient layouts with optimized airflow.
Its modular design offers repositionable I/O panels, vertical or horizontal orientation, and support for accessories like handles and 3D-printable components. Ideal for DIY builders and system integrators, the QUBE 340 / Q300L V3 provides a smooth, straightforward building experience while allowing you to personalize both aesthetics and functionality.
Key Features
High Airflow Cooling — High-airflow front panel with support for multiple fans and radiators
Optimum Clearance Design — Up to 366 mm GPU clearance and 178 mm CPU cooler clearance
Adjustable I/O Panel — Position on top or bottom to suit your workspace
Flexible Orientations — Use vertically or horizontally to fit any setup
QUBE Ecosystem Support — Compatible with handles, headphone hook, and 3D-printable accessories
Mini-ITX & Micro-ATX Support — Accommodates a wide range of compact builds
Specifications
Materials: SGCC + TG / Mesh
Dimensions (Incl. Protrusions): 386.1 × 230 × 429.4 mm | 38.13 L
Dimensions (Excl. Protrusions): 374 × 230 × 374 mm | 32.17 L
Motherboard Support: Mini-ITX, Micro-ATX
CPU Cooler Clearance: 178 mm
GPU Clearance: 366 mm (without front fan)
PSU Clearance: 200 mm (no bottom fan) / 140 mm (with bottom fan)
Expansion Slots: 4
Drive Bays: 1× 3.5", 1× 3.5"/2.5" Combo, 2× 2.5" (max 4)
Fan Support: Top: 2× 120/140 mm | Front: 2× 120/140 mm | Rear: 1× 120/140 mm | Bottom: 1× 120/140 mm
Pre-installed Fan: 1× 140 mm non-ARGB (Rear)
Radiator Support: Top/Front: 240/120 mm | Rear: 120 mm
I/O Panel: 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen 2×2 Type-C, 1× 3.5 mm Audio Combo
Cable Routing: 30 mm behind MB tray
PSU Support: ATX
Dust Filters: Top / Front / Bottom
Colors: Black (Q340-KGNN-S00) / White (Q340-WGNN-S00)
Included Accessories: Filter (with Perforations), Headphone Holder
Warranty: 2 Years
Product: Product Sheet
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Compact Performance, Streamlined Design
The Q300L V3 is a compact Micro-ATX PC case designed for serious performance. Engineered with Cooler Master’s Thermal Excellence, it maximizes airflow to keep your system cool and stable - even with high-TDP components. Designed to accommodate longer GPUs and taller air coolers, it provides rigidity and efficient layouts with optimized airflow.
Its modular design offers repositionable I/O panels, vertical or horizontal orientation, and support for accessories like handles and 3D-printable components. Ideal for DIY builders and system integrators, the Q300L V3 provides a smooth, straightforward building experience while allowing you to personalize both aesthetics and functionality.
Key Features
High Airflow Cooling — High-airflow front panel with support for multiple fans and radiators
Optimum Clearance Design — Up to 366 mm GPU clearance and 178 mm CPU cooler clearance
Adjustable I/O Panel — Position on front panel top or bottom, or top panel front
Flexible Orientations — Use vertically or horizontally to fit any setup
Mini-ITX & Micro-ATX Support — Accommodates a wide range of compact builds
Specifications
Materials: SGCC + TG / Mesh
Dimensions (Incl. Protrusions): 386.1 × 230 × 388.5 mm | 34.5 L
Dimensions (Excl. Protrusions): 374 × 230 × 374 mm | 32.17 L
Motherboard Support: Mini-ITX, Micro-ATX
CPU Cooler Clearance: 178 mm
GPU Clearance: 366 mm (without front fan)
PSU Clearance: 200 mm (no bottom fan) / 140 mm (with bottom fan)
Expansion Slots: 4
Drive Bays: 1× 3.5", 1× 3.5"/2.5" Combo, 2× 2.5" (max 4)
Fan Support: Top: 2× 120/140 mm | Front: 2× 120/140 mm | Rear: 1× 120/140 mm | Bottom: 1× 120/140 mm
Pre-installed Fan: 1× 140 mm non-ARGB (Rear)
Radiator Support: Top/Front: 240/120 mm | Rear: 120 mm
I/O Panel: 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen 2×2 Type-C, 1× 3.5 mm Audio Combo
I/O Panel Placement: Front Panel (Top/Bottom), Top Panel (Front)
Cable Routing: 30 mm behind MB tray
PSU Support: ATX
Dust Filters: Top / Front / Bottom
Colors: Black (Q300LV3-KGNN-S00) / White (Q300LV3-WGNN-S00)
Handles: No
QUBE Ecosystem Support: No
Included Accessories: None
Warranty: 2 Years
Product Sheet: Product Sheet
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFrame 400 Mesh
Compact Power, No Compromise.
The MasterFrame 400 Mesh is a premium open-frame compact chassis built for Micro-ATX and Mini-ITX platforms. Powered by the FreeForm 2.0 design philosophy, it combines a precision aluminum exo-structure, dual-orientation support, and high-airflow mesh panels — delivering serious performance in a compact footprint.
Color Options
Silver
Pre-installed Rear Fan1x SickleFlow 120mm ARGB White
Extensive fan supportUp to 9 fans, including 200mm options on front and bottom
Supports Mini-ITX and Micro-ATX motherboards
Radiator supportUp to 360mm at the top
Tempered glass side panel
USB 3.2 Gen 2x2 Type-C
Black
Pre-installed Rear Fan1x SickleFlow 120mm ARGB Black
Extensive fan supportUp to 9 fans, including 200mm options on front and bottom
Supports Mini-ITX and Micro-ATX motherboards
Radiator supportUp to 360mm at the top
Tempered glass side panel
USB 3.2 Gen 2x2 Type-C
Features
FreeForm 2.0 Exo-Structure
The exposed aluminum frame supports versatile positioning and adapts seamlessly to both vertical and horizontal layouts.
Dual-Orientation Ready
Stand it tall, lay it flat, or flip it sideways. Detachable feet and a smart, adaptable design make it easy to fit any workspace or creative setup.
*Vertical orientation may require additional accessories or adapters depending on component layout, connector clearance, or cable routing.
Compact Motherboard Compatibility
Supports Mini-ITX and Micro-ATX motherboards, delivering optimal compatibility for compact, high-performance builds without compromising cooling or component clearance.
Ample GPU Clearance
Accommodates graphics cards up to 390mm in length — full compatibility for high-end GPUs and future upgrades.
Extensive Cooling Support
Supports up to 9 fans, including 200mm fan compatibility, plus top-mounted 360mm radiators for superior airflow in a compact build.
*200mm fan support varies by location and fan thickness.
Tool-Free Panel Removal
Easily remove side panels without tools for quick access and modifications during build or upgrades.
Included GPU Support Bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Modern Front I/O
Stay connected and ready for anything — MasterFrame 400 Mesh features USB 3.2 Gen 2x2 Type-C, dual USB 3.2 Gen 1 Type-A, and a combo audio jack for ultra-fast data, charging, and seamless peripheral support.
ARGB Visual Power
Despite its compact size, the MasterFrame 400 Mesh comes alive with a pre-installed 120mm SickleFlow ARGB fan — quiet, powerful, and fully customizable.
Specifications
Design & Dimensions
Product Name: MasterFrame 400 Mesh
Model Number: Black: MF400M-KHNN-S00 | Silver: MF400M-SHNN-S00
Color(s): Black / Silver
Materials: Aluminum, SGCC Steel, Tempered Glass, Mesh
Dimensions (L x W x H): 471 x 261 x 373.8 mm (incl. protrusions) | 471 x 261 x 361 mm (excl. protrusions)
Volume: 44.37 L (excl. protrusions) | 46 L (incl. panel, protrusions & feet)
Form Factor: Mid Tower
Series: MasterFrame Series
Hardware Compatibility & Clearances
Motherboard Support: Mini-ITX, Micro-ATX
Power Supply Support: ATX
PCI Expansion Slots: 4
CPU Cooler Clearance: 190mm
PSU Clearance: 160mm
GPU Clearance: 390mm
Cable Routing (Behind Tray): 43mm
Drive Bays & I/O Panel
Drive Bays - 3.5" HDD: 1 (only without bottom fans; shares 2.5" mounting position)
Drive Bays - 2.5" SSD: 1 (only without bottom fans; shares 3.5" mounting position)
I/O Panel - USB: 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C
I/O Panel - Audio: 1x 3.5mm Mic/Audio Combo Jack
Fans & Cooling
Pre-installed Fans - Rear: Black: 1x SickleFlow 120mm ARGB Black | Silver: 1x SickleFlow 120mm ARGB White
Fan Support - Front: 2x 120mm, 1x 140mm*, 1x 180mm*, 1x 200mm* (*Conditional)
Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm*, 2x 200mm* (*Fan thickness ≤25.5mm)
Fan Support - Rear: 1x 120mm
Fan Support - Bottom: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm (up to 30mm thick)
Radiator Support - Top: 240 / 280 / 360mm
Radiator Support - Rear: 120mm
Accessories, Filters & Warranty
Included Accessories: GPU Support Bracket
Dust Filters: Front, Side
Warranty: 2 Years
MasterFan A140 / A140 FC
The MasterFan A140 delivers revolutionary cooling performance, achieving benchmark-setting airflow and drastically reduced system temperatures with superior efficiency and unparalleled reliability. This extreme capability is engineered through its flagship aluminum construction and high-speed motor design. The all-aluminum frame and blades ensure superior rigidity and durability, preventing blade warp even when sustaining its extreme 3000 RPM speeds. This precise structural integrity is crucial for generating high air pressure, allowing the fan to powerfully overcome the resistance of restrictive components and blow air through tight spaces—drastically cooling down even the smallest cases. The three-phase motor also eliminates operational instability, guaranteeing superior, reliable performance and maximum system efficiency throughout its entire operating range, so you can focus on high-intensity tasks while the MasterFan A140 handles your system's critical cooling needs.
Features
The New Metal Standard
The all-aluminum frame and blades deliver superior rigidity and long-term durability, which is essential for reliably sustaining high-speed performance.
Precision in Every Rotation
The MasterFan A140's premium aluminum construction ensures the blades retain their precise shape and resist warping even at intense speeds. This allows the fan to reliably achieve and hold ultra-high RPMs, delivering benchmark-setting airflow and exceptional cooling results.
Maximum Pressure. Zero Resistance.
Exceptional air pressure is guaranteed by the A140's structural integrity. The premium aluminum frame and blades resist warping and maintain their precise shape at intense speeds. This sustained rigidity allows the fan to overcome the resistance of restrictive components, delivering focused, high-velocity airflow that drastically reduces system temperatures.
Ultra-Smooth Operation
The integrated three-phase motor eliminates instability to ensure ultra-quiet start-up and superior, reliable performance for maximum system efficiency.
Review Guide: Public (Resource Center)
Specifications
Specification
MasterFan A140
MasterFan A140 FC
Model Number
MFZ-P4NA-19NPK-R1
MFZ-P4NA-30NPK-R1
Dimensions (L x W x H)
140 x 140 x 30mm (5.5 x 5.5 x 1.18 inch)
LED Profile
Non-LED
Speed
0–1900 ± 10% RPM
0–3000 ± 10% RPM
Air Flow
104 CFM Max
164.4 CFM Max
Air Pressure
3.41 mmH₂O Max
8.28 mmH₂O Max
MTTF
>200,000 hours
Noise Level
30.4 dBA Max
41.5 dBA Max
Bearing
Two-Ball Bearing
Connector
4-Pin PWM
Rated Voltage
12 VDC
Rated Current
0.15A
0.52A
Safety Current
1A
Power Consumption
1.8W
6.24W
Weight
379g (0.84 lbs)
Warranty
6 Years
EAN Code
4719512163542
4719512163559
UPC Code
884102135842
884102135859
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFan A120 / A120 FC
The MasterFan A120 delivers revolutionary cooling performance, achieving benchmark-setting airflow and drastically reduced system temperatures with superior efficiency and unparalleled reliability. This extreme capability is engineered through its flagship aluminum construction and high-speed motor design. The all-aluminum frame and blades ensure superior rigidity and durability, preventing blade warp even when sustaining its extreme 4000 RPM speeds. This precise structural integrity is crucial for generating high air pressure, allowing the fan to powerfully overcome the resistance of restrictive components and blow air through tight spaces—drastically cooling down even the smallest cases. The three-phase motor also eliminates operational instability, guaranteeing superior, reliable performance and maximum system efficiency throughout its entire operating range.
Features
Flagship Aluminum Construction — The all-aluminum frame and blades deliver superior rigidity and long-term durability, essential for reliably sustaining high-speed performance.
Extreme 4000 RPM — Premium aluminum construction ensures blades retain their precise shape and resist warping even at intense speeds, delivering benchmark-setting airflow and exceptional cooling results. *Tested at 4000 RPM by Cooler Master Lab; applicable only to the optional controller version FC.
High Air Pressure — Exceptional air pressure guaranteed by the A120's structural integrity. The premium aluminum frame and blades resist warping and maintain their precise shape at intense speeds, delivering focused, high-velocity airflow that drastically reduces system temperatures.
Three-Phase Motor Design — The integrated three-phase motor eliminates instability to ensure ultra-quiet start-up and superior, reliable performance for maximum system efficiency.
Specifications
Specification
MasterFan A120
MasterFan A120 FC
Model Number
MFZ-P2NA-25NPK-R1
MFZ-P2NA-40NPK-R1
Dimensions (L x W x H)
120 x 120 x 30mm (4.7 x 4.7 x 1.18 inch)
Profile
Non-LED
Speed
0–2500 ±10% RPM
0–4000 ±10% RPM
Air Flow
76.9 CFM (MAX)
121.73 CFM (MAX)
Air Pressure
6.1 mmH₂O (MAX)
13.15 mmH₂O (MAX)
MTTF
>200,000 hours
Noise Level
29.7 dBA (MAX)
42.5 dBA (MAX)
Bearing
Two-Ball Bearing
Connector
4-Pin PWM
Rated Voltage
12 VDC
Rated Current
0.17A
Safety Current
1A
Power Consumption
2.04 W
6 W / 0.5A
Weight
305g (0.67 lbs)
Warranty
6 Years
EAN
4719512163528
4719512163535
UPC
884102135828
884102135835
MasterFan M140 ARGBThe MasterFan M140 ARGB delivers a mainstream cooling solution that refuses to compromise on quality or acoustics. Engineered for unrivaled stability, it combines premium materials with advanced bearing technology to keep your system running quietly and reliably for years to come.Premium Material ConstructionBuilt with an all-aluminum fan frame for maximum rigidity and durability at high speeds, paired with a Liquid Crystal Polymer (LCP) fan blade for enhanced stability and precision — delivering premium aesthetics alongside consistent high airflow.Magnetic Dynamic BearingA ring-shaped magnetic design makes the fan rotor float, eliminating friction and wobble for quieter operation and superior stability. Special lubricant-recycling channels actively maximize oil flow, significantly extending the fan's lifespan beyond 200,000 hours.Integrated ARGB LightingSubtly integrated ARGB lighting in the center hub provides a soft, constant glow — a clean, understated aesthetic that adds a refined touch of color to your build.Specifications
Model: MFZ-P4DM-16NP2-R1
Dimensions: 140 x 140 x 30mm (5.5 x 5.5 x 1.18 inch)
Lighting: Addressable RGB Gen.2
Speed: 0–1600 ± 10% RPM
Air Flow: 81 CFM (MAX)
Air Pressure: 2.39 mmH₂O (MAX)
MTTF: >200,000 hours
Noise Level: 25.9 dBA (MAX)
Bearing: Magnetic Dynamic Bearing
Connector: 7-Pin PWM
Rated Voltage: 12 VDC
Rated Current: 0.1A
Power Consumption: 1.2W
Weight: 338g (0.75 lbs)
Warranty: 5 Years
EAN: 4719512163511
UPC: 884102135811
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Seamless Motion. Masterfully Silent.
MasterFan M120 ARGB
Premium aluminum and LCP construction
Magnetic Dynamic Bearing for ultra-smooth operation
Extreme silent at high speed
Discreet integrated RGB light
Unshakable Build. Unstoppable Airflow.
The MasterFan M120 ARGB replaces standard plastic with a premium aluminum frame and Liquid Crystal Polymer (LCP) blades. This high-density construction eliminates blade distortion and structural creep, providing uncompromising durability and unwavering high-pressure performance that outlasts conventional cooling solutions.
Zero-Friction Magnetic Precision
Experience near-silent cooling powered by our advanced Magnetic Dynamic Bearing (MDB). By eliminating internal mechanical friction, this next-generation technology guarantees ultra-smooth rotation and an incredibly low noise floor. It delivers the precise acoustic stability required for professional studios and distraction-free gaming.
Review Guide: Public (Resource Center)
Product Number
MFZ-P2DM-20NP2-R1
Dimensions
120 x 120 x 30mm
LED Profile
Addressable RGB Gen.2
Speed
0–2300 ± 10% RPM
Air Flow
75.2 CFM Max
Air Pressure
5.4 mmH₂O Max
MTTF
>20,000 hours
Noise Level
27 dBA Max
Bearing
Magnetic Dynamic Bearing
Connector
4-Pin PWM
Rated Voltage
12 VDC
Rated Current
0.1A
Safety Current
0.2A
Power Consumption
1.2W
Weight
165g
Warranty
5 Years
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

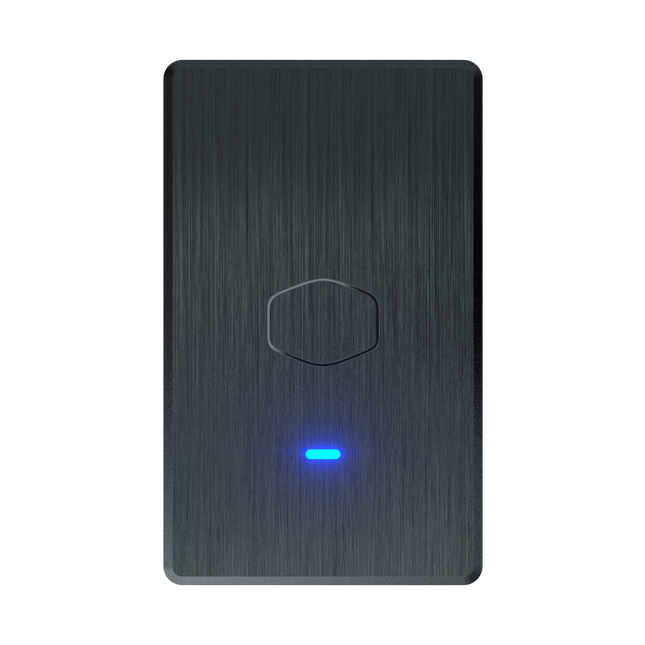

Small, Simple, VersatileCooler Master has engineered the new Addressable Gen 2 RGB LED Controller granting you the versatility to easily personalize your devices delivered to you in a small compact size. Together with the MasterPlus+ software, customize your Addressable Gen 2 RGB devices with individual LED color choices, lighting modes, and visual effects.Simple and CompactNo need to hassle with an ARGB capable motherboard or complex software settings when you can easily customize your Gen 2 ARGB devices with our compact Gen 2 ARGB LED controller.Backwards CompatibilityCompatible with both Gen 2 ARGB and standard ARGB devices, connect all your devices with the simple touch of a button.MasterPlus+ SoftwareWorks with Cooler Master's MasterPlus+ software for customizable ARGB lighting.Specifications
Product Name
LED Controller A1
Product Number
MFY-ACBN-NNUNN-R2
Color
Black
Materials
Plastic
Dimensions (L x W x H)
84.7 x 51.7 x 15.3 mm / 3.3 x 2.0 x 0.6 inch
Connector
3 ports x 3 Pin Addressable RGB
Rated Voltage
5 VDC
Safety Current
2.0 A (1 port) / 4.5 A total (3 ports)
Power Connector
SATA Power
Power Safety Current
4.5 A (MAX)
USB
Micro USB
Weight
90 g / 0.2 lbs
Warranty
2 years
Packing Information
EAN Code
4719512116661
UPC Code
884102088971
Net Weight
0.118 kg
Gross Weight
0.176 kg
Package Dimensions (L x W x H)
138 x 89 x 52 mm
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Advanced Cooling, Elevated
The Cooler Master V4 Alpha 3DHP Black CPU air cooler delivers exceptional cooling performance and sleek aesthetics. Featuring Cooler Master's proprietary 3DHP Technology, it achieves rapid heat dissipation and peak system efficiency using just two heat pipes — rivalling the performance of conventional four-heat-pipe coolers. Inspired by a classic V-style automotive engine, it's built for enthusiasts and perfected for professionals.
Key Features
Cooler Master Proprietary 3DHP Technology — Adds a third dimension to heat pipe design, filling the dead zone in standard U-shaped layouts. Delivers the cooling power of a four-pipe solution in a slimmer, more efficient package: lower temps, quieter fans, and greater flexibility.
Advanced 3DHP Internal Structure — Hybrid sintered powder and grooved channel design, optimised per phase (evaporation, condensation, liquid return) for superior heat transfer over traditional designs.
Excellent Thermal Dissipation — Maintains lower temperatures under heavy CPU workloads, supporting long-term system stability and reliability.
Pre-Installed Ring Blade Fans (Mobius 120) — Ring blade design cuts high-frequency noise for smooth, quiet operation — especially effective when paired with the 3DHP module.
Larger Contact Surface for Maximum Heat Transfer — Solid copper base covers more surface area than most four-pipe direct-contact coolers. Combined with wider 3DHP heat pipes, it ensures efficient CPU-to-cooler heat transfer.
Minimalist Design — Compact V-engine-inspired form factor supports efficient airflow and stands out in any build.
CryoFuze Thermal Paste Included — High-performance nanoparticle thermal paste for maximal heat transfer, included in the box.
AMD & Intel Compatible — Supports a wide range of AMD and Intel CPU sockets.
Specifications
Product Name
V4 Alpha 3DHP Black
Product Number
MAZ-T2HP-217PK-R1
Exterior Color
Black
CPU Socket (Intel)
LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
CPU Socket (AMD)
AM5 / AM4
Dimensions
133 x 114 x 161 mm (5.2 x 4.5 x 6.3 in)
Heat Sink Material
2 x 3DHP / Aluminium Fins
Fan Quantity
2 (Front + Rear)
Fan Dimensions
120 x 120 x 25 mm
Fan Speed
Front: 0–2050 RPM ±10% / Rear: 0–1850 RPM ±10%
Fan Airflow
Front: 107.2 m³/h (63.1 CFM) / Rear: 85.8 m³/h (50.5 CFM)
Fan Pressure
Front: 2.69 mmH₂O / Rear: 1.77 mmH₂O
Noise Level
Front: 22.6 dBA / Rear: 20 dBA
Fan MTTF
>200,000 hours
Fan Bearing Type
Loop Dynamic Bearing
Fan Power Connector
4-Pin (PWM)
Fan Rated Voltage
12 VDC
Fan Rated Current
Front: 0.12 A / Rear: 0.08 A
Fan Safety Current
0.35 A
Fan Power Consumption
Front: 1.44 W / Rear: 0.96 W
Fan LED
Non-LED
Heat Pipes
2
Cooler Type
Air Cooler
Series
V
Warranty
5 years
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Discover the MasterHUB Ecosystem
MasterHUB is a modular control system built for streamers, creators, gamers, and PC enthusiasts who want precision, flexibility, and seamless workflow integration. It runs on FreeForm 2.0, Cooler Master’s open design platform that supports customization through modular hardware, open-source files, and user-driven expansion. This foundation gives MasterHUB the freedom to evolve with your needs, whether you’re fine-tuning controls, adding new modules, or personalizing your setup to match your style and workflow.
Modular Ecosystem
Elevate your creative endeavors with the MasterHUB Stream Kit, the ultimate modular control system. Seamlessly integrate modules with the Base, which features versatile connectivity options. Tailor your setup to perfectly meet your needs, whether streaming, editing, or gaming. MasterHUB empowers you to command your environment with precision and ease, unlocking unprecedented levels of productivity and creativity.Join the revolution and embrace the limitless potential of MasterHUB.
Intuitive Software
A user-friendly interface seamlessly integrates apps, devices, and workflows, offering intuitive control and adaptability.
Learn More
Streamer Kit Includes the Standard MasterHub Accessories - SKU: MHSK13AA00
Creator Kit includes + Encoder Display + 3x Knob - MHSK13AA00 + MHDD01AA22 + MHKB03AA22
Downloads
MasterHUB-SW&FW upgrade steps guide(EN)Download
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFrame 500 Mesh
Premium Modular ATX Mid-Tower Case
Build without limits. The MasterFrame 500 Mesh is engineered for builders who demand maximum airflow, total flexibility, and a chassis that grows with their vision. Powered by the FreeForm 2.0 open-frame philosophy, it supports everything from Mini-ITX to E-ATX motherboards and gives you full access to modular design files — so your build is never finished, it's always evolving.
Whether you're pushing the limits of liquid cooling, housing a flagship GPU, or crafting a showpiece mod, the MasterFrame 500 Mesh delivers the space, airflow, and adaptability to make it happen.
Color Options
Silver
Pre-installed Fans:
ARGB: Front Dual SickleFlow 200 ARGB PWM + Rear 120mm ARGB PWM
Non-ARGB: Front Dual SickleFlow 200 PWM + Rear 120mm PWM
Dual 360mm Radiator support | Tempered Glass side panel | USB 3.1 Type-C
Black
Pre-installed Fans:
ARGB: Front Dual SickleFlow 200 ARGB PWM + Rear 120mm ARGB PWM
Non-ARGB: Front Dual SickleFlow 200 PWM + Rear 120mm PWM
Dual 360mm Radiator support | Tempered Glass side panel | USB 3.1 Type-C
Features
FreeForm 2.0
Exo-Structure Design
The exposed frame structure isn't just a style choice — it's a functional advantage. Swap panels, reconfigure layouts, and adapt the chassis to any build scenario with ease. Open-source design files mean your creativity is the only limit.
Versatile & Maker-Driven
Open-source design and interchangeable panels give you endless personalization possibilities. Make it yours — from a clean minimalist build to a full custom mod showpiece.
Universal Motherboard Support
From compact Mini-ITX to full-size E-ATX, the MasterFrame 500 Mesh accommodates virtually any motherboard form factor — giving you the freedom to build the system you want, not the one the case allows.
Extensive Cooling Support
House up to 8 fans and radiators up to 360mm on both the front and top. Whether you're running a custom loop or a high-static-pressure air setup, the MasterFrame 500 Mesh keeps your components cool under any load.
Included GPU Support Bracket
Say goodbye to GPU sag. The included support bracket keeps your graphics card perfectly level during the most intense gaming sessions and workloads — protecting your investment and keeping your build looking sharp.
Ample GPU Clearance
Up to 390mm of GPU clearance means even the most powerful graphics cards fit without compromise. No more choosing between performance and fit.
Tool-Free Panel Removal
Access your build in seconds. Side panels and key components remove without tools, making upgrades, cable management, and maintenance faster than ever.
MasterFrame Series
Specifications
Design & Dimensions
Model Number: Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB) | Silver: MF500M-SHNN-S01 (ARGB), MF500M-SHNN-S00 (Non-ARGB)
Color(s): Black / Silver
Materials - Exterior: SGCC Steel, Aluminum
Side Panels: Tempered Glass (Left & Right)
Dimensions (L x W x H): 471 x 261 x 544 mm (incl. protrusions) | 471 x 261 x 531 mm (excl. protrusions)
Volume: 60.9 L (excl. protrusions)
Form Factor: Mid Tower
Series: MasterFrame Series
Hardware Compatibility & Clearances
Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX*, SSI-CEB* (*Conditional Support)
Power Supply Support: ATX
PCI Expansion Slots: 8
CPU Cooler Clearance: 190mm
PSU Clearance: 235mm
GPU Clearance: 390mm
Cable Routing (Behind Tray): 43mm
Drive Bays & I/O Panel
2.5" / 3.5" Drive Bays: 1 (Bottom) — supports 1x 2.5" or 1x 3.5"
I/O Panel - USB: 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C
I/O Panel - Audio: 1x 3.5mm Headset Jack (Audio + Mic)
Pre-installed Fans
Pre-installed Fans - Front: ARGB: 2x SickleFlow 200mm ARGB | Non-ARGB: 2x SickleFlow 200mm
Pre-installed Fans - Rear: ARGB: 1x 120mm ARGB | Non-ARGB: 1x 120mm
Fan Support
Fan Support - Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Rear: 1x 120mm
Fan Support - Bottom: 1x 120mm
Radiator Support
Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm
Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear: 120mm
Filters, Accessories & Warranty
Dust Filters: Mesh (Removable)
Included Accessories: GPU Support Bracket
Warranty: 2 Years
Downloads
Product Sheet
Product Sheet - Japanese Edition
Manual
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Case Panel Natural
Inspired by the look and feel of natural eucalyptus wood, the Panel brings an organic warmth to the MasterFrame platform. With its soft tones and refined texture, it offers a seamless visual harmony for modern interiors.
Wood-Style Surface Texture
Wood-inspired grain adds visual warmth and character.
Modular Compatibility
Compatible with MasterFrame 600 / 600 Mesh / 500 Mesh. Supports top and front mounting (front only on MasterFrame 500 Mesh)MCA-MF600C-BPTPW
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Stone-Like Surface FinishTextured finish mimics the look and feel of real stone, adding rugged elegance.
Modular CompatibilityCompatible with MasterFrame 600 / 600 Mesh / 500 Mesh. Supports top and front mounting (front only on MasterFrame 500 Mesh)
Subtle Texture VariationsEach panel features naturally varied detailing for a more realistic look.
Visual Impact for Showcase BuildsIdeal for visual-centric setups and studio environments.
Engineered Airflow. Golden Expression.
MasterFrame 400 Mesh Gold Limited Edition
• Gold industrial-grade 3D mesh with a signature exoskeletal structure
• Compact Micro-ATX and Mini-ITX design
• Support for graphics cards up to 390 mm
• Advanced cooling configurations with up to nine fans
• Premium 30 mm-thick, all-metal 140 mm fan with gold blades
COMPACT FORM. UNCOMPROMISED POTENTIAL.
The MasterFrame 400 Mesh Gold brings the signature MasterFrame exoskeletal design into a compact, structured format built for Micro-ATX and Mini-ITX systems.
Based on Cooler Master's FreeForm 2.0 platform, the chassis combines flexible component positioning, dual-orientation support and high-performance hardware compatibility with a more accessible building experience. Its limited-edition gold finish transforms the case into a striking centerpiece without compromising airflow, cooling or expandability.
A SIGNATURE GOLD EXOSKELETON
A bold gold exoskeletal frame surrounds an industrial-grade 3D mesh front panel, creating a distinctive balance of structure, airflow and visual impact. Clean edges, curved corners and a tempered-glass side panel complete the premium minimalist aesthetic, allowing carefully selected components to remain at the center of the build.
PERFORMANCE IN A COMPACT FIT
The space-efficient chassis provides generous clearance for performance hardware, including graphics cards up to 390 mm long and CPU coolers up to 190 mm tall. Support for both ATX and SFX power supplies gives builders greater freedom when selecting components, while 43 mm of cable-routing space behind the motherboard tray helps keep the finished system clean and organized.
BUILT AROUND FREEFORM 2.0
Repositionable brackets and dual-orientation capabilities allow the internal layout to adapt to different component combinations and display preferences. Support for Mini-ITX and Micro-ATX motherboards, four expansion slots and an included graphics-card holder provides the foundation for a compact system without limiting upgrade potential.
COOLING WITHOUT COMPROMISE
The full mesh front panel promotes unrestricted ventilation, while extensive mounting options support up to nine fans throughout the chassis. A premium 140 mm all-metal rear fan comes pre-installed, featuring a substantial 30 mm thickness and gold blades for enhanced durability, dependable cooling and a cohesive limited-edition appearance. For liquid-cooling configurations, the top panel supports radiators up to 360 mm, with additional support for a 120 mm rear radiator.
Specifications
General
Product Name
MasterFrame 400 Mesh Gold
Product Series
MasterFrame Series
Product Number
MF400M-GGNN-S00
Materials
AL + SGCC + TG / Mesh
Dimensions
L x W x H (Incl. Protrusions)
471 x 261 x 373.8 mm
L x W x H (Excl. Protrusions)
471 x 261 x 361 mm
Volume (Incl. Protrusions)
46 L
Volume (Excl. Protrusions)
44 L
Hardware Support
Motherboard Support
Mini-ITX, Micro-ATX
PCI Expansion Slots
4
Drive Bay Support
5.25" ODD
N/A
3.5" HDD
1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
2.5" SSD
1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
I/O Panel
USB Ports
2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
Audio In / Out
1 x 3.5 mm Mic / Audio Combo Jack
Fan Support
Pre-installed — Rear
1 x 140 mm (adapter bracket pre-installed)
Front
2 x 120 mm / 1 x 140 mm* / 1 x 180 mm* / 1 x 200 mm* (*Conditional Support)
Top
3 x 120 mm / 2 x 140 mm / 2 x 180 mm* / 2 x 200 mm* (*Fan thickness <= 25.5 mm)
Rear
1 x 120 mm / 1 x 140 mm* (*Requires adapter bracket)
Bottom
3 x 120 mm / 2 x 140 mm / 2 x 180 mm / 2 x 200 mm (Fan thickness up to 30 mm)
Radiator Support
Front
N/A
Top
240 / 280 / 360 mm
Rear
120 mm
Bottom
N/A
Clearances
CPU Cooler
190 mm
Power Supply
160 mm
Graphics Card
390 mm
Cable Management
Behind MB Tray
43 mm
Other
Accessory
Graphics Card Holder
Dust Filters
Right, Bottom
Power Supply Support
ATX / SFX
Warranty
2 Years
Downloads
Product SheetDownload
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Cooler Master MegaFlow 200 Red LED Silent Fan is a 200mm case fan designed to deliver high airflow with minimal noise, making it a practical and versatile upgrade for any system with a 200mm fan mount. Originally featured in flagship Cooler Master cases such as the Cosmos II, Stryker and Trooper, this fan is compatible with any chassis that supports a 200mm opening, regardless of brand.
Running at 700 RPM with an airflow output of 110 CFM and a noise level of 19 dBA, it moves significantly more air than smaller fans while staying virtually silent during operation. The red LED adds a subtle accent lighting effect to complement any build aesthetic. The fan connects via a standard 3-pin connector and includes a 3-to-4-pin adapter for broader motherboard compatibility.
Model: R4-LUS-07AR-GP Fan Size: 200 x 200 x 30 mm Fan Speed: 700 RPM Airflow: 110 CFM Air Pressure: 0.595 mmH2O Noise Level: 19 dBA Power Consumption: 3.36W (0.16A at 12V) Connector: 3-pin (3-to-4-pin adapter included) LED Color: Red Bearing Type: Long Life Sleeve Bearing Life Expectancy: 30,000 hours Weight: 266g Warranty: 2 years
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Level Up With the Ultimate in Customization and Comfort
The Cooler Master MK770 Hybrid Wireless Keyboard is built for gamers who refuse to compromise. Its compact 98-key (ANSI) / 99-key (ISO) layout keeps everything you need within reach, while the updated hybrid wireless solution — featuring a new chip for faster 2.4GHz connectivity — ensures a lag-free experience whether you're deep in a raid or grinding ranked. Pair that with Kailh Box V2 mechanical switches, premium PBT double-shot keycaps, and a gasket-mounted structure, and you have a keyboard that feels as good as it performs.
Key Features
Hot-swappable Kailh Box V2 switches — factory-lubricated for a smooth, satisfying keystroke. Swap switches in seconds, no soldering required.
Gasket structure — absorbs vibration and reduces noise for a quieter, more comfortable typing experience.
Noise-absorbing design — silicone dampers and EVA foam dampen keystroke sounds further.
High-purity PBT double-shot keycaps — up to 85% PBT content for exceptional durability and legends that never fade.
16.7M RGB backlighting — per-key illumination with multiple lighting modes and effects, fully customizable via MasterPlus+ software.
3-way customizable wheel — tactile rotary control mappable to volume, media, or any macro you choose.
New CM stabilizers — factory-optimized and pre-lubricated for rattle-free, smooth keystrokes.
Hybrid wireless connectivity — Wired, 2.4GHz (1000Hz polling), and Bluetooth 5.1 (125Hz) in one keyboard. 4000mAh battery for extended sessions.
Broad OS compatibility — Windows 8+, macOS X 10.10+, Android, and iOS.
MasterPlus+ software — full control over lighting, macros, and the 3-way wheel.
Product Sheet: Product Sheet MK770.pdf
Specifications
Switch: Kailh Box V2
Keycaps: PBT Double-shot (US/TC) | ABS Paint & Laser-engraved (other layouts)
Layout: ANSI 98-key / ISO 99-key
Connectivity: Wired / 2.4GHz / Bluetooth 5.1
Polling Rate: 1000Hz (Wired/2.4G) | 125Hz (Bluetooth)
Battery: 4000mAh, USB Type-C wired charging
Onboard Memory: 128KB
Dimensions: 380.89 × 140.42 × 38.74mm (standard)
Weight: 1052g (without cable)
Cable: 1.8m detachable coiled USB Type-C braided cable
Colors: Macaron | Space Gray
Warranty: 2 years
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Open Box - Like New German LayoutCK720 65% Gaming Keyboard
The CK720 mechanical keyboard is our first foray into enthusiast keyboards, approachable for everyone without making compromises on quality.
Product NumberCK-720-GKKR1-DE
Keyboard Switch TypeKailh Box V2 Mechanical Switch
Keyboard KeycapsDE: PBT double-shot Keycaps, OEM Profile Other layouts: ABS Painting & Laser-engraved, OEM Profile
Keyboard MaterialAluminum, Plastic
Keyboard ColorSpace Gray, Silver White
Keyboard LED ColorRGB, 16.7 million colors
Keyboard Polling Rate1000Hz
Keyboard Response Time1ms
On-the-fly SystemYes
Keyboard Multimedia KeyThrough Function Key (FN)
ConnectivityWired with detachable cable
Compatible OSWindows 8+ / Mac OS X 10.10+
Software SupportCooler Master MasterPlus+
Keyboard Cable1.8m, USB Type-C to Type-A, Detachable & PVC
Keyboard Dimensions (L x W x H)Standard: 334 x 118 x 37 mm / 13.15 x 4.65 x 1.46 inches
Keyboard Dimensions (L x W x H)With 1st stage feet open: 334 x 118 x 43 mm / 13.15 x 4.65 x 1.69 inches
Keyboard Dimensions (L x W x H)With 2nd stage feet open: 334 x 118 x 46 mm / 13.15 x 4.65 x 1.81 inches
Keyboard Weight950g / 2.094 lbs (without Cable)
Warranty 1 year
ProductKeyboard
Keyboard TypeMechanical
Cooler Master CryoFuze 7 — Thermal Grease SeriesKeep your CPU or GPU running cool with the CryoFuze 7, a high-performance thermal paste engineered with nanoparticles for superior heat conductivity. Whether you're building a new rig or reapplying after a cooler swap, CryoFuze 7 delivers reliable, long-lasting thermal transfer with minimal fuss.Features
High Performance: Utilizes nanoparticles for superior heat conductivity for your CPU or GPU.
Non-Corrosive Formula: Non-corrosive and oxidation-resistant properties leave metal surfaces unharmed and does not solidify.
Easy Application: Viscously balanced formula allows for easy application and clean up.
Specifications
Color: Gray
Thermal Impedance (°C·cm²/W): 0.03
Specific Gravity (25°C): 2.7
Weight: 8g
Scraper: Included
Grease Cleaner: Included
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Cooler Master CryoFuze 7 — Thermal Grease Series
Keep your CPU or GPU running cool with the CryoFuze 7, Cooler Master's high-performance thermal paste engineered for enthusiasts and professionals alike. Featuring advanced nanoparticle technology, CryoFuze 7 delivers exceptional heat conductivity to maximize the performance of your cooling setup.
Key Features
High Performance: Utilizes nanoparticles for superior heat conductivity for your CPU or GPU.
Non-Corrosive Formula: Non-corrosive and oxidation-resistant properties leave metal surfaces unharmed and does not solidify.
Easy Application: Viscously balanced formula allows for easy application and clean up.
Specifications
Color: Gray
Thermal Impedance: 0.03 °C·CM²/W
Specific Gravity (25°C): 2.7
Weight: 20g
Scraper: Included
Grease Cleaner: Included
Part Number: MGZ-NDSG-720G-R1
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Gain superior control for MM720 mice with the anti-slip tape, regardless of how hard you grip it. Pre-cut design for easy installation and only 0.75mm thick. NOTE: Mouse not included
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
PCIE 4.0 COMPATIBLE
While providing twice the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backwards compatible with a maximum transfer rate of over 64Gb/s (bi-directional) and fully supports the 16GT/s bit rate of PCIe 4.0 devices.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
This controller allows you to cycle through lighting effects and colors with a button or using the reset button on your case. It's an economic way to add ARGB possibilities to your setup.
It can also be used in any system by connecting it via SATA power, making it a suitable solution for motherboards without ARGB support or for adding additional ARGB control.
This ARGB controller was originally included some Cooler Master cases. But it can be used in other systems.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
The Cooler Master Elite Fan 120mm ARGB is a compact, high-performance replacement fan designed for Cooler Master Elite 681 & Elite 490 cases. Featuring a reversed (anti-blade) configuration, this fan pushes airflow in the opposite direction — ideal for specific airflow setups or direct replacement in compatible Cooler Master products.
Size: 120 x 120 x 25mm (12025)
Blade type: Anti-blade (reversed airflow)
Color: Black
Connector: 3-pin
Voltage: 12V DC / 0.13A
Model: DF1202512CM
Certification: CE
Perfect as a spare part or upgrade for compatible Cooler Master chassis and cooling systems.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
The Cooler Master Elite Fan 120mm Reversed ARGB is a compact, high-performance replacement fan for Cooler Master Elite 681 & Elite 490 cases. Featuring a reversed (anti-blade) configuration, this fan pushes airflow in the opposite direction — ideal for specific airflow setups or direct replacement in compatible Cooler Master products.
Size: 120 x 120 x 25mm (12025)
Blade type: Anti-blade (reversed airflow)
Color: Black
Connector: 3-pin
Voltage: 12V DC / 0.13A
Model: DF1202512CM
Certification: CE
Perfect as a spare part or upgrade for compatible Cooler Master chassis and cooling systems.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MLX-D36M-A25PZ-R1MasterLiquid 360 Atmos – Refurbished Experience the pinnacle of liquid cooling without the flagship price tag. This refurbished MasterLiquid 360 Atmos has been meticulously inspected and tested to ensure it delivers the same exceptionally silent performance and thermal efficiency as a brand-new unit.
Refined Cooling: Features our signature dual-chamber pump, professionally serviced for optimal flow.
Silent Edge: Includes the original SickleFlow Edge fans, tested for bearing stability and peak RPM.
Eco-Conscious Value: By choosing refurbished, you’re doubling down on the Atmos’s eco-friendly mission by extending the life of world-class hardware.
Fully Customizable: The transparent pump top remains ready for your custom 3D-printed designs.
CPU Socket Compatibility:Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socketAMD® AM5 / AM4 Socket
Condition Note: Unit may show minor signs of previous installation (such as light markings on mounting brackets), but has been fully sanitized and thermal-tested.
1 Year Warranty.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Cooling That Stands OutMasterLiquid Core LCD 6” Series
Expansive 6-Inch TFT LCD
Thermal Excellence
Whisper-Quiet Power
MasterCTRL Ecosystem
Optimum Tubing Length
COOLING THAT STANDS OUTThe MasterLiquid Core LCD Series features a massive 6-inch display, transforming your pump into a high-definition command center. Engineered for creators, it offers an expansive canvas for telemetry or digital art. With precision ball-joint adjustment and MasterCtrl support, it ensures seamless synchronization and perfect viewing angles. It’s the ultimate visual centerpiece for your professional workstation.SEE MORE INSTANTLYKeep key system stats visible at a glance or personalize your build with custom visuals and digital artwork—all displayed on a vibrant 6-inch TFT LCD with crisp 960 × 480 resolution.POWERFUL COOLING, QUIET OPERATIONThe high-speed PWM pump operates at up to 3,200 RPM to maintain consistent coolant flow and efficient heat transfer, while producing just 25 dB(A) of noise under demanding loads.STAY COOL UNDER LOADStrong airflow and consistent static pressure push air efficiently through the radiator, accelerating heat dissipation for reliable cooling during gaming, rendering, and other demanding workloads.COOLER AND QUIETEROptimized fans and a low-noise pump deliver powerful cooling while keeping sound under control, so you can stay focused on your game, work, or content.CONTROL YOUR SETUPMasterCTRL brings your LCD content, ARGB lighting, and cooling profiles into one intuitive interface, making it easy to personalize your setup and fine-tune performance from one place.A CLEANER BUILDFlexible 400 mm tubing provides greater freedom for radiator placement and routing, helping simplify installation while keeping your system clean and organized.BUILT FOR LONG-TERM BUILDSEngineered for dependable, long-term cooling performance and backed by a 6-year warranty for added confidence in every build.Specifications - MasterLiquid Core LCD 6" 360 Black ARGB
Model Name
MasterLiquid Core LCD 6" 360 Black ARGB
Model Number
MLW-D36M-A24PA-L1
Exterior Color
Black
Intel CPU Socket
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket
AMD® AM5 / AM4 socket
Waterblock Dimensions
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions
394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
Radiator Material
Aluminum
Tube Length
400mm
Fan Dimensions
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles
Addressable RGB
Fan Quantity (pcs)
3 PCS
Fan Speed
0-2400 RPM ± 10%
Fan Air Flow (Max)
127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max)
3.63 mmH₂O
Fan MTTF
>200,000 hours
Fan Noise Level (Max)
30 dB(A)
Fan Bearing
LDB
Fan Connector
7-Pin PWM+ARGB
Fan Rated Voltage
12 VDC
Fan Rated Current
0.2 A
Fan Safety Current
0.4 A
Fan Power Consumption
2.4 W
Pump Profiles
Addressable RGB
Pump Speed
3200±10% RPM
Pump MTTF
> 35,0000 hours
Pump Noise Level (Max)
25 dB(A)
Pump Rated Voltage
12 VDC
Pump Power Consumption
7.2 W
Pump Connector
3-Pin ARGB + 4-Pin PWM
Display Type
TFT LCD
Display Area (Resolution)
6 inch (960*480)
Luminance
300 cd/m²
Display Rated Voltage
5 VDC
Display Rated Current
0.4 A
Display Safety Current
0.6 A
Display Power Consumption
3 W
Display Connector
USB 2.0 9PIN
Orientation
Software-MasterCTRL adjustable
Warranty
6 years
Specifications - MasterLiquid Core LCD 6" 360 White ARGB
Model Name
MasterLiquid Core LCD 6" 360 White ARGB
Model Number
MLW-D36M-A24PA-LW
Exterior Color
White
Intel CPU Socket
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket
AMD® AM5 / AM4 socket
Waterblock Dimensions
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions
394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
Radiator Material
Aluminum
Tube Length
400mm
Fan Dimensions
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles
Addressable RGB
Fan Quantity (pcs)
3 PCS
Fan Speed
0-2400 RPM ± 10%
Fan Air Flow (Max)
127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max)
3.63 mmH₂O
Fan MTTF
>200,000 hours
Fan Noise Level (Max)
30 dB(A)
Fan Bearing
LDB
Fan Connector
7-Pin PWM+ARGB
Fan Rated Voltage
12 VDC
Fan Rated Current
0.2 A
Fan Safety Current
0.4 A
Fan Power Consumption
2.4 W
Pump Profiles
Addressable RGB
Pump Speed
3200±10% RPM
Pump MTTF
> 35,0000 hours
Pump Noise Level (Max)
25 dB(A)
Pump Rated Voltage
12 VDC
Pump Power Consumption
7.2 W
Pump Connector
3-Pin ARGB + 4-Pin PWM
Display Type
TFT LCD
Display Area (Resolution)
6 inch (960*480)
Luminance
300 cd/m²
Display Rated Voltage
5 VDC
Display Rated Current
0.4 A
Display Safety Current
0.6 A
Display Power Consumption
3 W
Display Connector
USB 2.0 9PIN
Orientation
Software-MasterCTRL adjustable
Warranty
6 years
Specifications - MasterLiquid Core LCD 6" 240 Black ARGB
Model Name
MasterLiquid Core LCD 6" 240 Black ARGB
Model Number
MLW-D24M-A24PA-L1
Exterior Color
Black
Intel CPU Socket
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket
AMD® AM5 / AM4 socket
Waterblock Dimensions
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions
274 x 119.6 x 27.2 mm (10.8 x 4.7 x 1.1 inch)
Radiator Material
Aluminum
Tube Length
400mm
Fan Dimensions
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles
Addressable RGB
Fan Quantity (pcs)
3 PCS
Fan Speed
0-2400 RPM ± 10%
Fan Air Flow (Max)
127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max)
3.63 mmH₂O
Fan MTTF
>200,000 hours
Fan Noise Level (Max)
30 dB(A)
Fan Bearing
LDB
Fan Connector
7-Pin PWM+ARGB
Fan Rated Voltage
12 VDC
Fan Rated Current
0.2 A
Fan Safety Current
0.4 A
Fan Power Consumption
2.4 W
Pump Profiles
Addressable RGB
Pump Speed
3200±10% RPM
Pump MTTF
> 35,0000 hours
Pump Noise Level (Max)
25 dB(A)
Pump Rated Voltage
12 VDC
Pump Power Consumption
7.2 W
Pump Connector
3-Pin ARGB + 4-Pin PWM
Display Type
TFT LCD
Display Area (Resolution)
6 inch (960*480)
Luminance
300 cd/m²
Display Rated Voltage
5 VDC
Display Rated Current
0.4 A
Display Safety Current
0.6 A
Display Power Consumption
3 W
Display Connector
USB 2.0 9PIN
Orientation
Software-MasterCTRL adjustable
Warranty
6 years
Specifications - MasterLiquid Core LCD 6" 240 White ARGB
Model Name
MasterLiquid Core LCD 6" 240 White ARGB
Model Number
MLW-D24M-A24PA-LW
Exterior Color
White
Intel CPU Socket
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket
AMD® AM5 / AM4 socket
Waterblock Dimensions
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions
274 x 119.6 x 27.2 mm (10.8 x 4.7 x 1.1 inch)
Radiator Material
Aluminum
Tube Length
400mm
Fan Dimensions
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles
Addressable RGB
Fan Quantity (pcs)
3 PCS
Fan Speed
0-2400 RPM ± 10%
Fan Air Flow (Max)
127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max)
3.63 mmH₂O
Fan MTTF
>200,000 hours
Fan Noise Level (Max)
30 dB(A)
Fan Bearing
LDB
Fan Connector
7-Pin PWM+ARGB
Fan Rated Voltage
12 VDC
Fan Rated Current
0.2 A
Fan Safety Current
0.4 A
Fan Power Consumption
2.4 W
Pump Profiles
Addressable RGB
Pump Speed
3200±10% RPM
Pump MTTF
> 35,0000 hours
Pump Noise Level (Max)
25 dB(A)
Pump Rated Voltage
12 VDC
Pump Power Consumption
7.2 W
Pump Connector
3-Pin ARGB + 4-Pin PWM
Display Type
TFT LCD
Display Area (Resolution)
6 inch (960*480)
Luminance
300 cd/m²
Display Rated Voltage
5 VDC
Display Rated Current
0.4 A
Display Safety Current
0.6 A
Display Power Consumption
3 W
Display Connector
USB 2.0 9PIN
Orientation
Software-MasterCTRL adjustable
Warranty
6 years
