HAF II 500Cooler, Quieter, Stronger
Availability
The HAF II 500 is back for a second presale! Shipping from 18/11.
Following the incredible response to our first presale, we’re excited to announce that the second HAF II 500 presale is now live. Units are expected to become available from the 18th of November 2026, so secure yours while stocks last.
The HAF II 500 is also be available through authorised Cooler Master retail and distribution partners across Europe.
Industry-Leading Noise-Normalized Cooling Performance
More Balanced Intake–Exhaust Architecture
Split-Level Layout for Enhanced Airflow
MasterRail Multi-Purpose Mounting System
Supports Versatile GPU Configurations
THE NEXT AIRFLOW EVOLUTION
The HAF II 500 is the next evolution of Cooler Master's High Air Flow series, engineered to deliver industry-leading noise-normalized cooling performance. At the core of its design are some of the largest and thickest fans in the consumer market, paired with optimized airflow engineering to maximize cooling efficiency — enabling lower component temperatures at reduced system operating noise.
Combined with Cooler Master's FreeForm 2.0 philosophy, it gives builders flexible control over system design, fan layout, GPU configuration, and storage, unlocking maximum performance for enthusiasts and overclocking builds.
Cooler Performance Than Ever
Dual 220x40mm intake fans and a 180x40mm exhaust fan work together to maintain airflow balance, improving cooling efficiency beyond traditional airflow-focused chassis designs.
Built Beyond Gaming
Designed to support AI, rendering, simulation, and other GPU-compute-intensive workloads.
FLEXIBLE COOLING CONFIGURATION
From high-airflow builds to full custom liquid cooling, support for multiple fan and radiator configurations gives you the freedom to build the system you want.
* Maximum combined fan and radiator thickness: 58mm
** Maximum combined fan and radiator thickness: 72mm. Airflow divider must be removed.
Freedom to Configure
MasterRail enables flexible fan and radiator placement for custom setups and easy upgrades.
CLEAN, OPTIMIZED CABLE MANAGEMENT
Split-level cable routing, a sliding motherboard cover, and a dedicated cable chamber keep builds clean while optimizing airflow efficiency.
Ready for Next-Level Hardware
Supports extreme multi-GPU configurations for high-performance computing and intensive workloads.
Product Specifications
Product Sheet_HAF II 500_v8.pdf
Product Name
HAF II 500
Dimensions (L x W x H, incl. protrusions)
557 x 262 x 548 mm
Volume (incl. protrusions)
79.98 L
Motherboard Support
Mini-ITX, Mini-DTX, Micro-ATX, ATX, CEB (ATX-Compatible Standoff Pattern), E-ATX (ATX-Compatible Standoff Pattern; up to 310mm wide)
Material – Chassis
SGCC (0.7–0.8mm)
Material – Panel
ABS
Material – Side Panel
Tempered Glass (left) / SGCC (right)
Cable Routing Clearance
15–40mm
CPU Cooler Clearance
221mm (Intel) / 220mm (AMD)
PSU Clearance
150mm (N–S drive orientation) / 210mm (E–W drive orientation)
GPU Length Clearance
430mm (with Mighty40 F220 fans installed)
GPU Thickness Clearance
72mm/card (2 GPUs) / 40mm/card (4 GPUs)
Dust Filters
Top, Front, Bottom (PSU)
Expansion Slots
8
Drive Bays – 3.5" / 2.5"
3 / 6 (PSU ≤150mm) | 2 / 4 (150mm < PSU ≤210mm)
Pre-installed Drive Bays – 3.5" / 2.5"
3 / 6
Fan Support – Top
3x 120/140mm or 2x 160/180mm
Fan Support – Front
Default: 2x 220mm | With MasterRails: 3x 120/140mm or 2x 160/180mm
Fan Support – Rear
1x 180mm
Pre-installed Fans – Front
2x Mighty40 F220
Pre-installed Fans – Rear
1x Mighty40 V180
Fan Hub Ports
6x PWM, 6x ARGB
Fan Hub Total Power
54W
Radiator Support – Top
240 / 280 / 360-120 / 360-180mm (*Conditional)
Radiator Support – Front
With MasterRails: 240 / 280 / 360-120 / 360-180mm (**Conditional)
Radiator Support – Rear
180mm
I/O – USB
1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A
I/O – Audio
1x 3.5mm Headset Jack (Audio + Mic)
Warranty – Case
2 Years
Warranty – Fan
5 Years
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Build Without Limits
COSMOS series, hailed as the ultimate expression of PC case modularity, evolves into the "halo" platform for enthusiasts and modders. With its iconic design language and enhanced modular internals, COSMOS is engineered for boundary-pushers who want limitless control over layout, cooling, and customization.

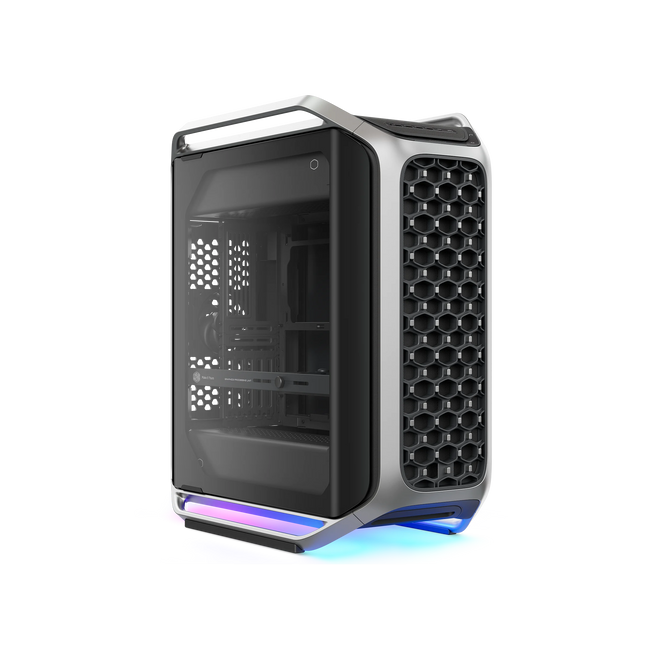

Brand new COSMOS ALPHA will serve as the aspirational apex of what FreeForm 2.0 stands for — freedom, scale, and personalization without compromise, making it an ALPHA case for all ALPHA builders.
COSMOS ALWAYS LEADING
Sliding Motherboard Tray
Sliding tray design to free up the space inside the case and enable seamless system reconfiguration between air and liquid cooling layouts. Builders can also fine-tune the distance between GPU and side panels with ease – whether to optimize airflow or highlight GPU upfront.
Sliding Adjustable Fan Bracket
Adjustable to accommodate case fans in different sizes, and the sliding design allows users to easily move the fans closer to heat spots for better airflow to cool down the system.
Maximized Compatibility & Space
Supports E-ATX/EEB motherboards, 400mm GPUs, and 240mm PSUs. Tool-free bays support up to 7 drives for effortless expansion. Provides builders with an uncompromised platform for wide-open FreeForm creation.
Product Sheet: Product Sheet_COSMOS ALPHA.pdf
Manual: Manual_COSMOS ALPHA.pdf
Specifications
Product Name
COSMOS ALPHA
Series
COSMOS Series
Color(s)
Black / Silver
Model Number
C700-KGNN-S00
Materials - Exterior
SGCC / Plastic
Materials - Side Panel (Left / Right)
Tempered Glass / Metal
Dimensions (L x W x H)
669 x 330 x 639 mm (Incl. Protrusions), 579 x 260 x 582 mm (Excl. Protrusions)
Weight
31 kg
Volume
88 L (no panel / protrusions / feet) / 140 L (with panel / protrusions / feet)
Motherboard Support
Mini-ITX / Micro-ATX / ATX / E-ATX / EEB
Power Supply Support
ATX
PCI Expansion Slots
8
Drive Bay Support - 2.5" / 3.5" Drive Bays
2 or 2 (CPU Cooler under 165 mm)
I/O Panel - USB Ports
4x USB 3.2 Gen 1 Type-A 5G, 2x USB 3.2 Gen 2x2 Type-C 20G
I/O Panel - Audio
1x 3.5mm Headset Jack (Audio+Mic)
Preinstalled Fans - Front
2x 200x38 mm (Non-ARGB)
Preinstalled Fans - Rear
1x Mobius 120x25 mm (Non-ARGB)
Fan Support - Front
3x 120mm / 3x 140mm / 2x 200mm
Fan Support - Top
3x 120mm / 2x 140mm / 2x 180mm / 2x 200mm
Fan Support - Rear
3x 120mm
Fan Support - Bottom
3x 120mm / 2x 140mm / 2x 180mm / 2x 200mm
Fan Support - Side Mount
3x 120mm / 3x 140mm / 2x 180mm / 2x 200mm
Radiator Support - Top
120 / 140 / 240 / 280 / 360 mm (max thickness 93mm)
Radiator Support - Bottom
120 / 140 / 240 / 280 / 360 mm (max thickness 93mm)
Radiator Support - Side Mount
120 / 140 / 240 / 280 / 360 / 420 / 3x360 mm (max thickness 80mm)
Dust Filters
Yes, Removable
CPU Cooler Clearance
186 mm
PSU Clearance
240 mm
GPU Clearance
400 mm
Cable Routing Behind Tray
53 mm
Included Accessories
VGA card holder, Decorative cover, Right side cable cover
Warranty
2 years
Size
Full Tower
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

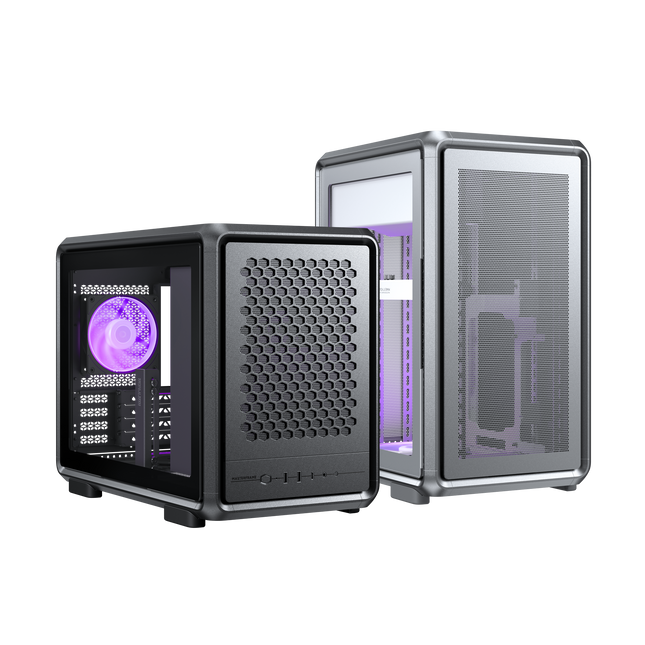

MasterFrame 400 Mesh
Compact Power, No Compromise.
The MasterFrame 400 Mesh is a premium open-frame compact chassis built for Micro-ATX and Mini-ITX platforms. Powered by the FreeForm 2.0 design philosophy, it combines a precision aluminum exo-structure, dual-orientation support, and high-airflow mesh panels — delivering serious performance in a compact footprint.
Color Options
Silver
Pre-installed Rear Fan1x SickleFlow 120mm ARGB White
Extensive fan supportUp to 9 fans, including 200mm options on front and bottom
Supports Mini-ITX and Micro-ATX motherboards
Radiator supportUp to 360mm at the top
Tempered glass side panel
USB 3.2 Gen 2x2 Type-C
Black
Pre-installed Rear Fan1x SickleFlow 120mm ARGB Black
Extensive fan supportUp to 9 fans, including 200mm options on front and bottom
Supports Mini-ITX and Micro-ATX motherboards
Radiator supportUp to 360mm at the top
Tempered glass side panel
USB 3.2 Gen 2x2 Type-C
Features
FreeForm 2.0 Exo-Structure
The exposed aluminum frame supports versatile positioning and adapts seamlessly to both vertical and horizontal layouts.
Dual-Orientation Ready
Stand it tall, lay it flat, or flip it sideways. Detachable feet and a smart, adaptable design make it easy to fit any workspace or creative setup.
*Vertical orientation may require additional accessories or adapters depending on component layout, connector clearance, or cable routing.
Compact Motherboard Compatibility
Supports Mini-ITX and Micro-ATX motherboards, delivering optimal compatibility for compact, high-performance builds without compromising cooling or component clearance.
Ample GPU Clearance
Accommodates graphics cards up to 390mm in length — full compatibility for high-end GPUs and future upgrades.
Extensive Cooling Support
Supports up to 9 fans, including 200mm fan compatibility, plus top-mounted 360mm radiators for superior airflow in a compact build.
*200mm fan support varies by location and fan thickness.
Tool-Free Panel Removal
Easily remove side panels without tools for quick access and modifications during build or upgrades.
Included GPU Support Bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Modern Front I/O
Stay connected and ready for anything — MasterFrame 400 Mesh features USB 3.2 Gen 2x2 Type-C, dual USB 3.2 Gen 1 Type-A, and a combo audio jack for ultra-fast data, charging, and seamless peripheral support.
ARGB Visual Power
Despite its compact size, the MasterFrame 400 Mesh comes alive with a pre-installed 120mm SickleFlow ARGB fan — quiet, powerful, and fully customizable.
Specifications
Design & Dimensions
Product Name: MasterFrame 400 Mesh
Model Number: Black: MF400M-KHNN-S00 | Silver: MF400M-SHNN-S00
Color(s): Black / Silver
Materials: Aluminum, SGCC Steel, Tempered Glass, Mesh
Dimensions (L x W x H): 471 x 261 x 373.8 mm (incl. protrusions) | 471 x 261 x 361 mm (excl. protrusions)
Volume: 44.37 L (excl. protrusions) | 46 L (incl. panel, protrusions & feet)
Form Factor: Mid Tower
Series: MasterFrame Series
Hardware Compatibility & Clearances
Motherboard Support: Mini-ITX, Micro-ATX
Power Supply Support: ATX
PCI Expansion Slots: 4
CPU Cooler Clearance: 190mm
PSU Clearance: 160mm
GPU Clearance: 390mm
Cable Routing (Behind Tray): 43mm
Drive Bays & I/O Panel
Drive Bays - 3.5" HDD: 1 (only without bottom fans; shares 2.5" mounting position)
Drive Bays - 2.5" SSD: 1 (only without bottom fans; shares 3.5" mounting position)
I/O Panel - USB: 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C
I/O Panel - Audio: 1x 3.5mm Mic/Audio Combo Jack
Fans & Cooling
Pre-installed Fans - Rear: Black: 1x SickleFlow 120mm ARGB Black | Silver: 1x SickleFlow 120mm ARGB White
Fan Support - Front: 2x 120mm, 1x 140mm*, 1x 180mm*, 1x 200mm* (*Conditional)
Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm*, 2x 200mm* (*Fan thickness ≤25.5mm)
Fan Support - Rear: 1x 120mm
Fan Support - Bottom: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm (up to 30mm thick)
Radiator Support - Top: 240 / 280 / 360mm
Radiator Support - Rear: 120mm
Accessories, Filters & Warranty
Included Accessories: GPU Support Bracket
Dust Filters: Front, Side
Warranty: 2 Years
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

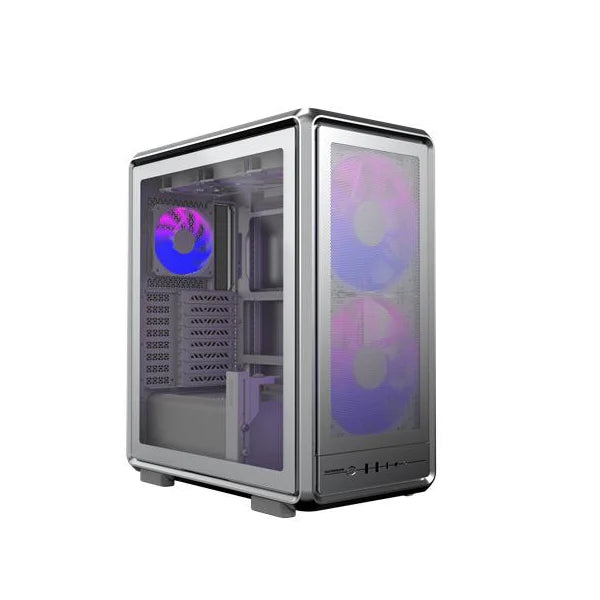

MasterFrame 500 Mesh
Premium Modular ATX Mid-Tower Case
Build without limits. The MasterFrame 500 Mesh is engineered for builders who demand maximum airflow, total flexibility, and a chassis that grows with their vision. Powered by the FreeForm 2.0 open-frame philosophy, it supports everything from Mini-ITX to E-ATX motherboards and gives you full access to modular design files — so your build is never finished, it's always evolving.
Whether you're pushing the limits of liquid cooling, housing a flagship GPU, or crafting a showpiece mod, the MasterFrame 500 Mesh delivers the space, airflow, and adaptability to make it happen.
Color Options
Silver
Pre-installed Fans:
ARGB: Front Dual SickleFlow 200 ARGB PWM + Rear 120mm ARGB PWM
Non-ARGB: Front Dual SickleFlow 200 PWM + Rear 120mm PWM
Dual 360mm Radiator support | Tempered Glass side panel | USB 3.1 Type-C
Black
Pre-installed Fans:
ARGB: Front Dual SickleFlow 200 ARGB PWM + Rear 120mm ARGB PWM
Non-ARGB: Front Dual SickleFlow 200 PWM + Rear 120mm PWM
Dual 360mm Radiator support | Tempered Glass side panel | USB 3.1 Type-C
Features
FreeForm 2.0
Exo-Structure Design
The exposed frame structure isn't just a style choice — it's a functional advantage. Swap panels, reconfigure layouts, and adapt the chassis to any build scenario with ease. Open-source design files mean your creativity is the only limit.
Versatile & Maker-Driven
Open-source design and interchangeable panels give you endless personalization possibilities. Make it yours — from a clean minimalist build to a full custom mod showpiece.
Universal Motherboard Support
From compact Mini-ITX to full-size E-ATX, the MasterFrame 500 Mesh accommodates virtually any motherboard form factor — giving you the freedom to build the system you want, not the one the case allows.
Extensive Cooling Support
House up to 8 fans and radiators up to 360mm on both the front and top. Whether you're running a custom loop or a high-static-pressure air setup, the MasterFrame 500 Mesh keeps your components cool under any load.
Included GPU Support Bracket
Say goodbye to GPU sag. The included support bracket keeps your graphics card perfectly level during the most intense gaming sessions and workloads — protecting your investment and keeping your build looking sharp.
Ample GPU Clearance
Up to 390mm of GPU clearance means even the most powerful graphics cards fit without compromise. No more choosing between performance and fit.
Tool-Free Panel Removal
Access your build in seconds. Side panels and key components remove without tools, making upgrades, cable management, and maintenance faster than ever.
MasterFrame Series
Specifications
Design & Dimensions
Model Number: Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB) | Silver: MF500M-SHNN-S01 (ARGB), MF500M-SHNN-S00 (Non-ARGB)
Color(s): Black / Silver
Materials - Exterior: SGCC Steel, Aluminum
Side Panels: Tempered Glass (Left & Right)
Dimensions (L x W x H): 471 x 261 x 544 mm (incl. protrusions) | 471 x 261 x 531 mm (excl. protrusions)
Volume: 60.9 L (excl. protrusions)
Form Factor: Mid Tower
Series: MasterFrame Series
Hardware Compatibility & Clearances
Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX*, SSI-CEB* (*Conditional Support)
Power Supply Support: ATX
PCI Expansion Slots: 8
CPU Cooler Clearance: 190mm
PSU Clearance: 235mm
GPU Clearance: 390mm
Cable Routing (Behind Tray): 43mm
Drive Bays & I/O Panel
2.5" / 3.5" Drive Bays: 1 (Bottom) — supports 1x 2.5" or 1x 3.5"
I/O Panel - USB: 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C
I/O Panel - Audio: 1x 3.5mm Headset Jack (Audio + Mic)
Pre-installed Fans
Pre-installed Fans - Front: ARGB: 2x SickleFlow 200mm ARGB | Non-ARGB: 2x SickleFlow 200mm
Pre-installed Fans - Rear: ARGB: 1x 120mm ARGB | Non-ARGB: 1x 120mm
Fan Support
Fan Support - Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Rear: 1x 120mm
Fan Support - Bottom: 1x 120mm
Radiator Support
Radiator Support - Front: 120 / 140 / 240 / 280 / 360mm
Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear: 120mm
Filters, Accessories & Warranty
Dust Filters: Mesh (Removable)
Included Accessories: GPU Support Bracket
Warranty: 2 Years
Downloads
Product Sheet
Product Sheet - Japanese Edition
Manual
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFrame 600
Premium open-frame ATX case
Built for builders who refuse to compromise. The MasterFrame 600 is an open-frame mid-tower chassis engineered for extreme cooling, high-performance hardware, and limitless customization — powered by the FreeForm 2.0 platform.
With support for Mini-ITX to E-ATX motherboards, up to eleven fans, triple 420mm radiator capacity, and 485mm GPU clearance, the MasterFrame 600 is ready for the most demanding builds. Open-source modular design files let you reshape, extend, and personalize your chassis — your build, your rules.
Tool-Free Panel Removal
Pop off side panels and components in seconds — no tools, no hassle. Perfect for quick upgrades, cable management, or showing off your build.
Included GPU Support Bracket
Keep your GPU locked in place and looking pristine. The included support bracket eliminates sag under heavy cards, protecting your investment during intense workloads and long gaming sessions.
Specifications
Design & Dimensions
Model Number: Black: MF600-KGNN-S00, Silver: MF600-SGNN-S00
Color(s): Black / Silver
Materials - Exterior: SGCC Steel, Aluminum
Materials - Side panel (Right / Left): Tempered Glass / Aluminum
Dimensions (L x W x H): 531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions)
Volume: 73.6 L (Liters Incl. Protrusions)
Size: Mid Tower
Series: MasterFrame Series
Hardware Compatibility & Clearances
Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)
Power Supply Support: ATX
PCI Expansion Slots: 8
Clearance - CPU Cooler: 190 mm
Clearance - PSU: 235 mm
Clearance - Graphics Card: L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)
Cable Routing - Behind Motherboard Tray: 43 mm
Drive Bays & I/O Panel
5.25" Drive Bays: 0
3.5" Drive Bays: 0
2.5" / 3.5" Drive Bays (Combo): 2
2.5" Drive Bays: 3
I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans
Pre-installed Fans - Front: Mobius 140 mm x 3 (non-ARGB) - Available for Black Model Only, SickleFlow ARGB 140 mm x 3 - Available for Silver Model Only
Pre-installed Fans - Top: N/A
Pre-installed Fans - Rear: Mobius 120 mm x 1 (non-ARGB) - Available for Black Model Only, SickleFlow ARGB 120 mm x 1 - Available for Silver Model Only
Fan Support
Fan Support - Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm
Fan Support - Rear: 1x 120mm
Fan Support - Side: 3x 120mm, 3x 140mm
Radiator Support
Radiator Support - Front: 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm)
Radiator Support - Top: 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel)
Radiator Support - Rear: 120 mm
Radiator Support - Side: 240 / 280 / 360 / 420 mm
Filters, Accessories & Warranty
Dust Filters: Top, Front, Bottom, Right side panel
Included Accessories: GPU Support Bracket (Available for Black Model Only), GPU Support Bracket / ARGB PWM Hub (Available for Silver Model Only)
Warranty: 2 years
Downloads
Product Sheet - MasterFrame 600 - English Edition
Manual - MasterFrame 600
Engineered Airflow. Golden Expression.

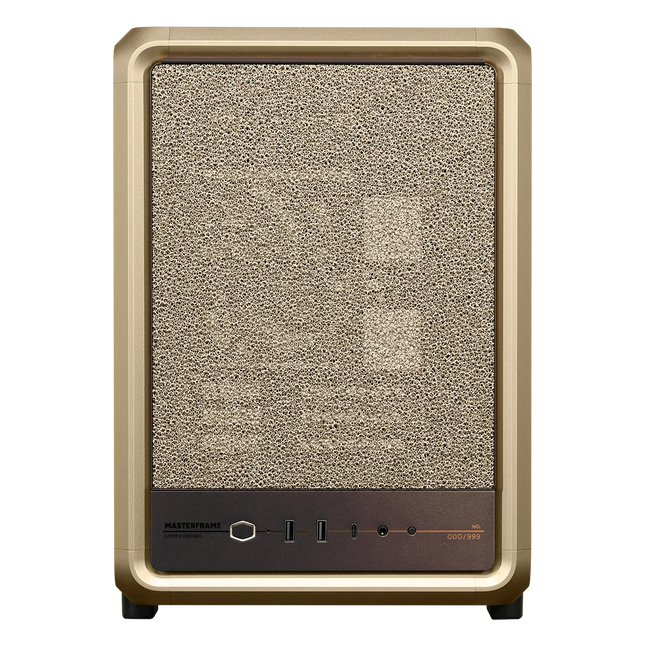

MasterFrame 400 Mesh Gold Limited Edition
• Gold industrial-grade 3D mesh with a signature exoskeletal structure
• Compact Micro-ATX and Mini-ITX design
• Support for graphics cards up to 390 mm
• Advanced cooling configurations with up to nine fans
• Premium 30 mm-thick, all-metal 140 mm fan with gold blades
COMPACT FORM. UNCOMPROMISED POTENTIAL.
The MasterFrame 400 Mesh Gold brings the signature MasterFrame exoskeletal design into a compact, structured format built for Micro-ATX and Mini-ITX systems.
Based on Cooler Master's FreeForm 2.0 platform, the chassis combines flexible component positioning, dual-orientation support and high-performance hardware compatibility with a more accessible building experience. Its limited-edition gold finish transforms the case into a striking centerpiece without compromising airflow, cooling or expandability.
A SIGNATURE GOLD EXOSKELETON
A bold gold exoskeletal frame surrounds an industrial-grade 3D mesh front panel, creating a distinctive balance of structure, airflow and visual impact. Clean edges, curved corners and a tempered-glass side panel complete the premium minimalist aesthetic, allowing carefully selected components to remain at the center of the build.
PERFORMANCE IN A COMPACT FIT
The space-efficient chassis provides generous clearance for performance hardware, including graphics cards up to 390 mm long and CPU coolers up to 190 mm tall. Support for both ATX and SFX power supplies gives builders greater freedom when selecting components, while 43 mm of cable-routing space behind the motherboard tray helps keep the finished system clean and organized.
BUILT AROUND FREEFORM 2.0
Repositionable brackets and dual-orientation capabilities allow the internal layout to adapt to different component combinations and display preferences. Support for Mini-ITX and Micro-ATX motherboards, four expansion slots and an included graphics-card holder provides the foundation for a compact system without limiting upgrade potential.
COOLING WITHOUT COMPROMISE
The full mesh front panel promotes unrestricted ventilation, while extensive mounting options support up to nine fans throughout the chassis. A premium 140 mm all-metal rear fan comes pre-installed, featuring a substantial 30 mm thickness and gold blades for enhanced durability, dependable cooling and a cohesive limited-edition appearance. For liquid-cooling configurations, the top panel supports radiators up to 360 mm, with additional support for a 120 mm rear radiator.
Specifications
General
Product Name
MasterFrame 400 Mesh Gold
Product Series
MasterFrame Series
Product Number
MF400M-GGNN-S00
Materials
AL + SGCC + TG / Mesh
Dimensions
L x W x H (Incl. Protrusions)
471 x 261 x 373.8 mm
L x W x H (Excl. Protrusions)
471 x 261 x 361 mm
Volume (Incl. Protrusions)
46 L
Volume (Excl. Protrusions)
44 L
Hardware Support
Motherboard Support
Mini-ITX, Micro-ATX
PCI Expansion Slots
4
Drive Bay Support
5.25" ODD
N/A
3.5" HDD
1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
2.5" SSD
1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
I/O Panel
USB Ports
2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
Audio In / Out
1 x 3.5 mm Mic / Audio Combo Jack
Fan Support
Pre-installed — Rear
1 x 140 mm (adapter bracket pre-installed)
Front
2 x 120 mm / 1 x 140 mm* / 1 x 180 mm* / 1 x 200 mm* (*Conditional Support)
Top
3 x 120 mm / 2 x 140 mm / 2 x 180 mm* / 2 x 200 mm* (*Fan thickness <= 25.5 mm)
Rear
1 x 120 mm / 1 x 140 mm* (*Requires adapter bracket)
Bottom
3 x 120 mm / 2 x 140 mm / 2 x 180 mm / 2 x 200 mm (Fan thickness up to 30 mm)
Radiator Support
Front
N/A
Top
240 / 280 / 360 mm
Rear
120 mm
Bottom
N/A
Clearances
CPU Cooler
190 mm
Power Supply
160 mm
Graphics Card
390 mm
Cable Management
Behind MB Tray
43 mm
Other
Accessory
Graphics Card Holder
Dust Filters
Right, Bottom
Power Supply Support
ATX / SFX
Warranty
2 Years
Downloads
Product SheetDownload
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Powerfully Compact and Cool

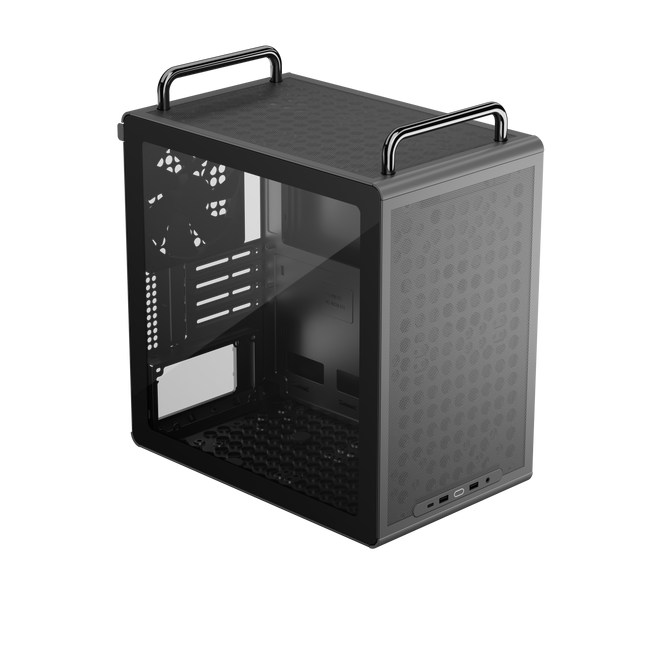

The QUBE 340 is a compact Micro-ATX PC case designed for serious performance. Engineered with Cooler Master’s Thermal Excellence, it maximizes airflow to keep your system cool and stable - even with high-TDP components. Designed to accommodate longer GPUs and taller air coolers, it provides rigidity and efficient layouts with optimized airflow.
Its modular design offers repositionable I/O panels, vertical or horizontal orientation, and support for accessories like handles and 3D-printable components. Ideal for DIY builders and system integrators, the QUBE 340 / Q300L V3 provides a smooth, straightforward building experience while allowing you to personalize both aesthetics and functionality.
Key Features
High Airflow Cooling — High-airflow front panel with support for multiple fans and radiators
Optimum Clearance Design — Up to 366 mm GPU clearance and 178 mm CPU cooler clearance
Adjustable I/O Panel — Position on top or bottom to suit your workspace
Flexible Orientations — Use vertically or horizontally to fit any setup
QUBE Ecosystem Support — Compatible with handles, headphone hook, and 3D-printable accessories
Mini-ITX & Micro-ATX Support — Accommodates a wide range of compact builds
Specifications
Materials: SGCC + TG / Mesh
Dimensions (Incl. Protrusions): 386.1 × 230 × 429.4 mm | 38.13 L
Dimensions (Excl. Protrusions): 374 × 230 × 374 mm | 32.17 L
Motherboard Support: Mini-ITX, Micro-ATX
CPU Cooler Clearance: 178 mm
GPU Clearance: 366 mm (without front fan)
PSU Clearance: 200 mm (no bottom fan) / 140 mm (with bottom fan)
Expansion Slots: 4
Drive Bays: 1× 3.5", 1× 3.5"/2.5" Combo, 2× 2.5" (max 4)
Fan Support: Top: 2× 120/140 mm | Front: 2× 120/140 mm | Rear: 1× 120/140 mm | Bottom: 1× 120/140 mm
Pre-installed Fan: 1× 140 mm non-ARGB (Rear)
Radiator Support: Top/Front: 240/120 mm | Rear: 120 mm
I/O Panel: 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen 2×2 Type-C, 1× 3.5 mm Audio Combo
Cable Routing: 30 mm behind MB tray
PSU Support: ATX
Dust Filters: Top / Front / Bottom
Colors: Black (Q340-KGNN-S00) / White (Q340-WGNN-S00)
Included Accessories: Filter (with Perforations), Headphone Holder
Warranty: 2 Years
Product: Product Sheet
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Compact Performance, Streamlined Design

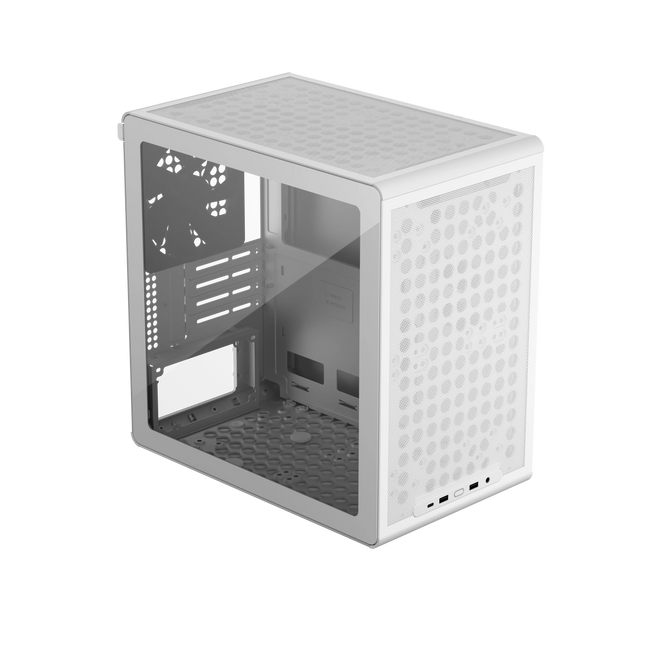

The Q300L V3 is a compact Micro-ATX PC case designed for serious performance. Engineered with Cooler Master’s Thermal Excellence, it maximizes airflow to keep your system cool and stable - even with high-TDP components. Designed to accommodate longer GPUs and taller air coolers, it provides rigidity and efficient layouts with optimized airflow.
Its modular design offers repositionable I/O panels, vertical or horizontal orientation, and support for accessories like handles and 3D-printable components. Ideal for DIY builders and system integrators, the Q300L V3 provides a smooth, straightforward building experience while allowing you to personalize both aesthetics and functionality.
Key Features
High Airflow Cooling — High-airflow front panel with support for multiple fans and radiators
Optimum Clearance Design — Up to 366 mm GPU clearance and 178 mm CPU cooler clearance
Adjustable I/O Panel — Position on front panel top or bottom, or top panel front
Flexible Orientations — Use vertically or horizontally to fit any setup
Mini-ITX & Micro-ATX Support — Accommodates a wide range of compact builds
Specifications
Materials: SGCC + TG / Mesh
Dimensions (Incl. Protrusions): 386.1 × 230 × 388.5 mm | 34.5 L
Dimensions (Excl. Protrusions): 374 × 230 × 374 mm | 32.17 L
Motherboard Support: Mini-ITX, Micro-ATX
CPU Cooler Clearance: 178 mm
GPU Clearance: 366 mm (without front fan)
PSU Clearance: 200 mm (no bottom fan) / 140 mm (with bottom fan)
Expansion Slots: 4
Drive Bays: 1× 3.5", 1× 3.5"/2.5" Combo, 2× 2.5" (max 4)
Fan Support: Top: 2× 120/140 mm | Front: 2× 120/140 mm | Rear: 1× 120/140 mm | Bottom: 1× 120/140 mm
Pre-installed Fan: 1× 140 mm non-ARGB (Rear)
Radiator Support: Top/Front: 240/120 mm | Rear: 120 mm
I/O Panel: 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen 2×2 Type-C, 1× 3.5 mm Audio Combo
I/O Panel Placement: Front Panel (Top/Bottom), Top Panel (Front)
Cable Routing: 30 mm behind MB tray
PSU Support: ATX
Dust Filters: Top / Front / Bottom
Colors: Black (Q300LV3-KGNN-S00) / White (Q300LV3-WGNN-S00)
Handles: No
QUBE Ecosystem Support: No
Included Accessories: None
Warranty: 2 Years
Product Sheet: Product Sheet
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Choose Your Style
High Flexibility for System Building
Minimized Dimension with ATX PSU Support
Patterned Dust Filter
Clean Routing Space
Excellent Thermal Performance
Edge-to-Edge Acrylic Transparent Side Panel
Vertical and Horizontal position
Patterned Magnetic DustfiltersSpecial pattern on the dust filter creates a unique outlook for the chassis.Modular I/O PanelThe I/O panel can be adjusted to six different locations. On both side of the body you can install the I/O panel at the front, top or bottom.Edge-To-Edge Side PanelShow off your build through the full size transparent side panel.Multiple Positioning OptionsThe case can be put in vertical or horizontal position.Excellent Thermal PerformanceThe open design of the perforated front, top and bottom guarantees excellent thermal performanceClean Routing SpaceBehind the motherboard tray, 28mm of space is offered for cable management.Fan and Radiator SupportThe front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance.Main Components ClearanceThe MasterBox Q300L case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.Specifications
Model Number
MCB-Q300L-KANN-S00
Color(s)
Black
Materials
Steel, Plastic
Dimensions (L x W x H)
387 x 230 x 381mm
Motherboard Support
Mini-ITX, Micro-ATX
Expansion Slots
4
5.25" Drive Bays
0
3.5" Drive Bays
1
2.5" Drive Bays
2
I/O Panel - USB Ports
2x USB 3.0
I/O Panel - Audio In / Out
1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
Pre-installed Fans - Rear
1x 120mm
Fan Support - Front
2x 120/140mm
Fan Support - Top
2x 120mm
Fan Support - Rear
1x 120mm
Fan Support - Bottom
1x 120mm
Radiator Support - Front
120 / 240mm
Radiator Support - Front
120mm
Radiator Support - Rear
120mm
Clearance - CPU Cooler
159mm
Clearance - PSU
160mm
Clearance - GFX
360mm
Dust Filters
Bottom
Power Supply Support
Bottom Mount, ATX PS2
Warranty
2 years
Size
Mini Tower
Series
MasterBox Series
Compact Case, Unlimited Creativity

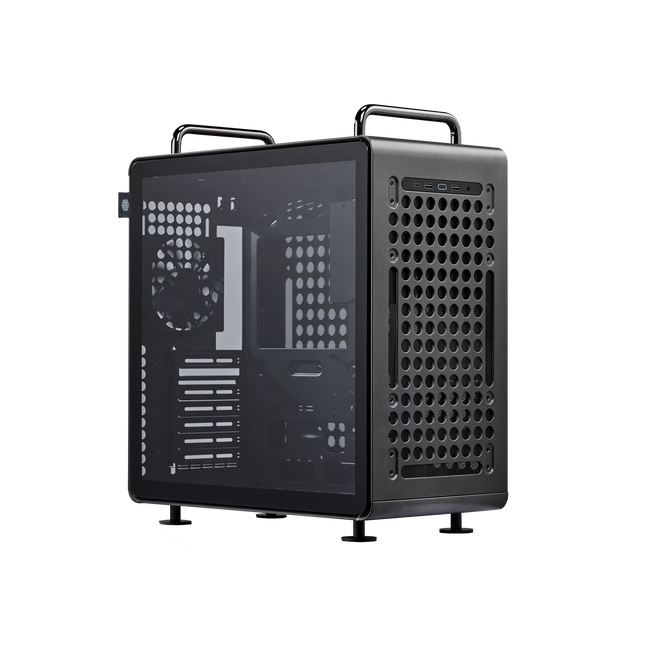

QUBE 540
Designed for creators, gamers, and DIY builders.
Compact Yet Capable
Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components.
Flexible Orientation Design
Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it.
Create Your Own Layout
A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way.
Repositionable I/O Panel and Movable Handles
Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them.
Versatile Modular Layout
Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts.
Vertical GPU Ready
Supports vertical GPU installation to highlight premium graphics and aesthetics.
ACCESSORY ECOSYSTEM
The Qube 540 comes with a living accessory ecosystem as we have prepared 3D-printable files for you to create your own accessories.
Cooler Master: FreeForm Playground
We’re teaming up with Printables to challenge makers worldwide. Take our modular hardware and make your own Qube 540!
Specifications
Product NameQUBE 540
Model NumberStardust Iron: Q540-MGNN-S00
Model NumberMoonstone: Q540-LGNN-S00
Color(s)Stardust Iron / Moonstone
Materials - ExteriorSteel
Material - Side Panel (Right)Steel
Material - Side Panel (Left)TG
Dimensions (L x W x H)Incl. Protrusions: 438.5 x 225 x 492.1 mm
Dimensions (L x W x H)Excl. Protrusions: 425 x 225 x 425 mm
Volume (w/o protrusions)40.64 L
Volume (with panel, protrusions and feet)48.55 L
Motherboard SupportITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
Expansion Slots7
Drive Bays - 5.25" ODDN/A
Drive Bays - 3.5" HDD1 (Shared 3.5" and 2.5" mounting on PSU bracket)
Drive Bays - 2.5" SSD2 (Max. 5)
I/O Panel - USB Ports2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out1 x 3.5 Mic / Audio Combo Jack
Fan Support - Front3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support - Top3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support - Rear1x 120mm
Fan Support - Bottom3 x 120 mm / 2 x 140 mm
Preinstalled Fan(s) - FrontN/A
Preinstalled Fan(s) - TopN/A
Pre-installed Fans - Rear1x 120mm Black Fan
Radiator Support - Front140 / 280 / 360 mm (w/o I/O panel)
Radiator Support - Top140 / 280 / 360 mm (w/o I/O panel)
Radiator Support - Rear120 mm
Radiator Support - Bottom140 / 280 / 360mm (w/o I/O panel)
Clearances - CPU Cooler172 mm
Clearances - Power Supply200 mm
Clearances - Graphics Card415 mm (w/o Front Fan)
Cable Routing - Behind Motherboard Tray27 mm
Dust FiltersTop / Bottom / Front
Power Supply SupportATX / SFX
Warranty2 years
Note-
SeriesQUBE Series
SizeMid Tower
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFrame 360 Series
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.
The PC is no longer just a machine — it’s a statement.
Massive Cooling Compatibility
Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
ENCLOSED & OPEN
ENCLOSED DESIGN
Features a three-sided tempered glass panoramic structure that provides excellent visual transparency, allowing a full view of the internal setup. Compared with the Stage’s open design, its full-cover glass enclosure not only enhances the display effect (for figures, models, or water-cooling systems) but also offers dust and touch protection. It’s a practical design that balances aesthetic presentation and functional protection.
OPEN DESIGN
Features an open layout that’s ideal for displaying articulated figures that are frequently handled or posed. It’s also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.
MIRROR & LCD
MIRROR
Perfectly showcases the rear details of the display item, providing a complete 360-degree viewing experience while creating an extended sense of spatial depth.
LCD
By using a 15.6-inch LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage — the perfect choice for those who seek highly personalized and creative presentations.
MasterFrame 360 Stage LCD - LCD Screen User Manual
PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.
Specifications

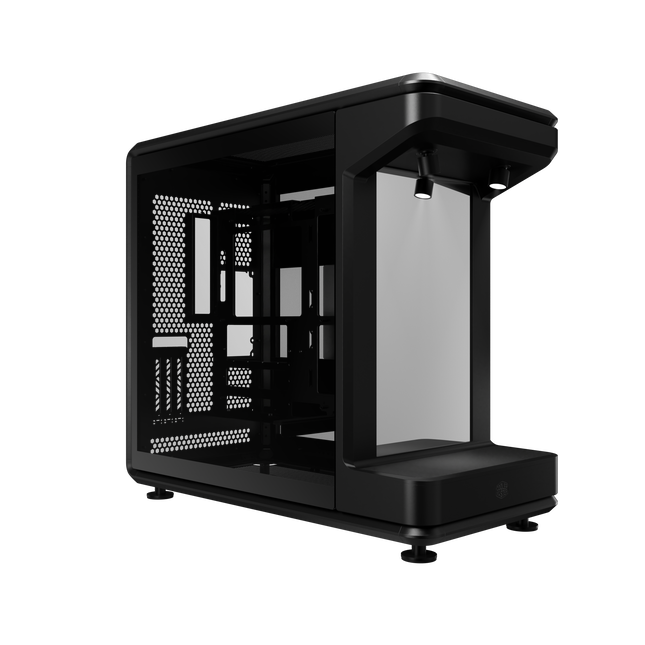

Product Name: MASTERFRAME 360 STAGE MIRROR
Model Number: MASTERFRAME 360 STAGE MIRROR: MF360-KHNN-S01
Color(s): Black
Materials: Exterior SGCC
Materials: Side panel (Right / Left) TG / TG
Dimensions: (L x W x H) 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
Volume: 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)
Power Supply Support: ATX
PCI Expansion Slots 3.5
Drive bay support: 3.5" Drive Bays0
Drive bay support: 2.5" / 3.5" Drive Bays (or SSD)1x HDD or 2x SSD
Preinstalled Drive bay: 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity) 1x HDD or 2x SSD
I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G
I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
Fan Support - Top 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Bottom 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Dust Filters Mesh Only (Removable Filters)
Other electronic components1x PCI-e 5.0 Riser / 2x ARGB spotlight
Maximum Dimensions for Front Collectibles Display (H x W x D)328 x 290 x 110 mm
DIY tank & Pump support: MASTERFRAME 360 STAGE MIRROR: Yes (Left side)
Toolbox: Yes
Clearances - CPU Cooler 145 mm
Clearances - Power Supply 210 mm
Clearances - Graphics Card 430 mm
Cable Routing - Behind Motherboard Tray 110 mm
Warranty: 2 years
Size: Mid Tower
Series: MasterFrame Series
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFrame 360 Series
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.
The PC is no longer just a machine — it’s a statement.
Massive Cooling Compatibility
Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
ENCLOSED & OPEN
ENCLOSED DESIGN
Features a three-sided tempered glass panoramic structure that provides excellent visual transparency, allowing a full view of the internal setup. Compared with the Stage’s open design, its full-cover glass enclosure not only enhances the display effect (for figures, models, or water-cooling systems) but also offers dust and touch protection. It’s a practical design that balances aesthetic presentation and functional protection.
OPEN DESIGN
Features an open layout that’s ideal for displaying articulated figures that are frequently handled or posed. It’s also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.
MIRROR & LCD
MIRROR
Perfectly showcases the rear details of the display item, providing a complete 360-degree viewing experience while creating an extended sense of spatial depth.
LCD
By using a 15.6-inch LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage — the perfect choice for those who seek highly personalized and creative presentations.
MasterFrame 360 Stage LCD - LCD Screen User Manual
PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.
Specifications
Product Name: MASTERFRAME 360 PANORAMA
Model Number: MASTERFRAME 360 PANORAMA: MF360-KINN-S00
Color(s): Black
Materials: ExteriorSGCC
Materials: Side panel (Right / Left) TG / TG
Dimensions: (L x W x H) 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
Volume: 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)
Power Supply Support: ATX
PCI Expansion Slots 3.5
Drive bay support: 3.5" Drive Bays0
Drive bay support: 2.5" / 3.5" Drive Bays (or SSD)1x HDD or 2x SSD
Preinstalled Drive bay: 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity) 1x HDD or 2x SSD
I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G
I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
Fan Support - Top 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Bottom 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Dust Filters Mesh Only (Removable Filters)
Other electronic components1x PCI-e 5.0 Riser / 2x ARGB spotlight
Maximum Dimensions for Front Collectibles Display (H x W x D)328 x 290 x 110 mm
DIY tank & Pump support MASTERFRAME 360 PANORAMA: Yes (with right side tank & pump bracket)
Clearances - CPU Cooler 145 mm
Clearances - Power Supply 210 mm
Clearances - Graphics Card 430 mm
Cable Routing - Behind Motherboard Tray 110 mm
Warranty: 2 years
Size: Mid Tower
Series: MasterFrame Series
MasterFrame 360 Series
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.
The PC is no longer just a machine — it’s a statement.
Massive Cooling Compatibility
Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
ENCLOSED & OPEN
ENCLOSED DESIGN
Features a three-sided tempered glass panoramic structure that provides excellent visual transparency, allowing a full view of the internal setup. Compared with the Stage’s open design, its full-cover glass enclosure not only enhances the display effect (for figures, models, or water-cooling systems) but also offers dust and touch protection. It’s a practical design that balances aesthetic presentation and functional protection.
OPEN DESIGN
Features an open layout that’s ideal for displaying articulated figures that are frequently handled or posed. It’s also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.
MIRROR & LCD
MIRROR
Perfectly showcases the rear details of the display item, providing a complete 360-degree viewing experience while creating an extended sense of spatial depth.
LCD
By using a 15.6-inch LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage — the perfect choice for those who seek highly personalized and creative presentations.
MasterFrame 360 Stage LCD - LCD Screen User Manual
PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.
Specifications
Product Name: MASTERFRAME 360 STAGE LCD
Model Number: MASTERFRAME 360 STAGE LCD: MF360-KHNN-S02
Color(s): Black
Materials: Exterior SGCC
Materials: Side panel (Right / Left) TG / TG
Dimensions: (L x W x H) 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
Volume: 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)
Power Supply Support: ATX
PCI Expansion Slots 3.5
Drive bay support: 3.5" Drive Bays0
Drive bay support: 2.5" / 3.5" Drive Bays (or SSD)1x HDD or 2x SSD
Preinstalled Drive bay: 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity) 1x HDD or 2x SSD
I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G
I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
Fan Support - Top 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Bottom 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Dust Filters Mesh Only (Removable Filters)
Other electronic components1x PCI-e 5.0 Riser / 2x ARGB spotlight
Maximum Dimensions for Front Collectibles Display (H x W x D)328 x 290 x 110 mm
DIY tank & Pump support: MASTERFRAME 360 STAGE LCD: Yes (Left side)
Toolbox: Yes
Clearances - CPU Cooler 145 mm
Clearances - Power Supply 210 mm
Clearances - Graphics Card 430 mm
Cable Routing - Behind Motherboard Tray 110 mm
Warranty: 2 years
Size: Mid Tower
Series: MasterFrame Series
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Powering Next generation
MasterBox 600 Lite
Back-connected motherboard support
Versatile Cooling Options
FineMesh Performance Front Panel
Room For Upgrades
Removable HDD cage
Back-connected motherboard support
Improved Design
Support back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 33~35mm behind MB tray.
Fan Support
140mmSICKLEFLOW FANS
Storage
REMOVABLE HDD CAGE
Supports up to 2x3.5" HDD storage and 6× 2.5" SSD, the HDD cage is completely removable for improved access during assembly and system upgrades.
Performance
FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Cooling System
Versatile Cooling Options
Support for up to seven 120mm fans, with 360mm radiator support on the top and 420mm radiator support on the front, ensures that performance is not compromised.
Hardware compatibility
Customization
Hardware compatibility
Support for up to a 410mm graphics card, a 170mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
Product Sheet: Egnyte
Manual: Manual - MasterBox 600 Lite.pdf
Specifications
Model Number
Model Number
MasterBox 600 Lite White:MB600L-WGNN-S00
Exterior Color
Black, White
Materials - Exterior
Steel, Plastic
Materials - Side Panel
Tempered Glass
Dimensions (L x W x H)
474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions)
Volume
49.73L
Motherboard Support
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots
7
3.5" Drive Bays
2
2.5" Drive Bays
2 (Max.6)
I/O Panel - USB Ports
1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 1 Type C
I/O Panel - Audio In / Out
1x 3.5mm Combo
Fan Support
Fan Support - Front
3x 120/140mm
Fan Support - Top
3x 120mm / 2x 140mm
Fan Support - Rear
1x 120mm
Radiator Support
Radiator Support - Front
120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)
Radiator Support - Top
120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear
120mm
Clearance
Clearance - CPU Cooler
170mm
Clearance - PSU
170mm, 210mm (w/o HDD Cage)
Clearance - GFX
360mm, 410mm (w/o front radiator)
Cable Routing - Behind Motherboard Tray
33-35 mm
Dust Filters
Top, Bottom
Power Supply Support
ATX
Warranty
2 years
Size
Mid Tower
Series
MasterBox Series
Back Connector Motherboard Support
Yes
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Case Panel Natural
Inspired by the look and feel of natural eucalyptus wood, the Panel brings an organic warmth to the MasterFrame platform. With its soft tones and refined texture, it offers a seamless visual harmony for modern interiors.
Wood-Style Surface Texture
Wood-inspired grain adds visual warmth and character.
Modular Compatibility
Compatible with MasterFrame 600 / 600 Mesh / 500 Mesh. Supports top and front mounting (front only on MasterFrame 500 Mesh)MCA-MF600C-BPTPW
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Stone-Like Surface FinishTextured finish mimics the look and feel of real stone, adding rugged elegance.
Modular CompatibilityCompatible with MasterFrame 600 / 600 Mesh / 500 Mesh. Supports top and front mounting (front only on MasterFrame 500 Mesh)
Subtle Texture VariationsEach panel features naturally varied detailing for a more realistic look.
Visual Impact for Showcase BuildsIdeal for visual-centric setups and studio environments.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFrame 360 Extended Stage provides users a larger stage to showcase their valuable collectibles with simple magnetic mounting design – Stage has been set, just show everyone what you got!
FEATURES
Built for MasterFrame360 Stage Mirror & LCD
An extension of stage designed specifically for the MF360 Stage Mirror & LCD, ready to attach and use.
Expanded Display Capacity
Enable users to showcase larger or a wider variety of figures and collectibles.
Secure Magnetic Mounting
Features a magnetic mounting mechanism for quick installation and removal, with a rubberized surface to ensure stability and prevent slipping
Product Information
Product Name: MASTERFRAME 360 Extended Stage
Series: MASTERFRAME Series
Color: Black
Product Support: MasterFrame 360 Stage LCD/ Mirror
Dimension (L x W x H): 298.1 x 242.7 x 62 mm
Warranty: 2 Years
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MasterFrame 600 Mesh
The MasterFrame 600 Mesh is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
FreeForm 2.0
Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Extensive Cooling Support
Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.
Ample GPU Clearance
Accommodates graphics cards up to 485mm, offering plenty of space for high-end GPUs.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Product Sheet: https://coolermaster.egnyte.com/dl/Cjy4gQ7WYXx9
Specifications
Model Number
Black: MF600M-KGNN-S01, Silver: MF600M-SGNN-S01
Color(s)
Black / Silver
Materials - Exterior
SGCC Steel, Aluminum
Materials - Side panel (Right / Left)
Tempered Glass / Aluminum
Dimensions (L x W x H)
531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions)
Volume
73.6 L (Liters Incl. Protrusions)
Motherboard Support
Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)
Power Supply Support
ATX
PCI Expansion Slots
8
5.25" Drive Bays
0
3.5" Drive Bays
0
2.5" / 3.5" Drive Bays (Combo)
2
2.5" Drive Bays
3
I/O Panel - USB Ports
2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out
1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Front
2x SickleFlow 200 ARGB
Pre-installed Fans - Top
N/A
Pre-installed Fans - Rear
1x SickleFlow 120 ARGB
Fan Support - Front
3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top
3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm
Fan Support - Rear
1x 120mm
Fan Support - Side
3x 120mm, 3x 140mm
Radiator Support - Front
120 / 140 / 240 / 280 / 360 / 420 mm
Radiator Support - Top
120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel)
Radiator Support - Rear
120 mm
Radiator Support - Side
240 / 280 / 360 / 420 mm
Dust Filters
Top, Front, Bottom, Right side panel
Clearance - CPU Cooler
190 mm
Clearance - PSU
235 mm
Clearance - Graphics Card
L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)
Included Accessories
GPU Support Bracket / ARGB PWM Hub
Cable Routing - Behind Motherboard Tray
43 mm
Warranty
2 years
Size
Mid Tower
Series
MasterFrame Series
