Description
Advanced Cooling, Elevated

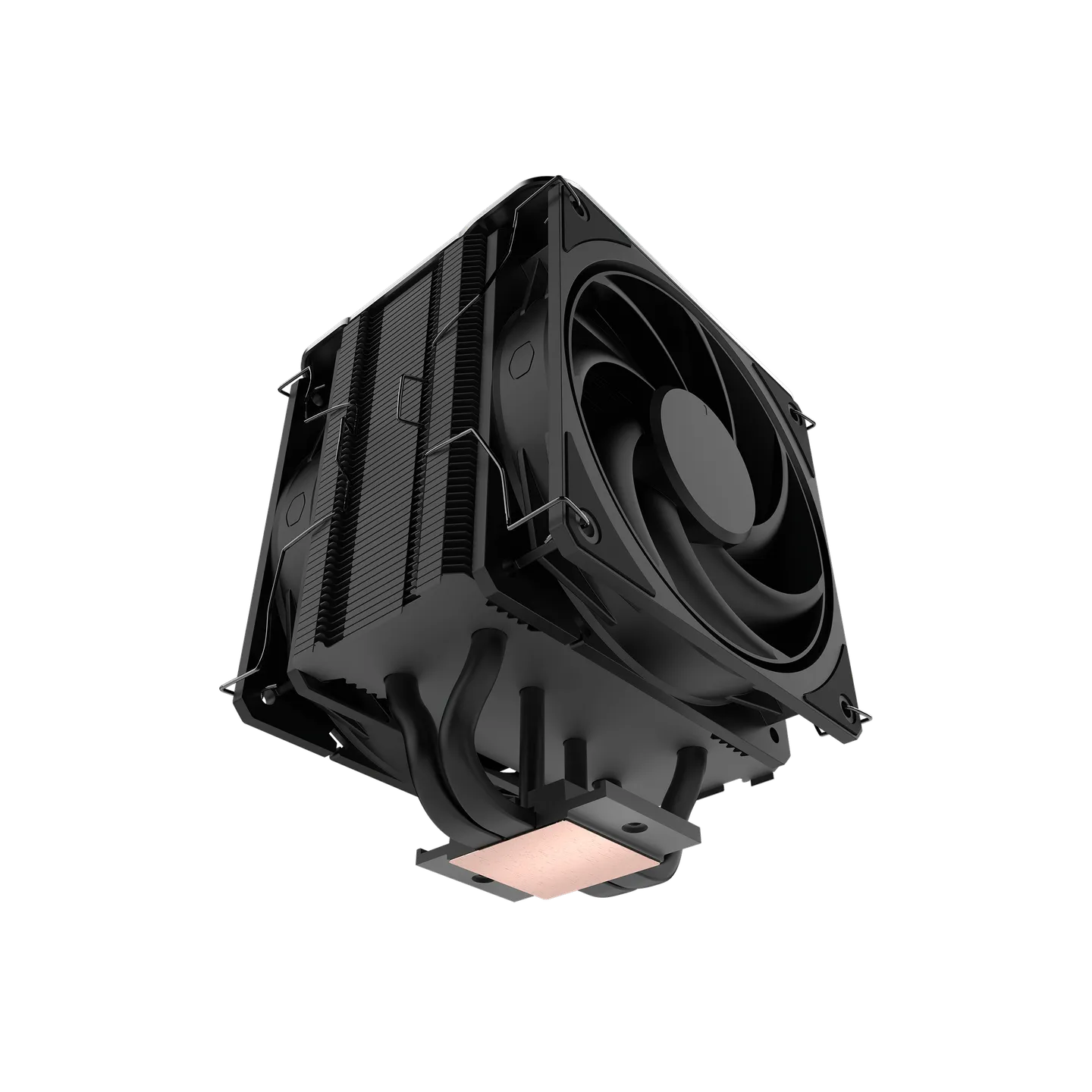

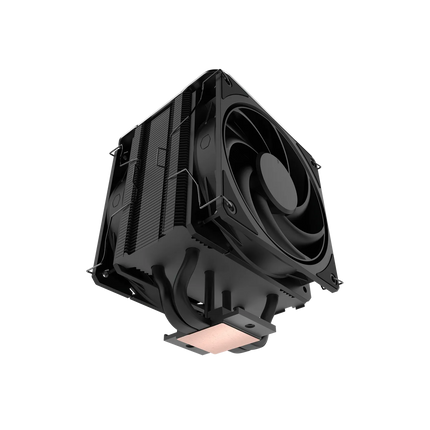

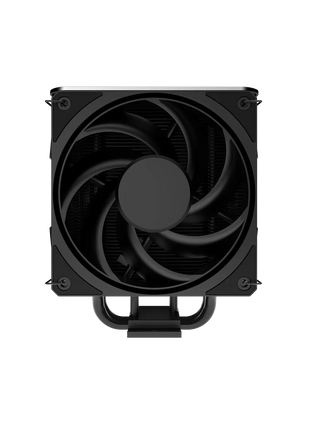

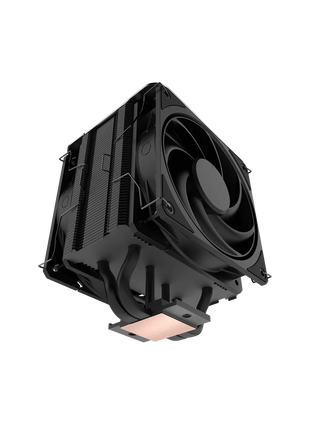

The Cooler Master V4 Alpha 3DHP Black CPU air cooler delivers exceptional cooling performance and sleek aesthetics. Featuring Cooler Master's proprietary 3DHP Technology, it achieves rapid heat dissipation and peak system efficiency using just two heat pipes — rivalling the performance of conventional four-heat-pipe coolers. Inspired by a classic V-style automotive engine, it's built for enthusiasts and perfected for professionals.
Key Features
-
Cooler Master Proprietary 3DHP Technology — Adds a third dimension to heat pipe design, filling the dead zone in standard U-shaped layouts. Delivers the cooling power of a four-pipe solution in a slimmer, more efficient package: lower temps, quieter fans, and greater flexibility.
-
Advanced 3DHP Internal Structure — Hybrid sintered powder and grooved channel design, optimised per phase (evaporation, condensation, liquid return) for superior heat transfer over traditional designs.
-
Excellent Thermal Dissipation — Maintains lower temperatures under heavy CPU workloads, supporting long-term system stability and reliability.
-

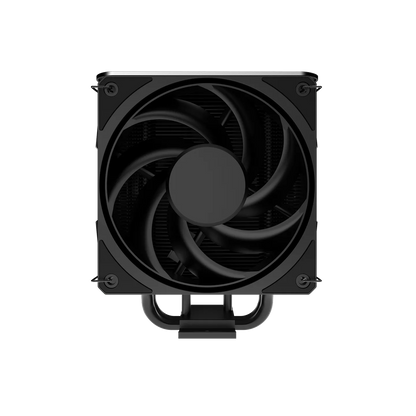

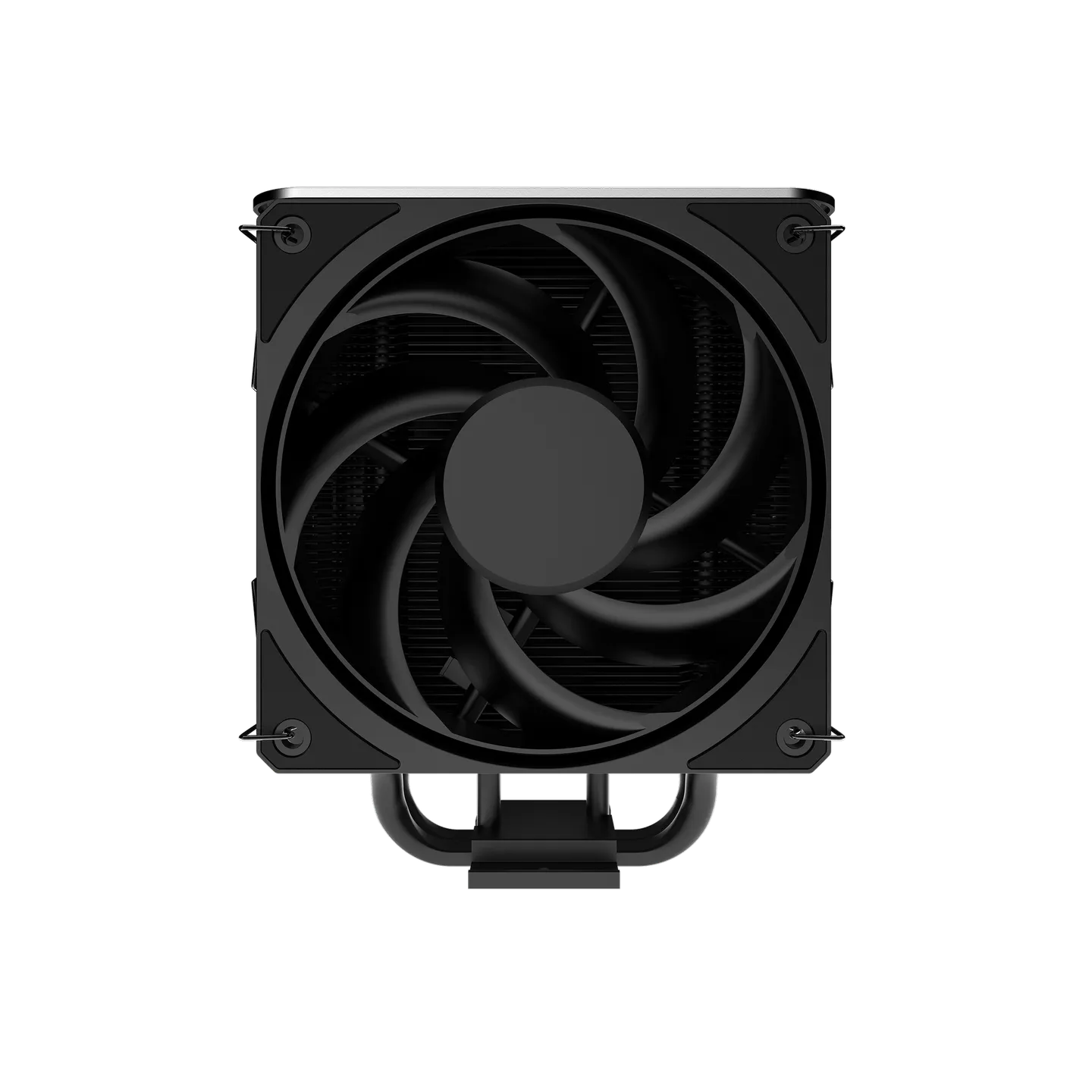

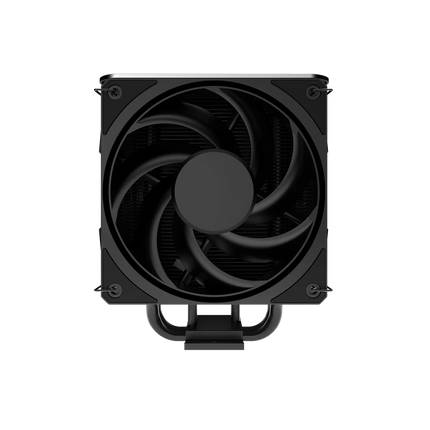

Pre-Installed Ring Blade Fans (Mobius 120) — Ring blade design cuts high-frequency noise for smooth, quiet operation — especially effective when paired with the 3DHP module.
-
Larger Contact Surface for Maximum Heat Transfer — Solid copper base covers more surface area than most four-pipe direct-contact coolers. Combined with wider 3DHP heat pipes, it ensures efficient CPU-to-cooler heat transfer.
-

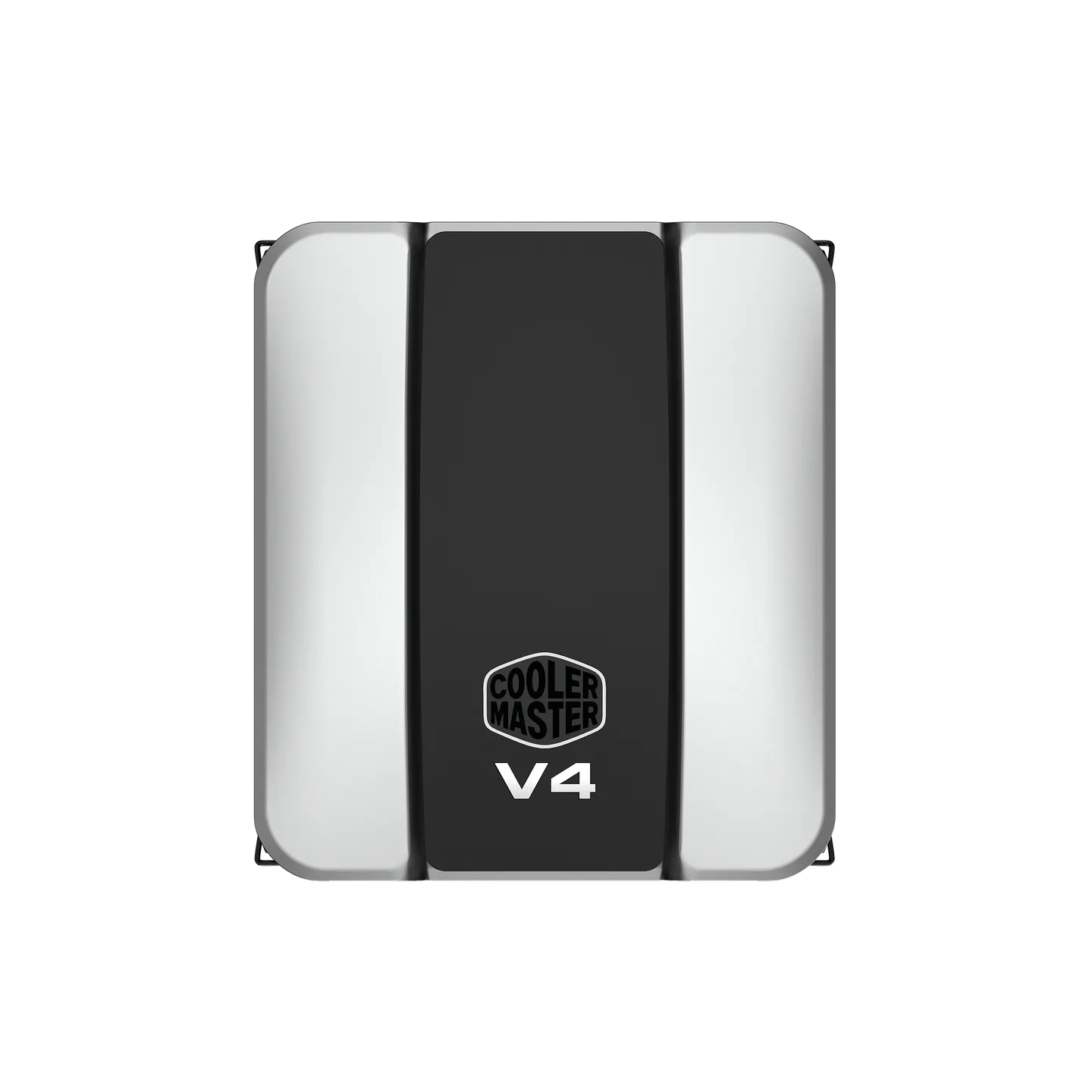

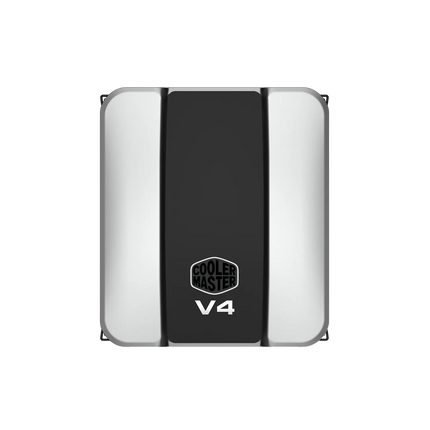

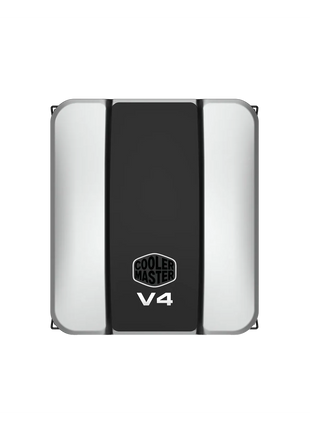

Minimalist Design — Compact V-engine-inspired form factor supports efficient airflow and stands out in any build.
-
CryoFuze Thermal Paste Included — High-performance nanoparticle thermal paste for maximal heat transfer, included in the box.
-
AMD & Intel Compatible — Supports a wide range of AMD and Intel CPU sockets.
Specifications
| Product Name |
V4 Alpha 3DHP Black |
| Product Number |
MAZ-T2HP-217PK-R1 |
| Exterior Color |
Black |
| CPU Socket (Intel) |
LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 |
| CPU Socket (AMD) |
AM5 / AM4 |
| Dimensions |
133 x 114 x 161 mm (5.2 x 4.5 x 6.3 in) |
| Heat Sink Material |
2 x 3DHP / Aluminium Fins |
| Fan Quantity |
2 (Front + Rear) |
| Fan Dimensions |
120 x 120 x 25 mm |
| Fan Speed |
Front: 0–2050 RPM ±10% / Rear: 0–1850 RPM ±10% |
| Fan Airflow |
Front: 107.2 m³/h (63.1 CFM) / Rear: 85.8 m³/h (50.5 CFM) |
| Fan Pressure |
Front: 2.69 mmH₂O / Rear: 1.77 mmH₂O |
| Noise Level |
Front: 22.6 dBA / Rear: 20 dBA |
| Fan MTTF |
>200,000 hours |
| Fan Bearing Type |
Loop Dynamic Bearing |
| Fan Power Connector |
4-Pin (PWM) |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
Front: 0.12 A / Rear: 0.08 A |
| Fan Safety Current |
0.35 A |
| Fan Power Consumption |
Front: 1.44 W / Rear: 0.96 W |
| Fan LED |
Non-LED |
| Heat Pipes |
2 |
| Cooler Type |
Air Cooler |
| Series |
V |
| Warranty |
5 years |
