Description

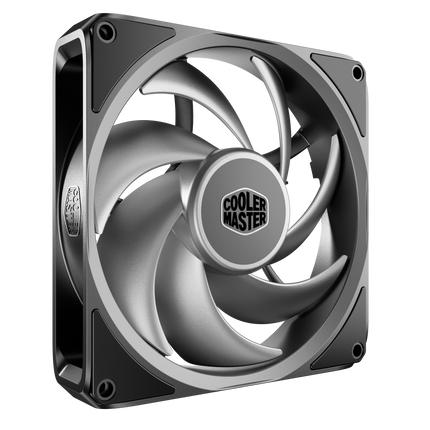

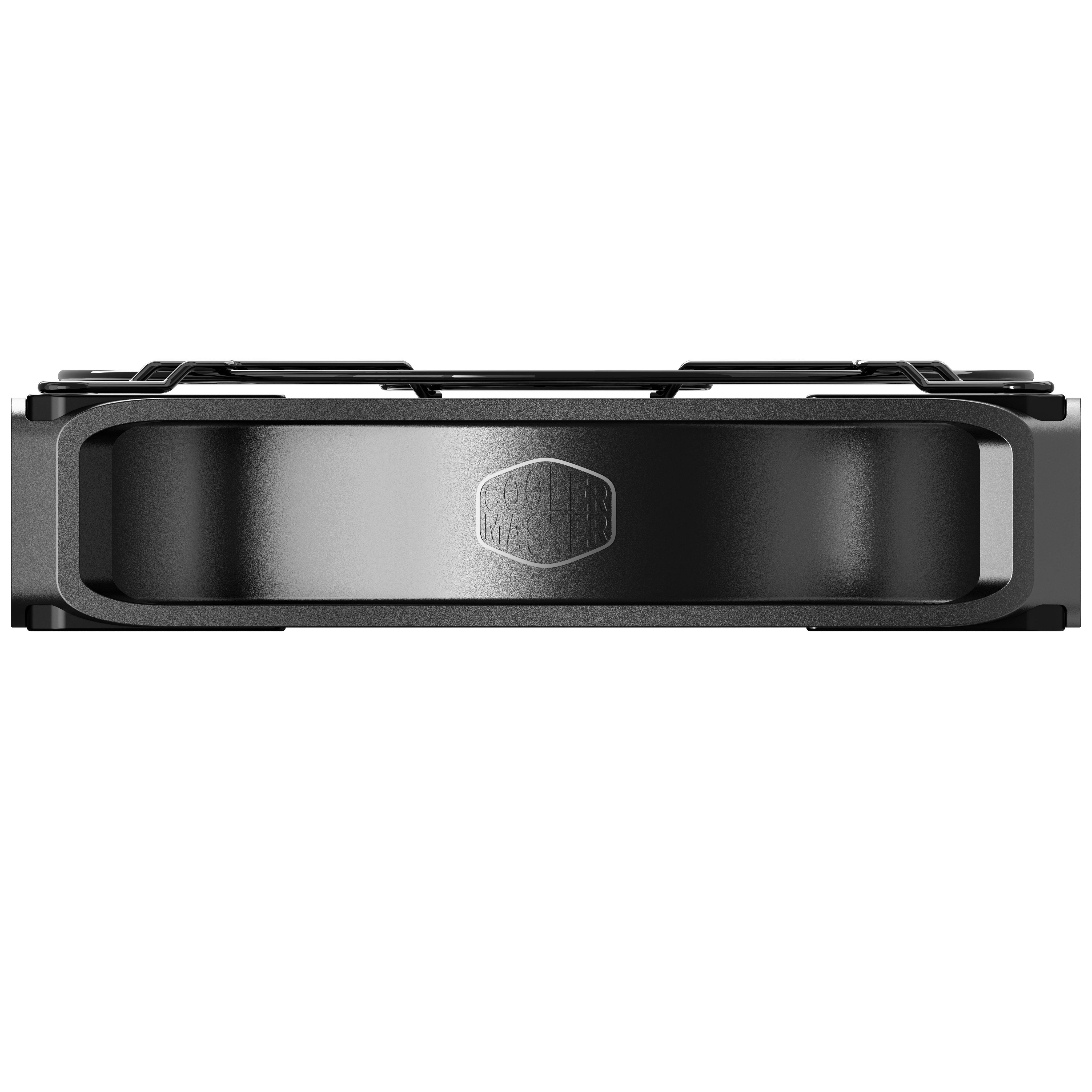

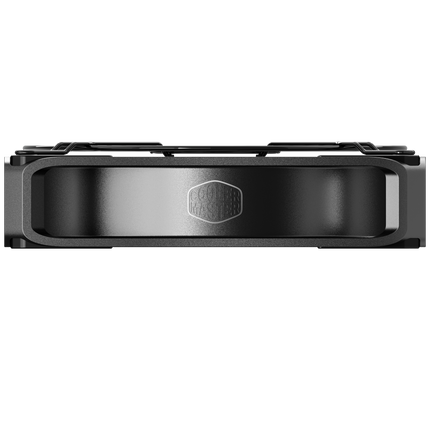

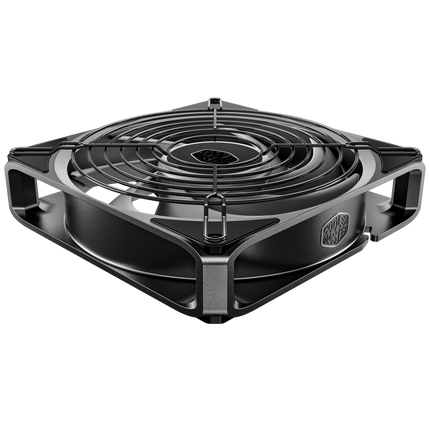

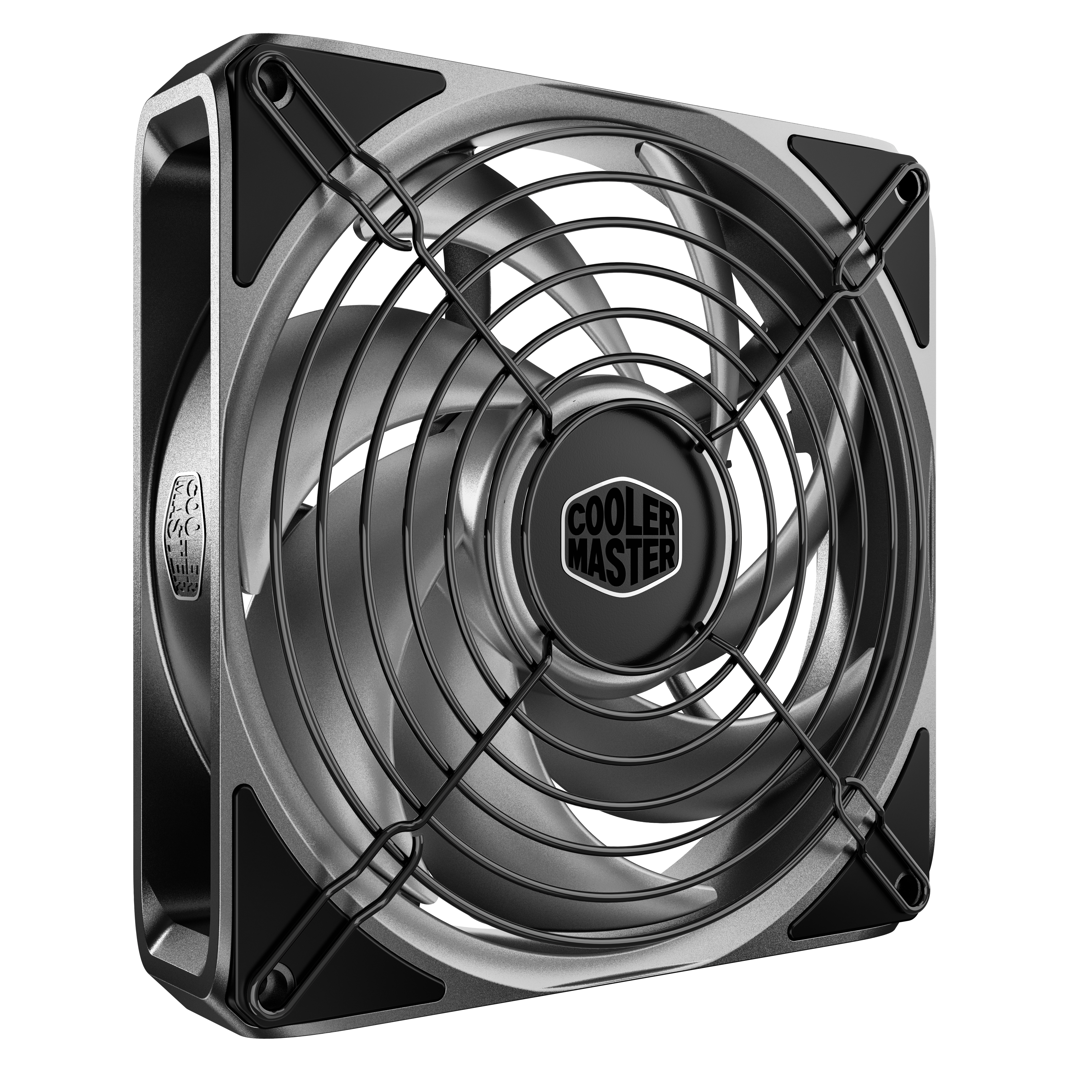

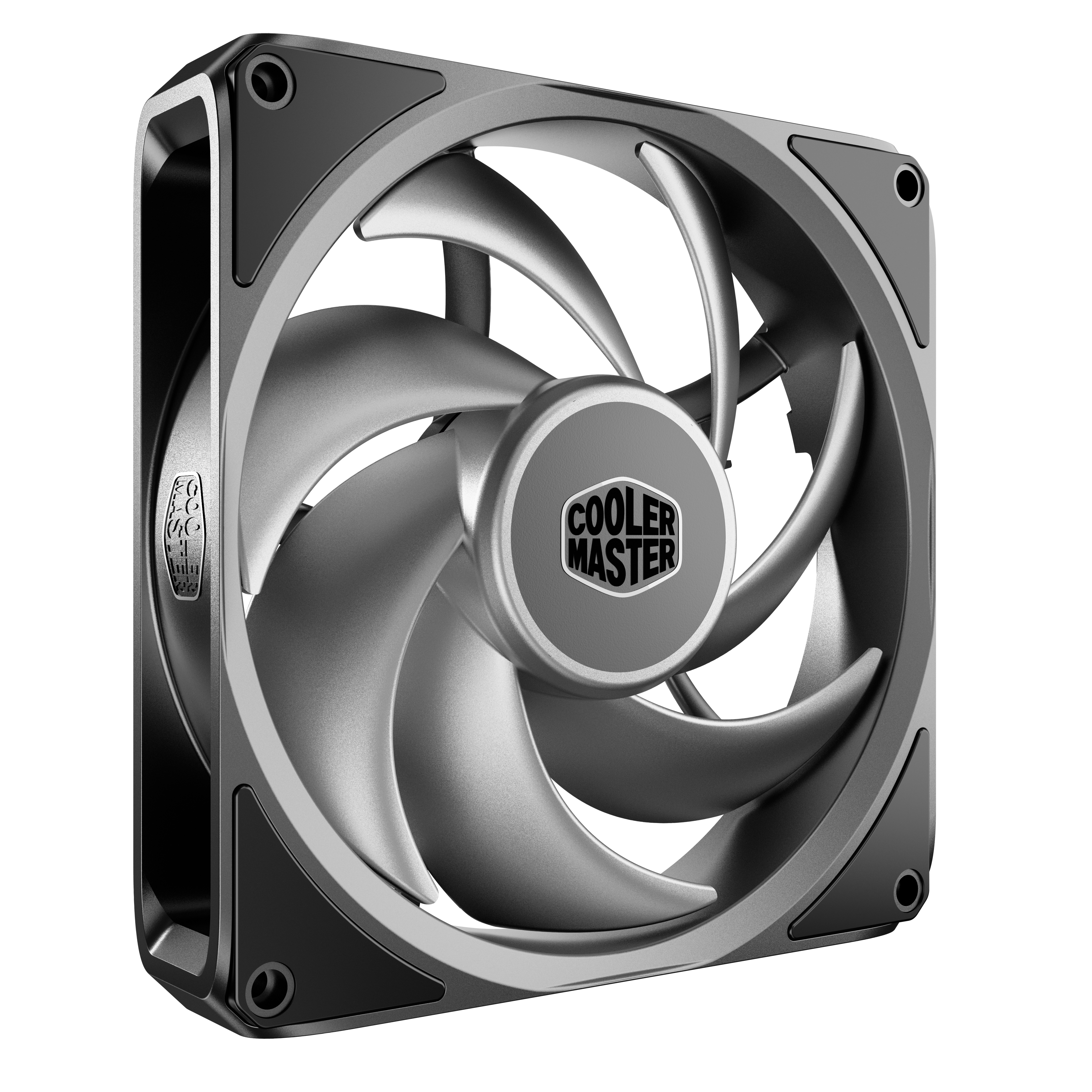

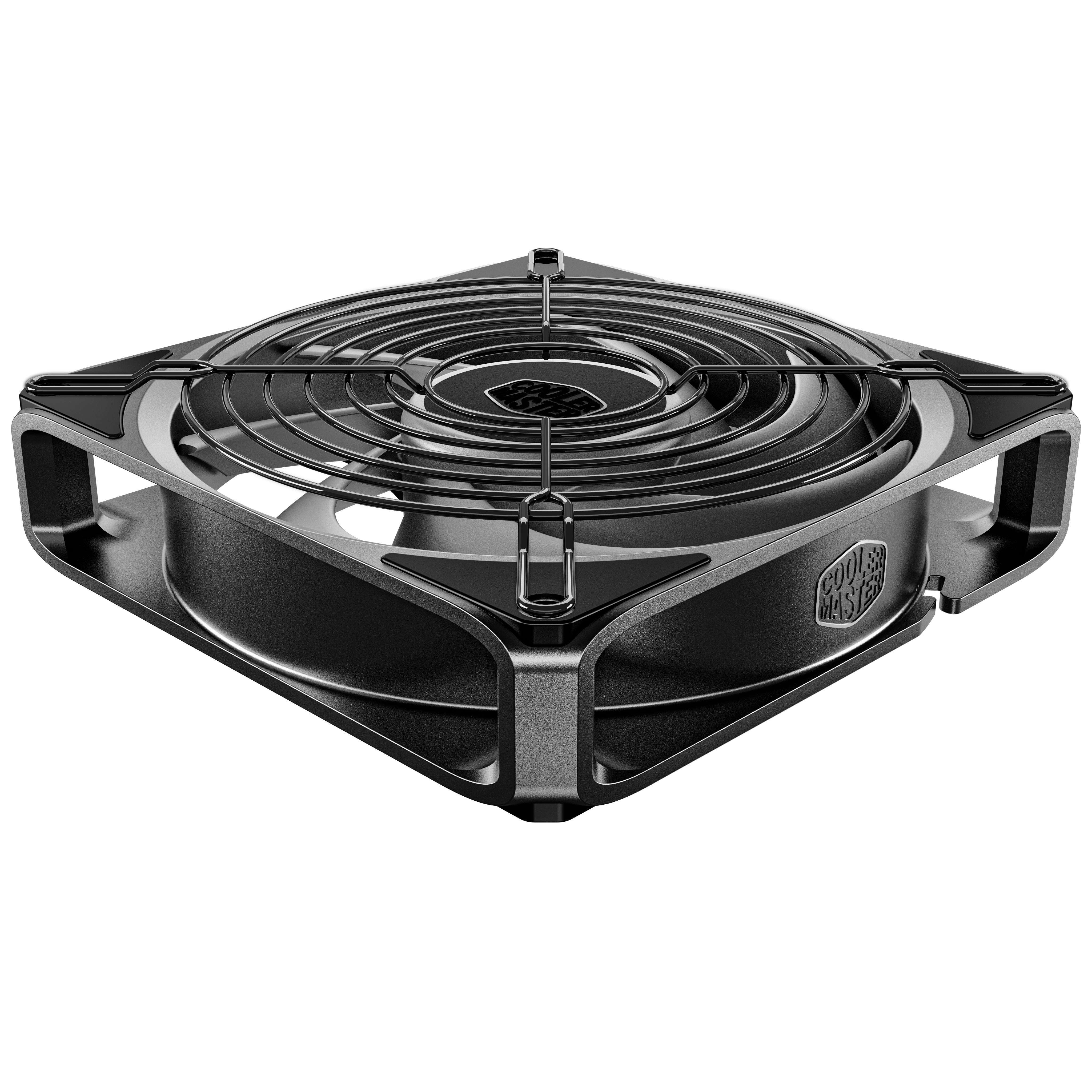

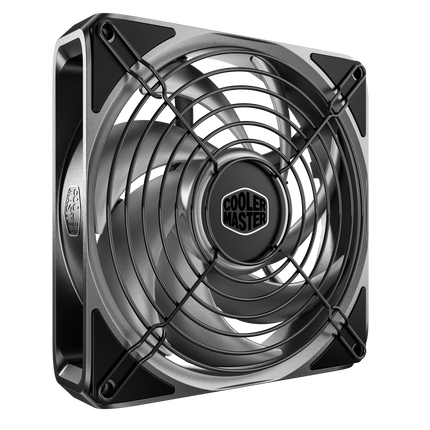

MasterFan A140 / A140 FC
The MasterFan A140 delivers revolutionary cooling performance, achieving benchmark-setting airflow and drastically reduced system temperatures with superior efficiency and unparalleled reliability. This extreme capability is engineered through its flagship aluminum construction and high-speed motor design. The all-aluminum frame and blades ensure superior rigidity and durability, preventing blade warp even when sustaining its extreme 3000 RPM speeds. This precise structural integrity is crucial for generating high air pressure, allowing the fan to powerfully overcome the resistance of restrictive components and blow air through tight spaces—drastically cooling down even the smallest cases. The three-phase motor also eliminates operational instability, guaranteeing superior, reliable performance and maximum system efficiency throughout its entire operating range, so you can focus on high-intensity tasks while the MasterFan A140 handles your system's critical cooling needs.
Features
The New Metal Standard
The all-aluminum frame and blades deliver superior rigidity and long-term durability, which is essential for reliably sustaining high-speed performance.
Precision in Every Rotation
The MasterFan A140's premium aluminum construction ensures the blades retain their precise shape and resist warping even at intense speeds. This allows the fan to reliably achieve and hold ultra-high RPMs, delivering benchmark-setting airflow and exceptional cooling results.
*Tested at 4000 RPM by Cooler Master Lab; applicable only to the optional controller version.
Maximum Pressure. Zero Resistance.
Exceptional air pressure is guaranteed by the A140's structural integrity. The premium aluminum frame and blades resist warping and maintain their precise shape at intense speeds. This sustained rigidity allows the fan to overcome the resistance of restrictive components, delivering focused, high-velocity airflow that drastically reduces system temperatures.
Ultra-Smooth Operation
The integrated three-phase motor eliminates instability to ensure ultra-quiet start-up and superior, reliable performance for maximum system efficiency.
Review Guide: Public (Resource Center)
Specifications
| Specification |
MasterFan A140 |
MasterFan A140 FC |
| Model Number |
MFZ-P4NA-19NPK-R1 |
MFZ-P4NA-30NPK-R1 |
| Dimensions (L x W x H) |
140 x 140 x 30mm (5.5 x 5.5 x 1.18 inch) |
| LED Profile |
Non-LED |
| Speed |
0–1900 ± 10% RPM |
0–3000 ± 10% RPM |
| Air Flow |
104 CFM Max |
164.4 CFM Max |
| Air Pressure |
3.41 mmH₂O Max |
8.28 mmH₂O Max |
| MTTF |
>200,000 hours |
| Noise Level |
30.4 dBA Max |
41.5 dBA Max |
| Bearing |
Two-Ball Bearing |
| Connector |
4-Pin PWM |
| Rated Voltage |
12 VDC |
| Rated Current |
0.15A |
0.52A |
| Safety Current |
1A |
| Power Consumption |
1.8W |
6.24W |
| Weight |
379g (0.84 lbs) |
| Warranty |
6 Years |
| EAN Code |
4719512163542 |
4719512163559 |
| UPC Code |
884102135842 |
884102135859 |
