Description

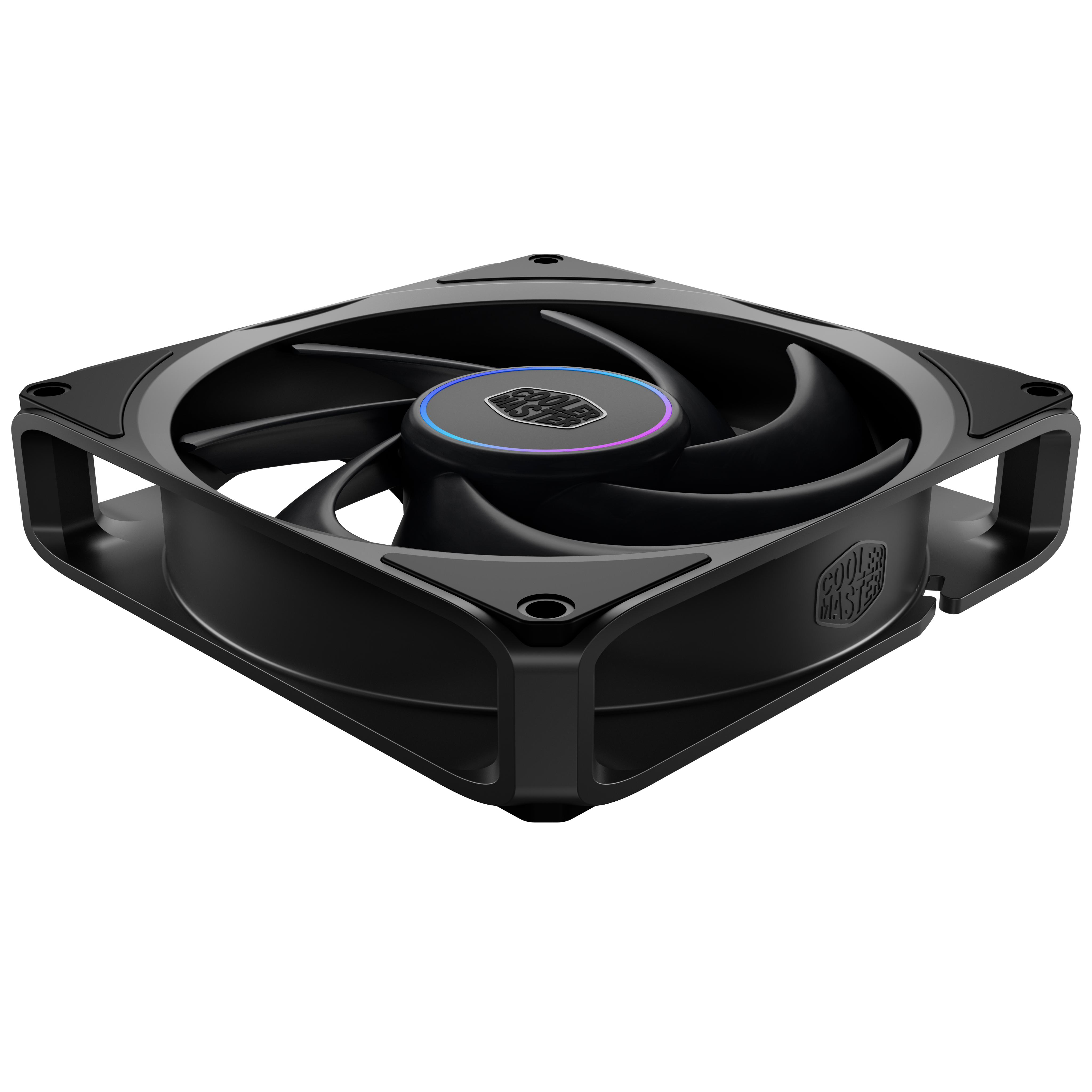

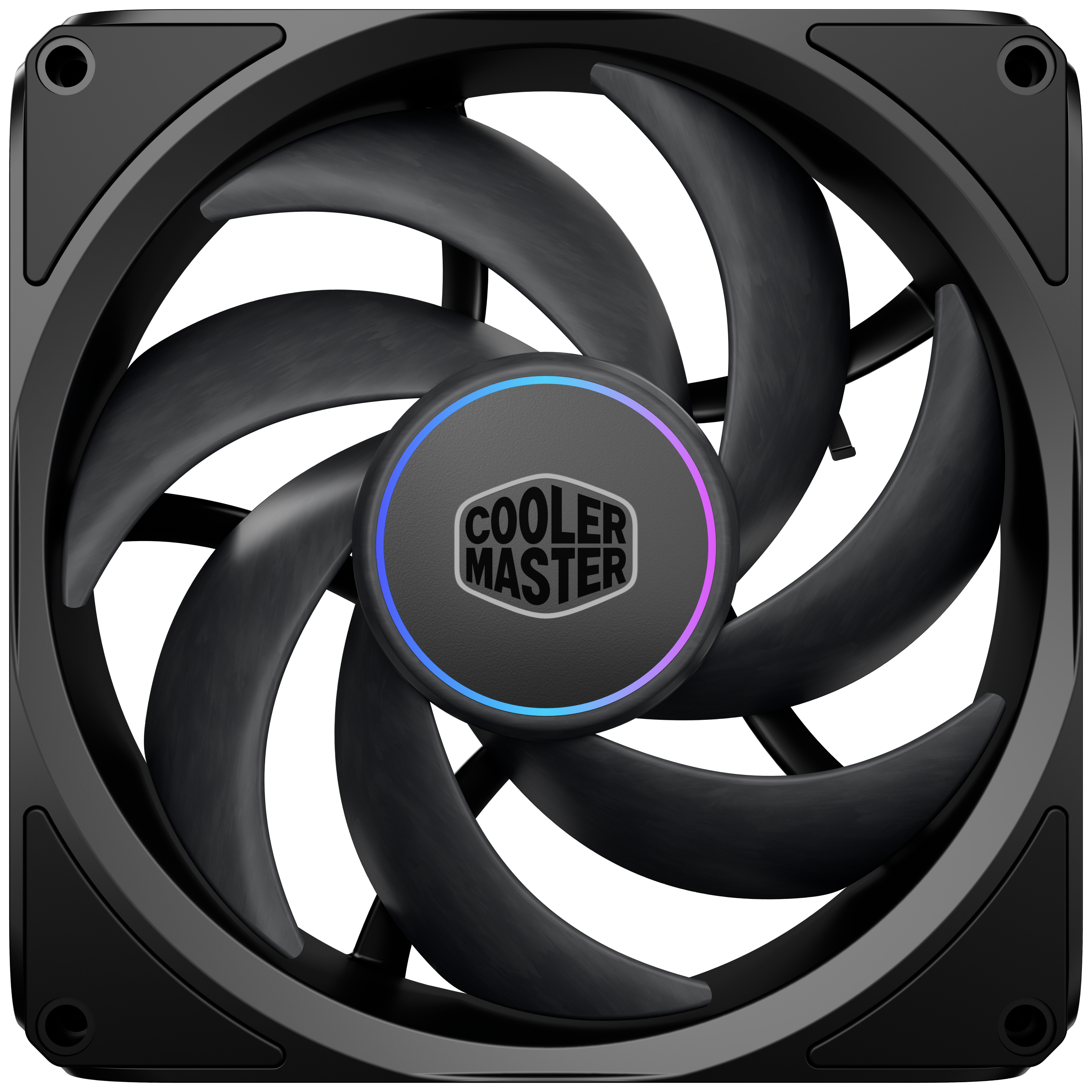

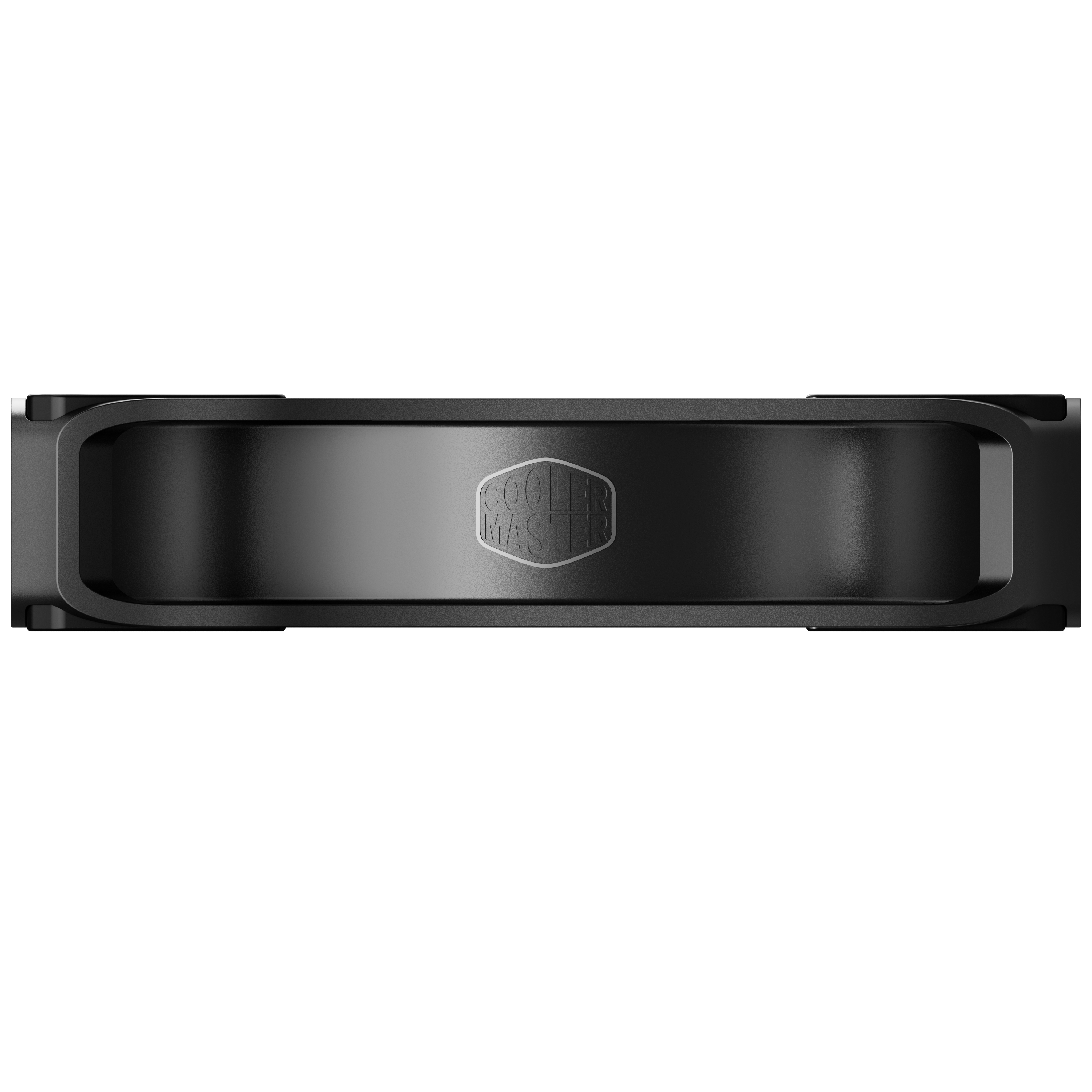

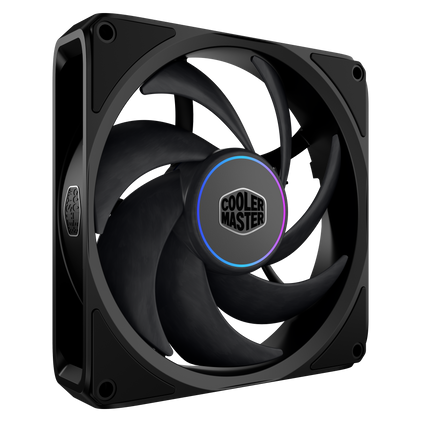

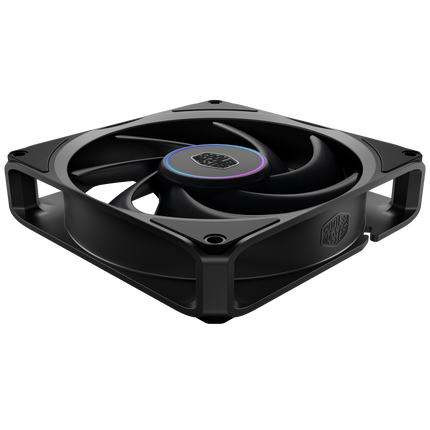

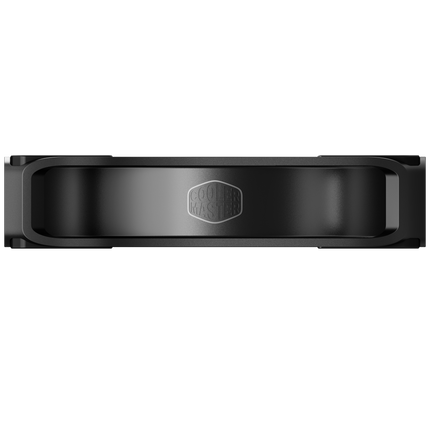

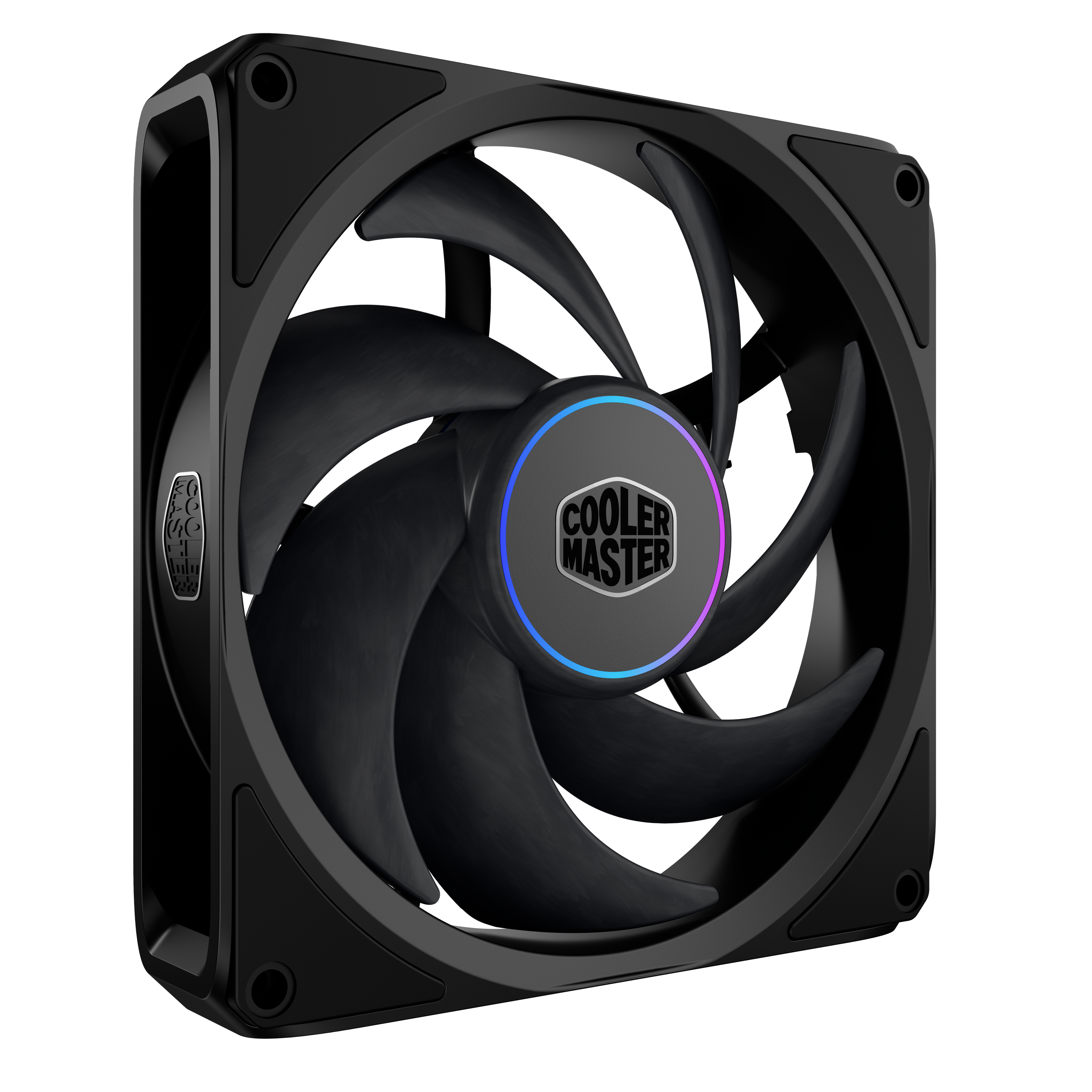

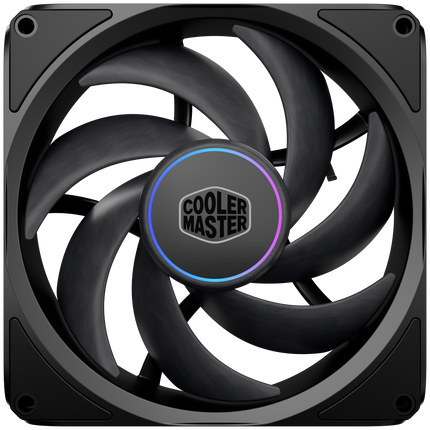

MasterFan M140 ARGB
The MasterFan M140 ARGB delivers a mainstream cooling solution that refuses to compromise on quality or acoustics. Engineered for unrivaled stability, it combines premium materials with advanced bearing technology to keep your system running quietly and reliably for years to come.
Premium Material Construction
Built with an all-aluminum fan frame for maximum rigidity and durability at high speeds, paired with a Liquid Crystal Polymer (LCP) fan blade for enhanced stability and precision — delivering premium aesthetics alongside consistent high airflow.
Magnetic Dynamic Bearing
A ring-shaped magnetic design makes the fan rotor float, eliminating friction and wobble for quieter operation and superior stability. Special lubricant-recycling channels actively maximize oil flow, significantly extending the fan's lifespan beyond 200,000 hours.
Integrated ARGB Lighting
Subtly integrated ARGB lighting in the center hub provides a soft, constant glow — a clean, understated aesthetic that adds a refined touch of color to your build.
Specifications
-
Model: MFZ-P4DM-16NP2-R1
-
Dimensions: 140 x 140 x 30mm (5.5 x 5.5 x 1.18 inch)
-
Lighting: Addressable RGB Gen.2
-
Speed: 0–1600 ± 10% RPM
-
Air Flow: 81 CFM (MAX)
-
Air Pressure: 2.39 mmH₂O (MAX)
-
MTTF: >200,000 hours
-
Noise Level: 25.9 dBA (MAX)
-
Bearing: Magnetic Dynamic Bearing
-
Connector: 7-Pin PWM
-
Rated Voltage: 12 VDC
-
Rated Current: 0.1A
-
Power Consumption: 1.2W
-
Weight: 338g (0.75 lbs)
-
Warranty: 5 Years
-
EAN: 4719512163511
-
UPC: 884102135811
