Description
Cooling That Stands Out
MasterLiquid Core LCD 6” Series
- Expansive 6-Inch TFT LCD
- Thermal Excellence
- Whisper-Quiet Power
- MasterCTRL Ecosystem
- Optimum Tubing Length
COOLING THAT STANDS OUT
The MasterLiquid Core LCD Series features a massive 6-inch display, transforming your pump into a high-definition command center. Engineered for creators, it offers an expansive canvas for telemetry or digital art. With precision ball-joint adjustment and MasterCtrl support, it ensures seamless synchronization and perfect viewing angles. It’s the ultimate visual centerpiece for your professional workstation.

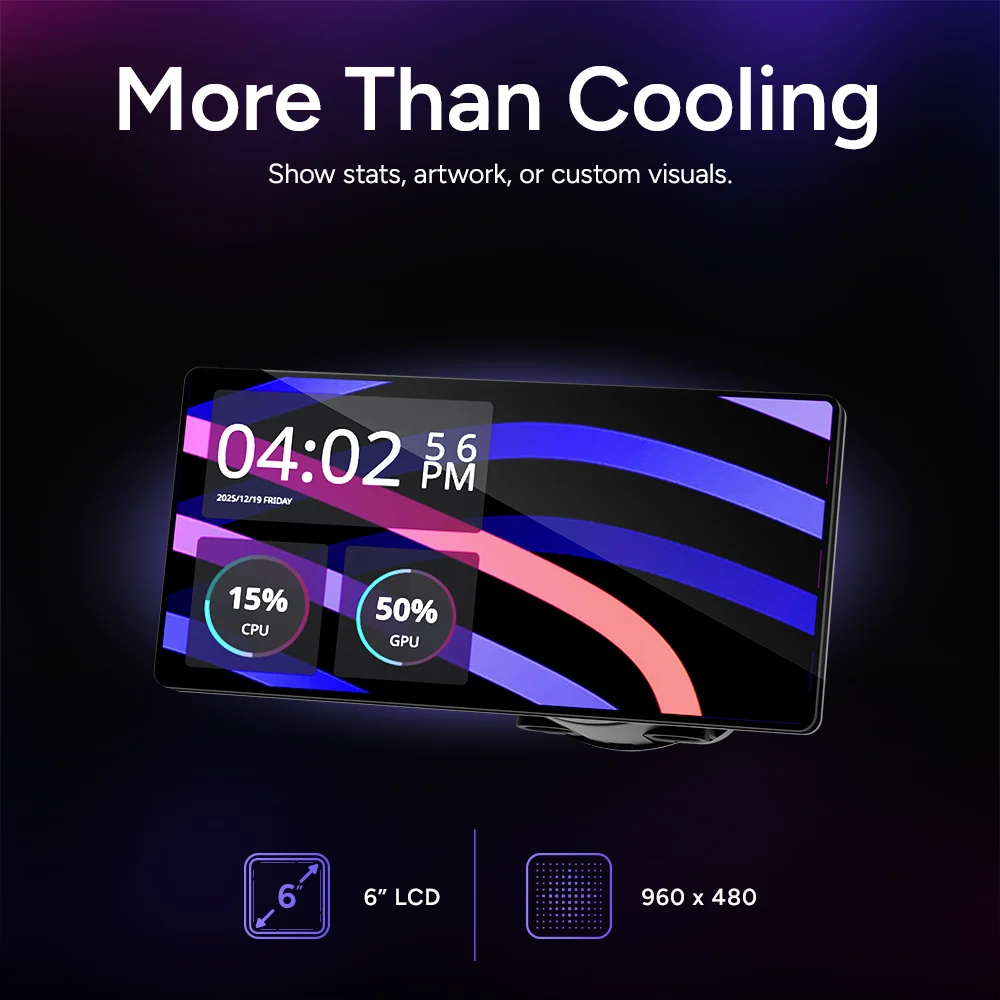

SEE MORE INSTANTLY
Keep key system stats visible at a glance or personalize your build with custom visuals and digital artwork—all displayed on a vibrant 6-inch TFT LCD with crisp 960 × 480 resolution.

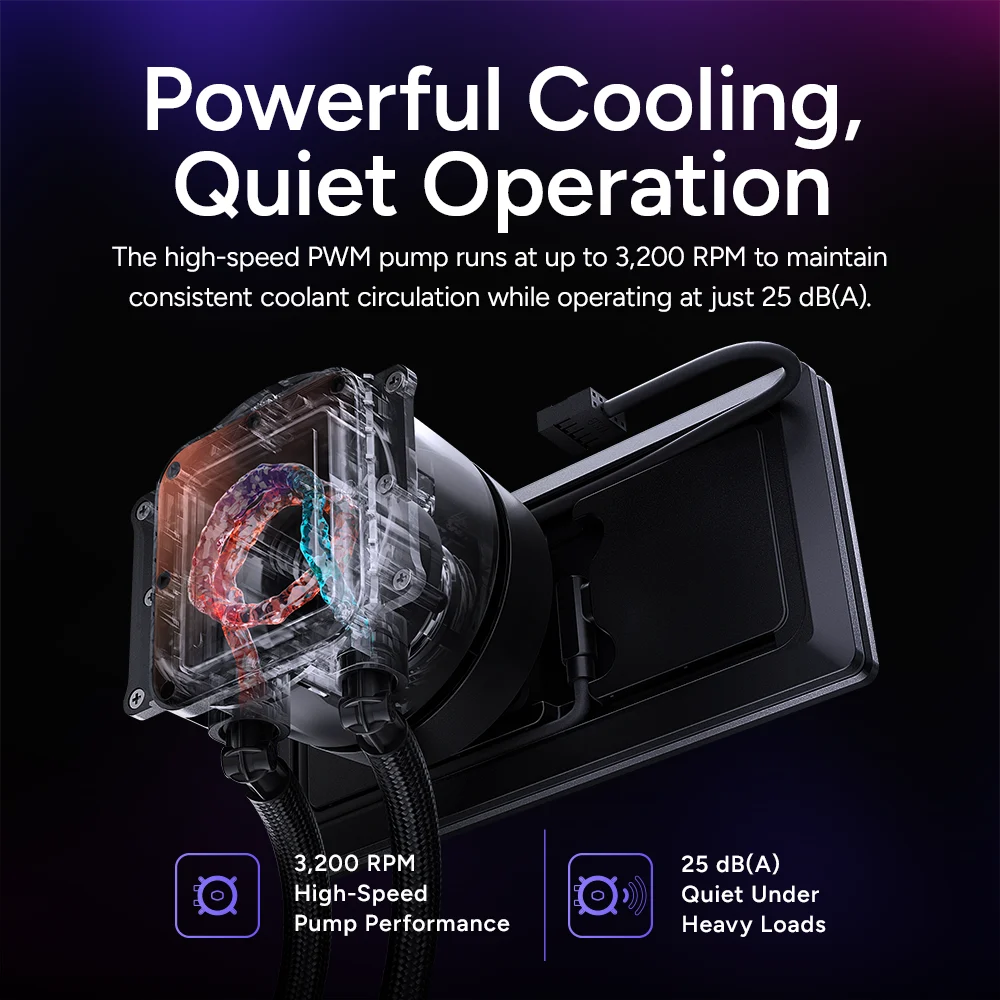

POWERFUL COOLING, QUIET OPERATION
The high-speed PWM pump operates at up to 3,200 RPM to maintain consistent coolant flow and efficient heat transfer, while producing just 25 dB(A) of noise under demanding loads.
STAY COOL UNDER LOAD
Strong airflow and consistent static pressure push air efficiently through the radiator, accelerating heat dissipation for reliable cooling during gaming, rendering, and other demanding workloads.
COOLER AND QUIETER
Optimized fans and a low-noise pump deliver powerful cooling while keeping sound under control, so you can stay focused on your game, work, or content.

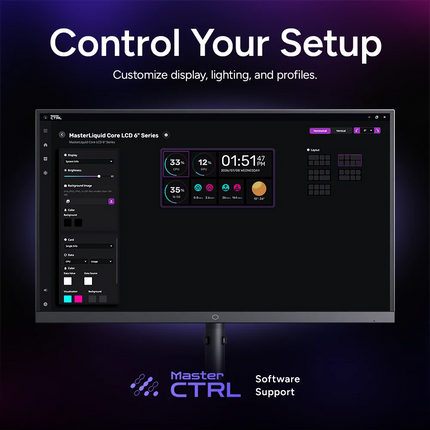

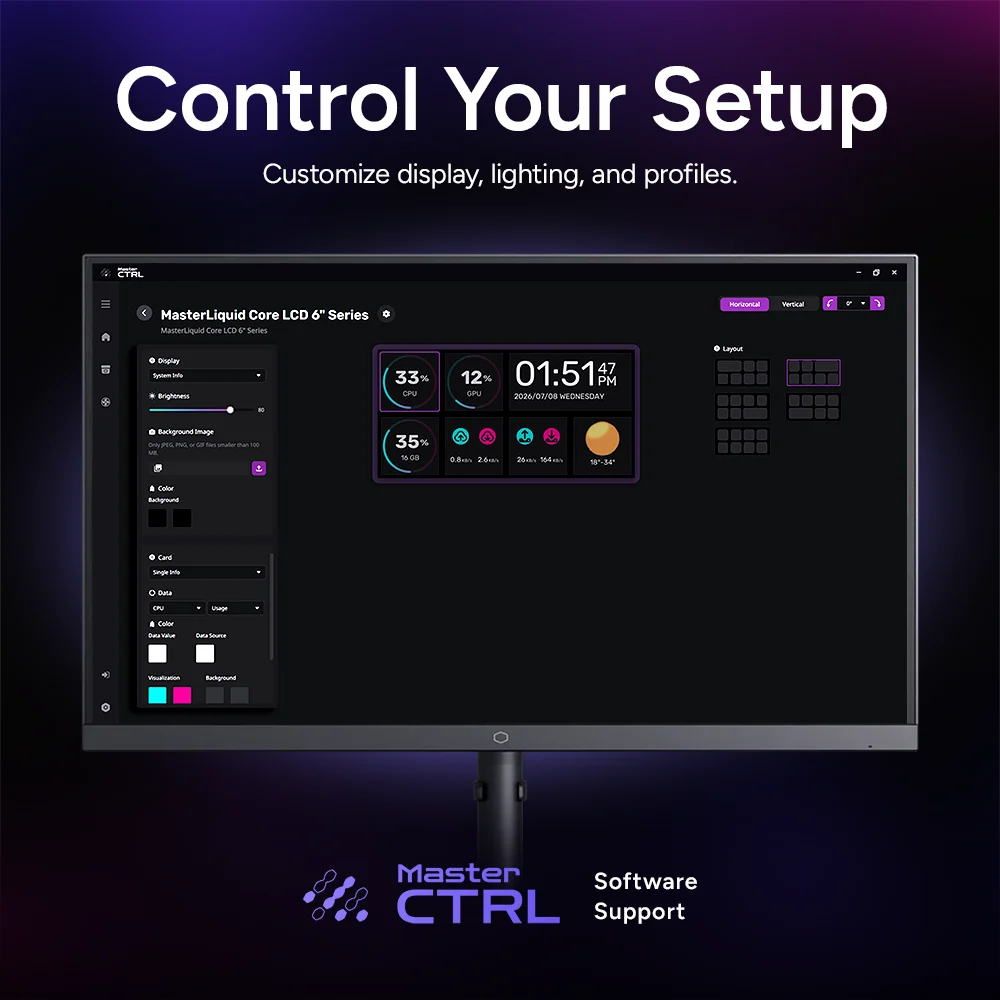

CONTROL YOUR SETUP
MasterCTRL brings your LCD content, ARGB lighting, and cooling profiles into one intuitive interface, making it easy to personalize your setup and fine-tune performance from one place.

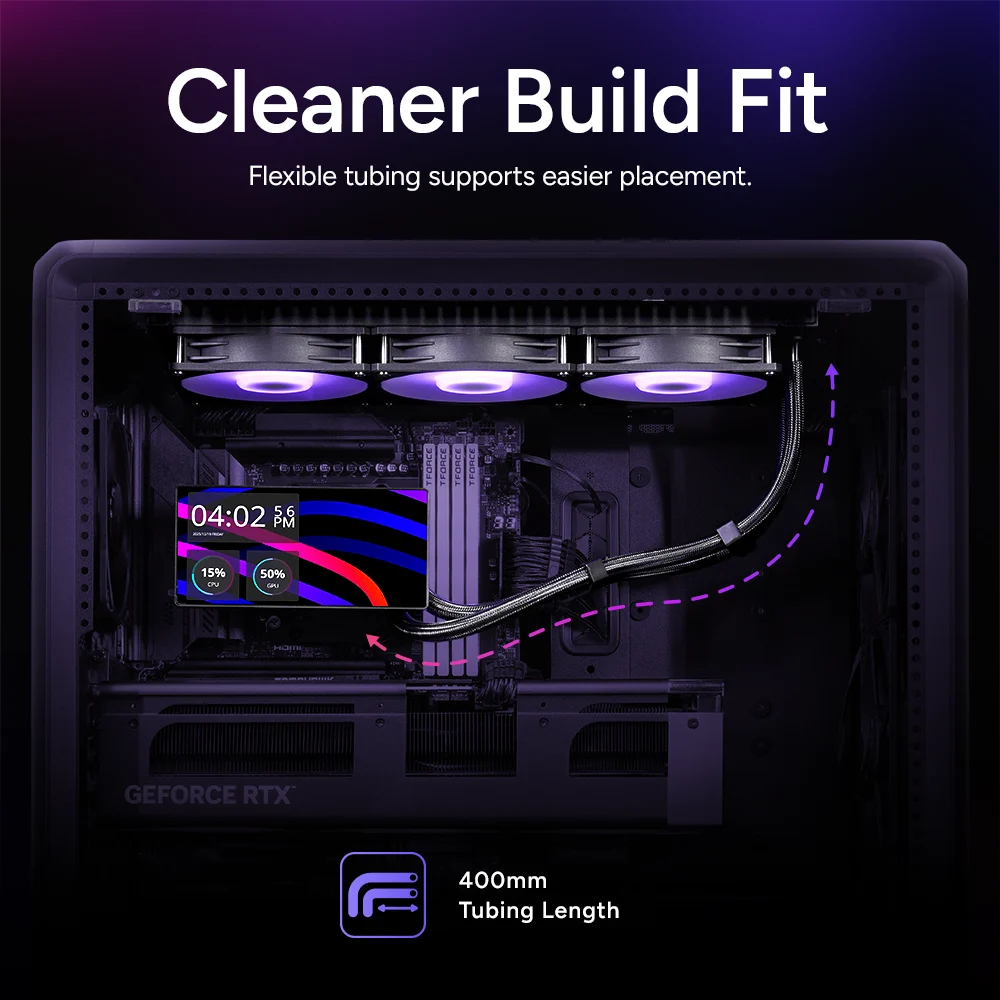

A CLEANER BUILD
Flexible 400 mm tubing provides greater freedom for radiator placement and routing, helping simplify installation while keeping your system clean and organized.
BUILT FOR LONG-TERM BUILDS
Engineered for dependable, long-term cooling performance and backed by a 6-year warranty for added confidence in every build.

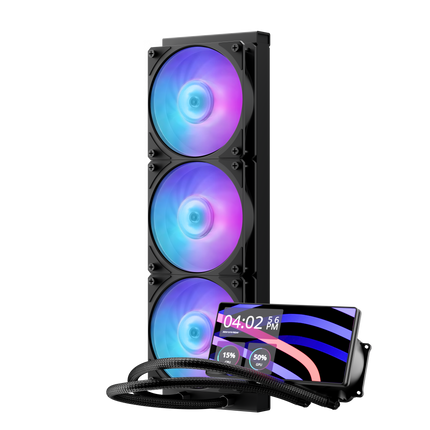

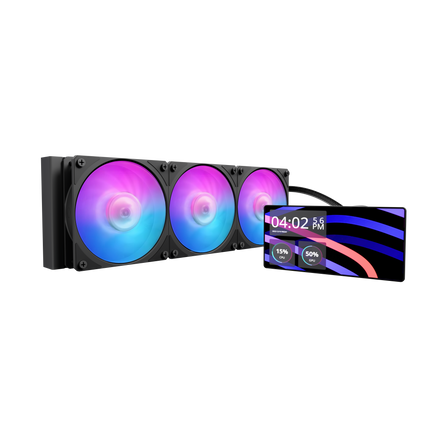

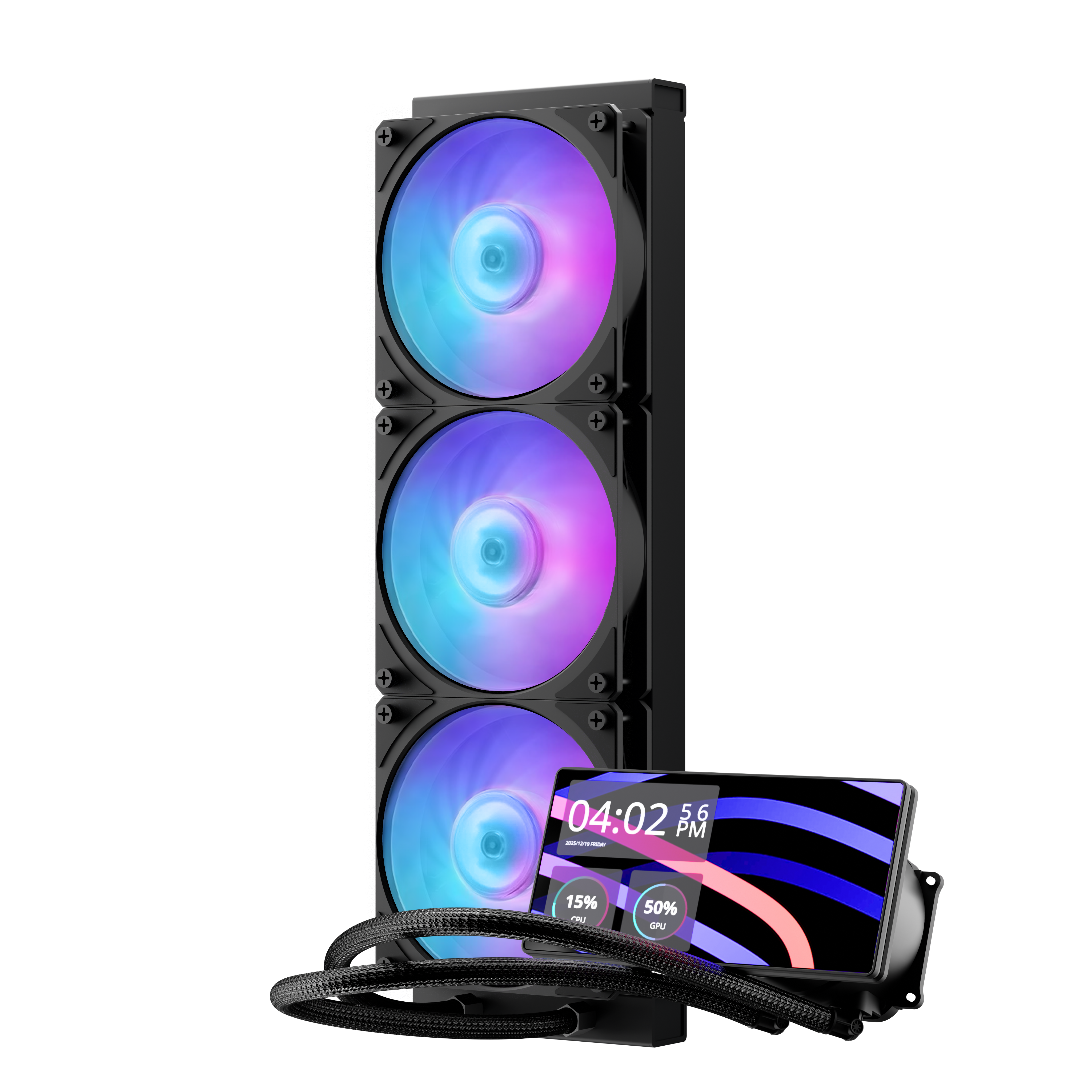

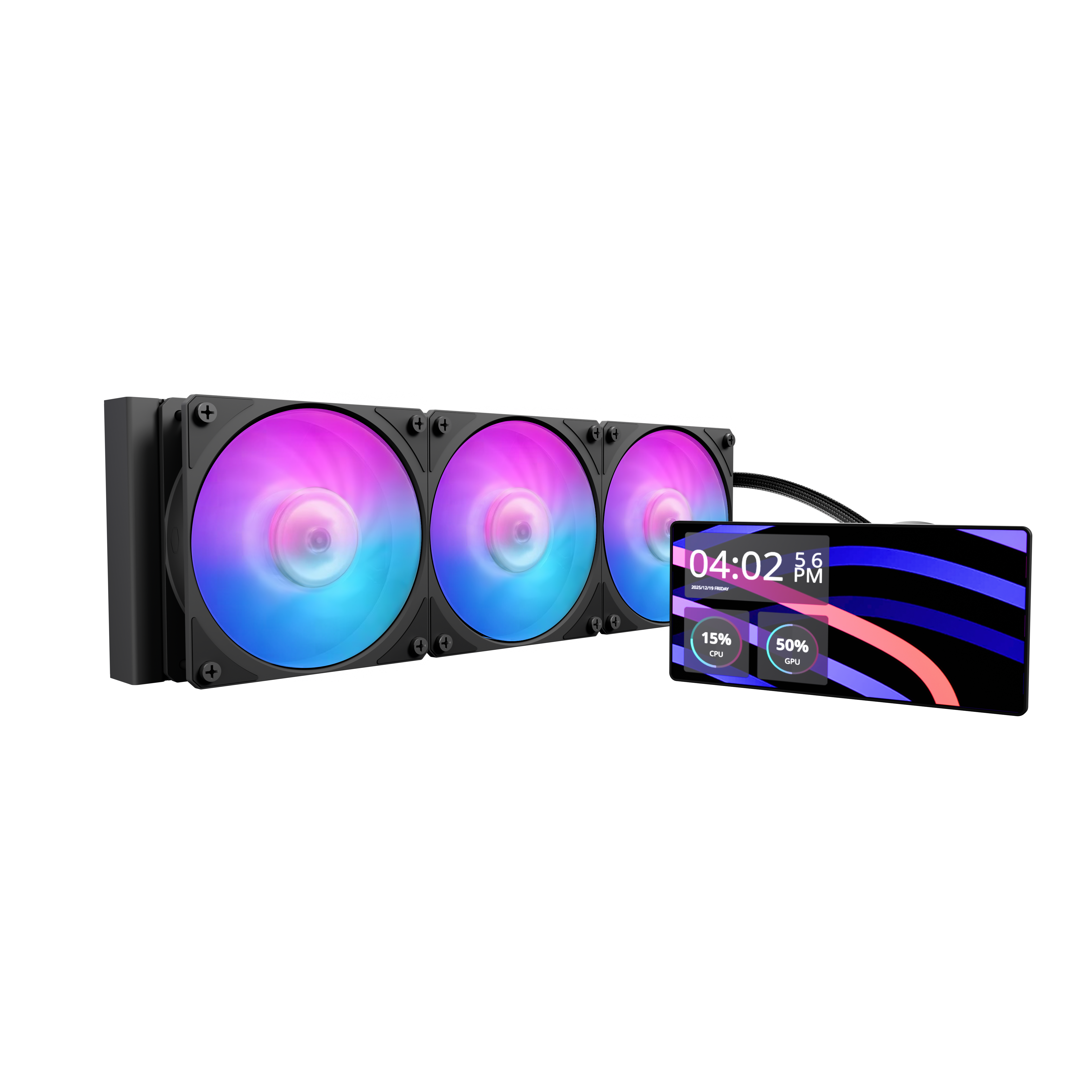

Specifications - MasterLiquid Core LCD 6" 360 Black ARGB
| Model Name |
MasterLiquid Core LCD 6" 360 Black ARGB |
| Model Number |
MLW-D36M-A24PA-L1 |
| Exterior Color |
Black |
| Intel CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| AMD CPU Socket |
AMD® AM5 / AM4 socket |
| Waterblock Dimensions |
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch) |
| Radiator Dimensions |
394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch) |
| Radiator Material |
Aluminum |
| Tube Length |
400mm |
| Fan Dimensions |
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
| Fan Profiles |
Addressable RGB |
| Fan Quantity (pcs) |
3 PCS |
| Fan Speed |
0-2400 RPM ± 10% |
| Fan Air Flow (Max) |
127.8 m³/h (75.2 CFM) |
| Fan Air Pressure (Max) |
3.63 mmH₂O |
| Fan MTTF |
>200,000 hours |
| Fan Noise Level (Max) |
30 dB(A) |
| Fan Bearing |
LDB |
| Fan Connector |
7-Pin PWM+ARGB |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.2 A |
| Fan Safety Current |
0.4 A |
| Fan Power Consumption |
2.4 W |
| Pump Profiles |
Addressable RGB |
| Pump Speed |
3200±10% RPM |
| Pump MTTF |
> 35,0000 hours |
| Pump Noise Level (Max) |
25 dB(A) |
| Pump Rated Voltage |
12 VDC |
| Pump Power Consumption |
7.2 W |
| Pump Connector |
3-Pin ARGB + 4-Pin PWM |
| Display Type |
TFT LCD |
| Display Area (Resolution) |
6 inch (960*480) |
| Luminance |
300 cd/m² |
| Display Rated Voltage |
5 VDC |
| Display Rated Current |
0.4 A |
| Display Safety Current |
0.6 A |
| Display Power Consumption |
3 W |
| Display Connector |
USB 2.0 9PIN |
| Orientation |
Software-MasterCTRL adjustable |
| Warranty |
6 years |

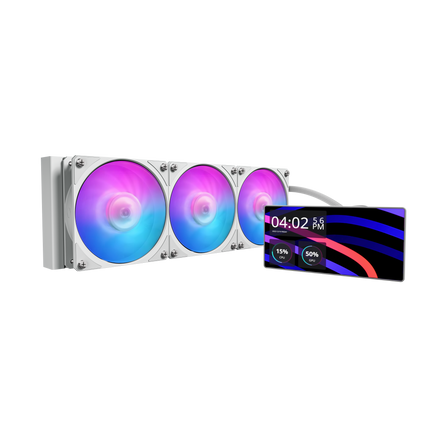

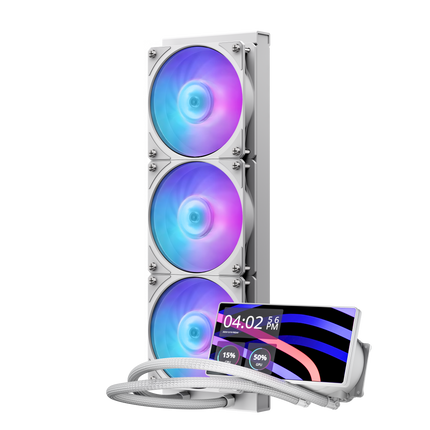

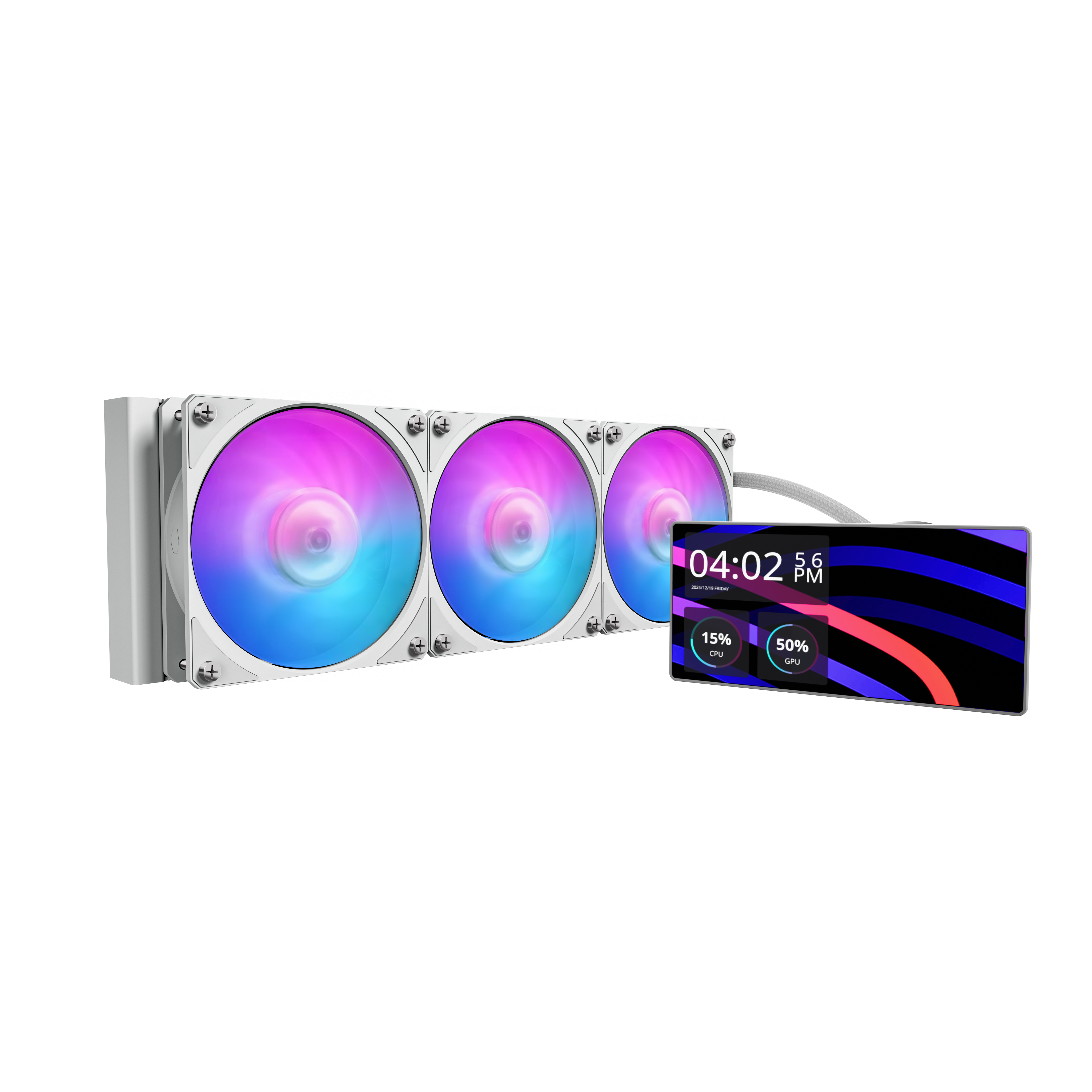

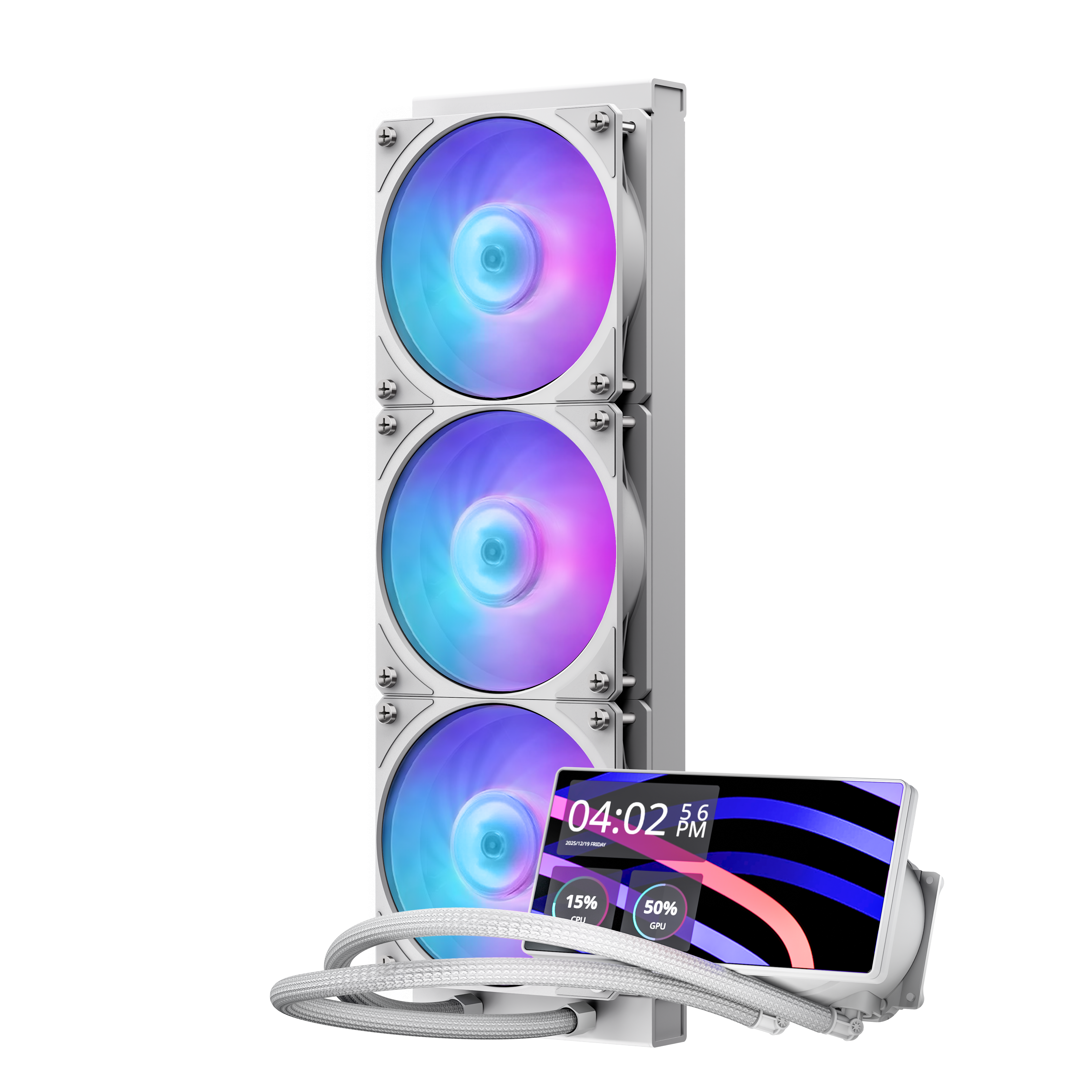

Specifications - MasterLiquid Core LCD 6" 360 White ARGB
| Model Name |
MasterLiquid Core LCD 6" 360 White ARGB |
| Model Number |
MLW-D36M-A24PA-LW |
| Exterior Color |
White |
| Intel CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| AMD CPU Socket |
AMD® AM5 / AM4 socket |
| Waterblock Dimensions |
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch) |
| Radiator Dimensions |
394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch) |
| Radiator Material |
Aluminum |
| Tube Length |
400mm |
| Fan Dimensions |
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
| Fan Profiles |
Addressable RGB |
| Fan Quantity (pcs) |
3 PCS |
| Fan Speed |
0-2400 RPM ± 10% |
| Fan Air Flow (Max) |
127.8 m³/h (75.2 CFM) |
| Fan Air Pressure (Max) |
3.63 mmH₂O |
| Fan MTTF |
>200,000 hours |
| Fan Noise Level (Max) |
30 dB(A) |
| Fan Bearing |
LDB |
| Fan Connector |
7-Pin PWM+ARGB |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.2 A |
| Fan Safety Current |
0.4 A |
| Fan Power Consumption |
2.4 W |
| Pump Profiles |
Addressable RGB |
| Pump Speed |
3200±10% RPM |
| Pump MTTF |
> 35,0000 hours |
| Pump Noise Level (Max) |
25 dB(A) |
| Pump Rated Voltage |
12 VDC |
| Pump Power Consumption |
7.2 W |
| Pump Connector |
3-Pin ARGB + 4-Pin PWM |
| Display Type |
TFT LCD |
| Display Area (Resolution) |
6 inch (960*480) |
| Luminance |
300 cd/m² |
| Display Rated Voltage |
5 VDC |
| Display Rated Current |
0.4 A |
| Display Safety Current |
0.6 A |
| Display Power Consumption |
3 W |
| Display Connector |
USB 2.0 9PIN |
| Orientation |
Software-MasterCTRL adjustable |
| Warranty |
6 years |

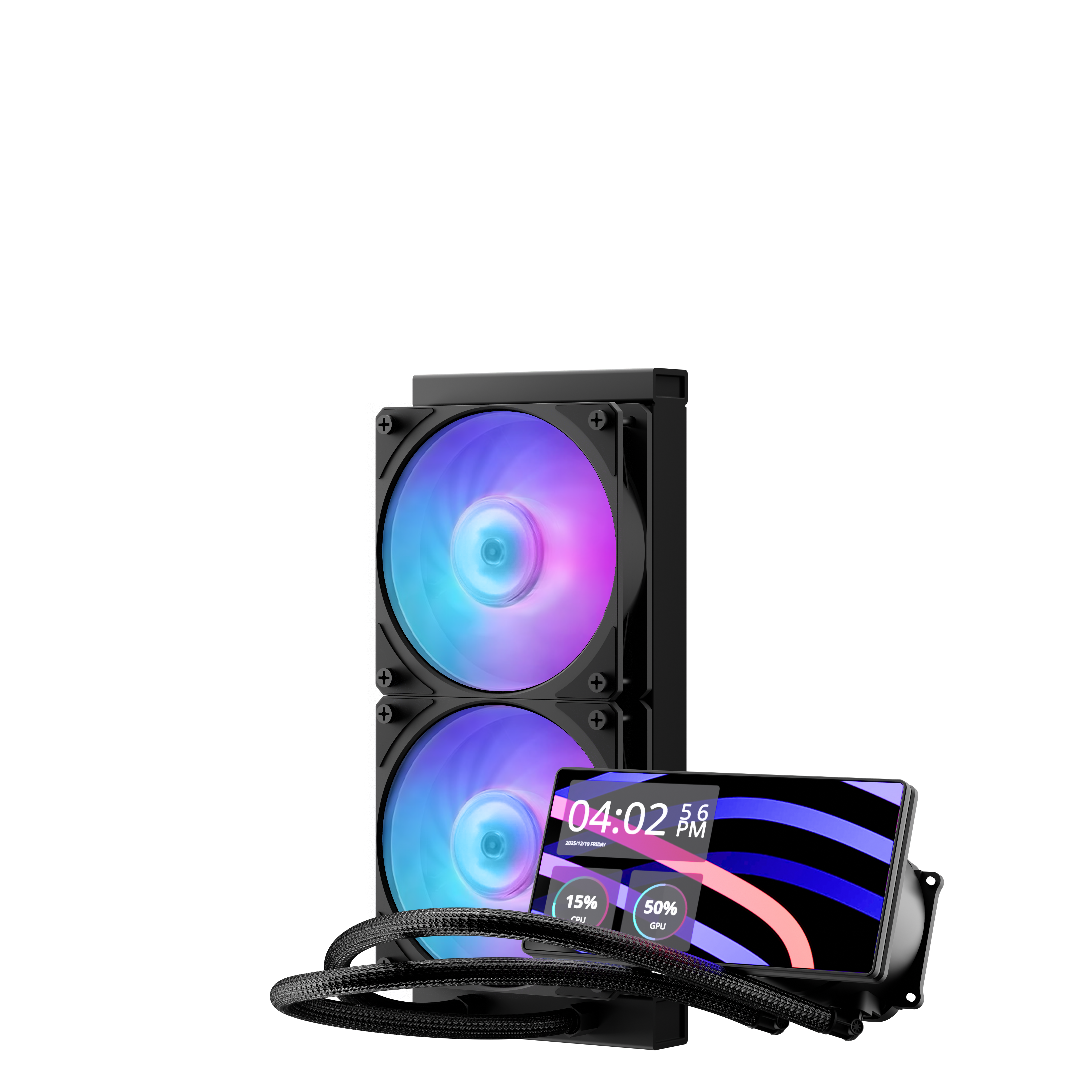

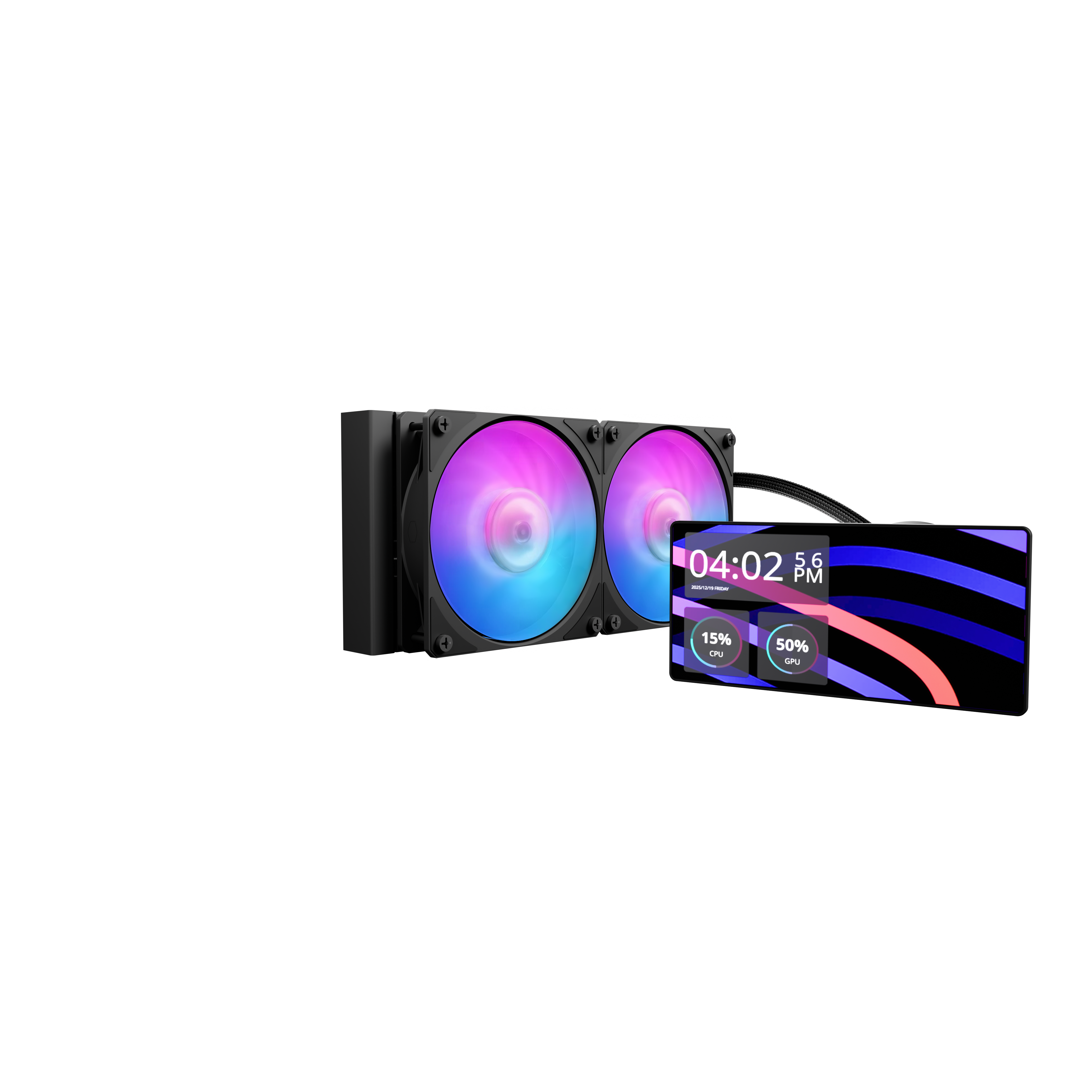

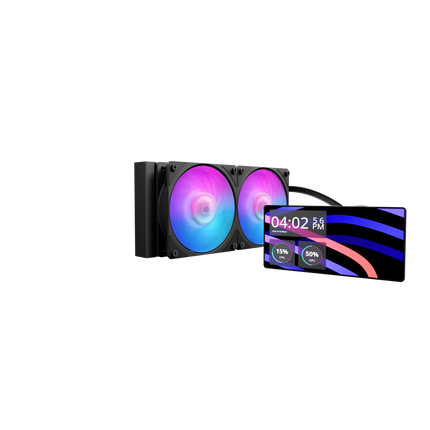

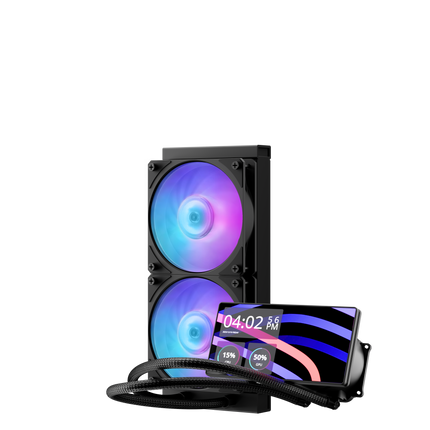

Specifications - MasterLiquid Core LCD 6" 240 Black ARGB
| Model Name |
MasterLiquid Core LCD 6" 240 Black ARGB |
| Model Number |
MLW-D24M-A24PA-L1 |
| Exterior Color |
Black |
| Intel CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| AMD CPU Socket |
AMD® AM5 / AM4 socket |
| Waterblock Dimensions |
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch) |
| Radiator Dimensions |
274 x 119.6 x 27.2 mm (10.8 x 4.7 x 1.1 inch) |
| Radiator Material |
Aluminum |
| Tube Length |
400mm |
| Fan Dimensions |
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
| Fan Profiles |
Addressable RGB |
| Fan Quantity (pcs) |
3 PCS |
| Fan Speed |
0-2400 RPM ± 10% |
| Fan Air Flow (Max) |
127.8 m³/h (75.2 CFM) |
| Fan Air Pressure (Max) |
3.63 mmH₂O |
| Fan MTTF |
>200,000 hours |
| Fan Noise Level (Max) |
30 dB(A) |
| Fan Bearing |
LDB |
| Fan Connector |
7-Pin PWM+ARGB |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.2 A |
| Fan Safety Current |
0.4 A |
| Fan Power Consumption |
2.4 W |
| Pump Profiles |
Addressable RGB |
| Pump Speed |
3200±10% RPM |
| Pump MTTF |
> 35,0000 hours |
| Pump Noise Level (Max) |
25 dB(A) |
| Pump Rated Voltage |
12 VDC |
| Pump Power Consumption |
7.2 W |
| Pump Connector |
3-Pin ARGB + 4-Pin PWM |
| Display Type |
TFT LCD |
| Display Area (Resolution) |
6 inch (960*480) |
| Luminance |
300 cd/m² |
| Display Rated Voltage |
5 VDC |
| Display Rated Current |
0.4 A |
| Display Safety Current |
0.6 A |
| Display Power Consumption |
3 W |
| Display Connector |
USB 2.0 9PIN |
| Orientation |
Software-MasterCTRL adjustable |
| Warranty |
6 years |

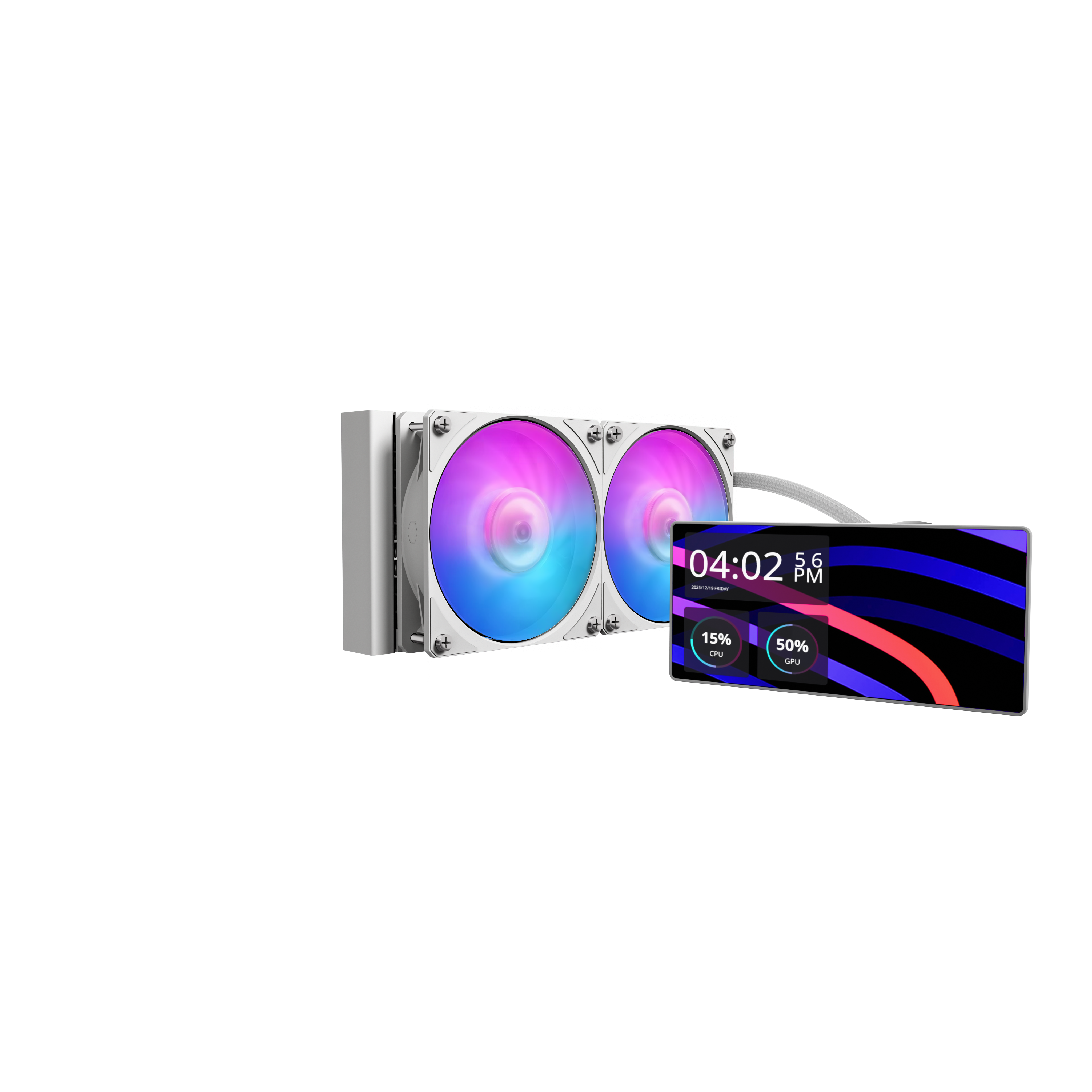

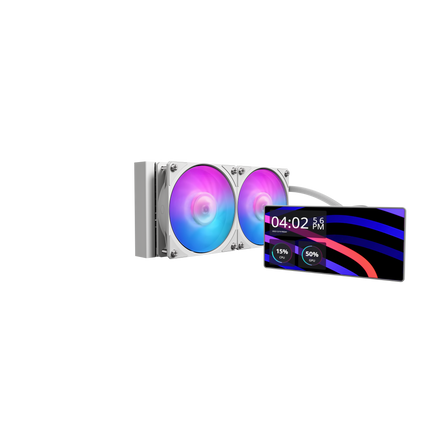

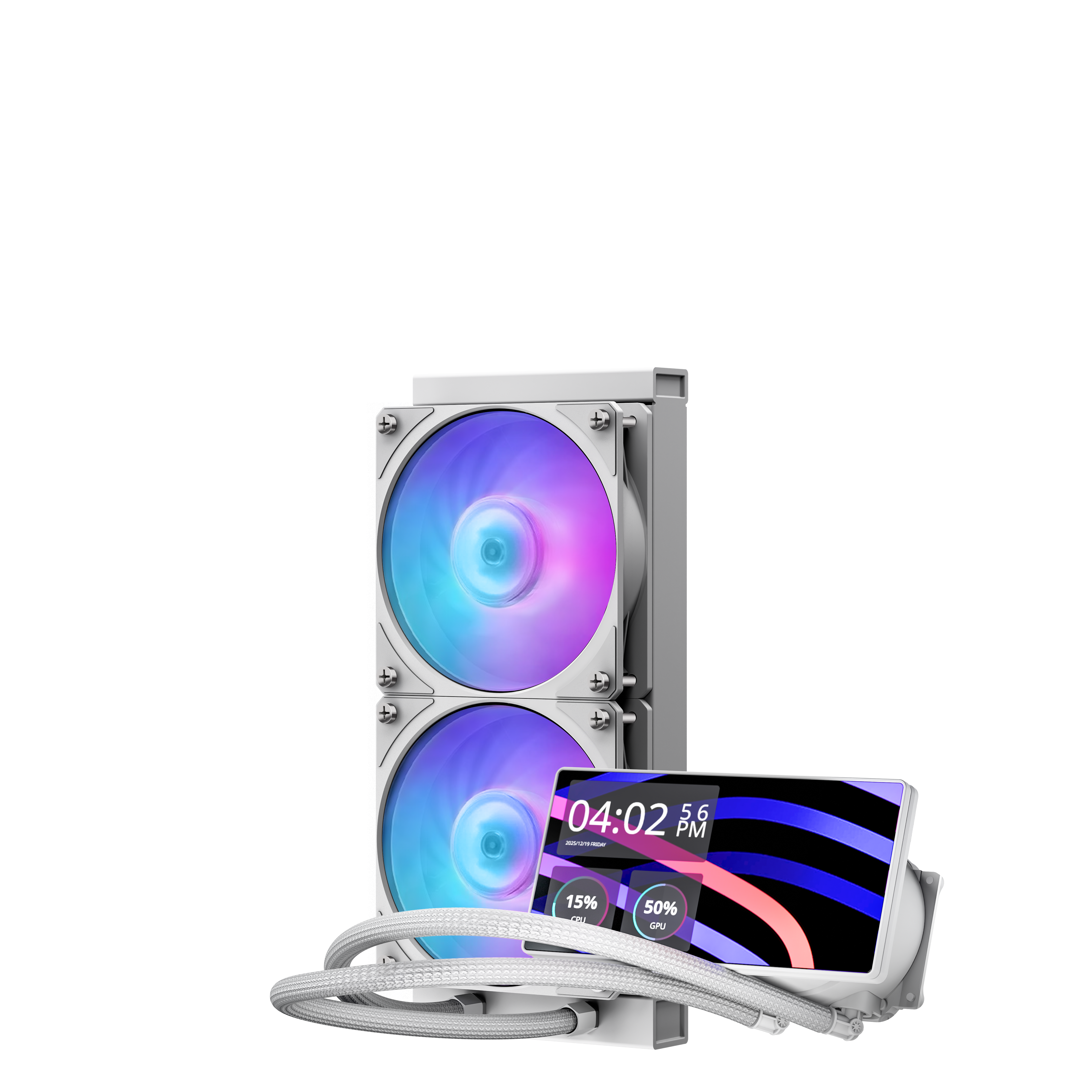

Specifications - MasterLiquid Core LCD 6" 240 White ARGB
| Model Name |
MasterLiquid Core LCD 6" 240 White ARGB |
| Model Number |
MLW-D24M-A24PA-LW |
| Exterior Color |
White |
| Intel CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| AMD CPU Socket |
AMD® AM5 / AM4 socket |
| Waterblock Dimensions |
153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch) |
| Radiator Dimensions |
274 x 119.6 x 27.2 mm (10.8 x 4.7 x 1.1 inch) |
| Radiator Material |
Aluminum |
| Tube Length |
400mm |
| Fan Dimensions |
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
| Fan Profiles |
Addressable RGB |
| Fan Quantity (pcs) |
3 PCS |
| Fan Speed |
0-2400 RPM ± 10% |
| Fan Air Flow (Max) |
127.8 m³/h (75.2 CFM) |
| Fan Air Pressure (Max) |
3.63 mmH₂O |
| Fan MTTF |
>200,000 hours |
| Fan Noise Level (Max) |
30 dB(A) |
| Fan Bearing |
LDB |
| Fan Connector |
7-Pin PWM+ARGB |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.2 A |
| Fan Safety Current |
0.4 A |
| Fan Power Consumption |
2.4 W |
| Pump Profiles |
Addressable RGB |
| Pump Speed |
3200±10% RPM |
| Pump MTTF |
> 35,0000 hours |
| Pump Noise Level (Max) |
25 dB(A) |
| Pump Rated Voltage |
12 VDC |
| Pump Power Consumption |
7.2 W |
| Pump Connector |
3-Pin ARGB + 4-Pin PWM |
| Display Type |
TFT LCD |
| Display Area (Resolution) |
6 inch (960*480) |
| Luminance |
300 cd/m² |
| Display Rated Voltage |
5 VDC |
| Display Rated Current |
0.4 A |
| Display Safety Current |
0.6 A |
| Display Power Consumption |
3 W |
| Display Connector |
USB 2.0 9PIN |
| Orientation |
Software-MasterCTRL adjustable |
| Warranty |
6 years |
