Description

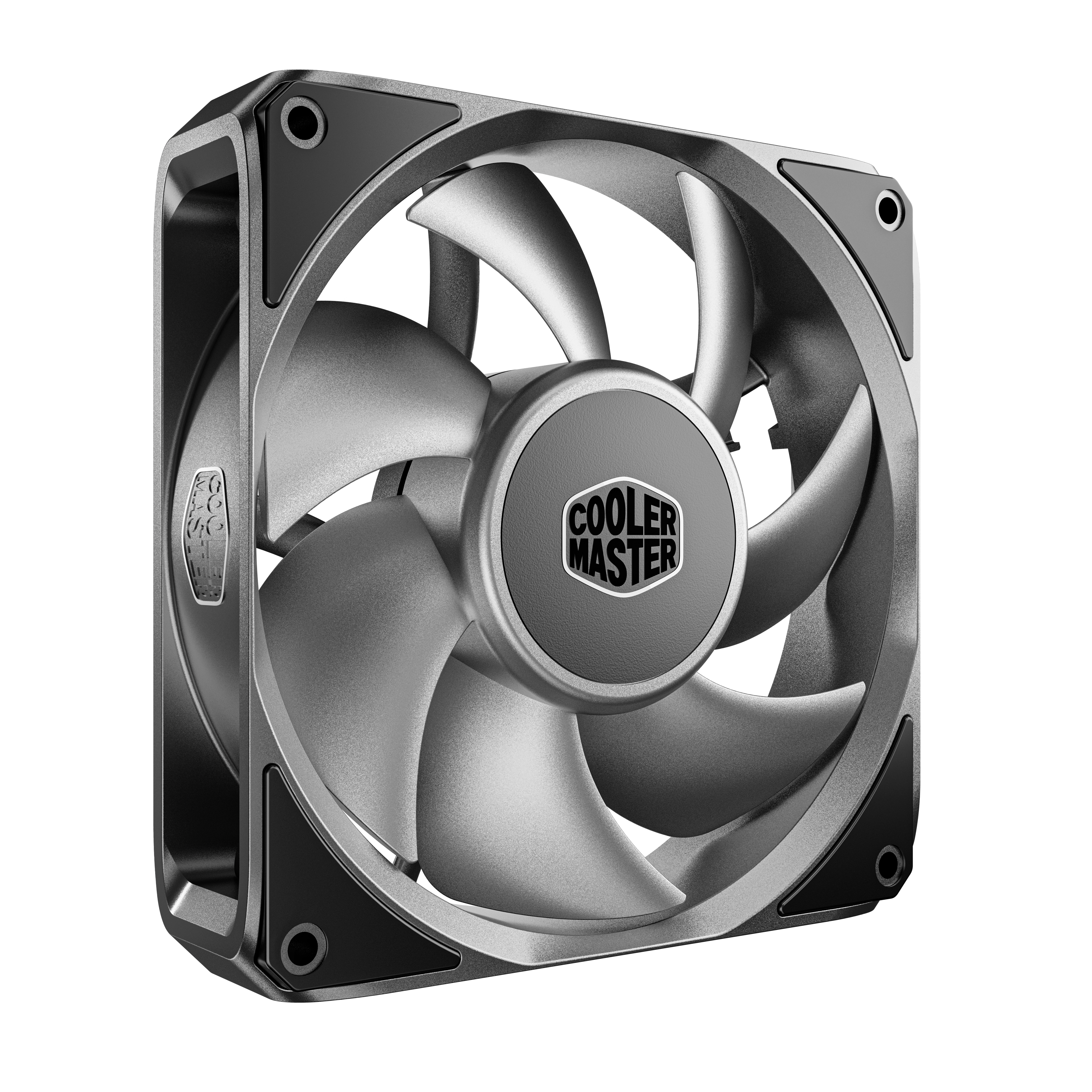

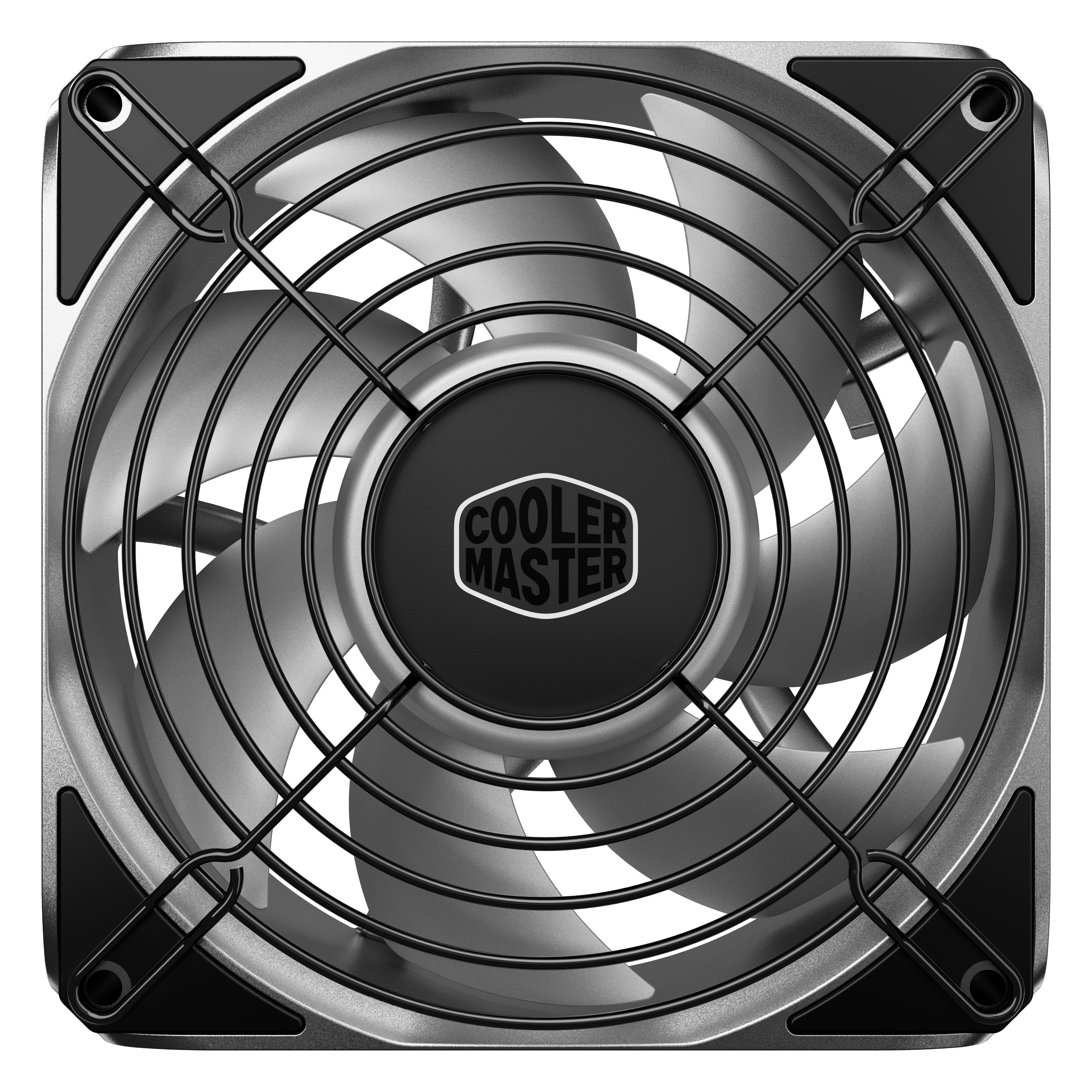

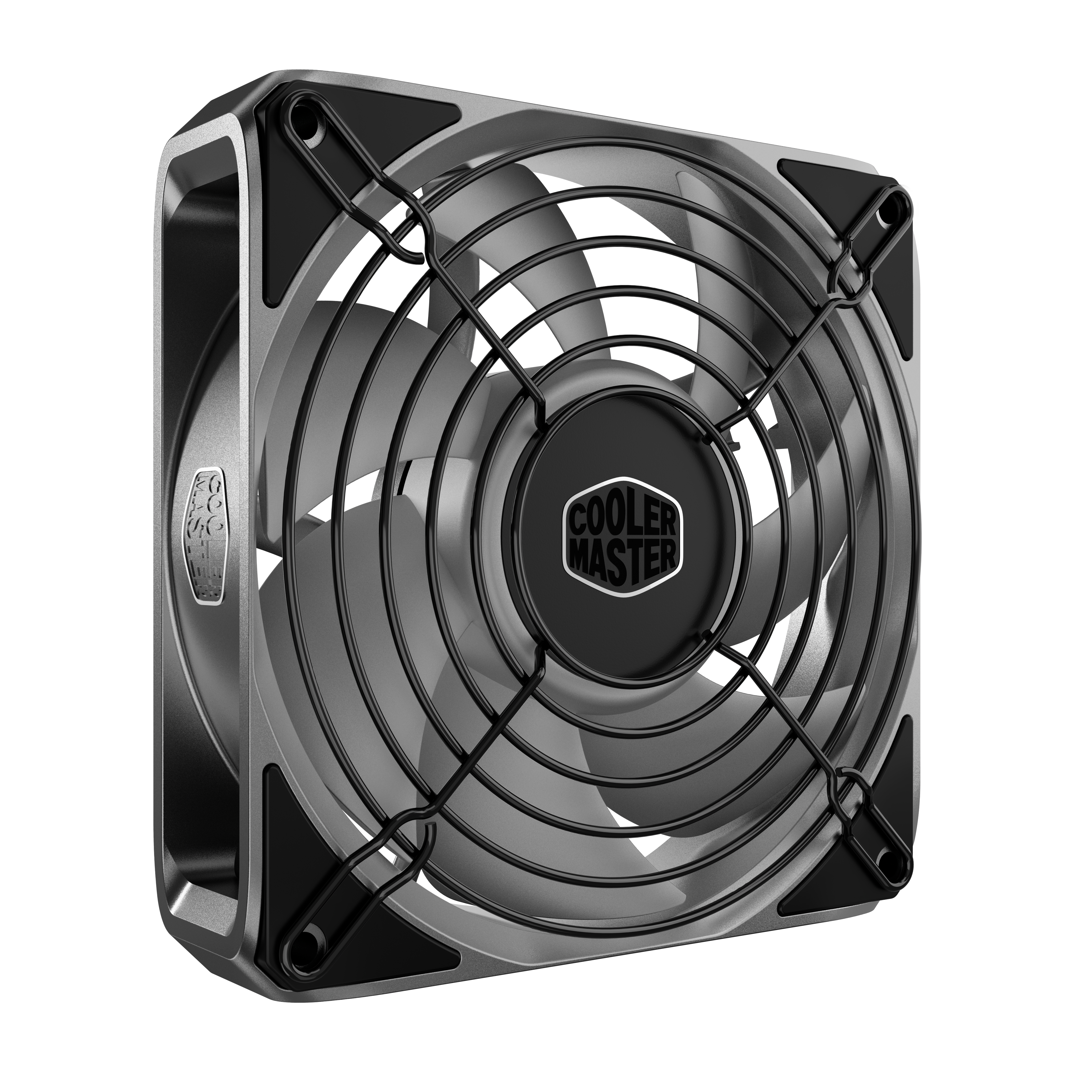

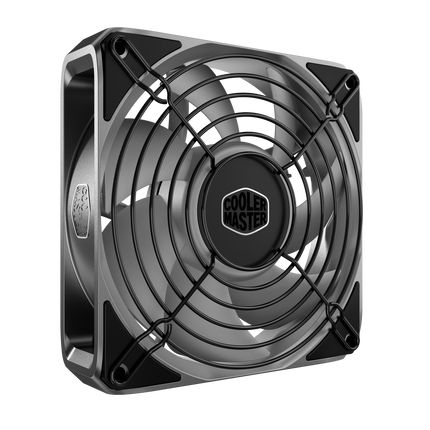

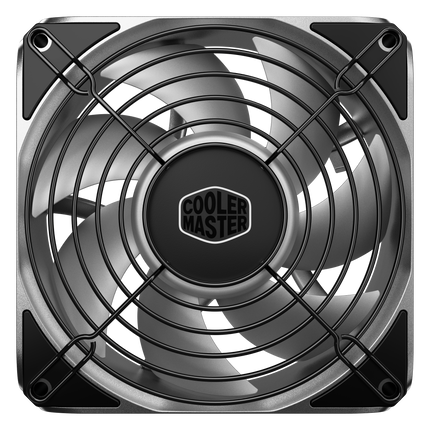

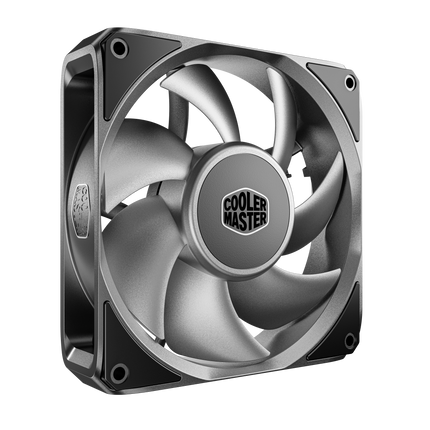

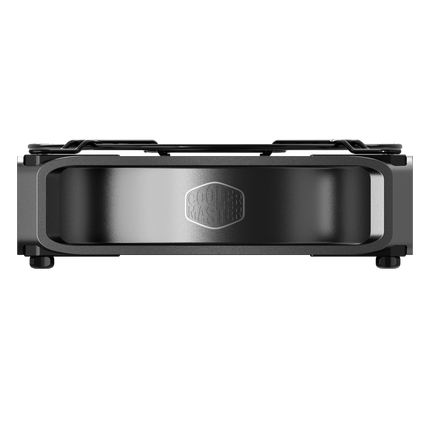

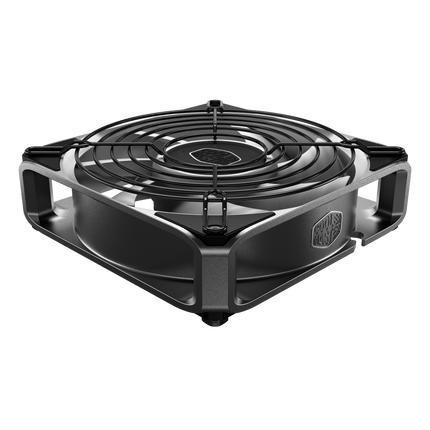

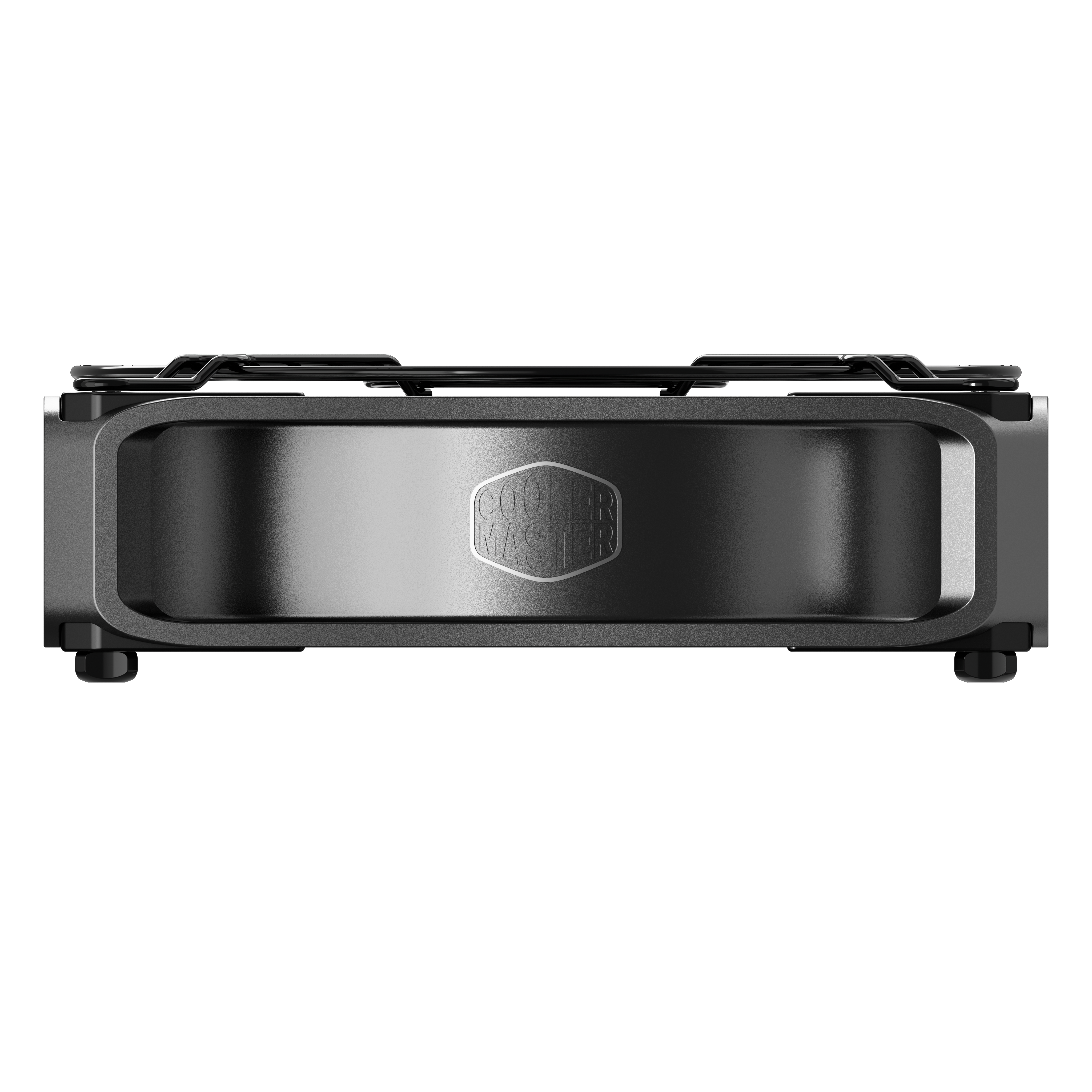

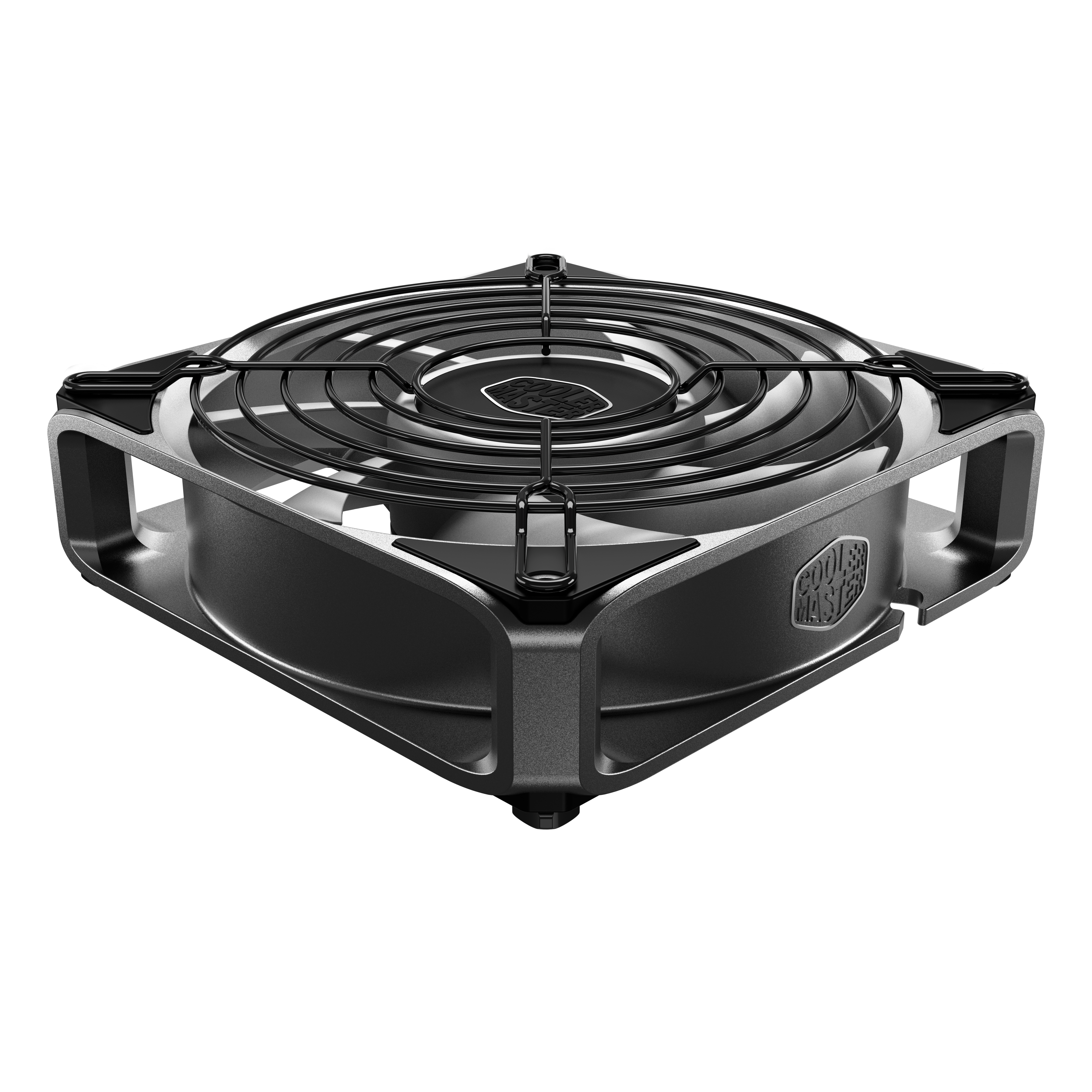

MasterFan A120 / A120 FC
The MasterFan A120 delivers revolutionary cooling performance, achieving benchmark-setting airflow and drastically reduced system temperatures with superior efficiency and unparalleled reliability. This extreme capability is engineered through its flagship aluminum construction and high-speed motor design. The all-aluminum frame and blades ensure superior rigidity and durability, preventing blade warp even when sustaining its extreme 4000 RPM speeds. This precise structural integrity is crucial for generating high air pressure, allowing the fan to powerfully overcome the resistance of restrictive components and blow air through tight spaces—drastically cooling down even the smallest cases. The three-phase motor also eliminates operational instability, guaranteeing superior, reliable performance and maximum system efficiency throughout its entire operating range.
Features
-
Flagship Aluminum Construction — The all-aluminum frame and blades deliver superior rigidity and long-term durability, essential for reliably sustaining high-speed performance.
-
Extreme 4000 RPM — Premium aluminum construction ensures blades retain their precise shape and resist warping even at intense speeds, delivering benchmark-setting airflow and exceptional cooling results. *Tested at 4000 RPM by Cooler Master Lab; applicable only to the optional controller version.
-
High Air Pressure — Exceptional air pressure guaranteed by the A120's structural integrity. The premium aluminum frame and blades resist warping and maintain their precise shape at intense speeds, delivering focused, high-velocity airflow that drastically reduces system temperatures.
-
Three-Phase Motor Design — The integrated three-phase motor eliminates instability to ensure ultra-quiet start-up and superior, reliable performance for maximum system efficiency.
Specifications
| Specification |
MasterFan A120 |
MasterFan A120 FC |
| Model Number |
MFZ-P2NA-25NPK-R1 |
MFZ-P2NA-40NPK-R1 |
| Dimensions (L x W x H) |
120 x 120 x 30mm (4.7 x 4.7 x 1.18 inch) |
| Profile |
Non-LED |
| Speed |
0–2500 ±10% RPM |
0–4000 ±10% RPM |
| Air Flow |
76.9 CFM (MAX) |
121.73 CFM (MAX) |
| Air Pressure |
6.1 mmH₂O (MAX) |
13.15 mmH₂O (MAX) |
| MTTF |
>200,000 hours |
| Noise Level |
29.7 dBA (MAX) |
42.5 dBA (MAX) |
| Bearing |
Two-Ball Bearing |
| Connector |
4-Pin PWM |
| Rated Voltage |
12 VDC |
| Rated Current |
0.17A |
| Safety Current |
1A |
| Power Consumption |
2.04 W |
6 W / 0.5A |
| Weight |
305g (0.67 lbs) |
| Warranty |
6 Years |
| EAN |
4719512163528 |
4719512163535 |
| UPC |
884102135828 |
884102135835 |
