Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

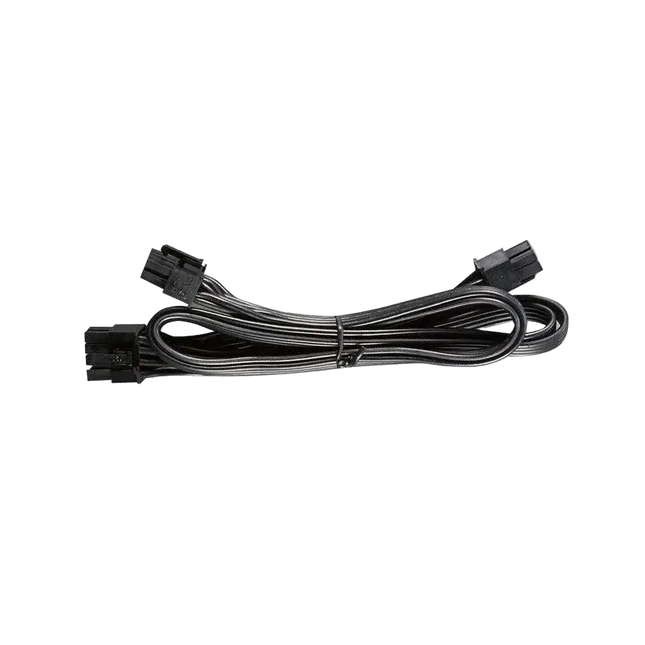

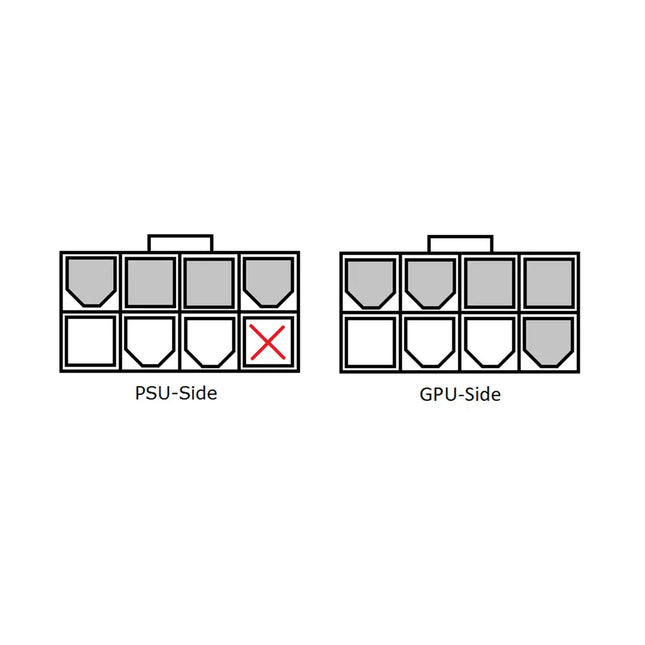

PCI-E 8-pin to 2x(6+2)-pin cable (Modular/Flat) (Model 2)Original cable from the MWE Gold V2 850w series.
Compatible with other PSU models:MWE Gold V2 550w / 650w / 750w / 850w / 1050w / 1250wMWE Gold V1 550w / 650w / 750wXG Platinum 650w / 750w / 850wXG Platinum Plus 650w / 750w / 850w
NOT compatible with:
If your model is not listed, then it's not compatible.
Check below page for another model
PCI-E 8 pin to 2x (6+2) pin - (Modular / Flat cable) (Model 1) – Cooler Master Spare Parts Store
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

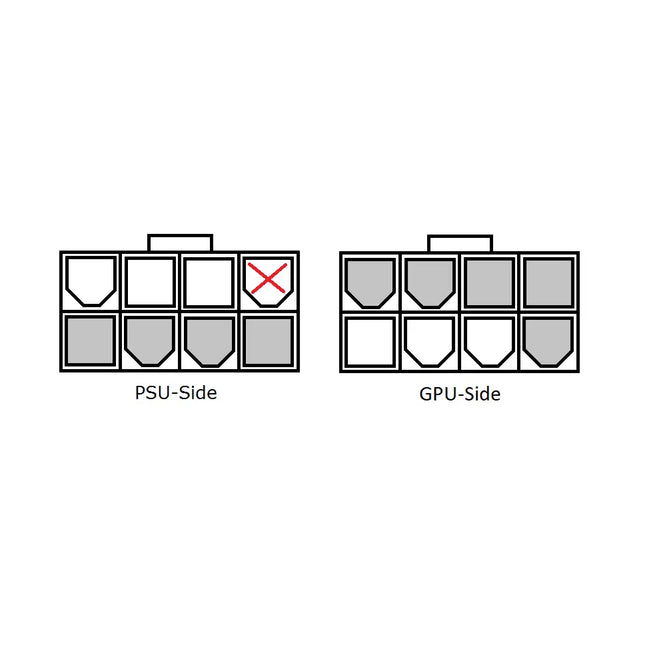

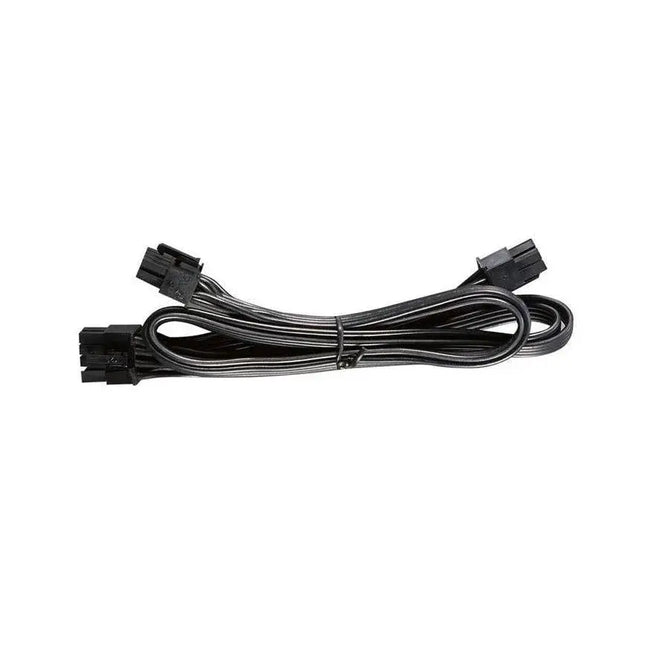

PCI-E 8-pin to 2x(6+2)-pin cable (Modular/Flat)Original cable from the V550/V650 and V750 models with 8 pin PCI connector on the power supply side.
Compatible with other PSU models:
MWE Gold V3 750W/850W
Elite Gold Full Modular Series
Masterwatt (Semi Modular)
X Silent / X Mighty Platinum 2000W
V Platinum V2
GX II Gold
GX III Gold
V Gold V2
V SFX Gold
V Gold i
NOT compatible with:
If your model is not listed, then it's not compatible.
Check below page for another model
PCI-E 8 pin to 2x (6+2) pin - (Modular / Flat cable) (Model 2) – Cooler Master Spare Parts Store
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

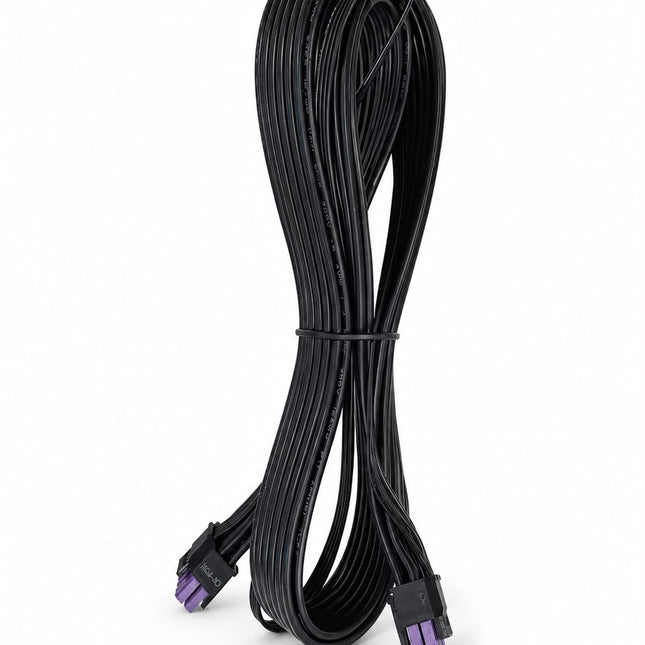

Spare parts Cables for PSUThe 180° 12V-2x6 Cable (also known as 12+4) is designed to solve compatibility issues caused by angled connector versions. The straight 180° exit angle ensures the cable routes cleanly without stressing the GPU connector, ideal for builds where 90° or other angled variants create clearance or fitment problems.
The 12V-2x6 connector, with clear purple markings, helps users confirm correct installation, preventing poor contact and power issues for enhanced safety and reliability.
The PSU must have a 12V-2x6 connector. Compatible with the following Cooler Master PSU models:
SFX 750/850 ATX3.1
V Platinum V2 1100/1300/1600
GXI / GXII, SFX 1100/1300
MWE Gold V2 750/850 3.1v
MWE Gold V2 1050/1250
Other Cooler Master PSU with a native 12V-2x6 Connector.
Connector naming reference:
12VHPWR — the predecessor connector; still frequently used interchangeably with 12V-2x6, though technically a different revision.
16-pin connector — informal name referring to the 16-pin total layout (12 power + 4 sideband)
12+4 pin connector — describes the same 16-pin layout.
Note: The key improvement of 12V-2x6 over 12VHPWR is the use of shorter sensing pins, specifically introduced to eliminate the partial-insertion issues seen with the original 12VHPWR connector on Nvidia 40/50-series GPUs.If you're already experiencing fitment issues with your current cable, check with our support team before placing an order. Depending on your setup, a purchase may not be necessary.Contact Us
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

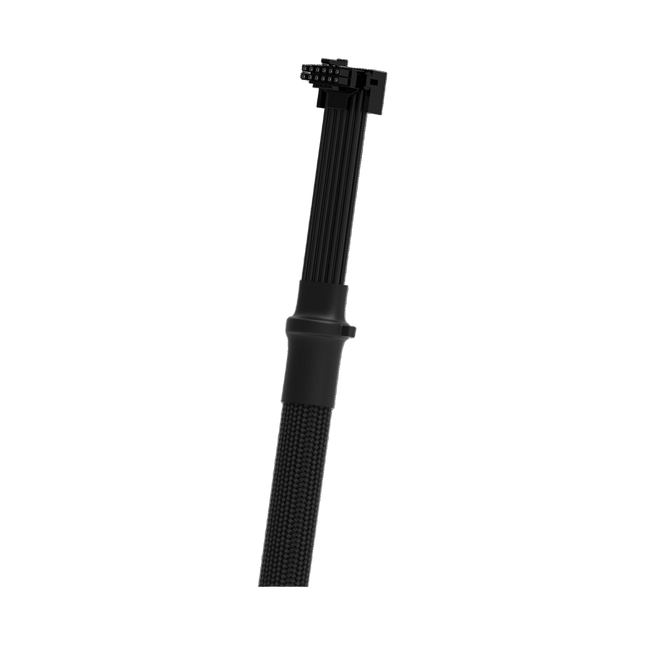

12VHPWR Adapter Cable Type 1
Powering the next generation with ease.
40 Series Ready, ATX 3.0 Not Required
Highly Flexible 90 Degree Cable
A 12+4 pin PCIe 5.0 connector featuring a 90 degree angle to prevent unnecessary bending, with improved flexibility to enhance ease of use and ensure a long lasting connection.
Three 8 Pin Connectors
Up to 600W of power is split between three PCIe 8 pin connectors, providing enhanced safety.
Recommended Installation
* Do not use cables that do not comply with the standard configuration.
* Do not use with additional adapter cables, such as 8 pin to 6+2 pin or SATA.
* Do not place the cables near any heat sources.
Supported Cooler Master Power Supplies
* V Gold V2
* V Platinum V1 & V2
* V SFX Gold V1 & V2
* V SFX Platinum
* M2000 Platinum
* MWE Gold V3
Specifications
* Color: Black
* Cable Type: Single Sleeve
* Wire Gauge: 16 AWG (Power), 28 AWG (Signal)
* Length: 65cm
* Connectors: 1x 12+4 Pin, 3x 8 Pin
* Series: Cable, Accessories
* Model: CMA-NFPC16XXBK1-GL
* Product Sheet
Download
Non compatible with older V series with only 6 PIN.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
8 pin to 8 pin CPU power cable (Modular / Flat cable)
Compatible with:
V850,
V1000,
V1200,
MWE gold V2,
MasterWatt Full Modular.
Make sure the pinouts match.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy

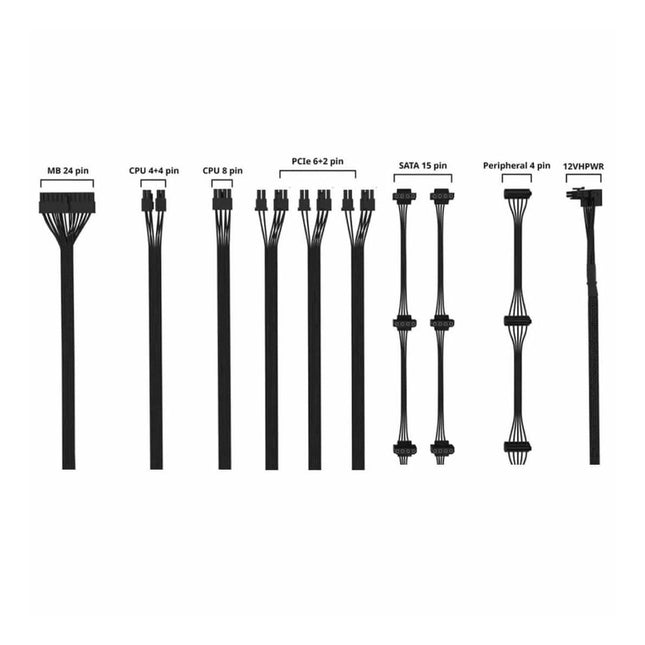

For V SFX Gold & V SFX Platinum Series use only (ATX 3.0 & ATX 3.1)
For V SFX Gold 2.52, the SATA cable & 12 VHPWR Cable will not be compatible. All the other cables in the box are compatible.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
ATX 24-pin power cable to seamlessly link 'V series' power supplies with motherboards : 20+4 pins on one side, 18+10 pins on the other.
Compatible with:
(V-Series) V550,
(V-Series) V650,
(V-Series) V750.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
COMPLETE EXTENSION CABLE SET - Contains 7 x 30cm cables compatible with standard ATX PC power supplies: 1 x ATX 24-pin, 1 x CPU 8 (4 + 4) pins, 1 x CPU 8-pin, 2 x PCI-e 6 + 2-pin, 2 x PCI-e 8-pin / cable clips: 4 x 24-pin s, 12 x 8-pin, 6x 6-pin.
MORE DURABLE & LESS HEAT - The thicker than standard 16AWG wires give superior heat resistance and conductivity; this helps to lower the ambient temperature around the cables, which is typically caused by thinner standard wires.
EFFICIENT CABLE MANAGEMENT - Each cable is PVC coated and equipped with three layers of protection to ensure that cables still work perfectly even in sharp bends; the high degree of flexibility makes cable management neat and efficient.
PERSONALIZED LOOKS - The power cable extension set is available in white and is not only made to perform but also to match the visual aesthetics of the PC build.
HIGH-END SUPPORT - An additional 8-pin CPU processor cable and 6 + 2-pin connectors work with high-end motherboards that use a 16-EPS feed for overclocking, 2 x 16-pin connectors ensure compatibility with two graphics cards.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
12VHPWR Adapter Cable Type 2
Powering the next generation with ease.
40 Series Ready, ATX 3.0 Not Required
Highly Flexible 90 Degree Cable
A 12+4 pin PCIe 5.0 connector featuring a 90 degree angle to prevent unnecessary bending, with improved flexibility to enhance ease of use and ensure a long lasting connection.
Three 8 Pin Connectors
Up to 600W of power is split between three PCIe 8 pin connectors, providing enhanced safety.
Recommended Installation
* Do not use cables that do not comply with the standard configuration.
* Do not use with additional adapter cables, such as 8 pin to 6+2 pin or SATA.
* Do not place the cables near any heat sources.
Supported Cooler Master Power Supplies
MWE Gold V2, GX Gold, XG, XG Plus
Specifications
* Color: Black
* Cable Type: Single Sleeve
* Wire Gauge: 16 AWG (Power), 28 AWG (Signal)
* Length: 65cm
* Connectors: 1x 12+4 Pin, 3x 8 Pin
* Series: Cable, Accessories
* Model: CMA-NFPC16XXBK2-GL
* Product Sheet
Download
Non compatible with older V series with only 6 PIN.
Easy Peace of Mind
• Multi-color LED ring with real-time visual status indication
• Integrated audible alarm for abnormal current detection
• Individual-pin abnormal current monitoring
• Automatic active protection during severe electrical abnormalities
• Protection mode reduces system power consumption during critical stage
• Dual-color 12+4-pin connector for easier insertion verification
The Cooler Master GPU Shield Adapter Cable adds an extra layer of protection between your graphics card and power supply through intelligent 12+4-pin monitoring. A multi-color LED ring and integrated audible alarm alert you when abnormal current is detected, helping you identify potential connection issues early.
During severe electrical abnormalities, the active protection mechanism automatically reduces system power consumption to help minimize the risk of connector melting damage.
Key features
Real-time visual alerts: A multi-color LED ring indicates connection status and changes when abnormal current conditions are detected.
Audible warnings: An integrated alarm provides immediate notification, even when the visual indicator is out of sight.
Individual-pin monitoring: Monitors individual pins for abnormal current.
Automatic active protection: Reduces system power consumption during severe electrical abnormalities to help prevent further damage.
Easy insertion verification: The dual-color 12+4-pin connector helps you check that it is fully inserted, reducing the risk of poor contact, overheating, and connector damage.
Designed for peace of mind
Check the dual-color connector for full insertion when setting up your system, then use the LED ring for at-a-glance status feedback. If abnormal current is detected, visual and audible alerts help bring the issue to your attention.
GPU SHIELD ADPATER CABLE
Intelligent Protection for Your GPU Power Connection
The GPU Shield Adapter Cable adds an extra layer of protection between your graphics card and power supply with intelligent 12+4-pin monitoring. It provides instant visual and audible alerts when abnormal current is detected, helping identify potential connection issues early. If a severe electrical abnormality occurs, the integrated protection mechanism automatically reduces system power consumption to help minimize the risk of connector melting damage.
Product specifications
Product name: GPU SHIELD ADAPTER CABLE
Product number: CMA-CEPC16XXBK1-GL
Regulatory: CE, RoHS2.0
Connectors: 12 + 4 Pin; x1 = 1 (200mm)
Download the product sheet
