Easy Peace of Mind
• Multi-color LED ring with real-time visual status indication
• Integrated audible alarm for abnormal current detection
• Individual-pin abnormal current monitoring
• Automatic active protection during severe electrical abnormalities
• Protection mode reduces system power consumption during critical stage
• Dual-color 12+4-pin connector for easier insertion verification
The Cooler Master GPU Shield Adapter Cable adds an extra layer of protection between your graphics card and power supply through intelligent 12+4-pin monitoring. A multi-color LED ring and integrated audible alarm alert you when abnormal current is detected, helping you identify potential connection issues early.
During severe electrical abnormalities, the active protection mechanism automatically reduces system power consumption to help minimize the risk of connector melting damage.
Key features
Real-time visual alerts: A multi-color LED ring indicates connection status and changes when abnormal current conditions are detected.
Audible warnings: An integrated alarm provides immediate notification, even when the visual indicator is out of sight.
Individual-pin monitoring: Monitors individual pins for abnormal current.
Automatic active protection: Reduces system power consumption during severe electrical abnormalities to help prevent further damage.
Easy insertion verification: The dual-color 12+4-pin connector helps you check that it is fully inserted, reducing the risk of poor contact, overheating, and connector damage.
Designed for peace of mind
Check the dual-color connector for full insertion when setting up your system, then use the LED ring for at-a-glance status feedback. If abnormal current is detected, visual and audible alerts help bring the issue to your attention.
GPU SHIELD ADPATER CABLE
Intelligent Protection for Your GPU Power Connection
The GPU Shield Adapter Cable adds an extra layer of protection between your graphics card and power supply with intelligent 12+4-pin monitoring. It provides instant visual and audible alerts when abnormal current is detected, helping identify potential connection issues early. If a severe electrical abnormality occurs, the integrated protection mechanism automatically reduces system power consumption to help minimize the risk of connector melting damage.
Product specifications
Product name: GPU SHIELD ADAPTER CABLE
Product number: CMA-CEPC16XXBK1-GL
Regulatory: CE, RoHS2.0
Connectors: 12 + 4 Pin; x1 = 1 (200mm)
Download the product sheet
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

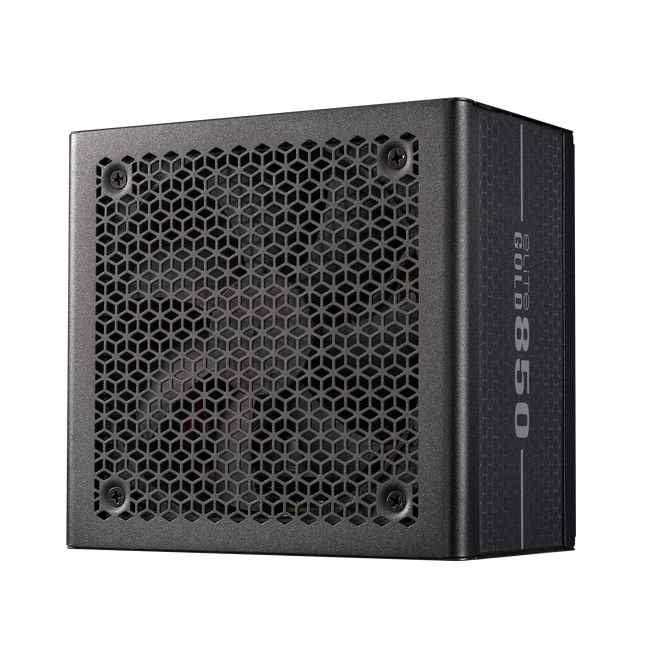

Cooler Master Elite Gold 850 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 5-year warranty, the Elite Gold 850 provides lasting confidence and stability for your system.
HIGH TEMPERATURE RESILIENCE
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
Compatible with ATX 3.1 and PCIe Gen 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 850 ready for the latest and upcoming mid-range GPUs.*All performance stats confirmed in 25°C ambient temperature testing.
RIFLE BEARING FAN
The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 850 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.*All performance stats confirmed in 25°C ambient temperature testing.
COMPACT FORM FACTOR
Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.
Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.*All performance stats confirmed in 25°C ambient temperature testing.
PSU CALCULATOR
Need help choosing the right power supply for your system?Try out our comprehensive and easy-to-use PSU calculator.
PSU Calculator | Cooler Master
Specifications
Product Name: ELITE GOLD 850
Model: MPX-8505-AFAG-BEU
ATX Version: ATX 12V Ver. 3.1
Active PFC
Input Voltage: 100-240V
Input Current: 6 ~ 12A
Input Frequency: 50-60Hz
Dimensions (L x W x H): 140 x 150 x 86 mm
Fan Size: 120mm
Fan Bearing: Rifle bearing
Efficiency: ≥90% @ Typical Load
80 PLUS Rating: 80 PLUS Gold
ErP 2014 Lot 3: Yes
Operating Temperature: 0-40°C
Power Good Signal: 100 - 150 ms
Hold Up Time: ≥ 11ms @ 100% Load
MTBF: >100,000 hours @ 25℃ ambient
Protections: UVP / OVP / OPP / OTP / SCP
Regulatory: cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
ATX 24 Pin Connectors: x1 = 1 (550mm)
EPS 4+4 Pin Connectors: x1 = 1 (600mm)
EPS 8 Pin Connector: x1 = 1 (600mm)
SATA & Peripheral 4 Pin Connectors: X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
PCI-e 6+2 Pin Connectors: x3 = 1 (500+120mm), 1 (500mm)
12+4 Pin Connectors: x1 = 1 (650mm)
Elite Series
Form Factor: ATX
Watts: 850W
Fully Modular
80 Plus Efficiency Gold
Warranty: 10 Years
Downloads
Product SheetDownload
Product Sheet - Japanese EditionDownload
ManualDownload
• Supports ATX 3.1 and PCIe Gen 5.1 standards
• Ideal for RTX 50 GPUs
• Stable performance under high loads at up to 40°C
• Quiet, long-life FDB fan cooling
• 1000W output with 80 Plus Gold-certified efficiency
• Fully modular embossed cable design
• Reliable 10-year warranty
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40°C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.
High Temperature Resilience
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.*All performance stats confirmed in 25°C ambient temperature testing.
QUIET FDB FAN
The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.*All performance stats confirmed in 25°C ambient temperature testing.
Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.*All performance stats confirmed in 25°C ambient temperature testing.
PSU CALCULATOR
Need help choosing the right power supply for your system?Try out our comprehensive and easy-to-use PSU calculator.
PSU Calculator | Cooler Master
Specifications
Product Name: ELITE GOLD 1000
Model: MPW-A001-AFAG
ATX Version: ATX 12V Ver. 3.1
PFC: Active PFC
Input Voltage: 100-240V
Input Current: 6 ~ 12A
Input Frequency: 50-60Hz
Dimensions (L x W x H): 140 x 150 x 86 mm
Fan Size: 120mm
Fan Bearing: FDB
Efficiency: ≥90% @ Typical Load
80 PLUS Rating: 80 PLUS Gold
ErP 2014 Lot 3: Yes
Operating Temperature: 0-40°C
Power Good Signal: 100 - 150 ms
Hold Up Time: ≥16ms at 80% Load
MTBF: >100,000 hours @ 25℃ ambient
Protections: UVP / OVP / OPP / OTP / SCP
Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
ATX 24 Pin Connectors: x1 = 1 (600mm)
EPS 4+4 Pin Connectors: x2 = 2 (700mm)
SATA Connectors: x9 = 3 (500+100+100mm)
Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
12+4 Pin Connectors: x1 = 1 (600mm)
Elite Series
Form Factor: ATX
Watts: 1000W
Fully Modular
80 Plus Efficiency Gold
Warranty: 10 Years
Downloads
Product SheetDownload
ManualDownload
• Supports ATX 3.1 and PCIe Gen 5.1 standards
• Ideal for RTX 50 GPUs
• Stable performance under high loads at up to 40°C
• Quiet, long-life FDB fan cooling
• 1200W output with 80 Plus Gold-certified efficiency
• Fully modular embossed cable design
• Reliable 10-year warranty
HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS
Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.
High Temperature Resilience
Operates reliably at up to 40°C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloads—all without sacrificing stability or efficiency.
Compatible with ATX 3.1 and PCIe Gen 5.1 standards
ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.*All performance stats confirmed in 25°C ambient temperature testing.
QUIET FDB FAN
Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1200 achieves over 90% efficiency at typical loads, reducing energy waste and heat output.*All performance stats confirmed in 25°C ambient temperature testing.
Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup.*All performance stats confirmed in 25°C ambient temperature testing.
PSU CALCULATOR
Need help choosing the right power supply for your system?Try out our comprehensive and easy-to-use PSU calculator.
PSU Calculator | Cooler Master
Specifications
ELITE GOLD 1200
MPW-C001-AFAG-BEU
ATX Version: ATX 12V Ver. 3.1
PFC: Active PFC
Input Voltage: 100-240V
Input Current: 7.5 ~ 15A
Input Frequency: 50-60Hz
Dimensions (L x W x H): 150 x 150 x 86 mm
Fan Size: 135mm
Fan Bearing: FDB
Efficiency: ≥90% @ Typical Load
80 PLUS Rating: 80 PLUS Gold
ErP 2014 Lot 3: Yes
Operating Temperature: 0-40°C
Power Good Signal: 100 - 150 ms
Hold Up Time: ≥16ms at 80% Load
MTBF: >100,000 hours @ 25℃ ambient
Protections: UVP / OVP / OPP / OTP / SCP
Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
ATX 24 Pin Connectors: x1 = 1 (600mm)
EPS 4+4 Pin Connectors: x2 = 2 (700mm)
SATA Connectors: x9 = 3 (500+100+100mm)
Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
12+4 Pin Connectors: x1 = 1 (600mm)
Elite Series
Form Factor: ATX
Watts: 1200W
Fully Modular
80 Plus Efficiency Gold
Warranty: 10 Years
Downloads
Product SheetDownload
ManualDownload
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
An SFX Revolution
The V SFX Platinum is leading the industry as the first SFX unit to achieve 1300W, and includes top-tier features such as full compatibility with ATX 3.0 and both ITX and ATX cases, and new miniaturization technology that enhances thermal performance and increases power density.
Key Features
High Power Density — Industry-leading power output in a compact SFX form factor.
ATX 3.0 Support & 90-Degree 12VHPWR Cable — Full ATX 3.0 compatibility with an included 90-degree 12VHPWR connector.
Advanced Thermal Performance — Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.
80 Plus Platinum Efficiency — ≥92% efficiency at typical load, reducing energy waste and heat output.
Fully Modular Cabling — Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
10-Year Warranty — Built to last with industry-leading warranty coverage.
Mini But Mighty
Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.
Enhanced Dissipation
The transformer, rectifier, full-bridge LLC, and EMI-inhibiting amorphous metal materials are fully integrated for advanced performance and heat dissipation.
EU Cable included
Specifications
Specification
Details
Model
MPZ-B001-SFAP-BUK
ATX Version
SFX 12V Ver. 3.42 / ATX 3.0
PFC
Active PFC
Input Voltage
100–240V (Full Range)
Input Current
14–6.5A
Input Frequency
50–60Hz
Dimensions (L x W x H)
100 x 125 x 63.5 mm
Fan Size
92mm
Fan Bearing
FDB
Efficiency
≥92% @ Typical Load
80 PLUS Rating
80 PLUS Platinum
ErP 2014 Lot 3
Yes
Operating Temperature
0–50°C
Power Good Signal
100–150 ms
Hold Up Time
≥16ms at 70% Load
MTBF
>100,000 Hours
Protections
OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection
Regulatory
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
SATA Connectors
8
Peripheral 4 Pin Connectors
4
PCI-e 6+2 Pin Connectors
3
12VHPWR Connector
1
Form Factor
SFX
Wattage
1100W
Modular
Fully Modular
Series
V SFX Series
Category
Above 750W
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
An SFX Revolution
• High power density
• ATX 3.0 support & a 90-degree 12VHPWR cable
• Advanced thermal performance
• 80 Plus Platinum efficiency
• Fully modular cabling
• 10-year warranty
Enhanced Dissipation
With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provided advanced performance and heat dissipation.
High Power Density
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 53% more than V SFX Gold 850W power supply, in the small form factor.
Miniaturized But Solid
Crafted with flat copper wire on Choke of DC-DC, flat transformer piling, and aluminum plate dissipation structure on full-bridge LLC — effectively achieving component miniaturization while remaining structurally solid.
100% Japanese Capacitors
Implementing large and high-quality Japanese capacitors to increase efficiency and reduce ripple noise.
Full & Flexible Compatibility
Designed to fully support ATX 3.0 with backward compatibility for RTX 40 and 30 series GPUs. Includes a bracket supporting both ITX and ATX cases. Features a 90-degree 12VHPWR cable for clean cable routing.
80 PLUS Platinum Efficiency
Achieves ≥94% efficiency at typical load with 100% Japanese capacitors — keeping your system cool, quiet, and power-efficient under any workload.
Fully Modular Cabling
Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
10-Year Warranty
Specifications
Model: MPZ-D001-SFBP-BUK
ATX Version: SFX 12V Ver. 3.42 / ATX 3.0
Form Factor: SFX | 100 × 125 × 63.5 mm
Wattage: 1300W
Input Voltage: 200–240V / 50–60Hz
Efficiency: ≥94% @ Typical Load | 80 PLUS Platinum EU 230V
Fan: 92mm FDB bearing
PFC: Active PFC
Operating Temperature: 0–50°C
MTBF: >100,000 Hours
Connectors: 1× ATX 24-pin, 1× EPS 4+4-pin, 1× EPS 8-pin, 3× PCIe 6+2-pin, 1× 12VHPWR, 8× SATA, 4× Peripheral 4-pin
Protections: OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush
Certifications: TÜV, cTÜVus, CE, UKCA, FCC, BSMI, CCC, EAC
ErP 2014 Lot 3: Yes
Warranty: 10 Years
Sent with EU cable for purchases outside UK Market

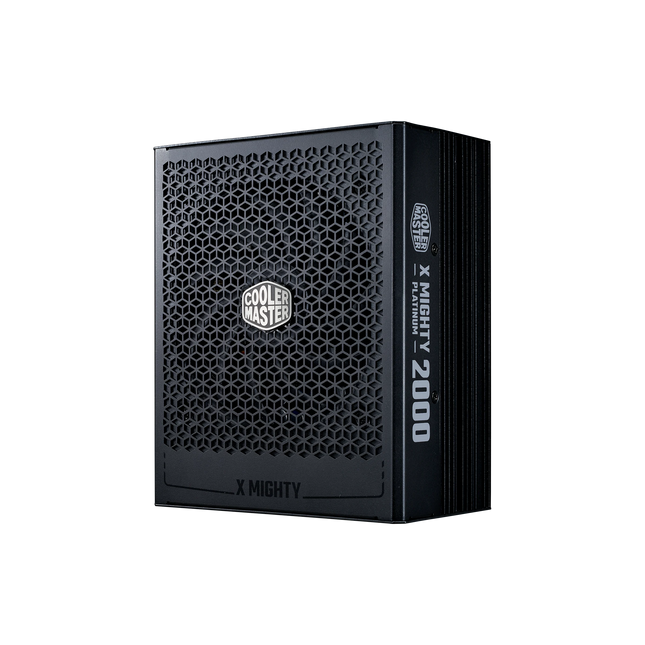

The X Mighty Platinum is a powerhouse blending high-capacity performance, top-tier industrial-grade IC components, and sophisticated interleaved PFC topology. This PSU is engineered to meet the demanding needs of server and artificial intelligence industries, featuring dual 12V-2x6 connectors designed for rigorous, high-performance applications.
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
Precise Silent Power
Engineered for absolute silence, the X Silent Edge Platinum 850W features a fanless design backed by Cooler Master's patented Heat Pipe Dissipation technology — delivering ultra-quiet operation even in the most noise-sensitive environments.
Fanless Design for Absolute Silence
Patented Heat Pipe Dissipation
Minimized Electromagnetic Noise
Industrial-Grade Infineon IC
Digital Power Management System with MasterCTRL
15-Year Warranty
No Fan, No Dust
An innovative modular thermal structure combined with a heat pipe enhances thermal efficiency, keeping key components cool and ensuring ultra-quiet fanless operation over the long term.
Fully Modular Cabling
Modular cabling minimizes clutter while additional ports provide extra functionality — keeping your build clean and organized.
Patented Heat Decentralized Design
A private aluminum thermal mold effectively dissipates heat, while innovative Heat Pipe Thermal Tech uniformly regulates unit temperature — ensuring superior thermal control, efficiency, and longevity in demanding environments.
Active Bridge Rectifier — 2% Efficiency Boost
Equipped with Infineon CoolMOS, the Active Bridge Rectifier significantly reduces power loss over traditional bridge diodes, making this an ideal choice for eco-conscious, high-efficiency builds.
ATX 3.1 Support & Dual-Color 12V-2x6 Cable
Includes ATX 3.1 support and a dual-color 12V-2x6 connector with clear purple markings to confirm correct installation — preventing poor contact and power issues for enhanced safety and reliability.
Digital Power Management & MasterCTRL
MCU-equipped and integrated with MasterCTRL software for real-time monitoring of temperature, current load, and efficiency — giving you precise, direct oversight of your system's power. MasterCTRL
Product Sheet: Product Sheet_X Silent Edge Platinum 850.pdf
Manual: Manual - X Silent Series.pdf
X Silent Series | Precise Silent Power
Specifications
Model
MPS-8501-AZAP
ATX Version
ATX 12V Ver. 3.1
Wattage
850W
80 PLUS Rating
Platinum (≥92% @ Typical Load)
PFC
Active PFC
Input Voltage
100–240V (Full Range)
Dimensions (L×W×H)
180 × 150 × 86 mm
Operating Temperature
0–40°C
MTBF
>100,000 Hours
Protections
OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush
Connectors
ATX 24-pin ×1, EPS 4+4-pin ×1, EPS 8-pin ×1, PCIe 6+2-pin ×4, 12V-2x6 ×1, SATA ×12, Peripheral 4-pin ×4, USB 10P ×1
Warranty
15 Years
Regulatory
cUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
PRECISE SILENT POWER
Fanless Design for Absolute Silence
Patented Heat Pipe Dissipation
Minimize Electromagnetic Noise
Industrial-Grade Infineon IC
Digital Power Management System & MasterCTRL
15-year warranty
Fanless Design for Absolute Silence
Engineered with a fanless design and industrial IC components, the X Silent Edge Platinum 1100W features a patented Heat Pipe Dissipation system, ensuring absolute quietness for even the most noise-sensitive environments. No fan means no dust accumulation and no moving parts to wear out.
Patented Heat Pipe Dissipation
Private Aluminum Thermal Mold and Innovative Heat Pipe Thermal Tech uniformly regulate unit temperature for superior thermal control and longevity, delivering reliable performance without compromise.
Minimize Electromagnetic Noise
Industrial-grade components reduce electromagnetic interference for a cleaner power environment, protecting your system and ensuring stable, consistent power delivery.
Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity but also significantly reduces power loss, outperforming traditional bridge diodes.
Digital Power Management System & MasterCTRL
Equipped with MCUs and integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load, and efficiency in real-time, offering precise and direct oversight. MasterCTRL
ATX 3.1 Support & Dual-color 12V-2x6 Cable
Includes ATX 3.1 support with a dual-color 12V-2x6 cable featuring clear purple markings to confirm correct installation, preventing poor contact and power issues.
Fully Modular Cabling
Modular cabling minimizes clutter, while the additional ports provide extra functionality for a clean and efficient build.
Product Sheet: Product Sheet_X Silent Edge Platinum 1100 230V.pdf
Manual: Manual - X Silent Series.pdf
X Silent Series | Precise Silent Power
Specifications
Model
MPS-B001-AZBP
ATX Version
ATX 12V Ver. 3.1
PFC
Active PFC
Input Voltage
200–240V
Input Current
6.1A (Max.)
Input Frequency
50–60Hz
Dimensions (L x W x H)
180 x 150 x 86 mm
Efficiency
≥ 94% @ Typical Load
80 PLUS Rating
80 PLUS Platinum
ErP 2014 Lot 3
Yes
Operating Temperature
0–40°C
MTBF
>100,000 Hours
Protections
OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection
Regulatory
TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC
ATX 24 Pin
1
EPS 4+4 Pin
1
EPS 8 Pin
1
SATA Connectors
12
Peripheral 4 Pin
4
PCI-e 6+2 Pin
4
12V-2x6 Connectors
1
USB 10P Connector
1
PMBus 5 Pin
1
External Fan 4 Pin
1
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
PRECISE SILENT POWER
Equipped with an Ultra-Quiet Mobius Fan
Active Bridge Rectifier replaces diodes
Minimize Electromagnetic Noise
Industrial-Grade Infineon IC
Digital Power Management System
15-year warranty
Supreme Silence
Our design integrates an ultra-silent Mobius fan with an exclusive aluminum heat sink for improved cooling efficiency. Combined with unique inductors that minimize electromagnetic noise, it ensures an exceptionally quiet experience.
Fully Modular Cabling
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Superior Cooling Performance
Our exclusive aluminum Thermal Mold efficiently disperses heat, while the ultra-silent Mobius fan strengthens the airflow to lower the temperature across the unit. This dual approach guarantees effective thermal management, maintaining optimal performance and extending the lifespan of the PSU.
Digital Power Management System & MasterCTRL
Equipped with MCUs and integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight. MasterCTRL
Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
ATX 3.1 Support & a Durable 90° 12V-2X6 Cable
Includes ATX 3.1 support and a 90° 12V-2x6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.

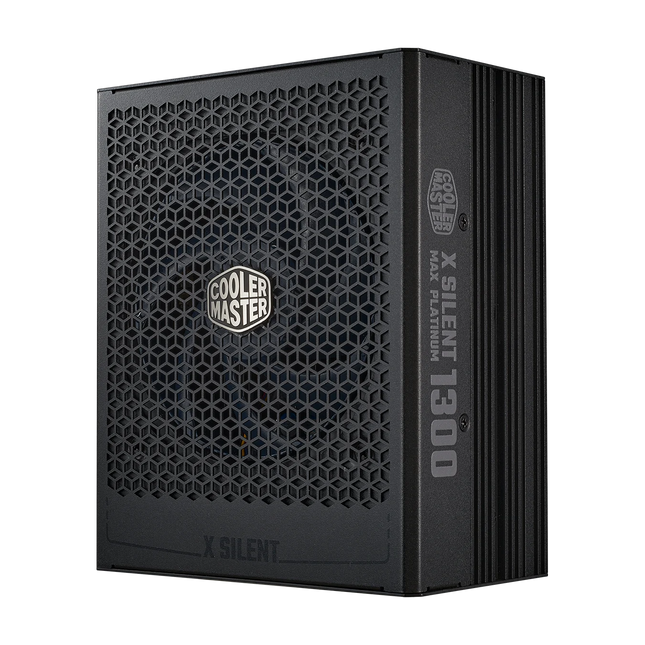

Product Sheet: Product Sheet_X Silent MAX Platinum 1300.pdf
Manual: Manual - X Silent Series.pdf
Specifications
Model
MPS-D001-AFAP
Form Factor
ATX
ATX Version
ATX 12V Ver. 3.1
Watts
1300W
80 PLUS Rating
80 PLUS Platinum
Efficiency
≥ 92% @ Typical Load
PFC
Active PFC
Input Voltage
100–240V (Full Range)
Input Current
15–7.1A
Input Frequency
50–60Hz
Modular
Fully Modular
Fan Size
120mm
Fan Bearing
LDB
Fan Speed
2050 RPM
Dimensions (L x W x H)
180 x 150 x 86 mm
Operating Temperature
0–50°C
MTBF
>100,000 Hours
Hold Up Time
≥ 16ms
Power Good Signal
100–150 ms
ErP 2014 Lot 3
Yes
Protections
OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection
Regulatory
cUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region)
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
PCI-e 6+2 Pin Connectors
4
12V-2x6 Connectors
1
SATA Connectors
16
Peripheral 4 Pin Connectors
4
USB 10P Connector
1
Series
X Series
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MWE Bronze 650 V3 230V
ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable
5-year warranty
Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.
Specifications:Cooler Master MWE Bronze 650 V3 230V | Cooler MasterMPE-6501-ACABW-3B
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
MWE Bronze 750 V3 230V
ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable
5-year warranty
Power Evolved
Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.Specifications:Cooler Master MWE Bronze 750 V3 230V | Cooler MasterMPE-7501-ACABW-3B
Dispatch in 2-3 business days.*
Local NL delivery takes 2-3 days. Read full info, and other regions delivery times below: Shipping policy
ATX 3.1 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit
MWE Gold 1050 V2 ATX 3.1
80 PLUS Gold Efficiency
High-quality Japanese capacitors
140mm Silent Fan
High Temperature Resilience
Fully Modular Cabling
10 Year Warranty
