Description
PRECISE SILENT POWER
- Fanless Design for Absolute Silence
- Patented Heat Pipe Dissipation
- Minimize Electromagnetic Noise
- Industrial-Grade Infineon IC
- Digital Power Management System & MasterCTRL
- 15-year warranty
Fanless Design for Absolute Silence

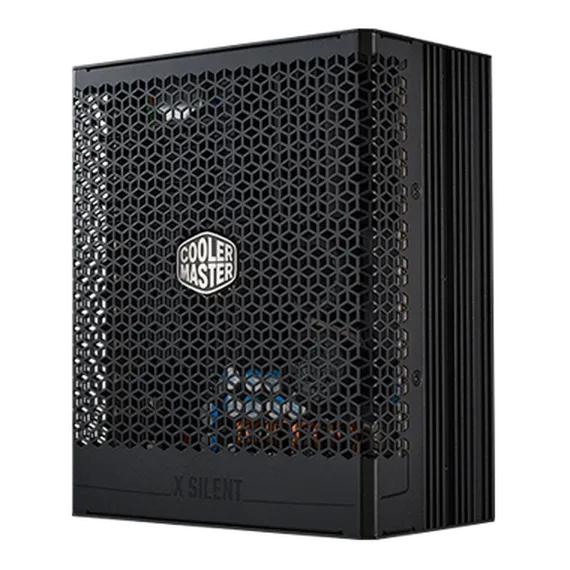

Engineered with a fanless design and industrial IC components, the X Silent Edge Platinum 1100W features a patented Heat Pipe Dissipation system, ensuring absolute quietness for even the most noise-sensitive environments. No fan means no dust accumulation and no moving parts to wear out.
Patented Heat Pipe Dissipation
Private Aluminum Thermal Mold and Innovative Heat Pipe Thermal Tech uniformly regulate unit temperature for superior thermal control and longevity, delivering reliable performance without compromise.
Minimize Electromagnetic Noise
Industrial-grade components reduce electromagnetic interference for a cleaner power environment, protecting your system and ensuring stable, consistent power delivery.
Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity but also significantly reduces power loss, outperforming traditional bridge diodes.
Digital Power Management System & MasterCTRL
Equipped with MCUs and integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load, and efficiency in real-time, offering precise and direct oversight. MasterCTRL
ATX 3.1 Support & Dual-color 12V-2x6 Cable
Includes ATX 3.1 support with a dual-color 12V-2x6 cable featuring clear purple markings to confirm correct installation, preventing poor contact and power issues.
Fully Modular Cabling
Modular cabling minimizes clutter, while the additional ports provide extra functionality for a clean and efficient build.
Specifications
| Model |
MPS-B001-AZBP |
| ATX Version |
ATX 12V Ver. 3.1 |
| PFC |
Active PFC |
| Input Voltage |
200–240V |
| Input Current |
6.1A (Max.) |
| Input Frequency |
50–60Hz |
| Dimensions (L x W x H) |
180 x 150 x 86 mm |
| Efficiency |
≥ 94% @ Typical Load |
| 80 PLUS Rating |
80 PLUS Platinum |
| ErP 2014 Lot 3 |
Yes |
| Operating Temperature |
0–40°C |
| MTBF |
>100,000 Hours |
| Protections |
OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection |
| Regulatory |
TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC |
| ATX 24 Pin |
1 |
| EPS 4+4 Pin |
1 |
| EPS 8 Pin |
1 |
| SATA Connectors |
12 |
| Peripheral 4 Pin |
4 |
| PCI-e 6+2 Pin |
4 |
| 12V-2x6 Connectors |
1 |
| USB 10P Connector |
1 |
| PMBus 5 Pin |
1 |
| External Fan 4 Pin |
1 |
