Description

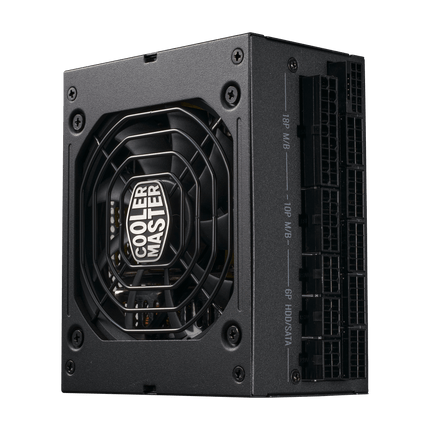

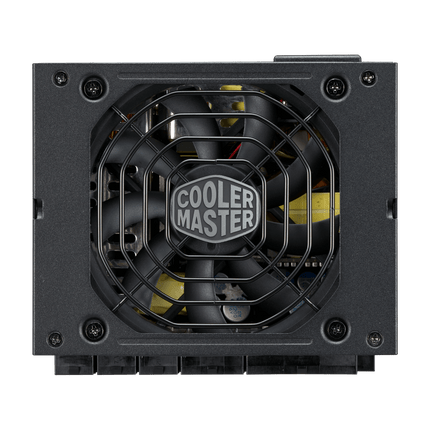

An SFX Revolution
The V SFX Platinum is leading the industry as the first SFX unit to achieve 1300W, and includes top-tier features such as full compatibility with ATX 3.0 and both ITX and ATX cases, and new miniaturization technology that enhances thermal performance and increases power density.
Key Features
-
High Power Density — Industry-leading power output in a compact SFX form factor.
-
ATX 3.0 Support & 90-Degree 12VHPWR Cable — Full ATX 3.0 compatibility with an included 90-degree 12VHPWR connector.
-
Advanced Thermal Performance — Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.
-
80 Plus Platinum Efficiency — ≥92% efficiency at typical load, reducing energy waste and heat output.
-

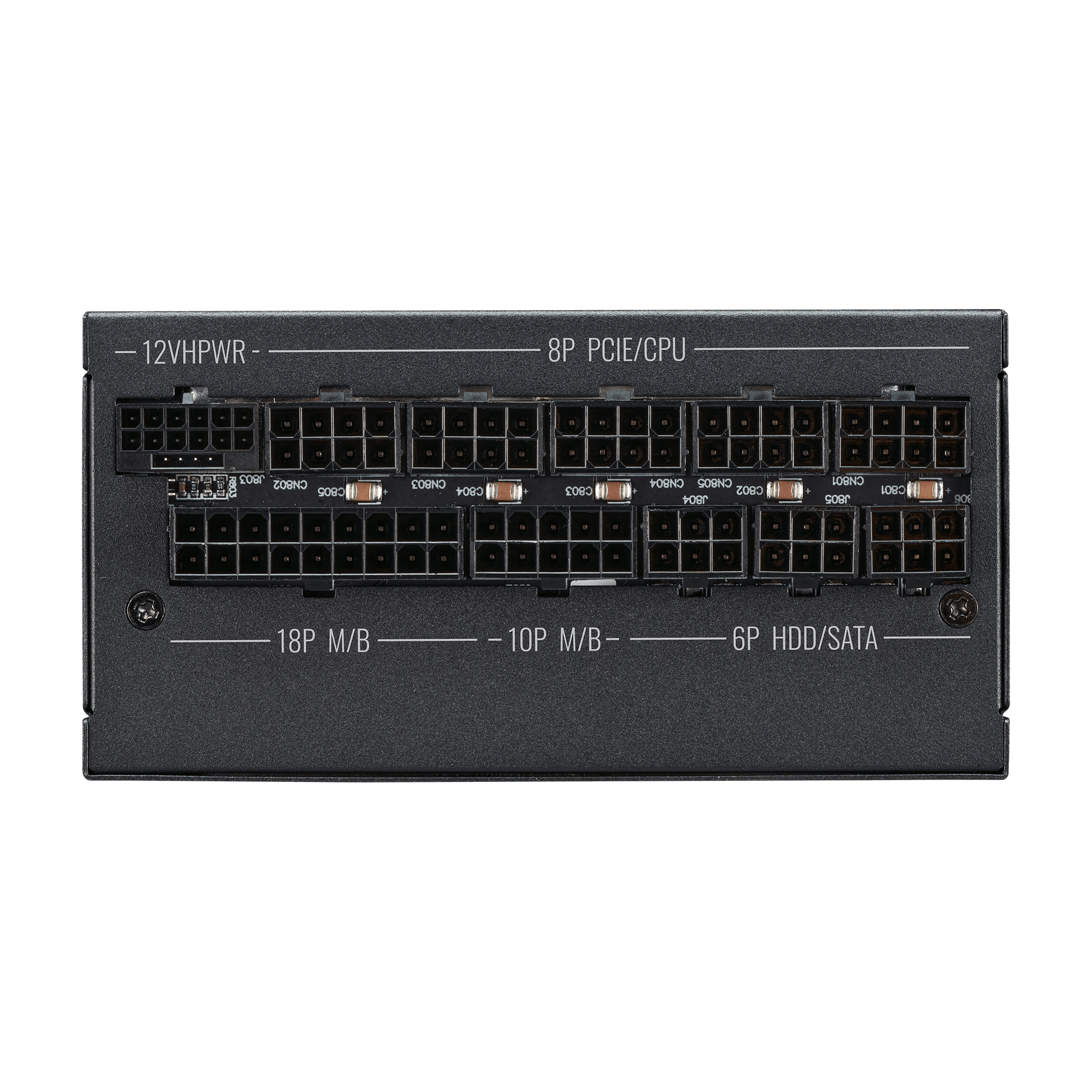

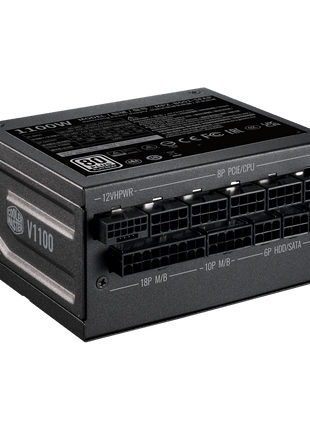

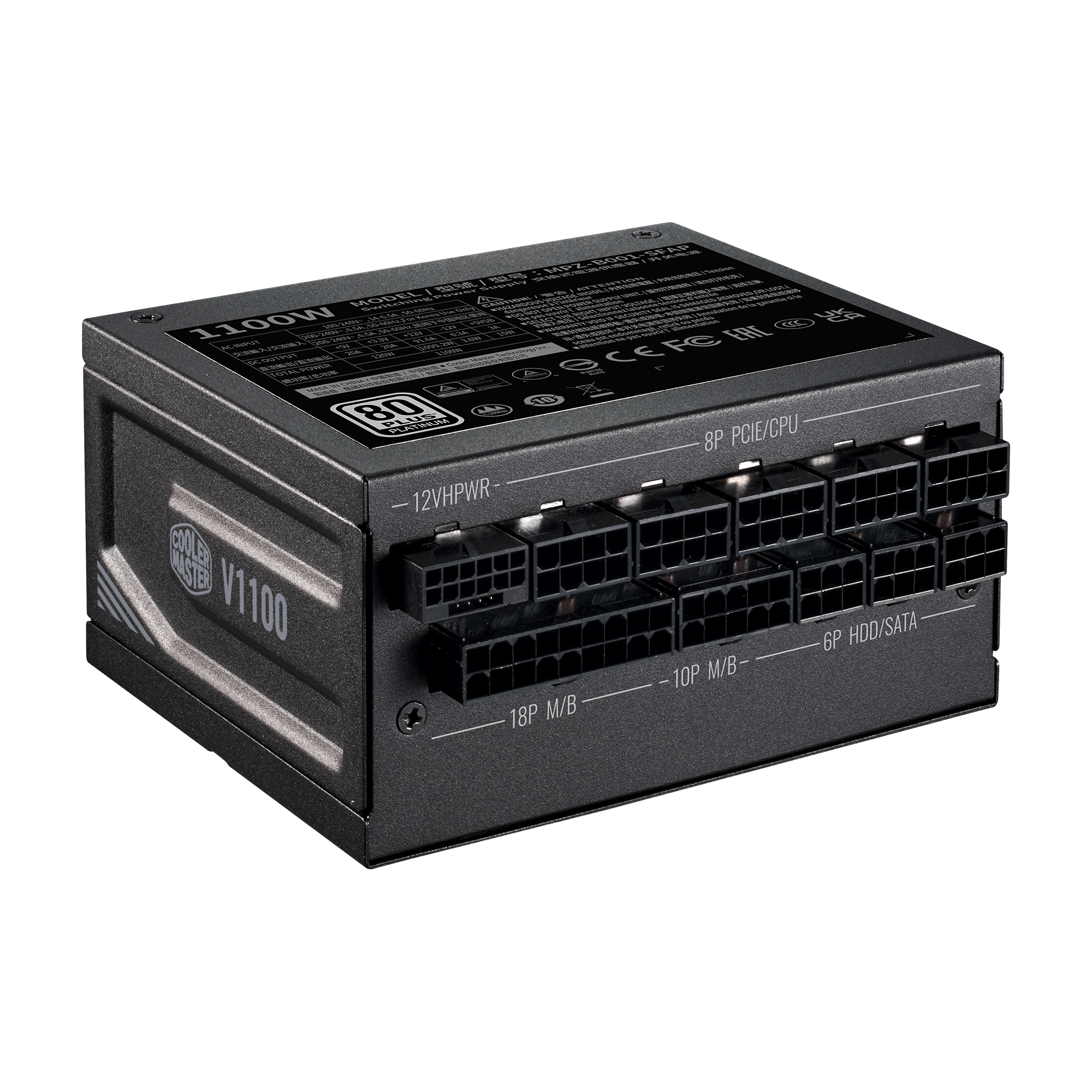

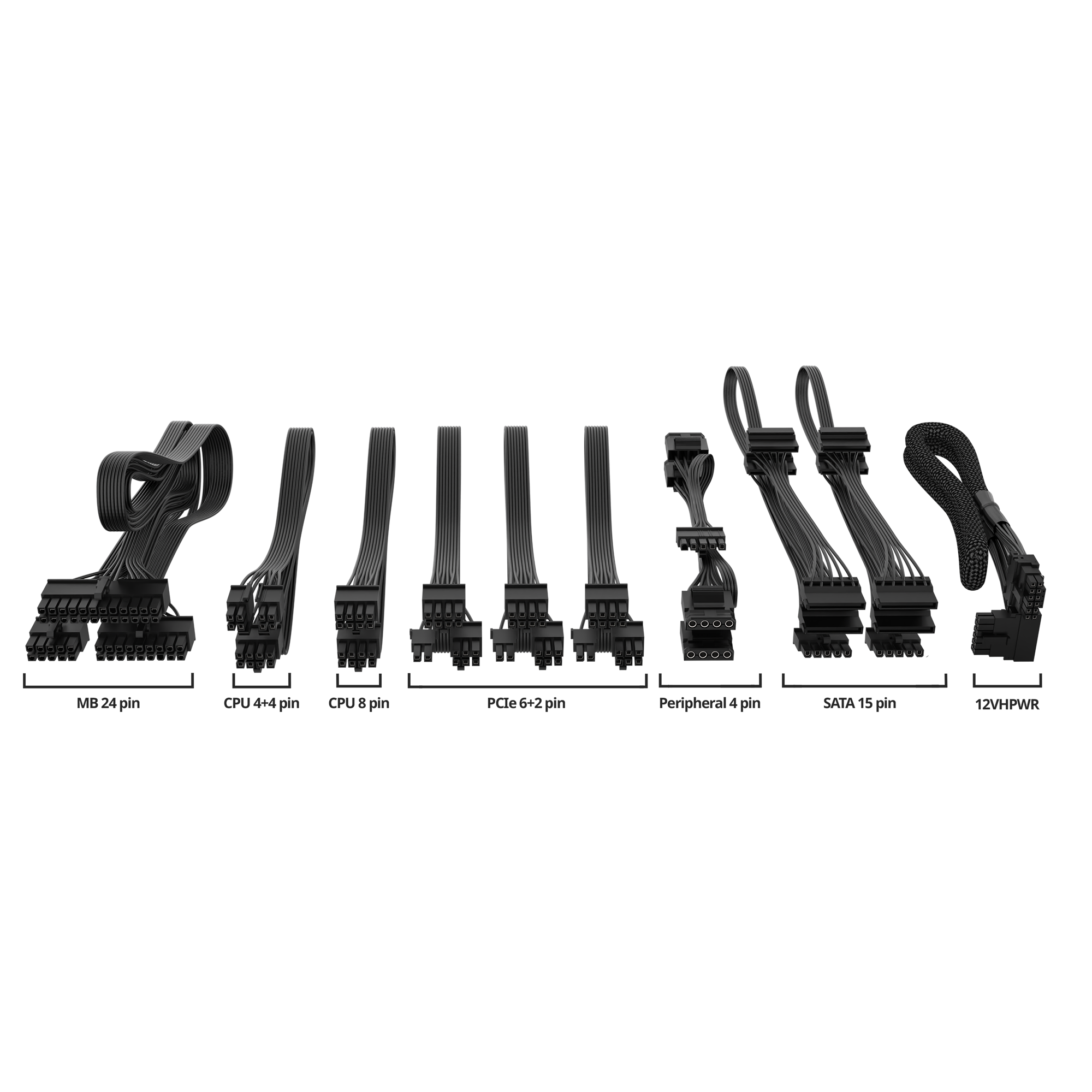

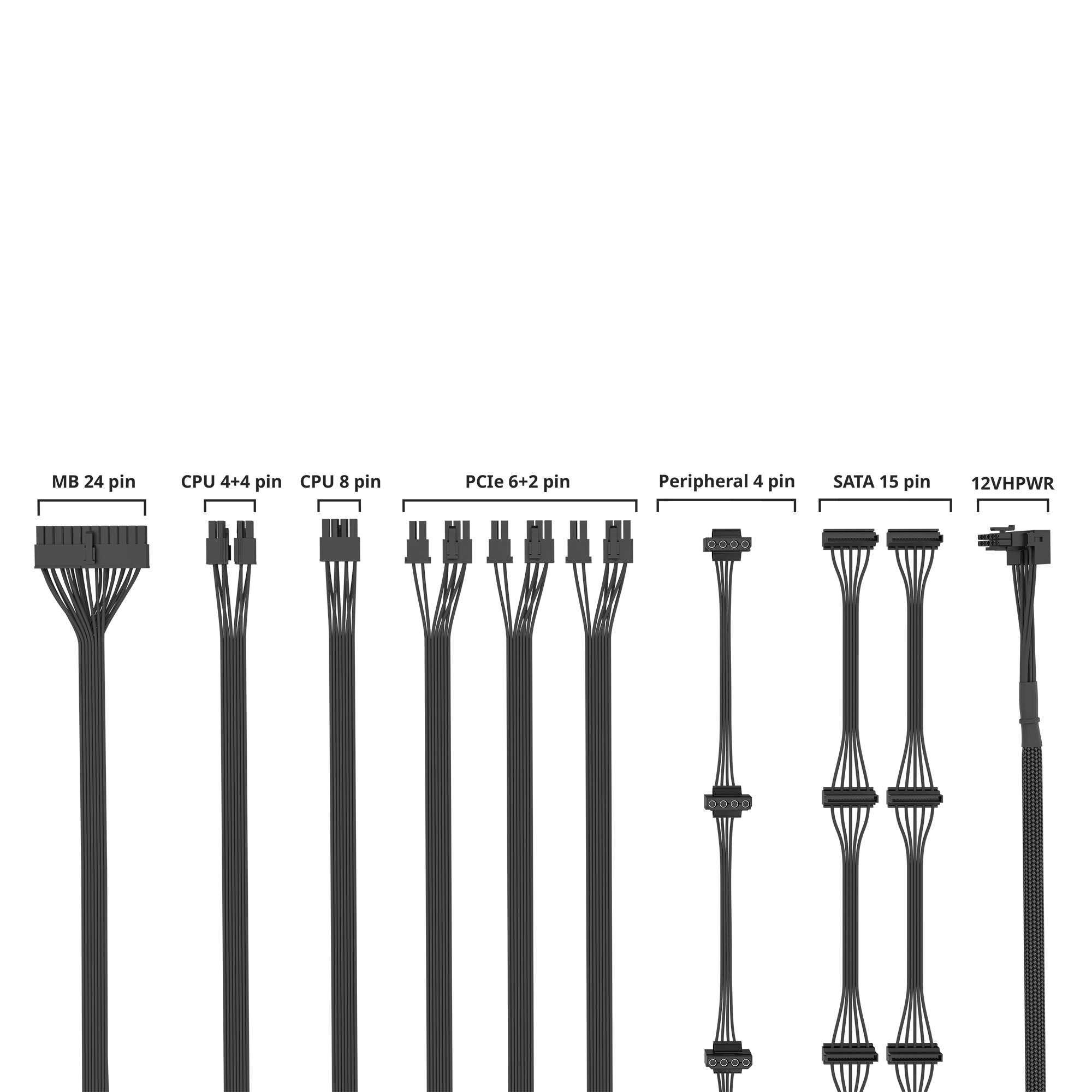

Fully Modular Cabling — Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
-
10-Year Warranty — Built to last with industry-leading warranty coverage.
Mini But Mighty
Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.

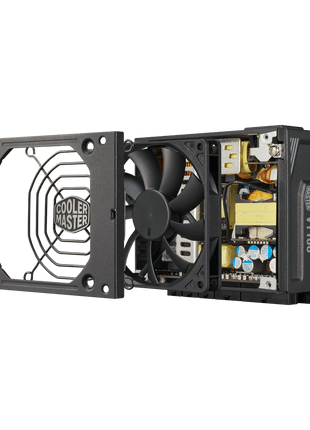

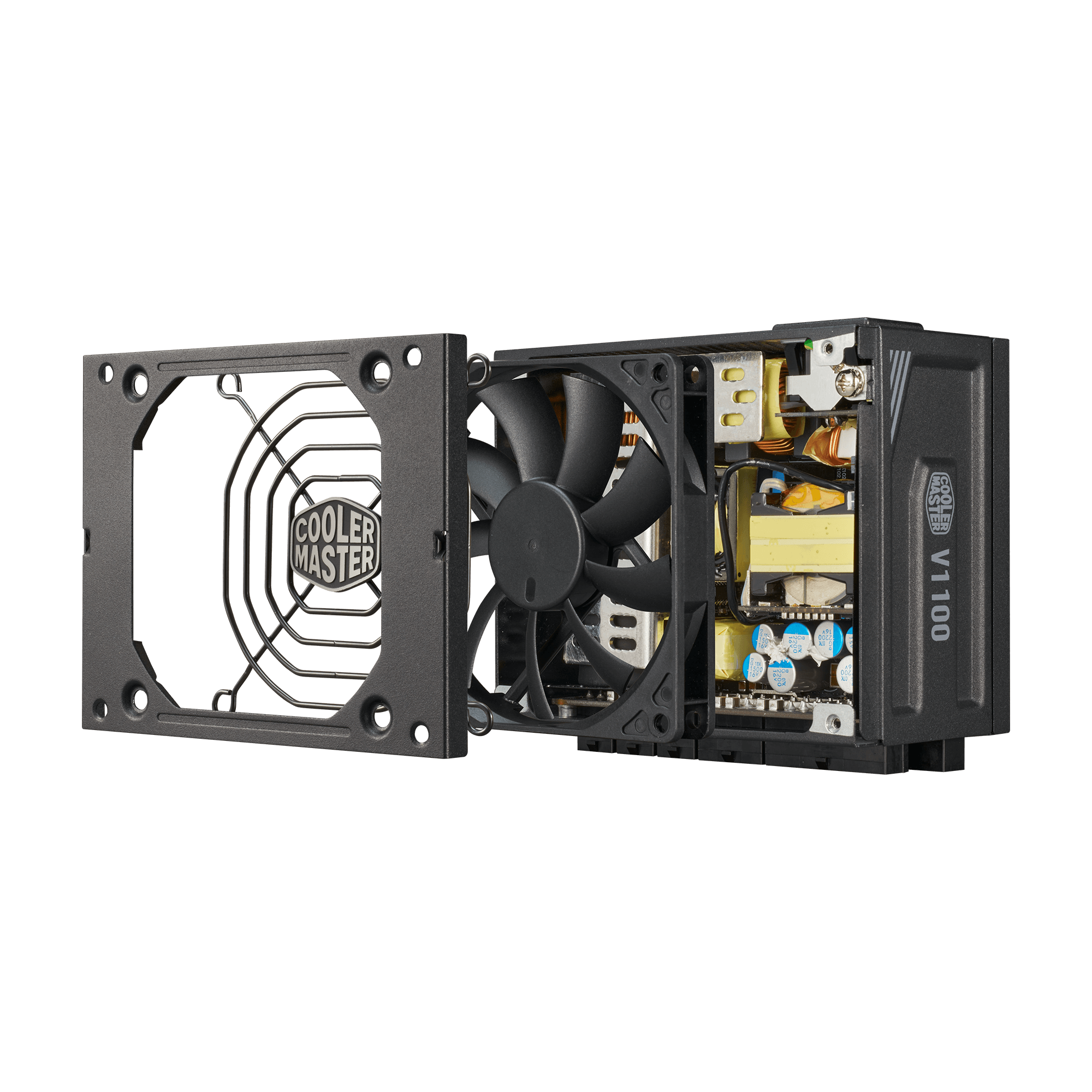

Enhanced Dissipation

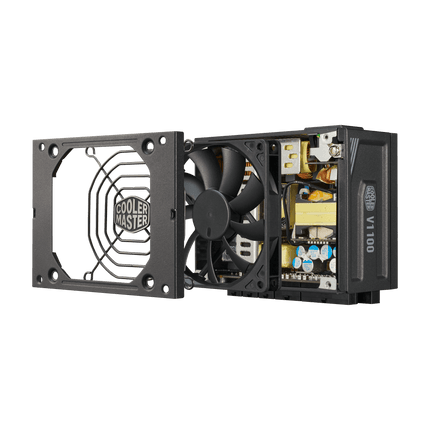

The transformer, rectifier, full-bridge LLC, and EMI-inhibiting amorphous metal materials are fully integrated for advanced performance and heat dissipation.
EU Cable included
Specifications
| Specification |
Details |
| Model |

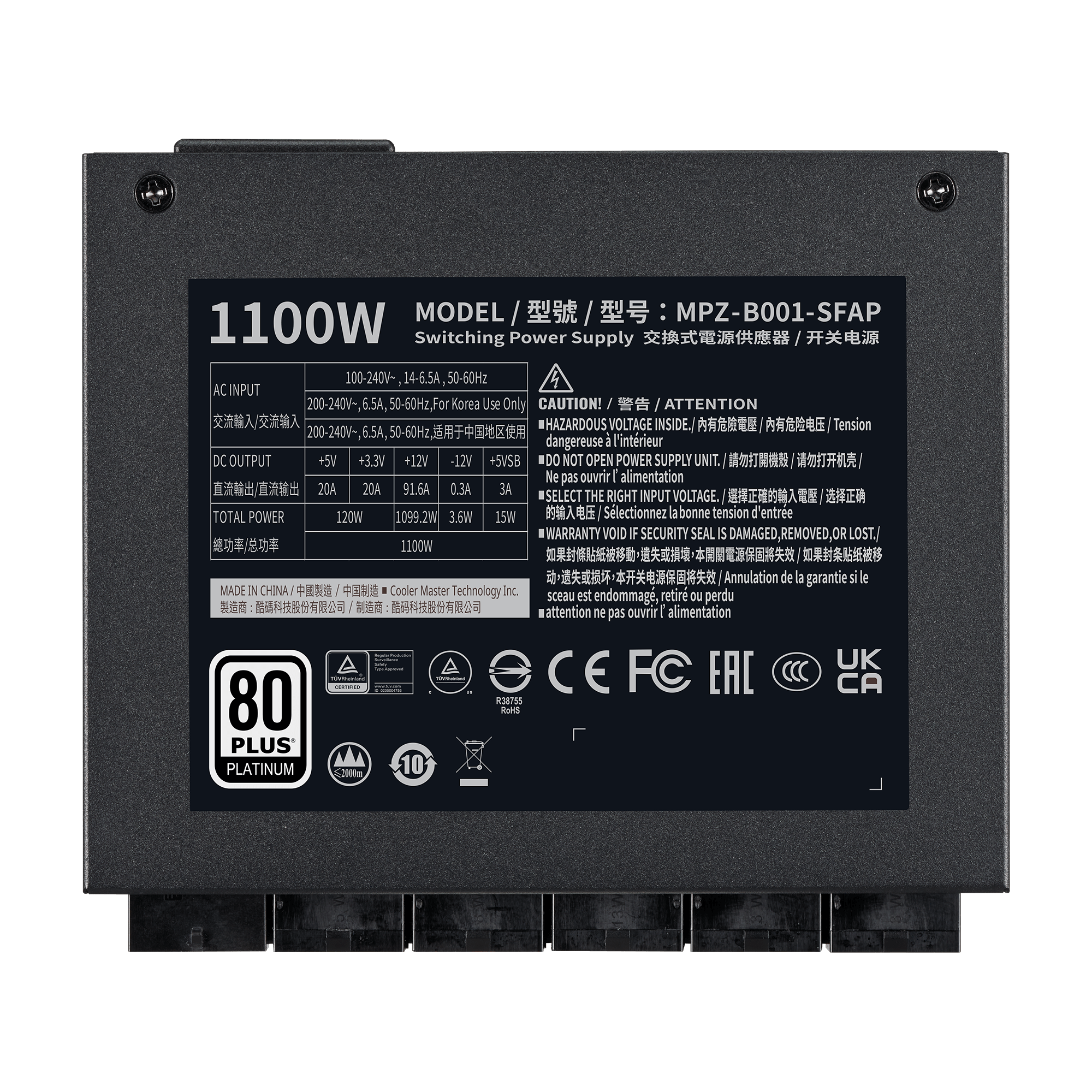

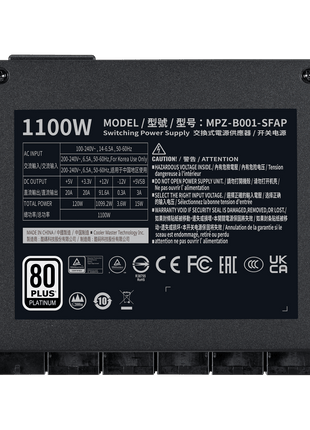

MPZ-B001-SFAP-BUK |
| ATX Version |
SFX 12V Ver. 3.42 / ATX 3.0 |
| PFC |
Active PFC |
| Input Voltage |
100–240V (Full Range) |
| Input Current |
14–6.5A |
| Input Frequency |
50–60Hz |
| Dimensions (L x W x H) |
100 x 125 x 63.5 mm |
| Fan Size |

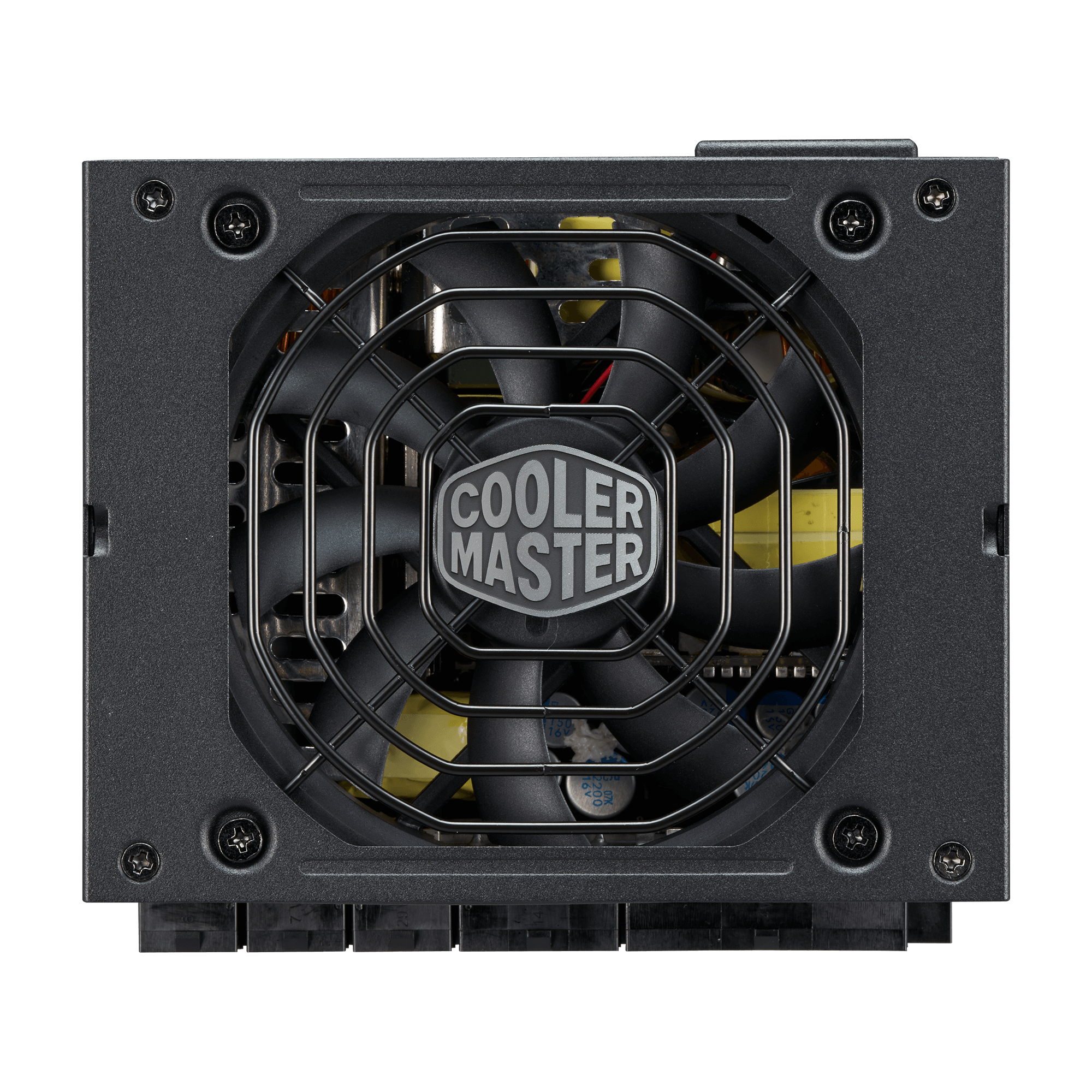

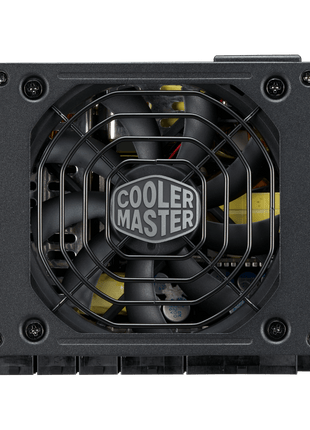

92mm |
| Fan Bearing |
FDB |
| Efficiency |
≥92% @ Typical Load |
| 80 PLUS Rating |
80 PLUS Platinum |
| ErP 2014 Lot 3 |
Yes |
| Operating Temperature |
0–50°C |
| Power Good Signal |
100–150 ms |
| Hold Up Time |
≥16ms at 70% Load |
| MTBF |
>100,000 Hours |
| Protections |
OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection |

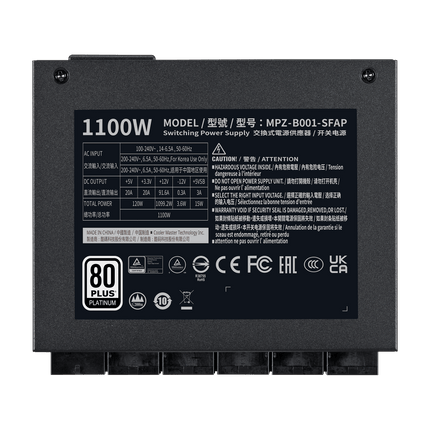

| Regulatory |
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA |

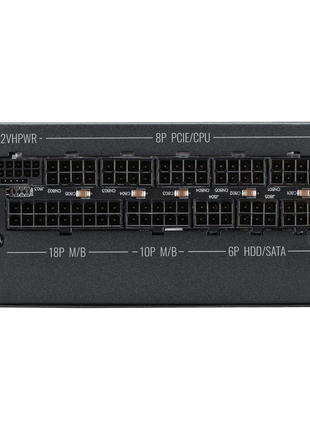

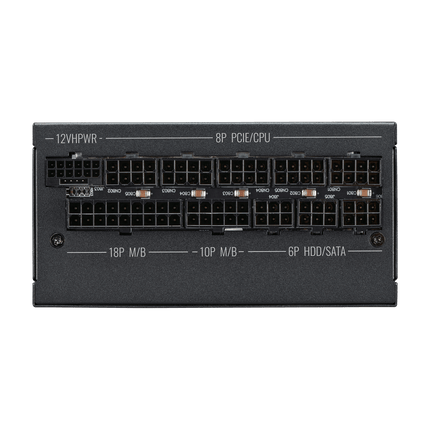

| ATX 24 Pin Connectors |
1 |
| EPS 4+4 Pin Connectors |
1 |
| EPS 8 Pin Connector |
1 |
| SATA Connectors |
8 |
| Peripheral 4 Pin Connectors |
4 |
| PCI-e 6+2 Pin Connectors |
3 |
| 12VHPWR Connector |
1 |
| Form Factor |
SFX |
| Wattage |
1100W |
| Modular |
Fully Modular |
| Series |
V SFX Series |
| Category |
Above 750W |
