Description
Choose Your Style
- High Flexibility for System Building
- Minimized Dimension with ATX PSU Support
- Patterned Dust Filter

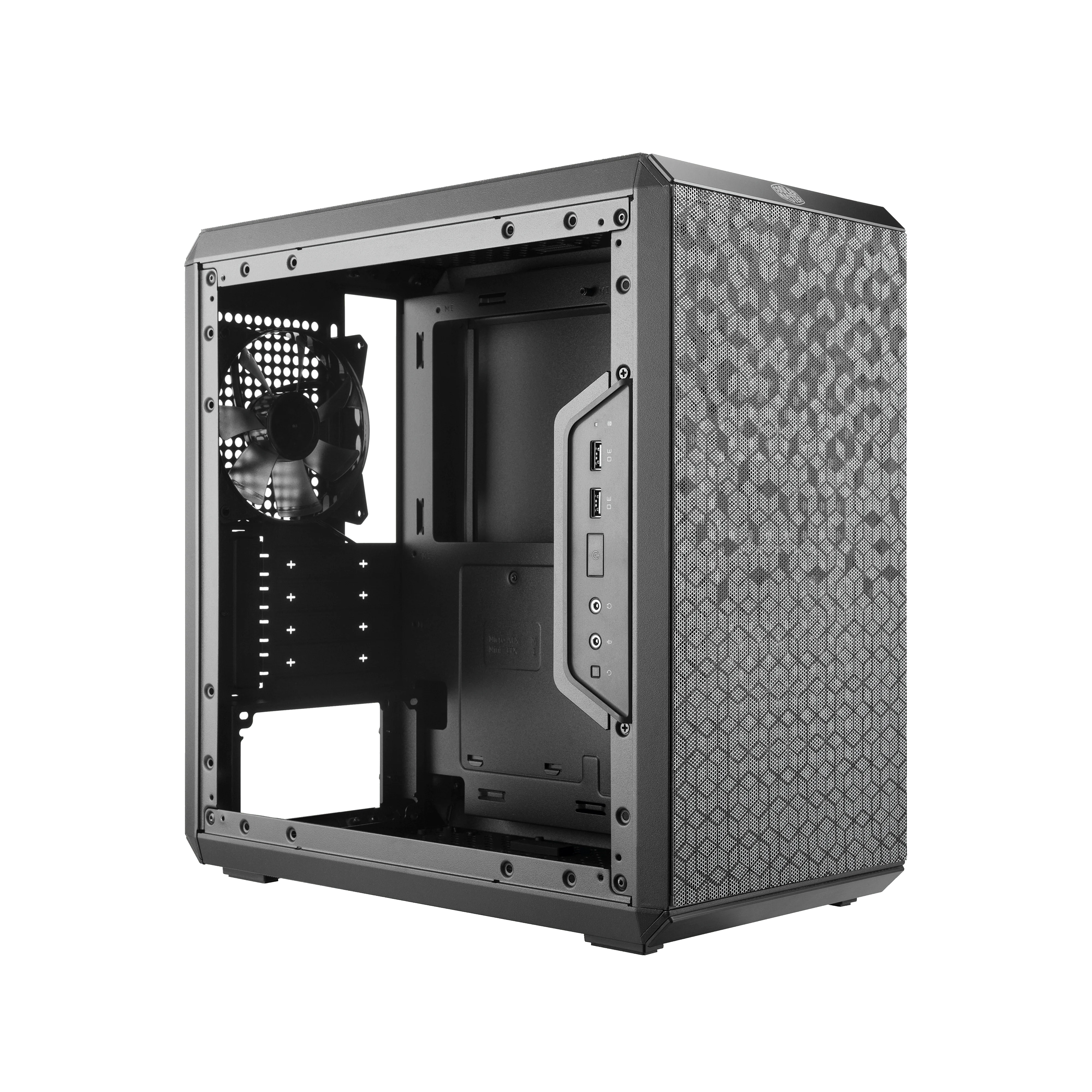

- Clean Routing Space
- Excellent Thermal Performance
- Edge-to-Edge Acrylic Transparent Side Panel
- Vertical and Horizontal position

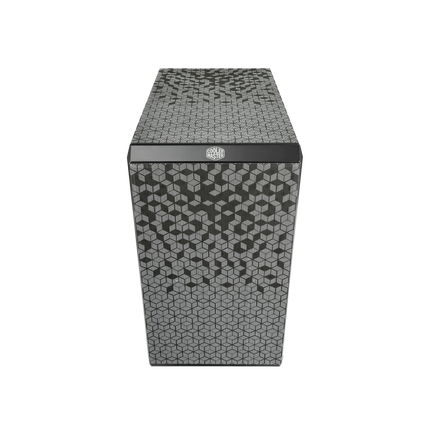

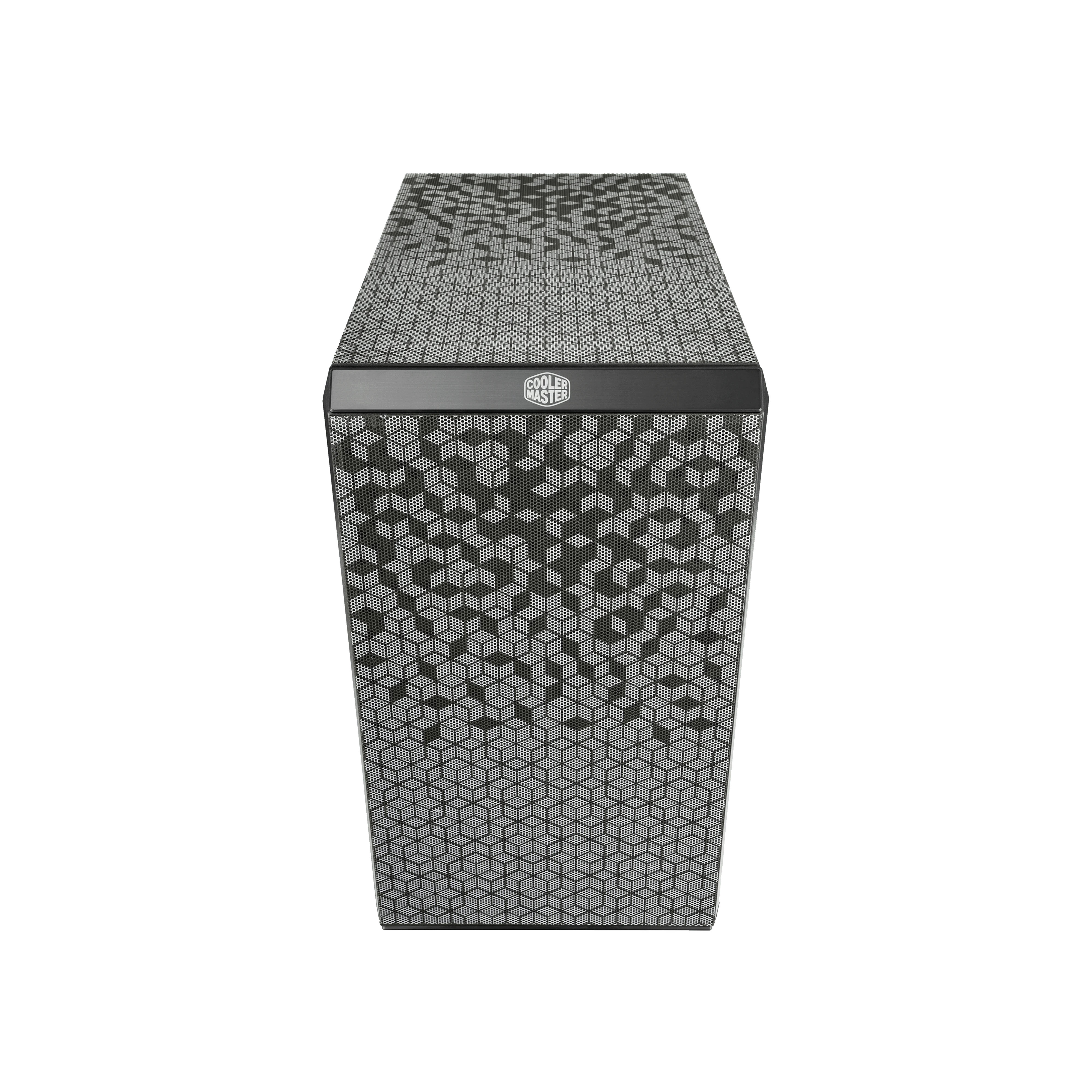

Patterned Magnetic Dustfilters
Special pattern on the dust filter creates a unique outlook for the chassis.
Modular I/O Panel
The I/O panel can be adjusted to six different locations. On both side of the body you can install the I/O panel at the front, top or bottom.

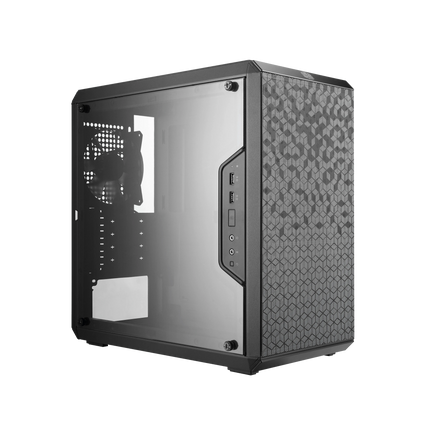

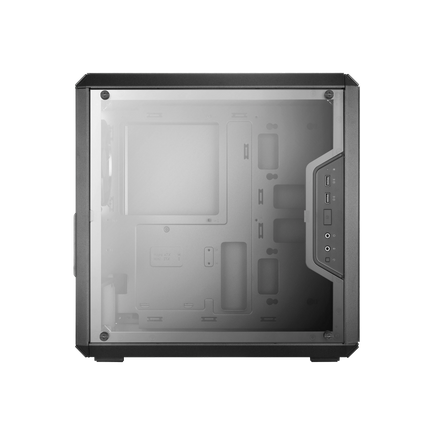

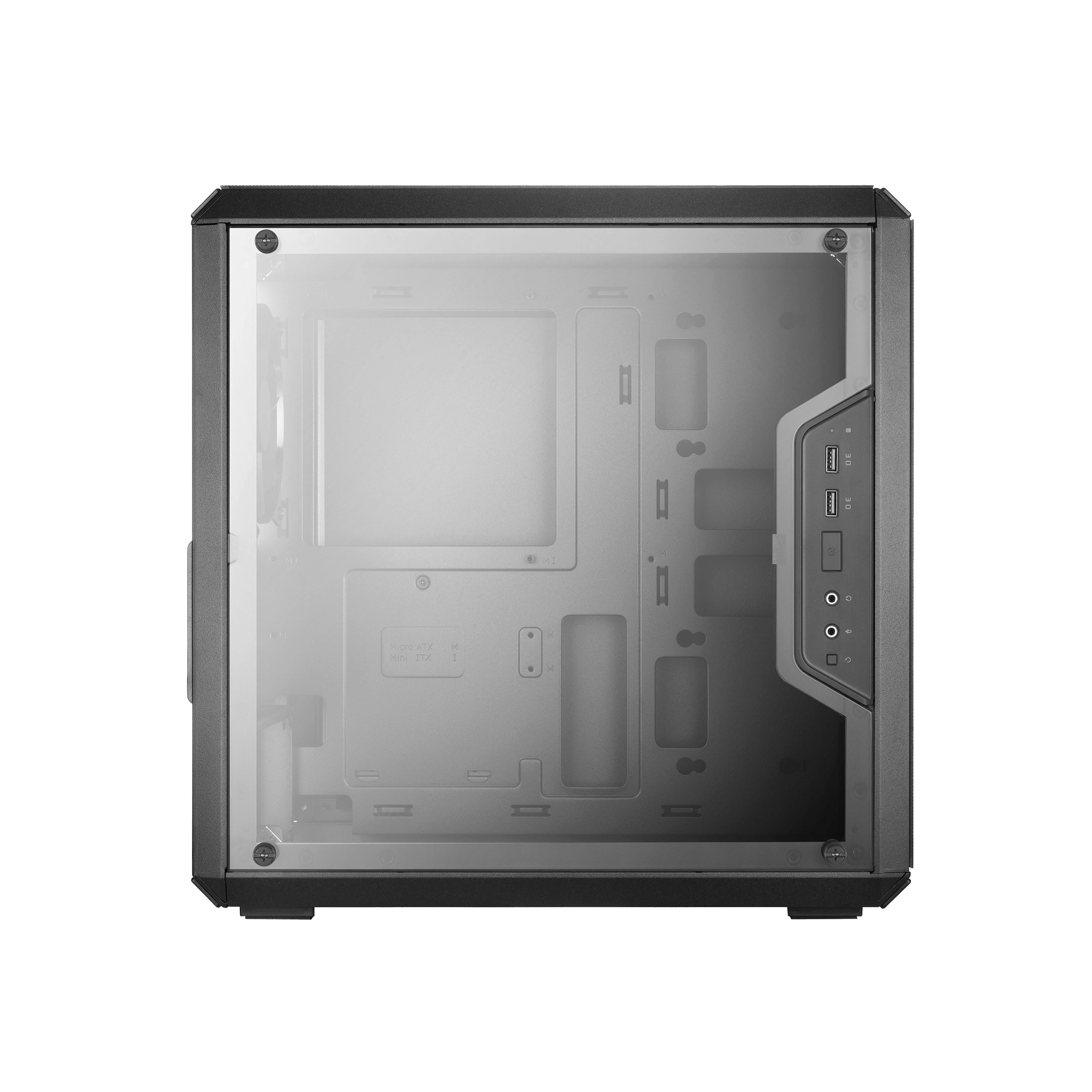

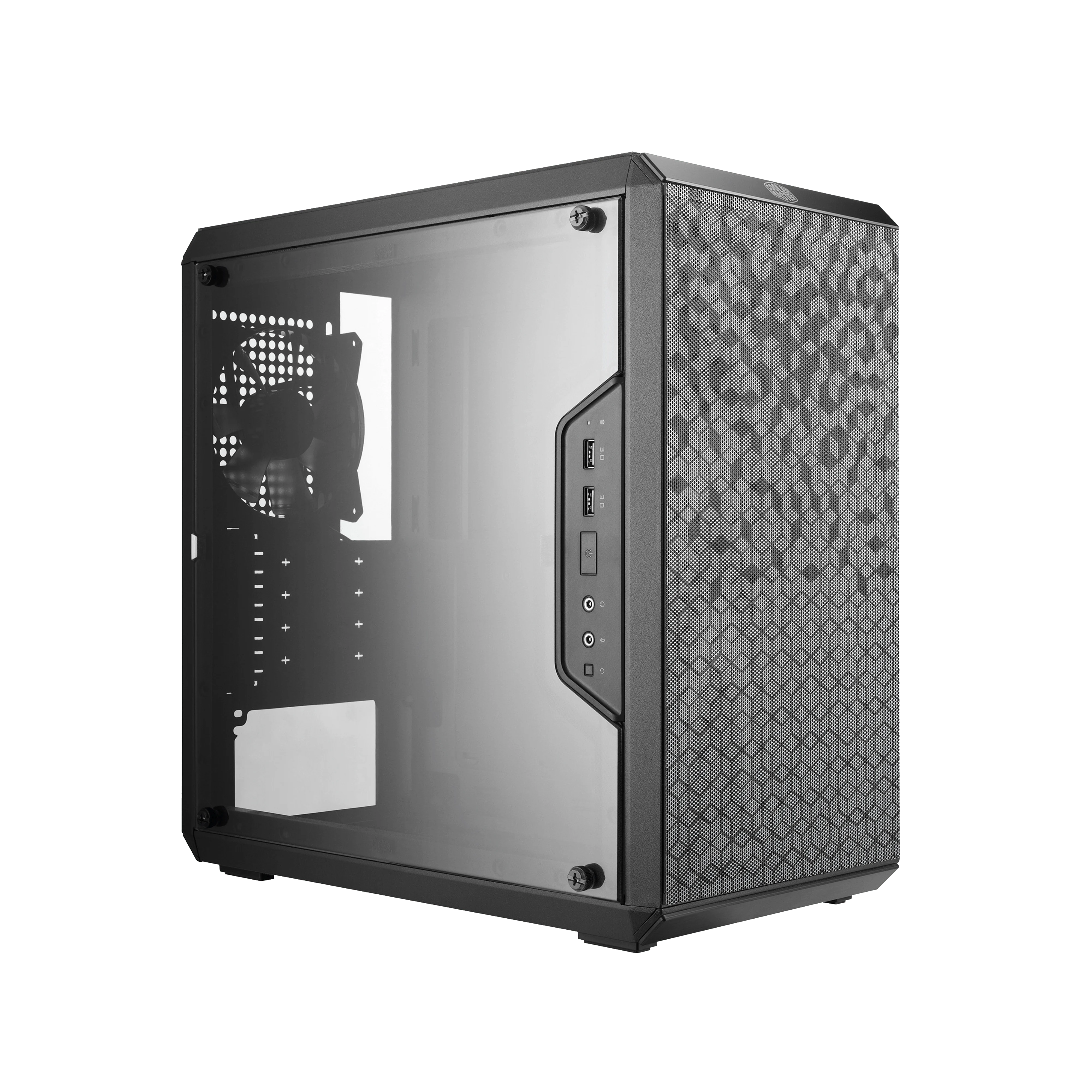

Edge-To-Edge Side Panel
Show off your build through the full size transparent side panel.
Multiple Positioning Options
The case can be put in vertical or horizontal position.
Excellent Thermal Performance
The open design of the perforated front, top and bottom guarantees excellent thermal performance

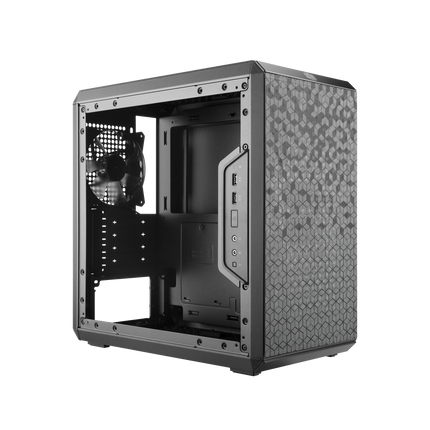

Clean Routing Space
Behind the motherboard tray, 28mm of space is offered for cable management.
Fan and Radiator Support
The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance.
Main Components Clearance
The MasterBox Q300L case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.
Specifications
| Model Number |
MCB-Q300L-KANN-S00 |
| Color(s) |
Black |
| Materials |
Steel, Plastic |
| Dimensions (L x W x H) |
387 x 230 x 381mm |
| Motherboard Support |
Mini-ITX, Micro-ATX |
| Expansion Slots |
4 |
| 5.25" Drive Bays |
0 |
| 3.5" Drive Bays |
1 |
| 2.5" Drive Bays |
2 |
| I/O Panel - USB Ports |
2x USB 3.0 |
| I/O Panel - Audio In / Out |
1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack |
| Pre-installed Fans - Rear |
1x 120mm |
| Fan Support - Front |
2x 120/140mm |
| Fan Support - Top |
2x 120mm |
| Fan Support - Rear |
1x 120mm |
| Fan Support - Bottom |
1x 120mm |
| Radiator Support - Front |
120 / 240mm |
| Radiator Support - Front |
120mm |
| Radiator Support - Rear |
120mm |
| Clearance - CPU Cooler |
159mm |
| Clearance - PSU |
160mm |
| Clearance - GFX |
360mm |
| Dust Filters |
Bottom |
| Power Supply Support |
Bottom Mount, ATX PS2 |
| Warranty |
2 years |
| Size |
Mini Tower |
| Series |
MasterBox Series |
