Description

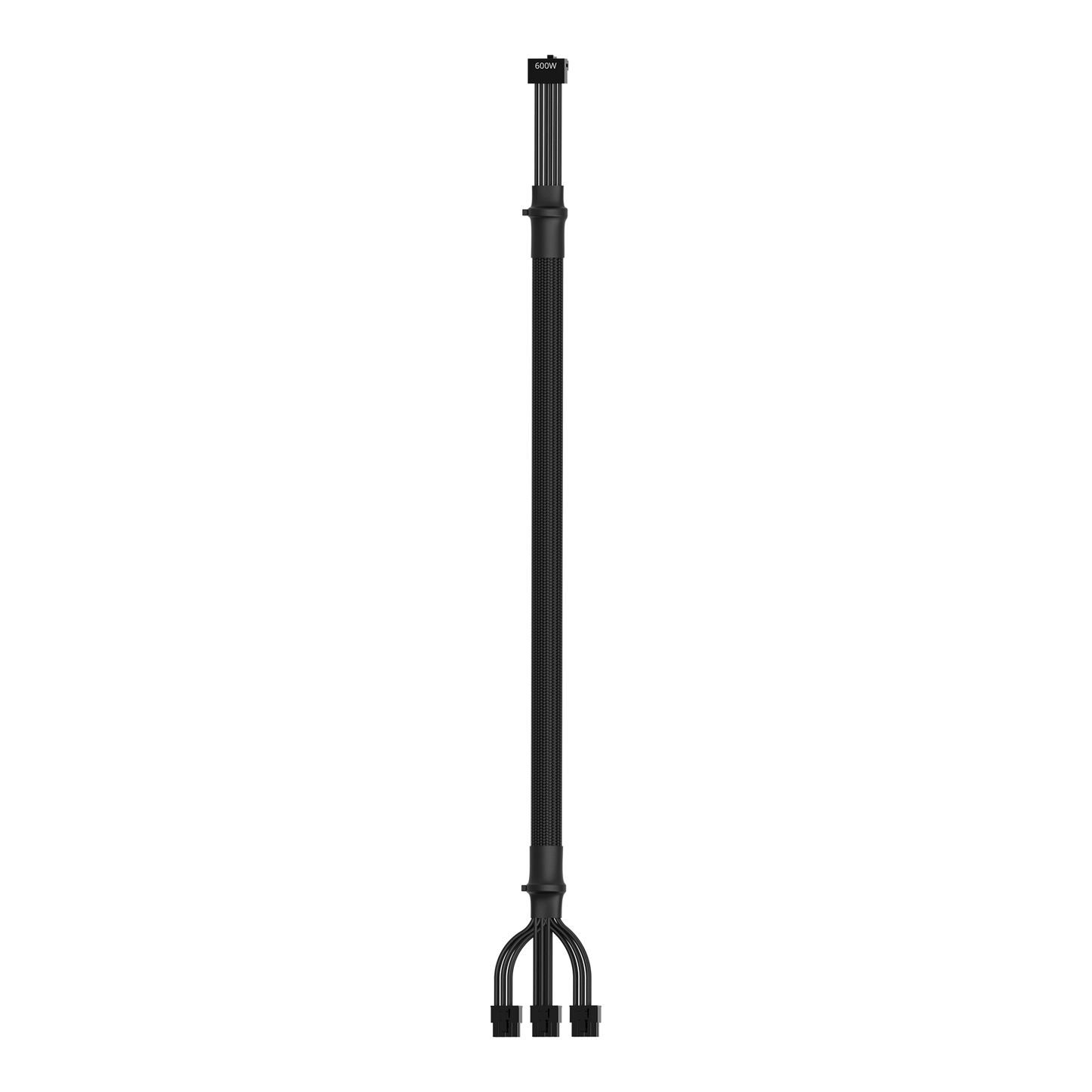

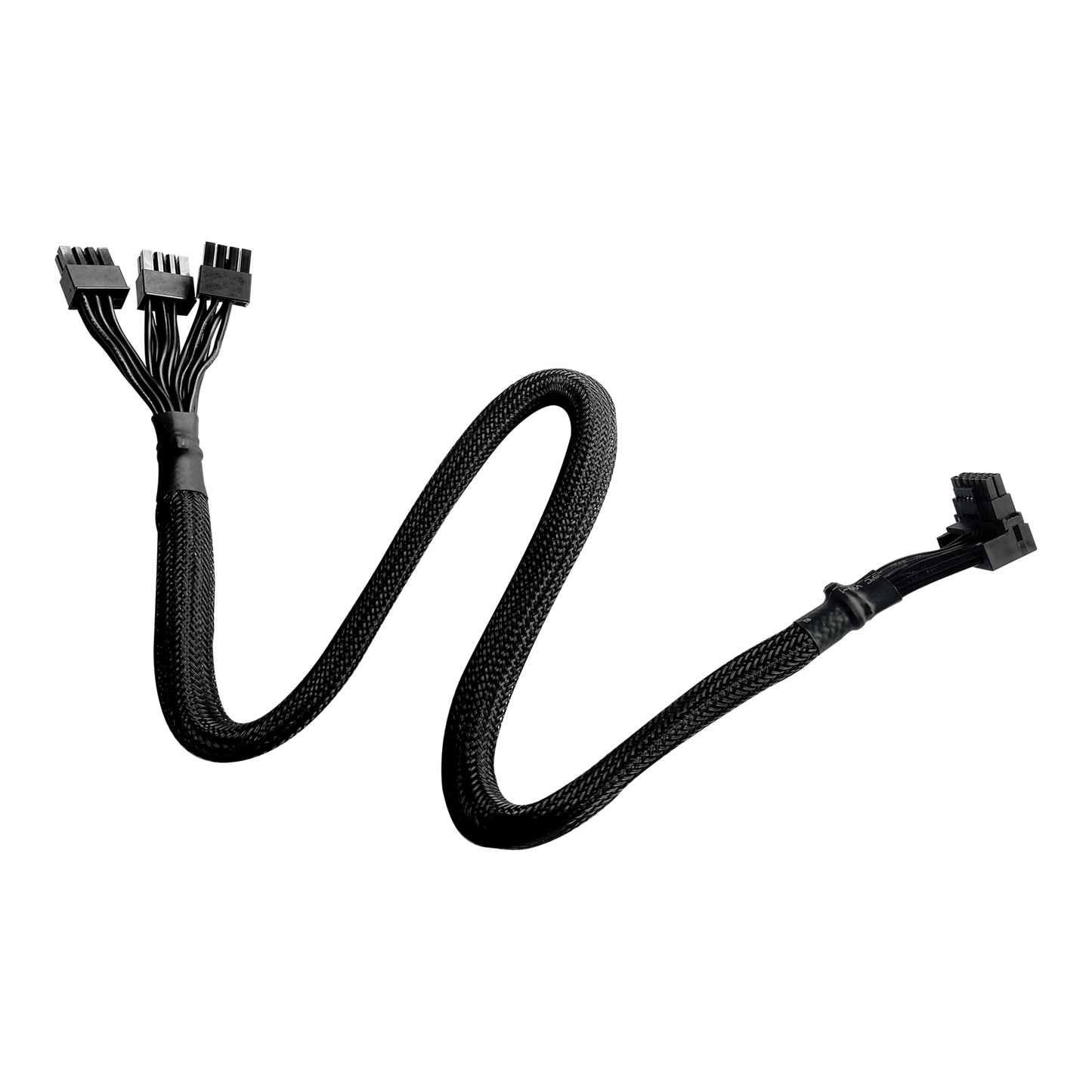

12VHPWR Adapter Cable Type 1
Powering the next generation with ease.
40 Series Ready, ATX 3.0 Not Required

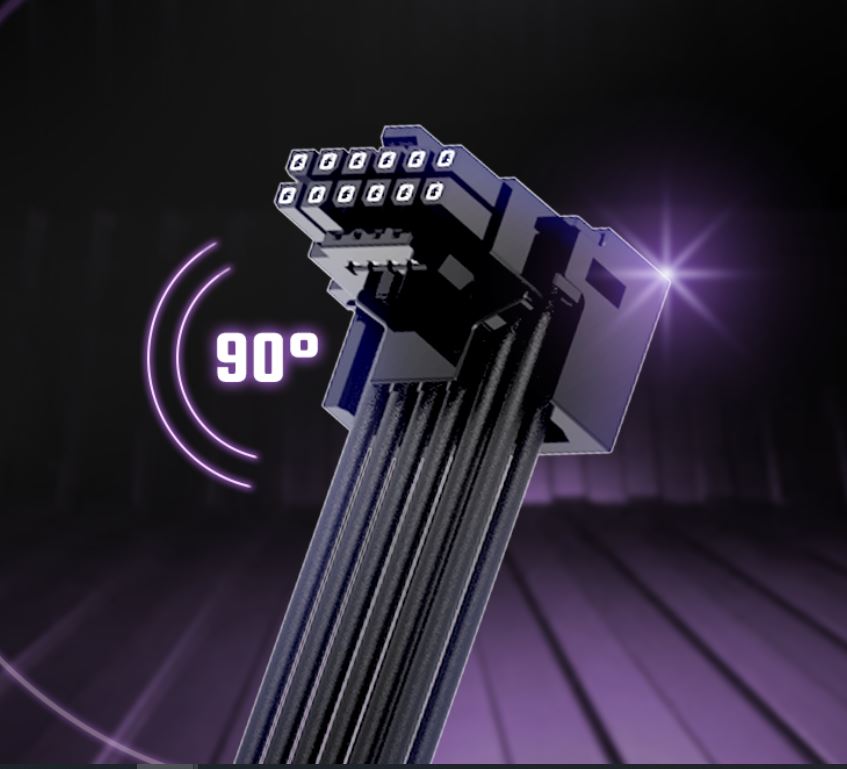

Highly Flexible 90 Degree Cable

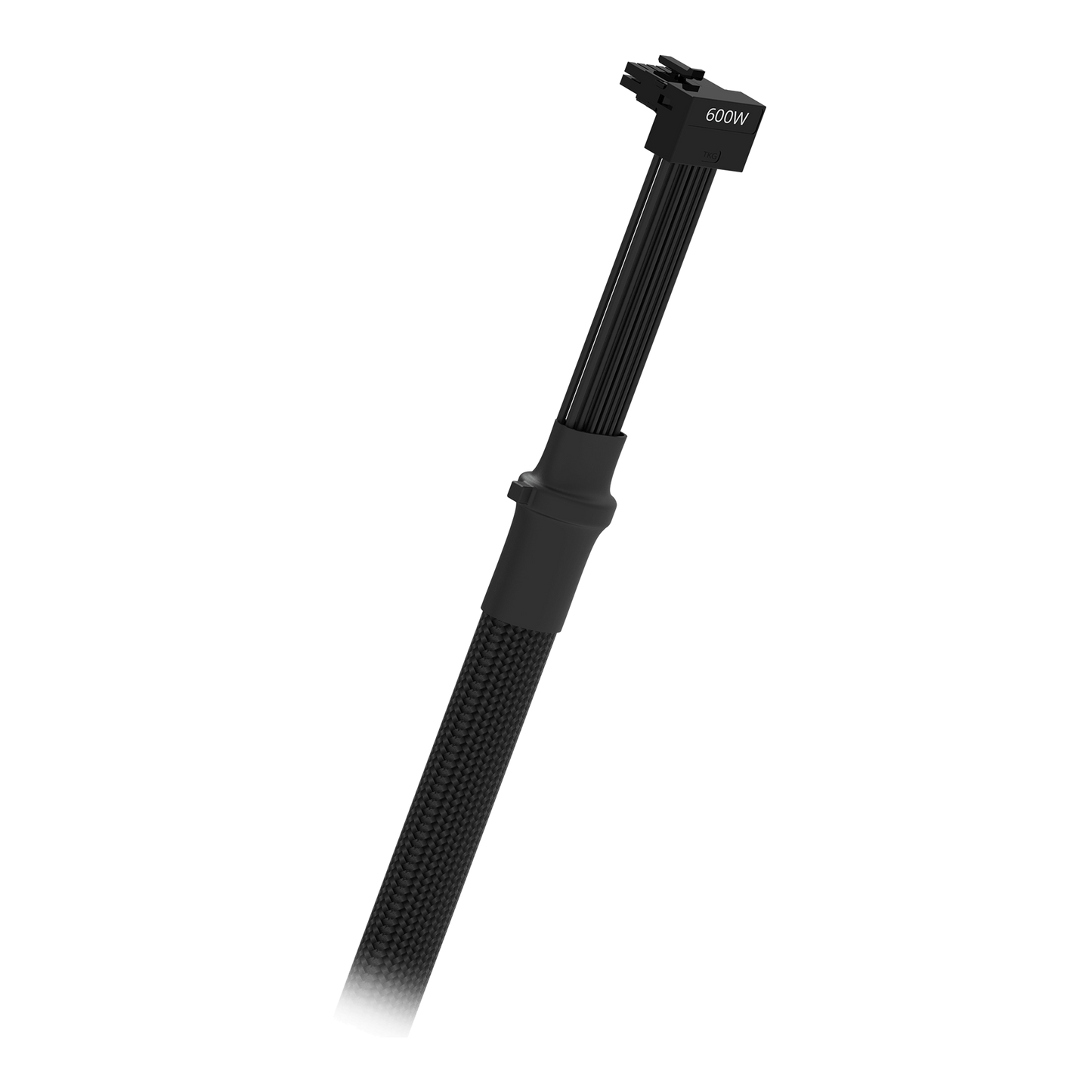

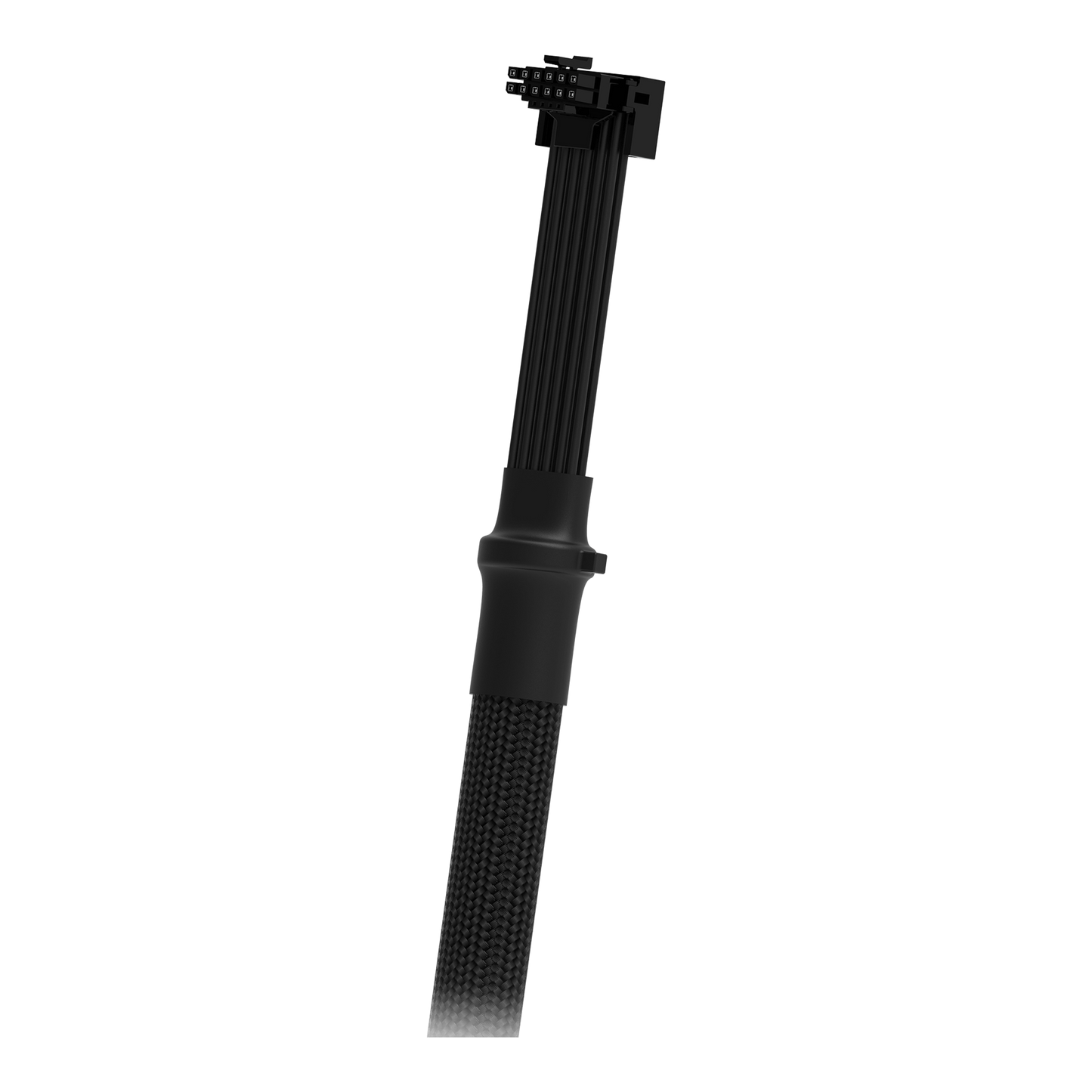

A 12+4 pin PCIe 5.0 connector featuring a 90 degree angle to prevent unnecessary bending, with improved flexibility to enhance ease of use and ensure a long lasting connection.

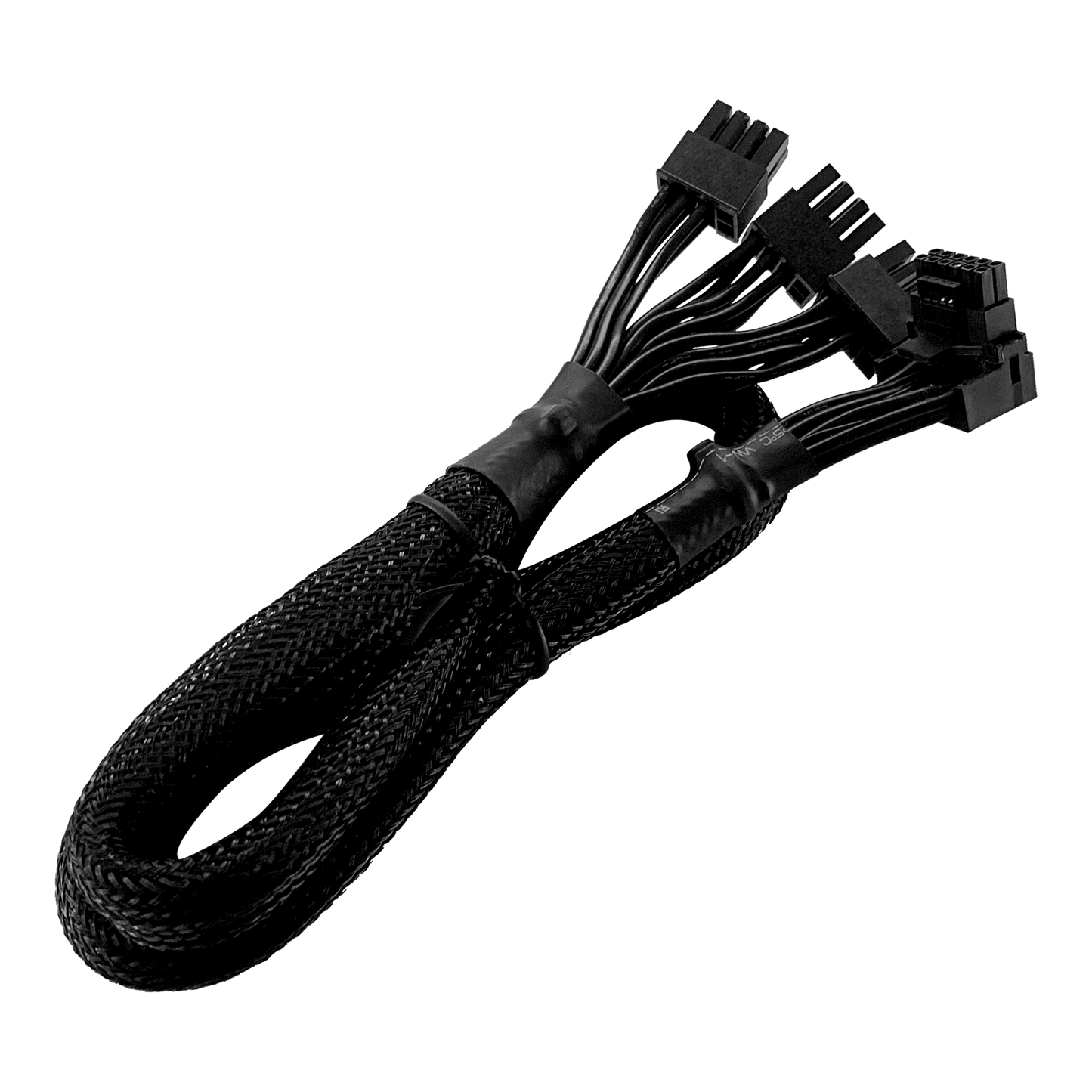

Three 8 Pin Connectors
Up to 600W of power is split between three PCIe 8 pin connectors, providing enhanced safety.

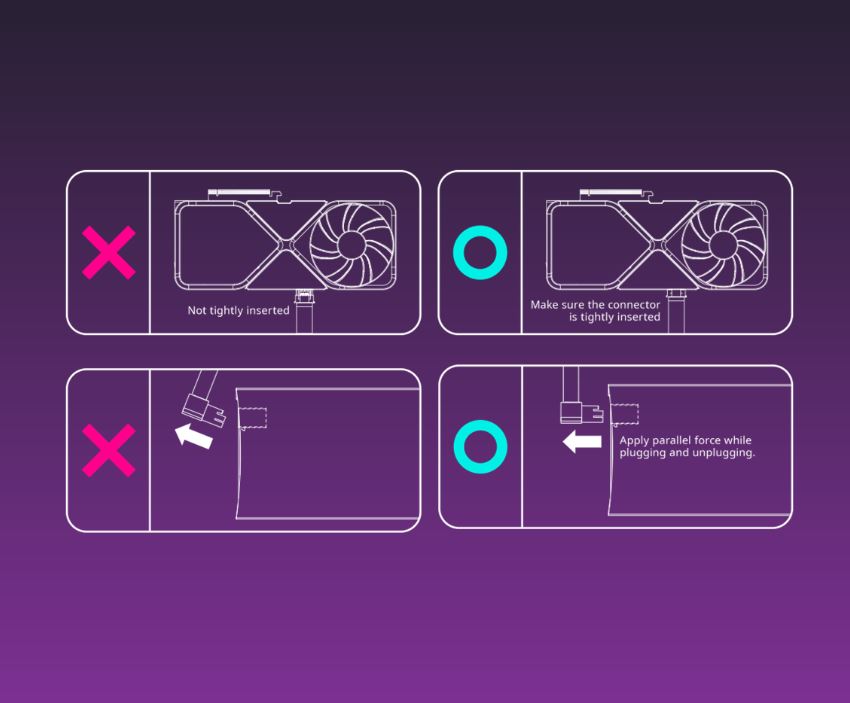

Recommended Installation
* Do not use cables that do not comply with the standard configuration.
* Do not use with additional adapter cables, such as 8 pin to 6+2 pin or SATA.
* Do not place the cables near any heat sources.

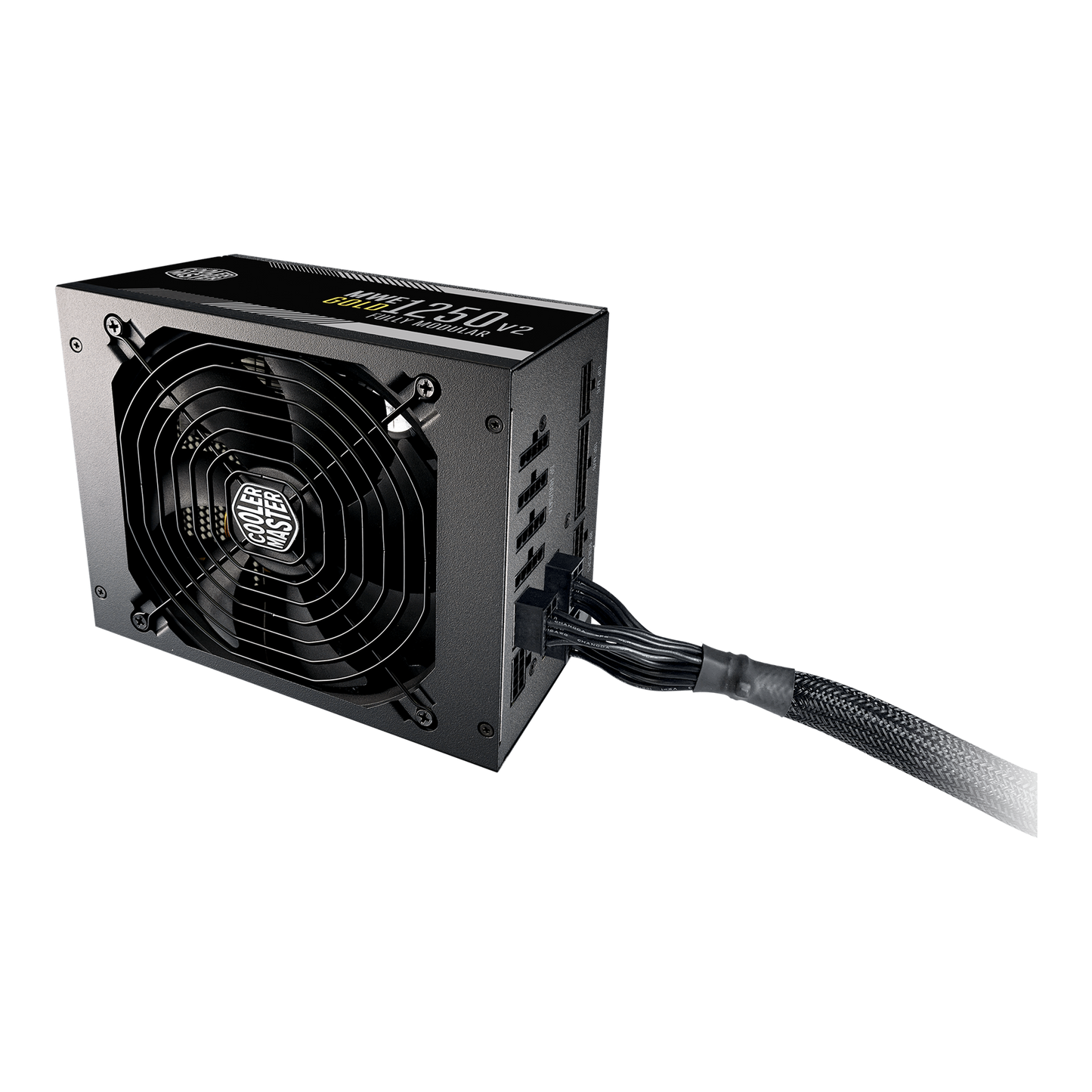

Supported Cooler Master Power Supplies
* V Gold V2
* V Platinum V1 & V2
* V SFX Gold V1 & V2
* V SFX Platinum
* M2000 Platinum
* MWE Gold V3
Specifications
* Color: Black
* Cable Type: Single Sleeve
* Wire Gauge: 16 AWG (Power), 28 AWG (Signal)
* Length: 65cm
* Connectors: 1x 12+4 Pin, 3x 8 Pin
* Series: Cable, Accessories
* Model: CMA-NFPC16XXBK1-GL
* Product Sheet
Non compatible with older V series with only 6 PIN.
