Description

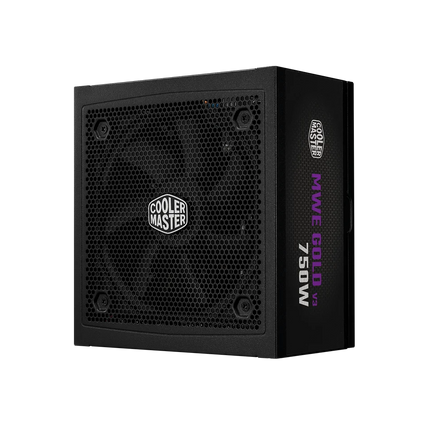

The MWE Gold V3 brings a new standard of durability and efficiency to Cooler Master’s lineup of power supply units. This 80 Plus Gold certified unit can achieve Titanium level efficiency at light loads in a 115V test.
Highlights
- ATX 3.1 support & a durable 12V-2x6 cable
- 80 Plus Gold certified efficiency

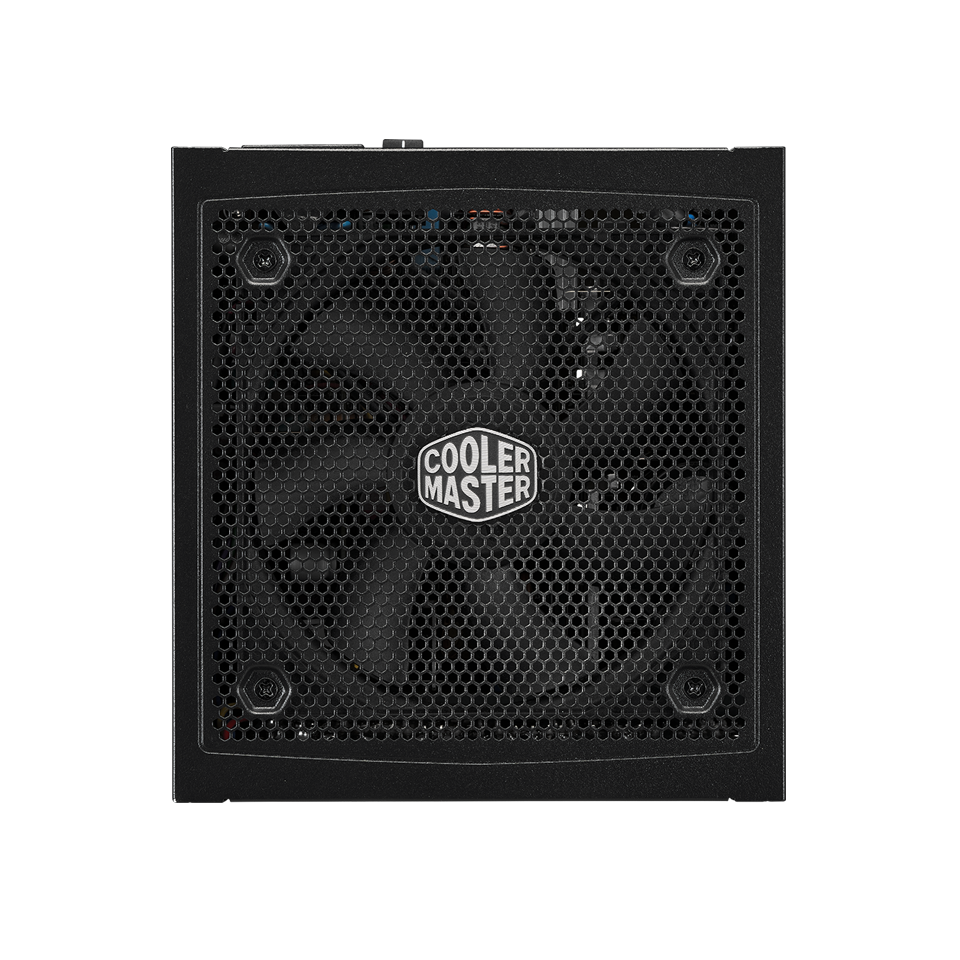

- Silent fan performance with a zero-RPM mode
- Separated thermal technologies
- Fully modular cabling
- 10-year warranty
ATX 3.1 Support & a Durable 12V-2x6 Cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.
Certified Efficiency
The MWE II Gold is certified to achieve more than 90% efficiency at typical loads.
Separated Thermal Technologies
Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.

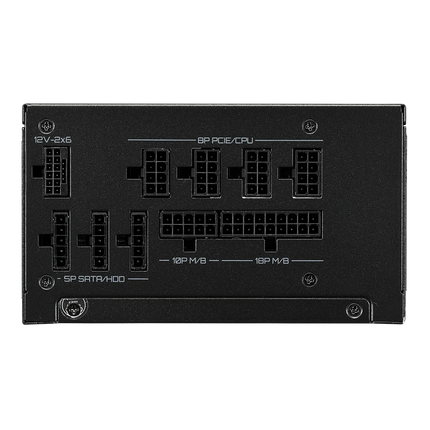

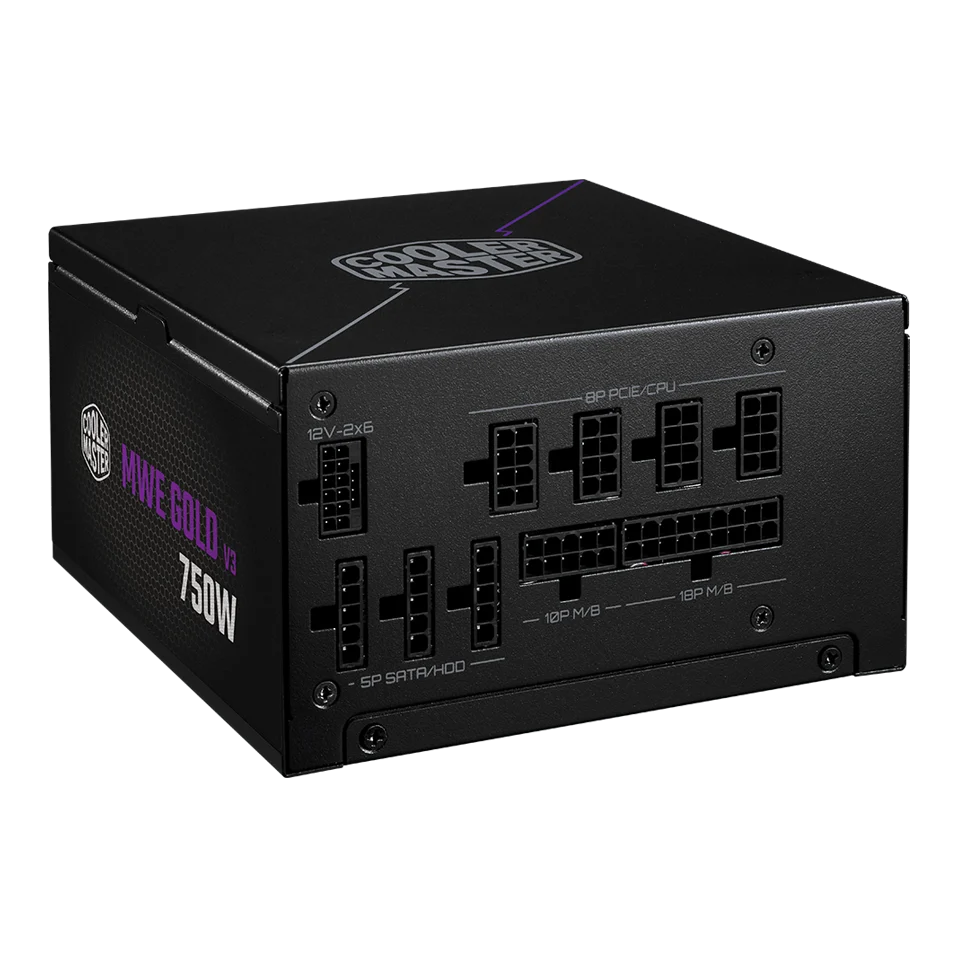

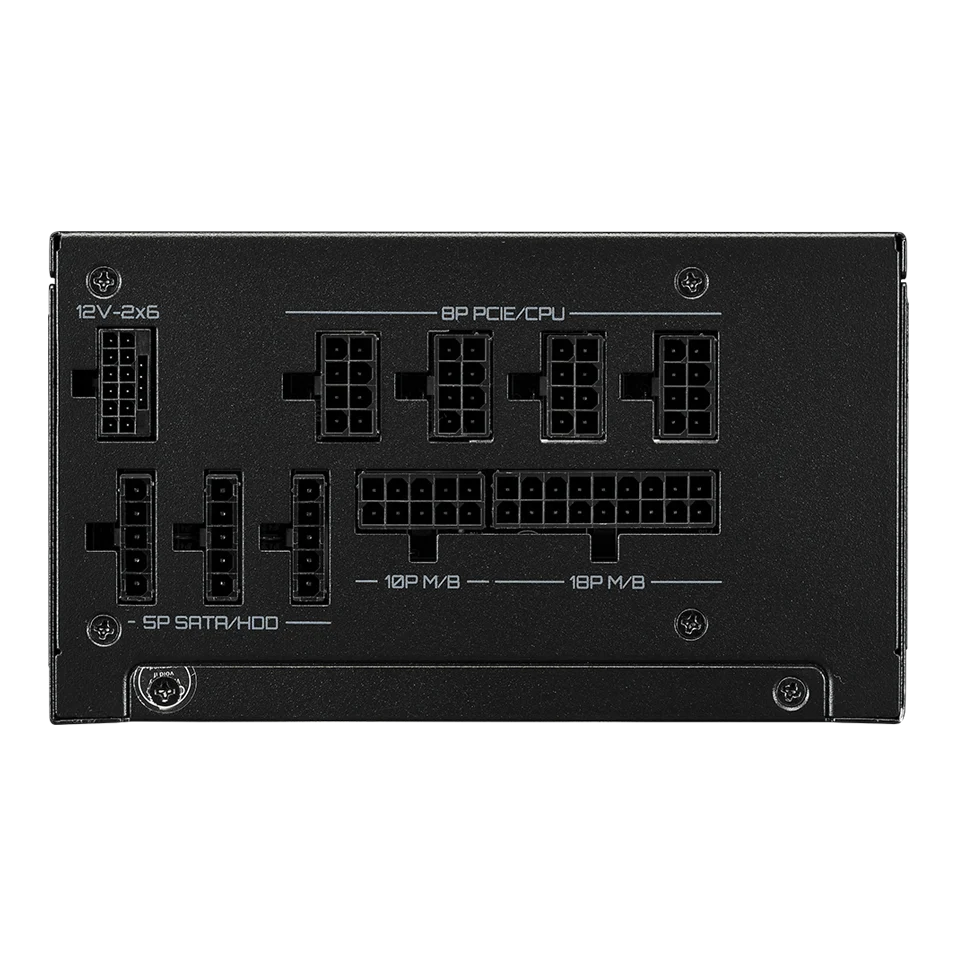

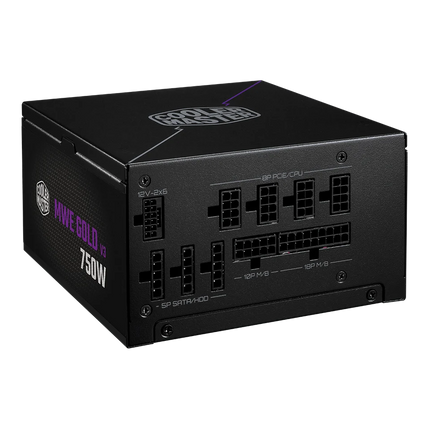

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
MORE
Specifications

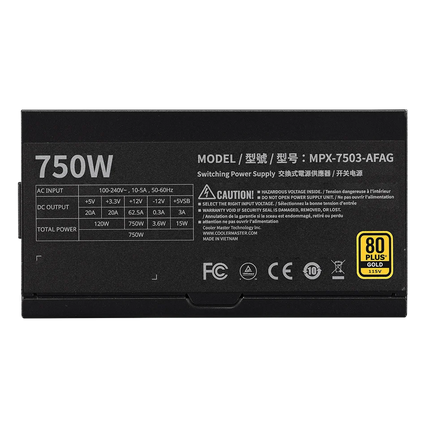

| General |
| Model |
MPX-7503-AFAG-2*** |
| Series |
MWE Gold Series |
| Category |
Above 750W |
| Modular |
Fully Modular |
| Form Factor |
ATX |
| Watts |
750W |
| ATX Version |
ATX 12V Ver. 3.1 |

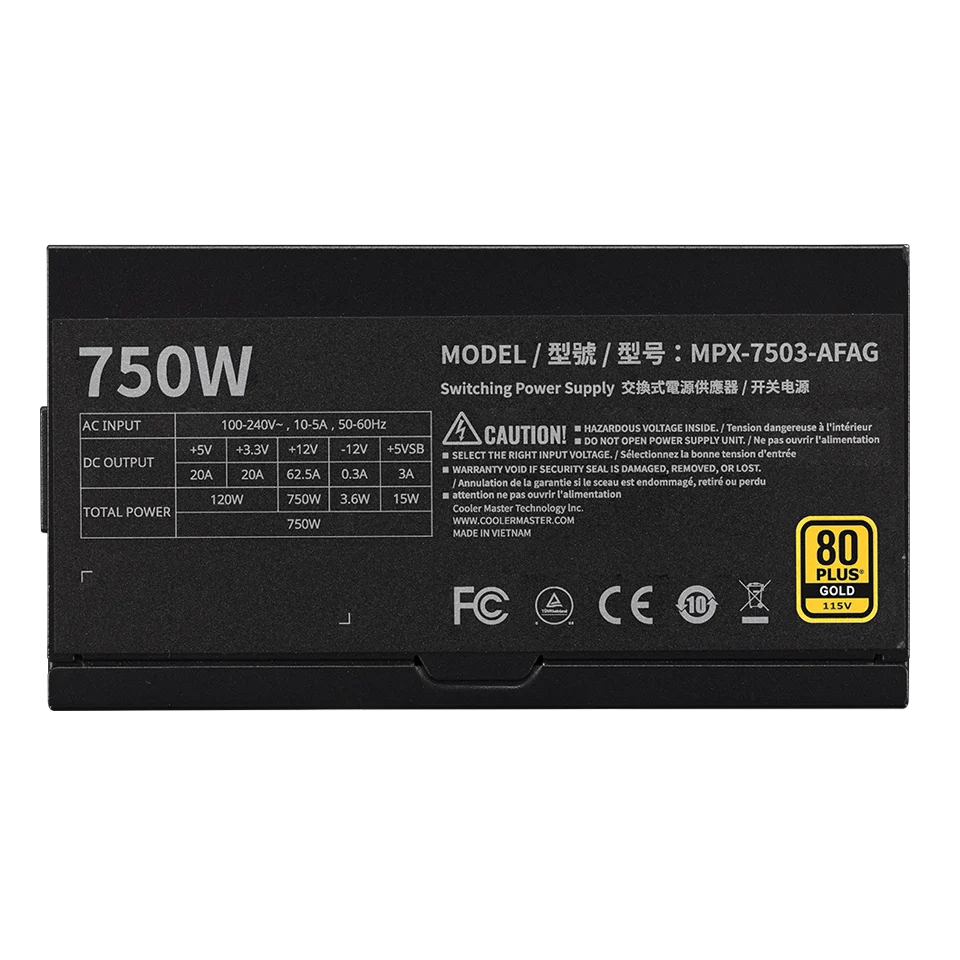

| Electrical Specifications |
| PFC |
Active PFC |
| Input Voltage |
100-240V |
| Input Current |
10-5A |
| Input Frequency |
50-60Hz |
| Efficiency |
≥90% @ Typical Load |
| 80 PLUS Rating |
80 PLUS Gold |
| 80 Plus Efficiency |
Gold |
| ErP 2014 Lot 3 |
Yes |
| Operating Temperature |
0-40°C |
| Power Good Signal |
100 - 150 ms |
| Hold Up Time |
≥16ms at 80% Load |
| MTBF |
>100,000 Hours |
| Protections |
OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory |
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| Dimensions & Cooling |
| Dimensions (L x W x H) |
160 x 150 x 86 mm |
| Fan Size |
120mm |
| Fan Bearing |
HDB |
| Fan Speed |
2500 RPM |
| Connectors |
| ATX 24 Pin Connectors |
1 |
| EPS 4+4 Pin Connectors |
1 |
| EPS 8 Pin Connector |
1 |
| SATA & Peripheral 4 Pin Connectors |
6 (SATA) / 2 (Peripheral) |
| PCI-e 6+2 Pin Connectors |
4 |
| 12V-2x6 Connectors |
1 |
