Description

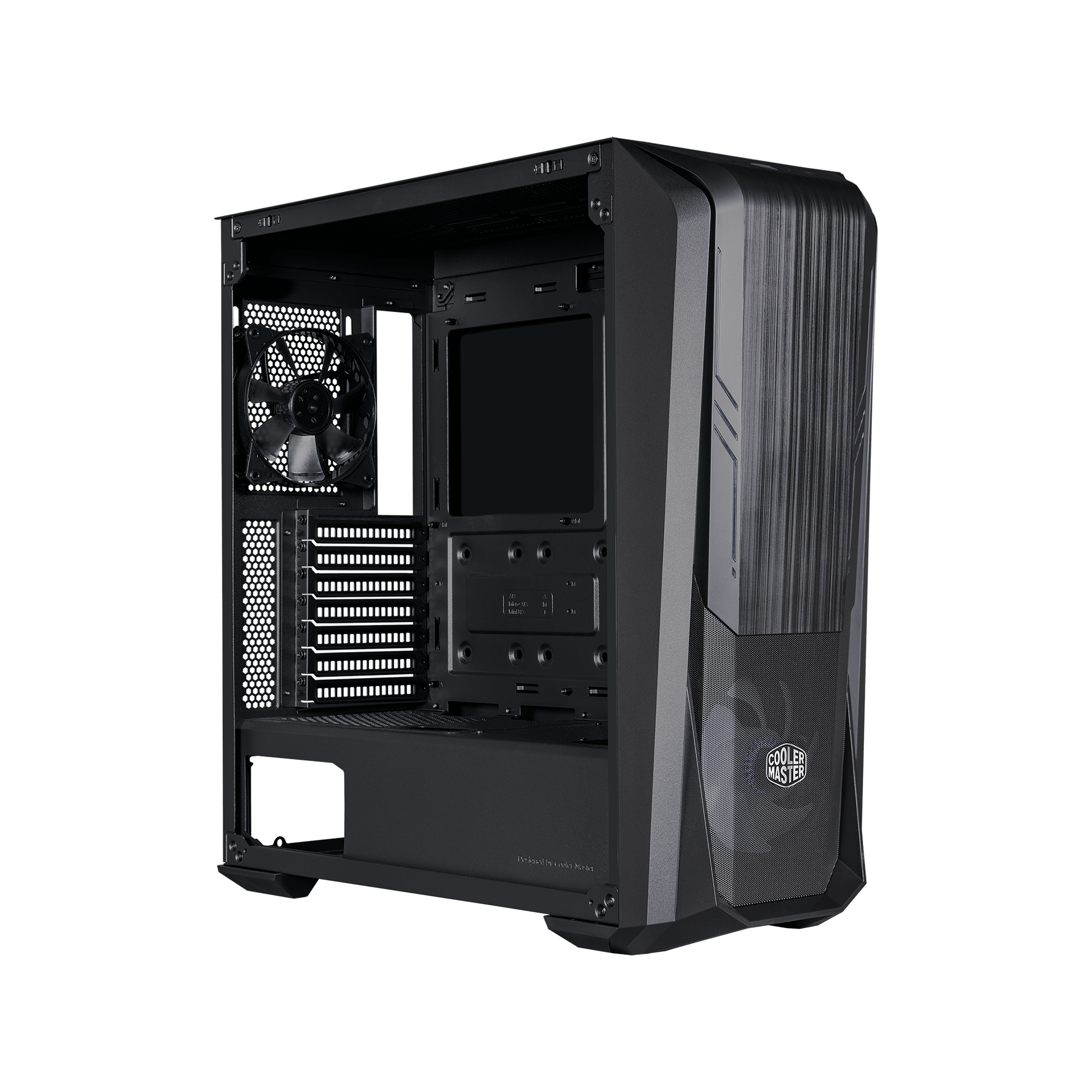

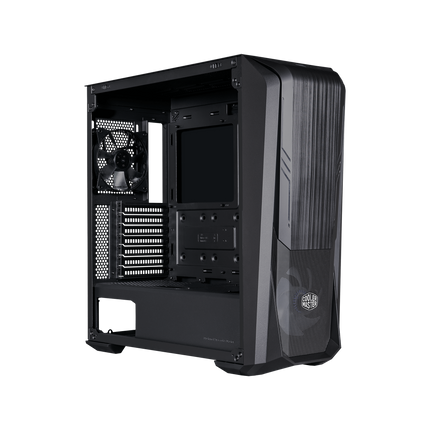

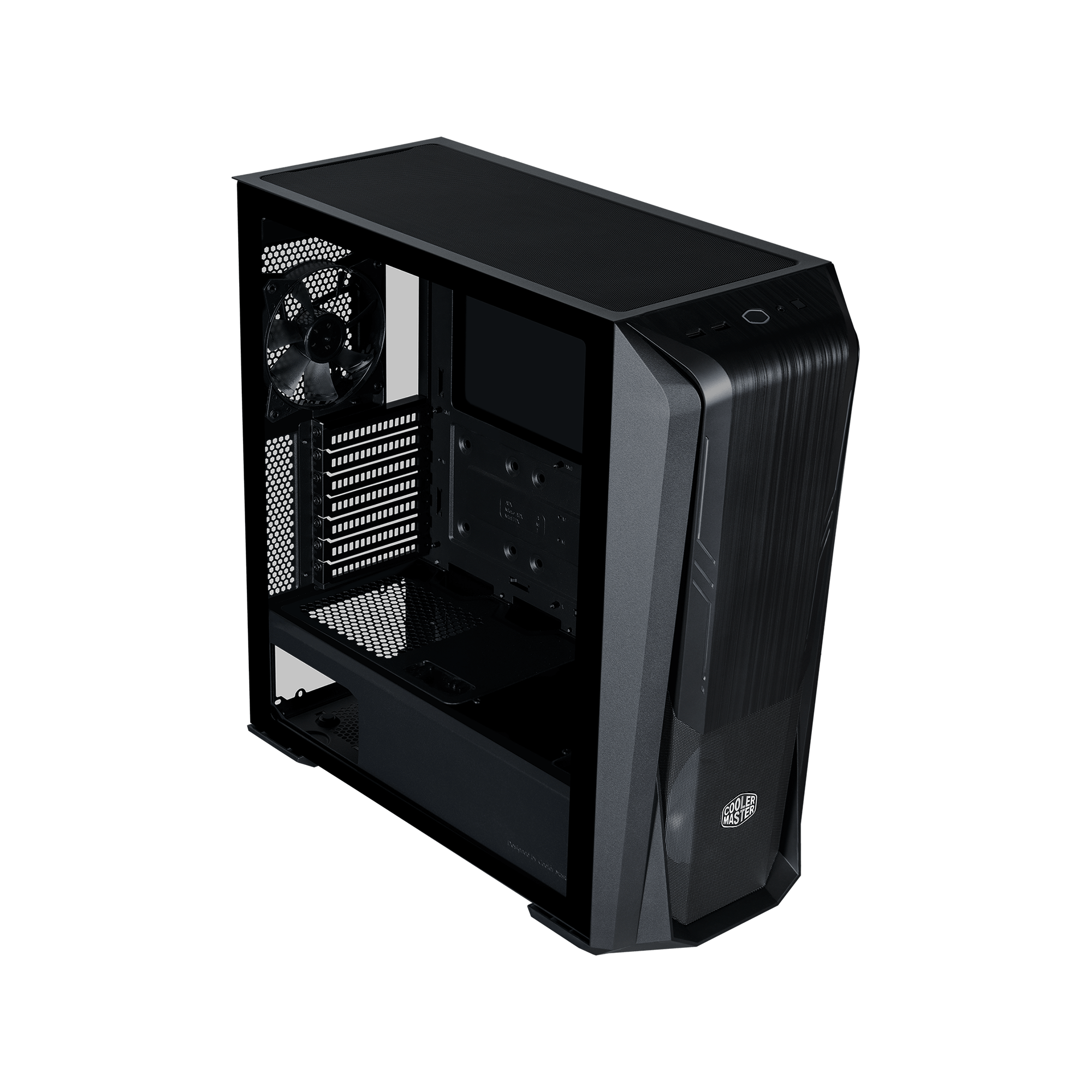

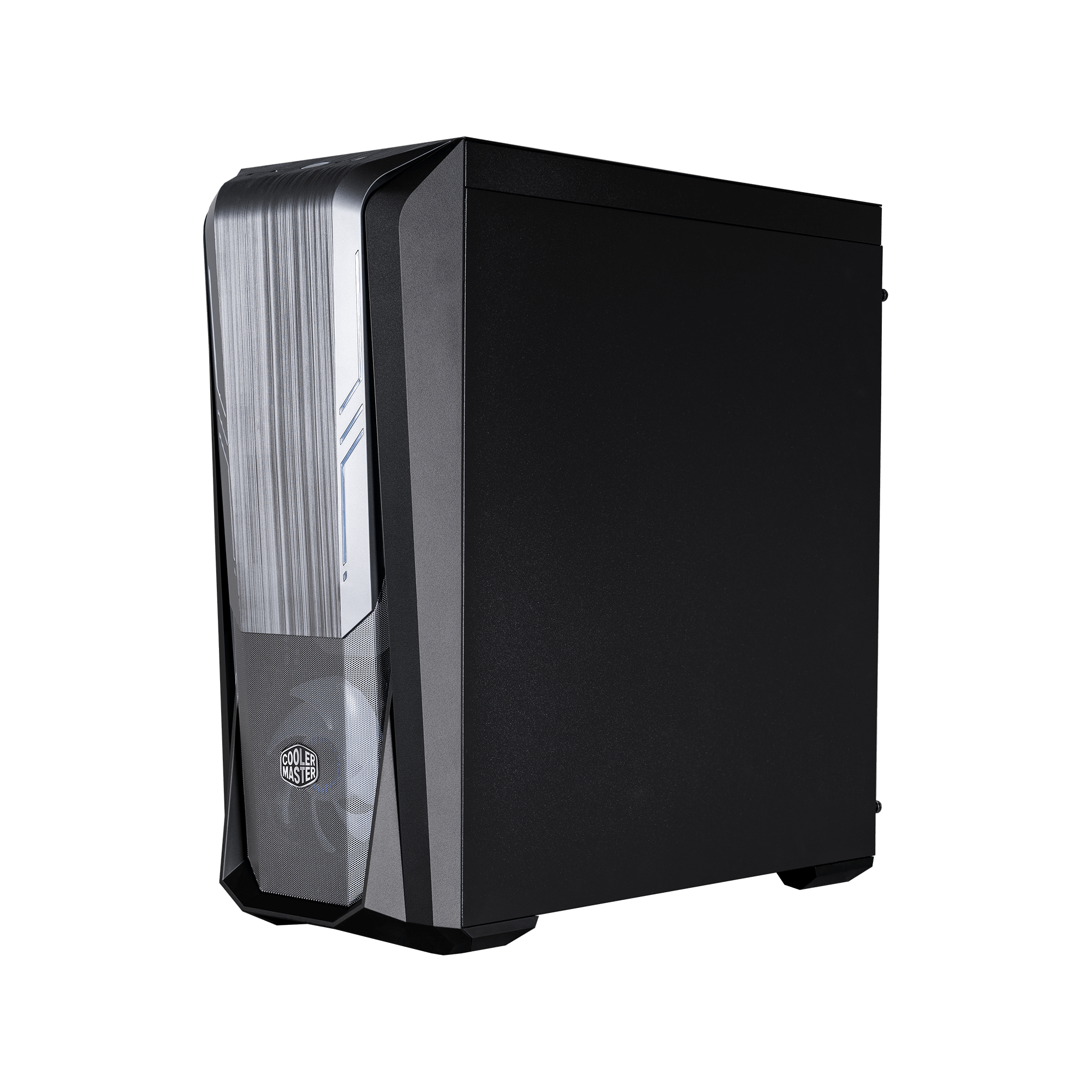

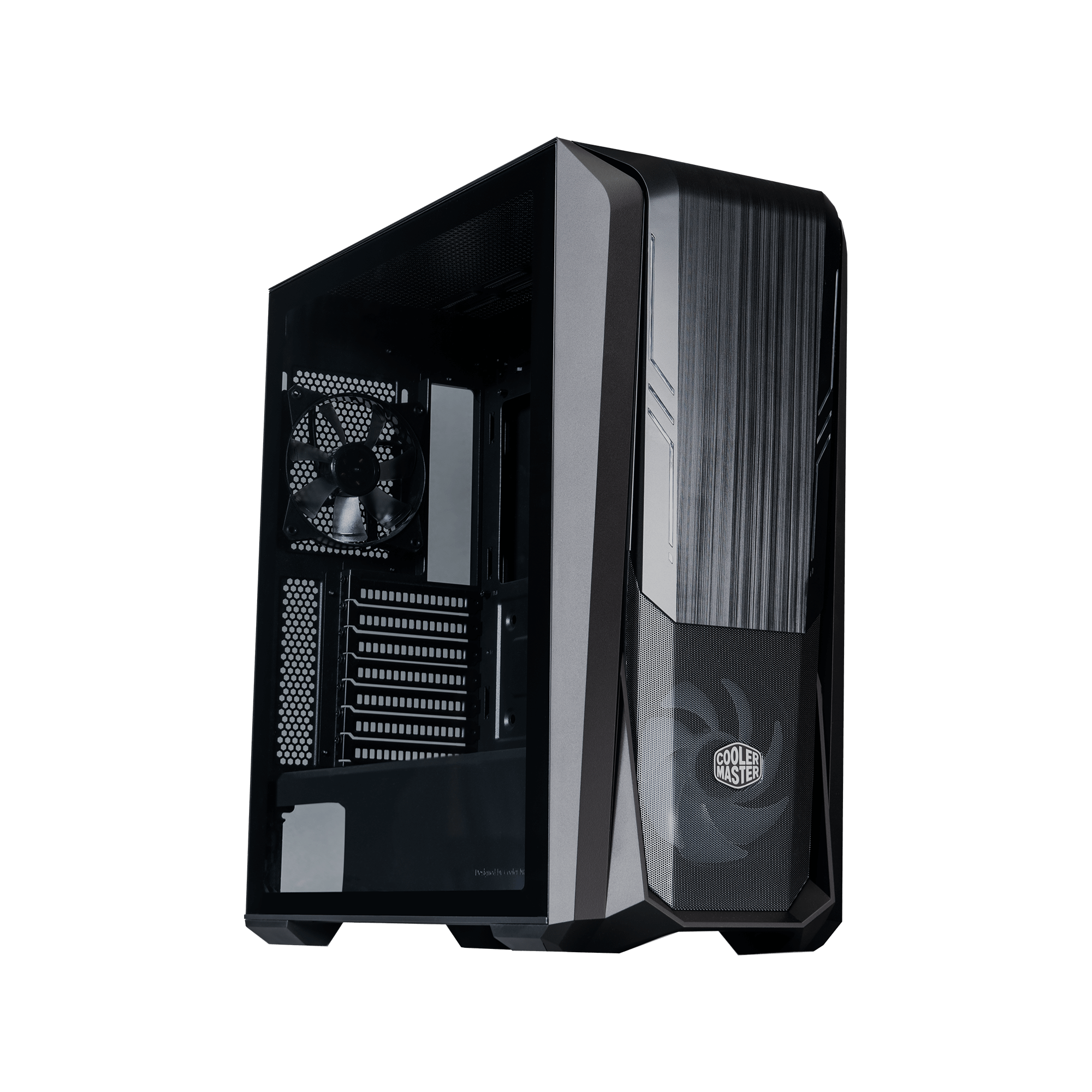

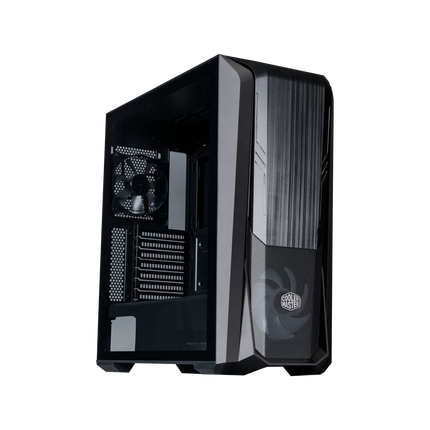

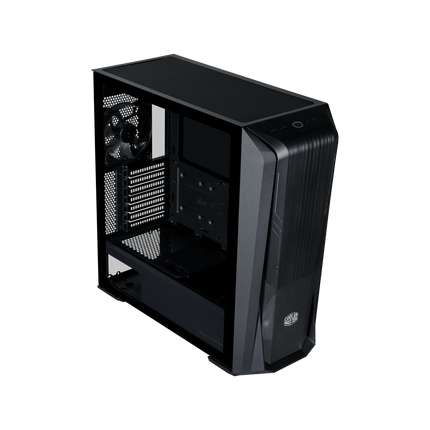

With top-notch gaming support and stealthy, futuristic design, MasterBox 500 really is the best of both worlds.

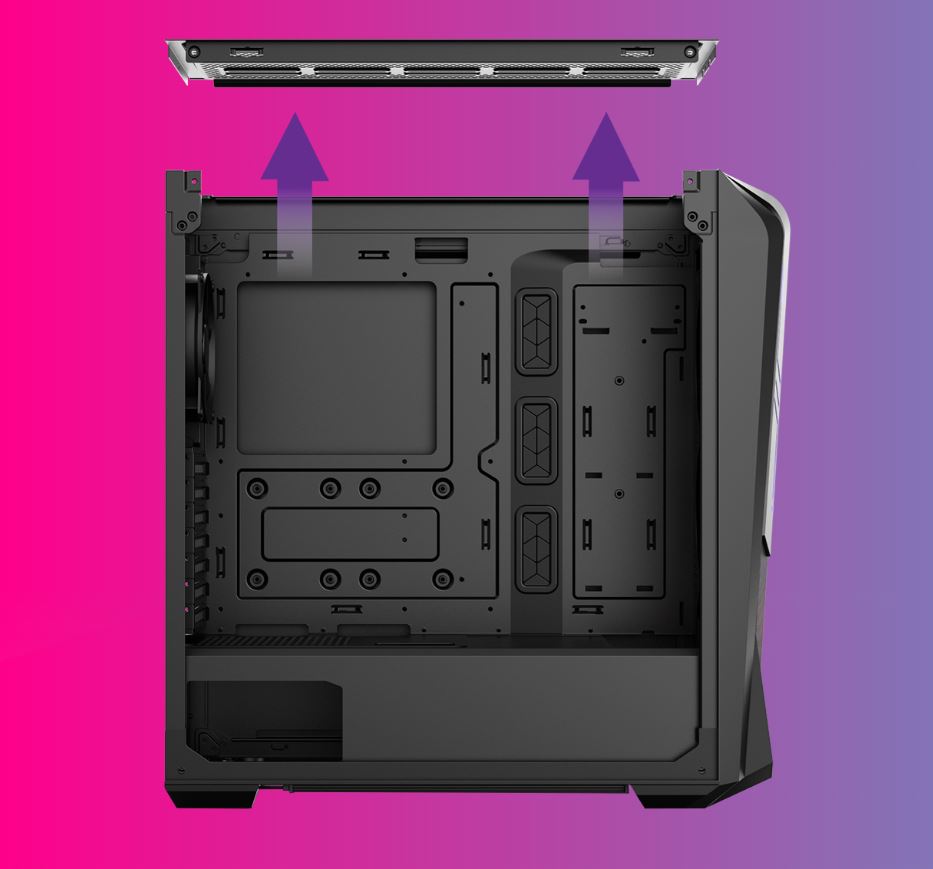

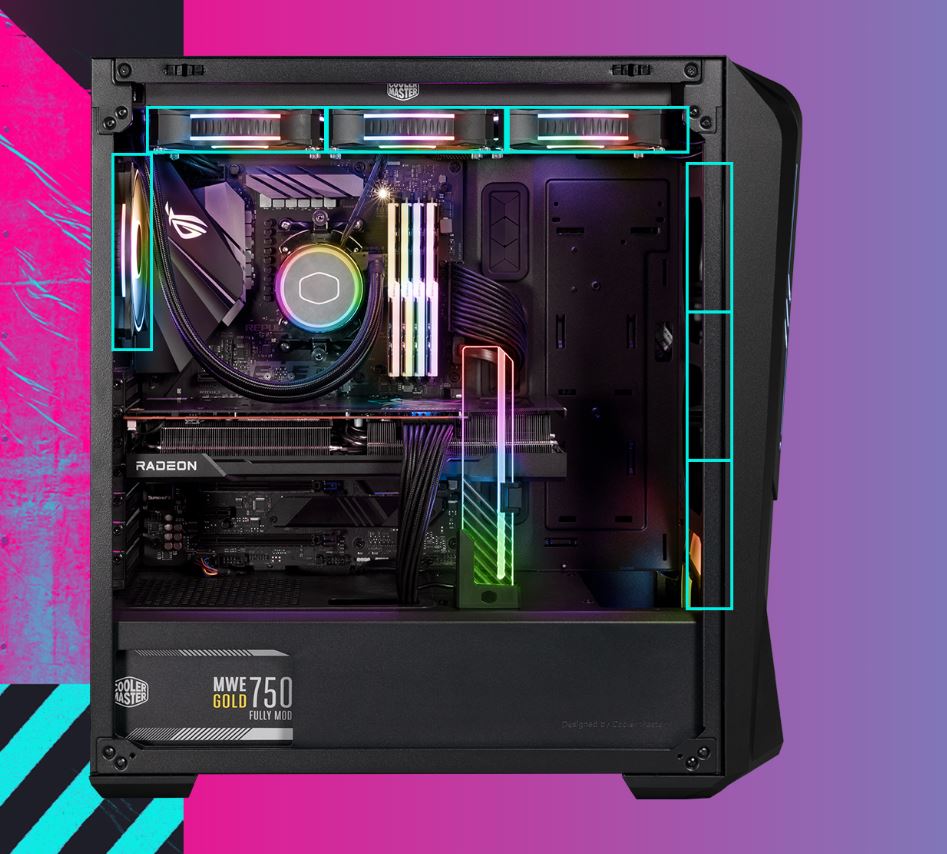

The chassis boasts upgraded cooling support, capable of housing a maximum of seven 120mm fans as well as dual 360mm radiators for both air and water cooling versatility. The top panel can be completely removed, allowing for greater access and ease during radiator or fan installations. The pre-installed fans provides powerful, silent cooling while giving users a head start on a fully illuminated build.
-
Model NumberMB500-KGNN-S00
-
Exterior ColorBlack
-
Materials - ExteriorSteel, Mesh, Plastic
-
Materials - Left Side PanelTempered Glass
-
Dimensions (L x W x H)505 x 209 x 499mm (incl. Protrusions), 491 x 209 x 499mm (excl. Protrusions)
-

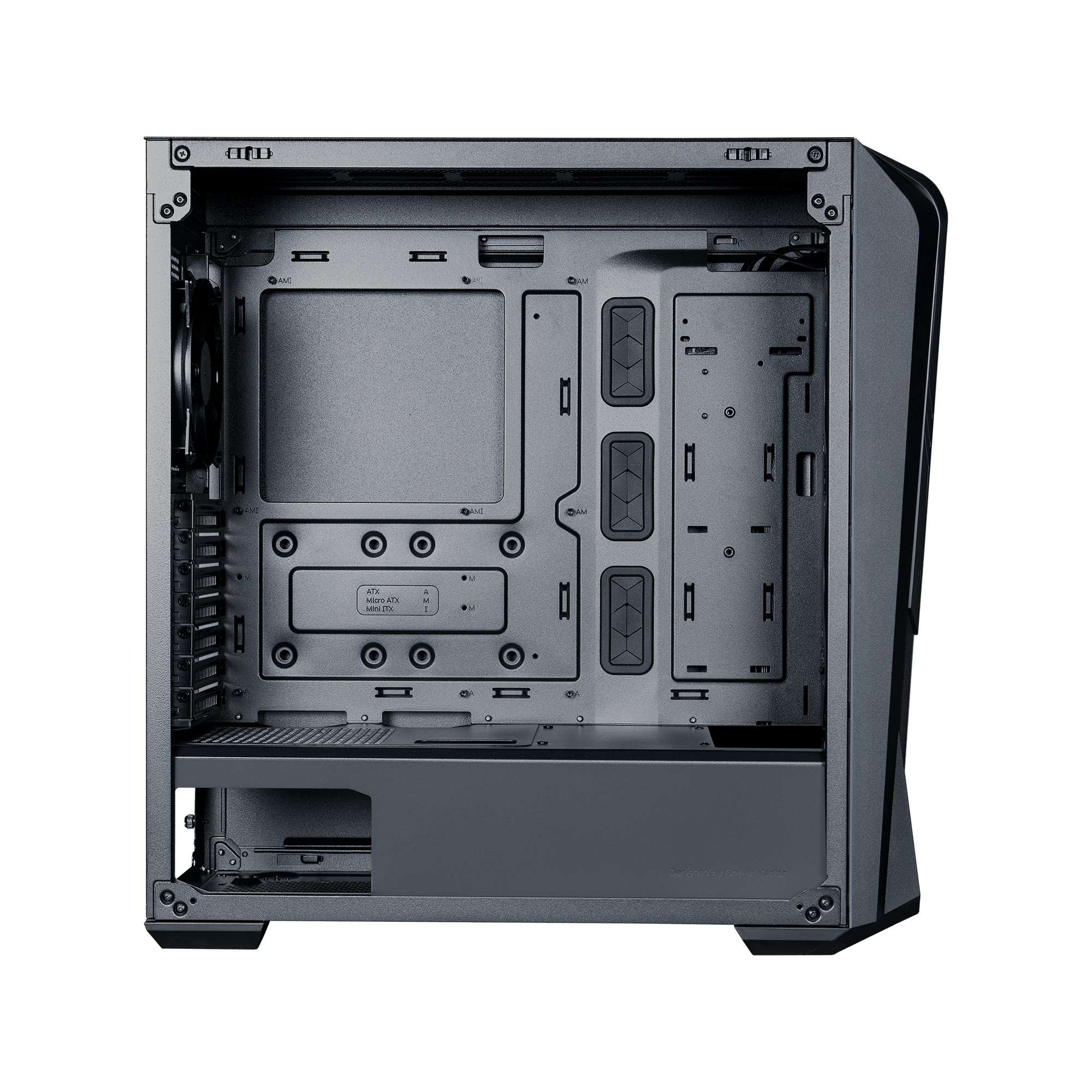

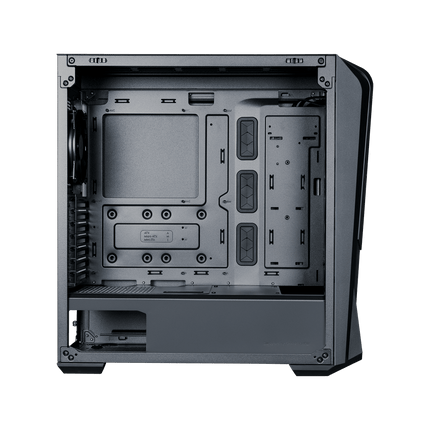

Motherboard SupportMini-ITX, Micro-ATX, ATX, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
-

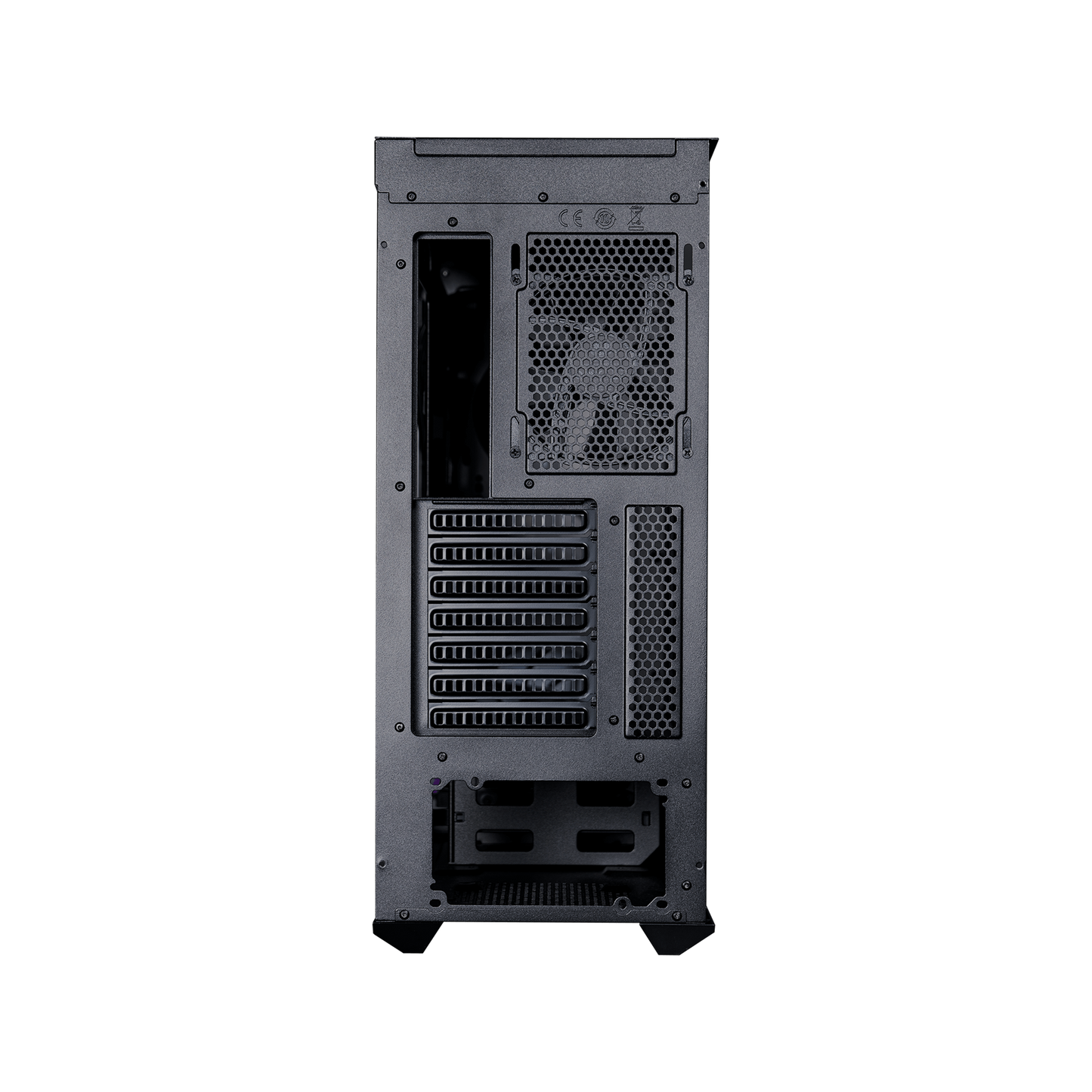

Expansion Slots7
-
5.25" Drive BaysN/A
-
2.5" / 3.5" Drive Bays (Combo) 2
-
2.5" Drive Bays4
-
I/O Panel - USB Ports2x USB 3.2 Gen 1 Type A
-
I/O Panel - Audio In / Out1x 3.5mm Headset Jack (Audio+Mic)
-
I/O Panel - Other1x Reset/ARGB button
-

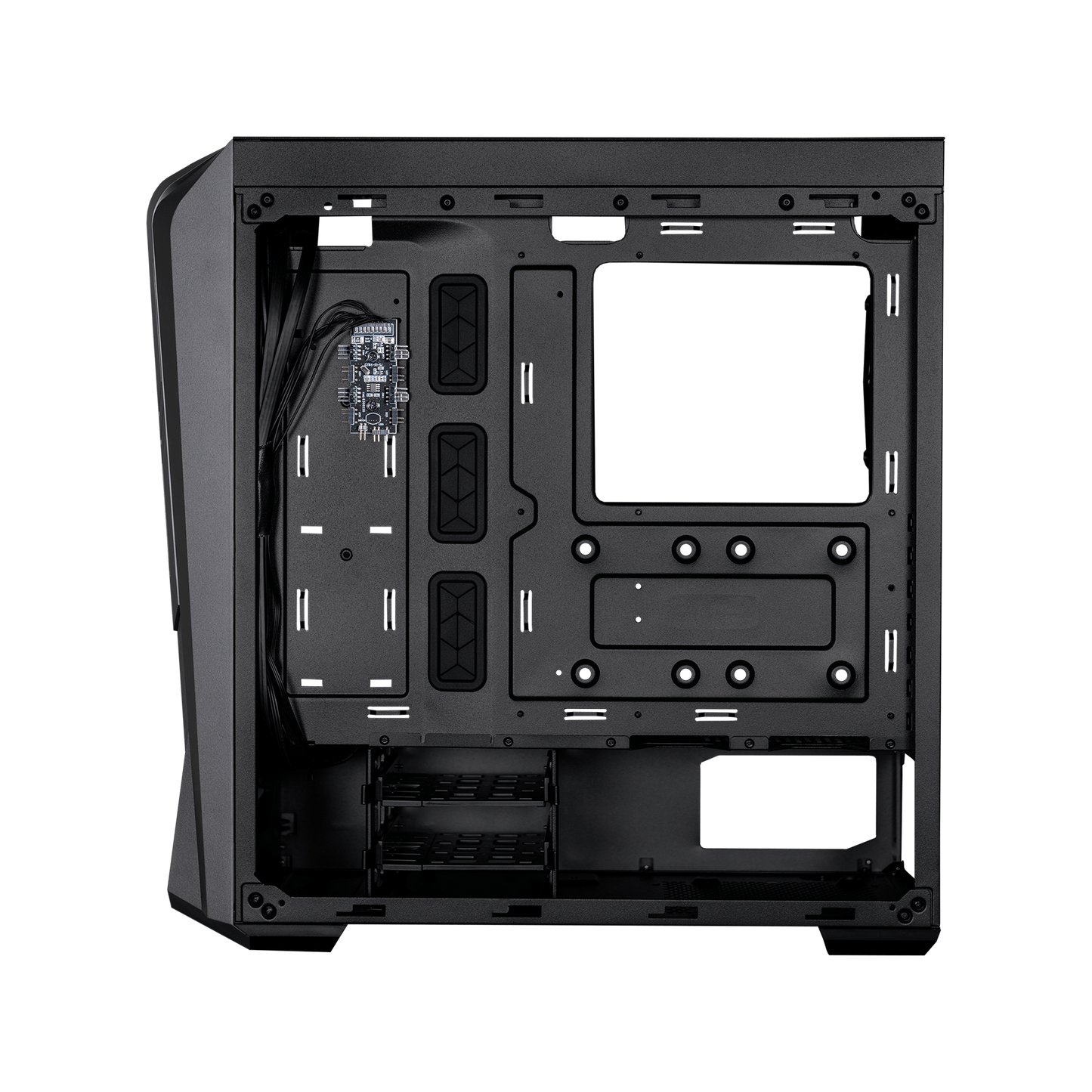

ARGB ControllerARGB Hub
-
Pre-installed Fans - TopN/A
-
Pre-installed Fans - Front1x 120mm CF120 ARGB
-
Pre-installed Fans - Rear1x 120mm MF120 non-LED Fan
-
Fan Support - Top3x 120mm / 2x 140mm
-
Fan Support - Front3x 120mm / 2x 140mm
-
Fan Support - Rear1x 120mm
-
Radiator Support - Top120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
-
Radiator Support - Front120 / 140 / 240 / 280 / 360mm
-
Fan Support - Front3x 120mm
-
Fan Support - Top3x 120mm
-
Radiator Support - Rear120mm
-
Clearance - CPU Cooler165mm/6.49"
-
Clearance - PSU180mm / 7.08" (295mm / 11.61" with HDD cage removed)
-
Clearance - GFX410mm/16.1"
-
Dust FiltersFront, Top, Bottom
-
Power Supply SupportATX
-
Warranty2 years
-
SizeMid Tower
-
SeriesMasterBox Series
