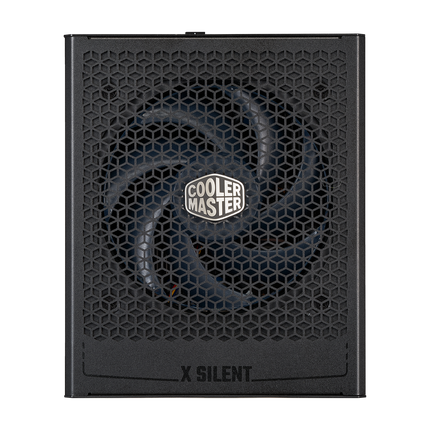

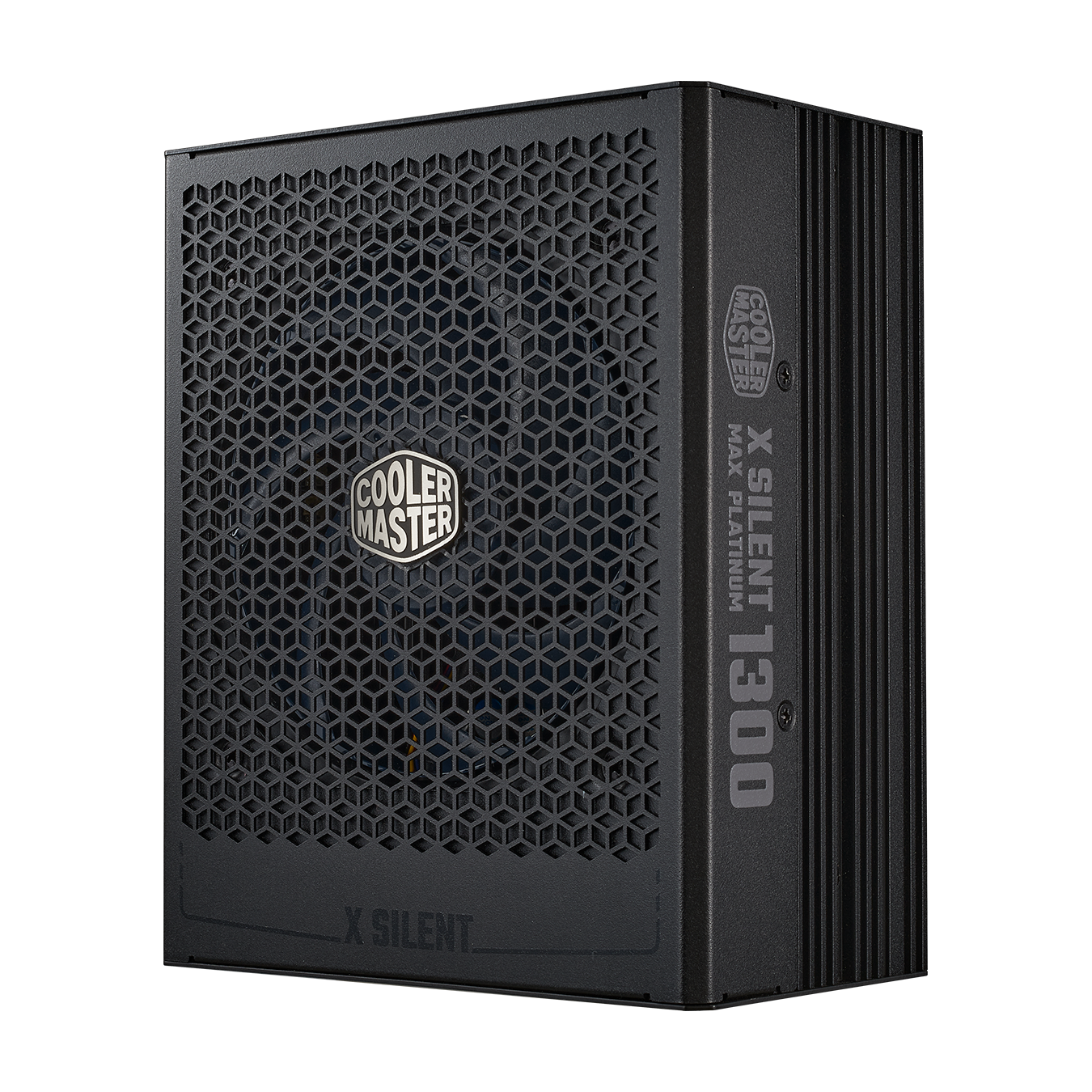

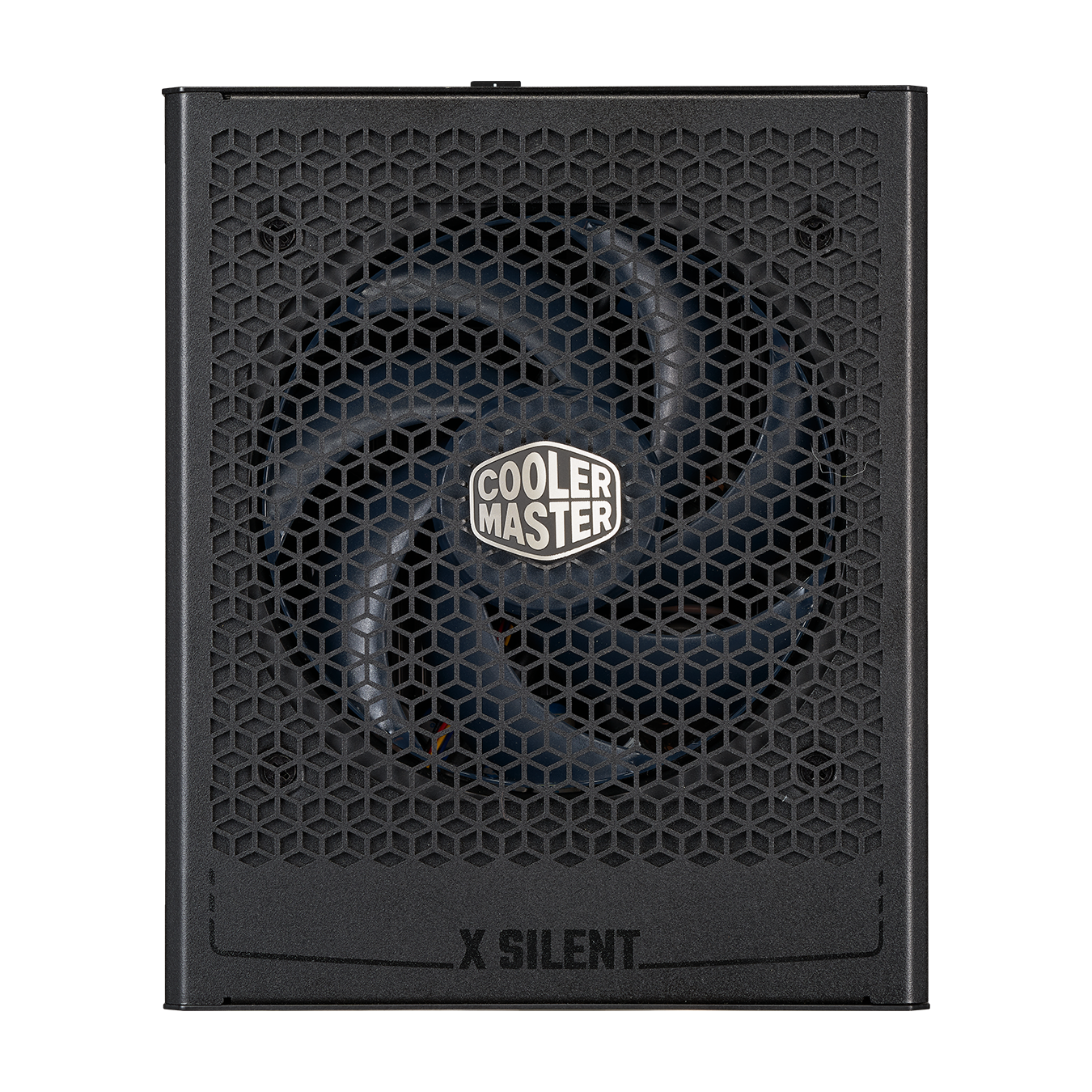

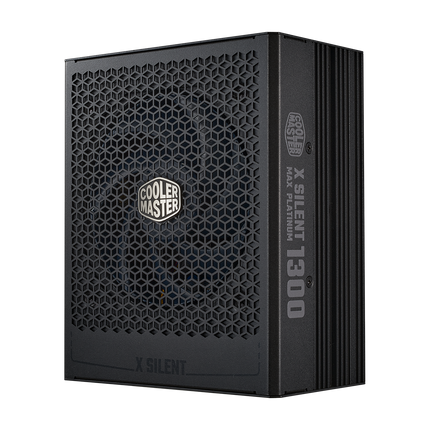

X Silent MAX Platinum 1300

Description

X Silent MAX Platinum 1300

• Equipped with an Ultra-Quiet Mobius Fan

• Active Bridge Rectifier replaces diodes

• Minimize Electromagnetic Noise

• Industrial-Grade Infineon IC

• Digital Power Management System

• 15-year warranty

Supreme Silence

Our design integrates an ultra-silent Mobius fan with an exclusive aluminum

heat sink for improved cooling efficiency. Combined with unique inductors that

minimize electromagnetic noise, it ensures an exceptionally quiet experience.

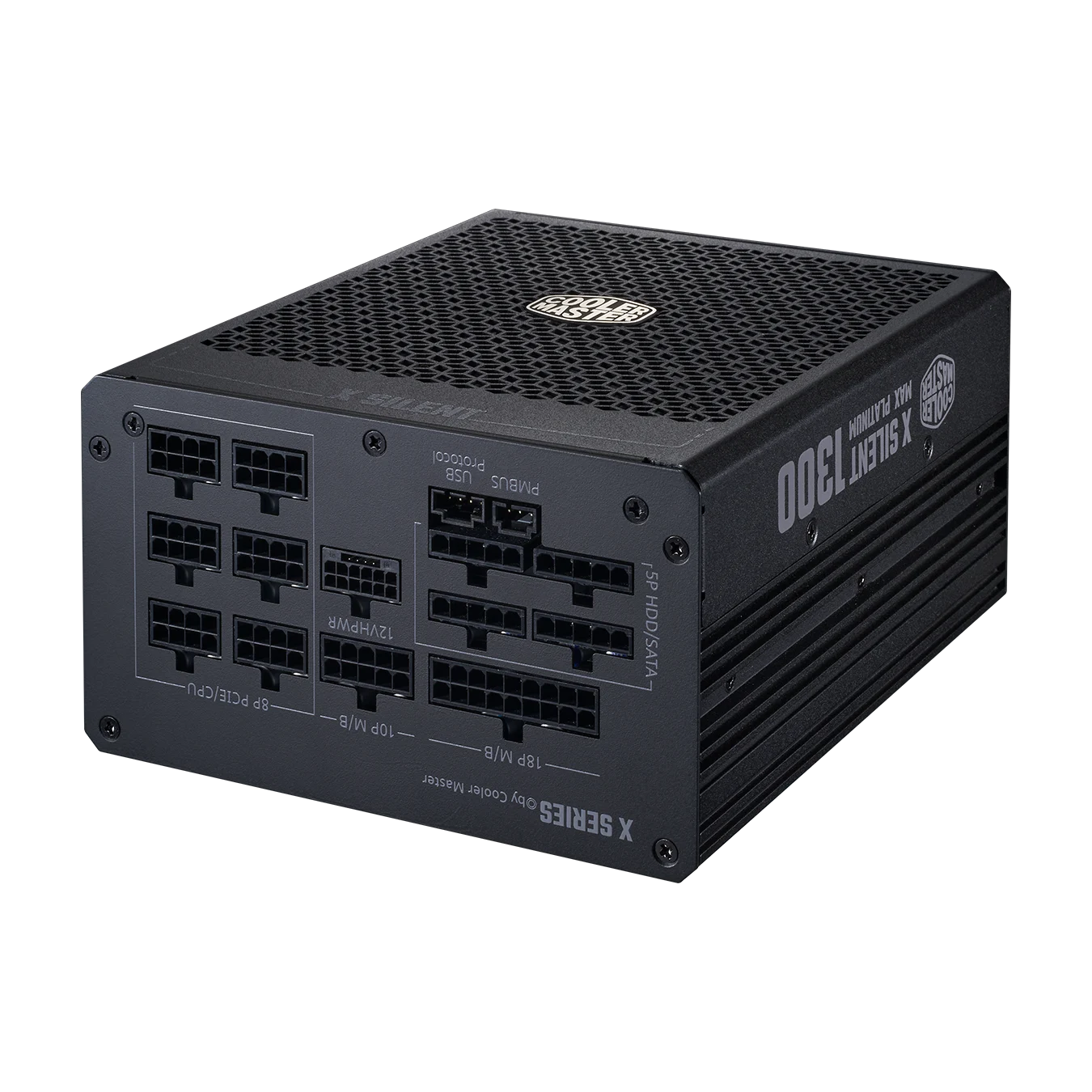

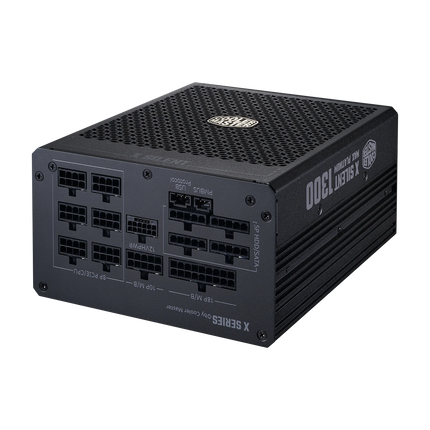

Fully Modular Cabling

Modular cabling minimizes clutter, while the additional ports provide extra functionality.

Superior Cooling Performance

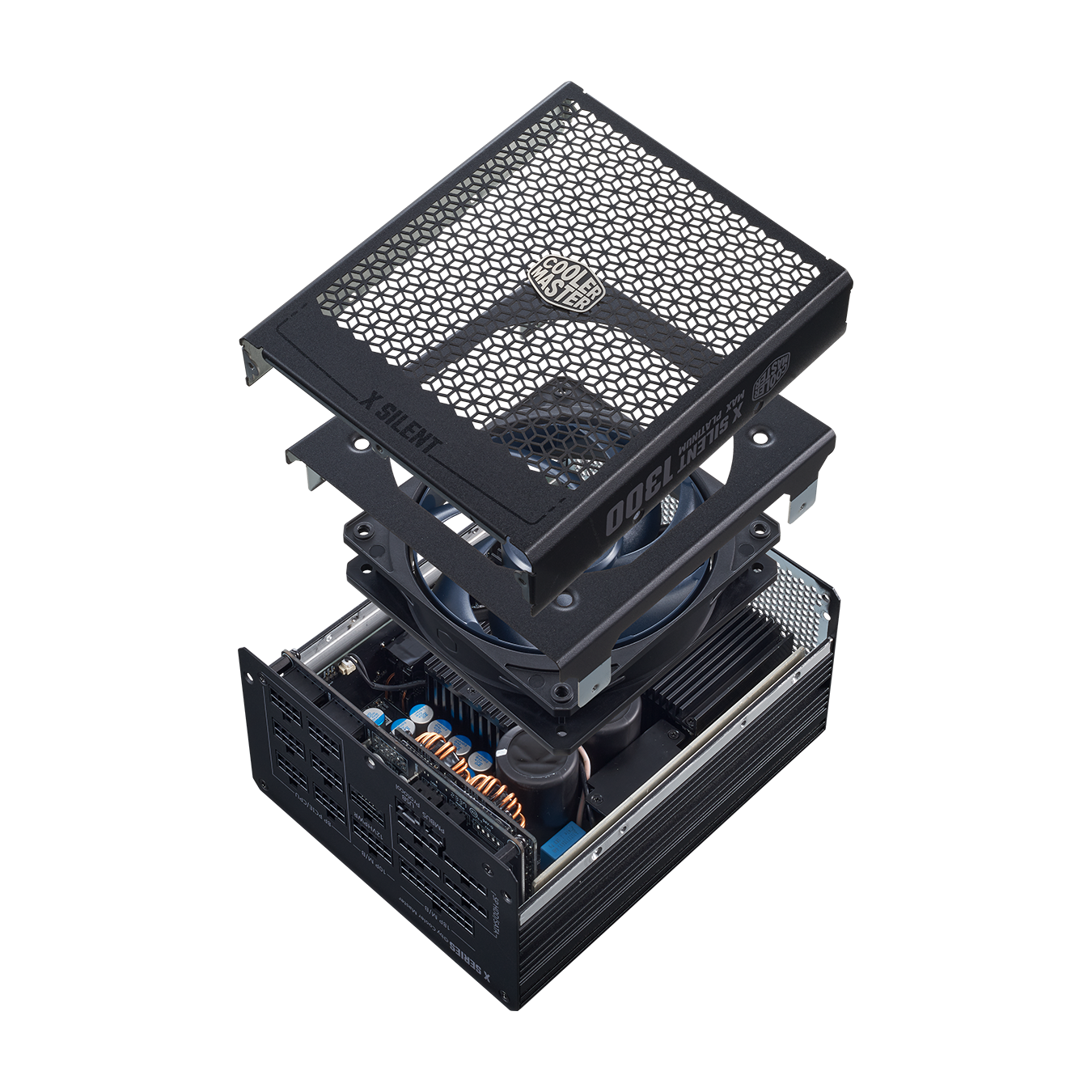

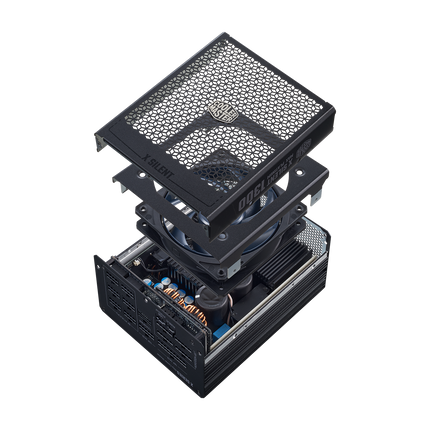

Our exclusive aluminum Thermal Mold efficiently disperses heat, while the ultra-silent Mobius fan strengthens the airflow to lower the temperature across the unit. This dual approach guarantees effective thermal management, maintaining optimal performance and extending the lifespan of the PSU.

Active Bridge Rectifier Boosts Efficiency 2%

The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.


ATX 3.1 Support & a Durable 90° 12V-2X6 Cable

Includes ATX 3.1 support and a 90° 12V-2x6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.

Specifications

  • ModelMPS-D001-AFAP
  • ATX VersionATX 12V Ver. 3.1
  • PFCActive PFC
  • Input Voltage100-240V
  • Input Current15-7.1A
  • Input Frequency50-60Hz
  • Dimensions (L x W x H)180 x 150 x 86 mm
  • Fan Size120mm
  • Fan BearingLDB
  • Fan Speed2050 RPM
  • Efficiency≥ 92% @ Typical Load
  • 80 PLUS Rating80 PLUS Platinum
  • ErP 2014 Lot 3Yes
  • Operating Temperature0-50°C
  • Power Good Signal100 - 150 ms
  • Hold Up Time≥ 16ms
  • MTBF>100,000 Hours
  • ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • RegulatorycUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
  • ATX 24 Pin Connectors1
  • EPS 4+4 Pin Connectors1
  • EPS 8 Pin Connector1
  • SATA Connectors16
  • Peripheral 4 Pin Connectors4
  • PCI-e 6+2 Pin Connectors4
  • 12V-2x6 Connectors1
  • USB 10P Connector1
  • SeriesX Series
  • 80 Plus EfficiencyPlatinum
  • CategoryAbove 750W
  • ModularFully Modular
  • Form FactorATX
  • Watts1300W
  • ATX VersionATX 3.1
  • Input Voltage RangeFull Range




X Silent MAX Platinum 1300

Product form

X Silent MAX Platinum 1300 • Equipped with an Ultra-Quiet Mobius Fan • Active Bridge Rectifier replaces diodes • Minimize... Read more

€319.99  €289.00 Incl. VAT

SKU: MPS-D001-AFAP-NBEU

    • Shipped today? Order within: May 22, 2026 23:59:00 +0200

      Description

      X Silent MAX Platinum 1300

      • Equipped with an Ultra-Quiet Mobius Fan

      • Active Bridge Rectifier replaces diodes

      • Minimize Electromagnetic Noise

      • Industrial-Grade Infineon IC

      • Digital Power Management System

      • 15-year warranty

      Supreme Silence

      Our design integrates an ultra-silent Mobius fan with an exclusive aluminum

      heat sink for improved cooling efficiency. Combined with unique inductors that

      minimize electromagnetic noise, it ensures an exceptionally quiet experience.

      Fully Modular Cabling

      Modular cabling minimizes clutter, while the additional ports provide extra functionality.

      Superior Cooling Performance

      Our exclusive aluminum Thermal Mold efficiently disperses heat, while the ultra-silent Mobius fan strengthens the airflow to lower the temperature across the unit. This dual approach guarantees effective thermal management, maintaining optimal performance and extending the lifespan of the PSU.

      Active Bridge Rectifier Boosts Efficiency 2%

      The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.


      ATX 3.1 Support & a Durable 90° 12V-2X6 Cable

      Includes ATX 3.1 support and a 90° 12V-2x6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.

      Specifications

      • ModelMPS-D001-AFAP
      • ATX VersionATX 12V Ver. 3.1
      • PFCActive PFC
      • Input Voltage100-240V
      • Input Current15-7.1A
      • Input Frequency50-60Hz
      • Dimensions (L x W x H)180 x 150 x 86 mm
      • Fan Size120mm
      • Fan BearingLDB
      • Fan Speed2050 RPM
      • Efficiency≥ 92% @ Typical Load
      • 80 PLUS Rating80 PLUS Platinum
      • ErP 2014 Lot 3Yes
      • Operating Temperature0-50°C
      • Power Good Signal100 - 150 ms
      • Hold Up Time≥ 16ms
      • MTBF>100,000 Hours
      • ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
      • RegulatorycUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
      • ATX 24 Pin Connectors1
      • EPS 4+4 Pin Connectors1
      • EPS 8 Pin Connector1
      • SATA Connectors16
      • Peripheral 4 Pin Connectors4
      • PCI-e 6+2 Pin Connectors4
      • 12V-2x6 Connectors1
      • USB 10P Connector1
      • SeriesX Series
      • 80 Plus EfficiencyPlatinum
      • CategoryAbove 750W
      • ModularFully Modular
      • Form FactorATX
      • Watts1300W
      • ATX VersionATX 3.1
      • Input Voltage RangeFull Range
