Elite Gold 1000 FM A/EU cord

Description

• Supports ATX 3.1 and PCIe Gen 5.1 standards

• Ideal for RTX 50 GPUs

• Stable performance under high loads at up to 40°C

• Quiet, long-life FDB fan cooling

• 1000W output with 80 Plus Gold-certified efficiency

• Fully modular embossed cable design

• Reliable 10-year warranty



ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40°C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.



High Temperature Resilience

Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.

COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1

ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.

*All performance stats confirmed in 25°C ambient temperature testing.

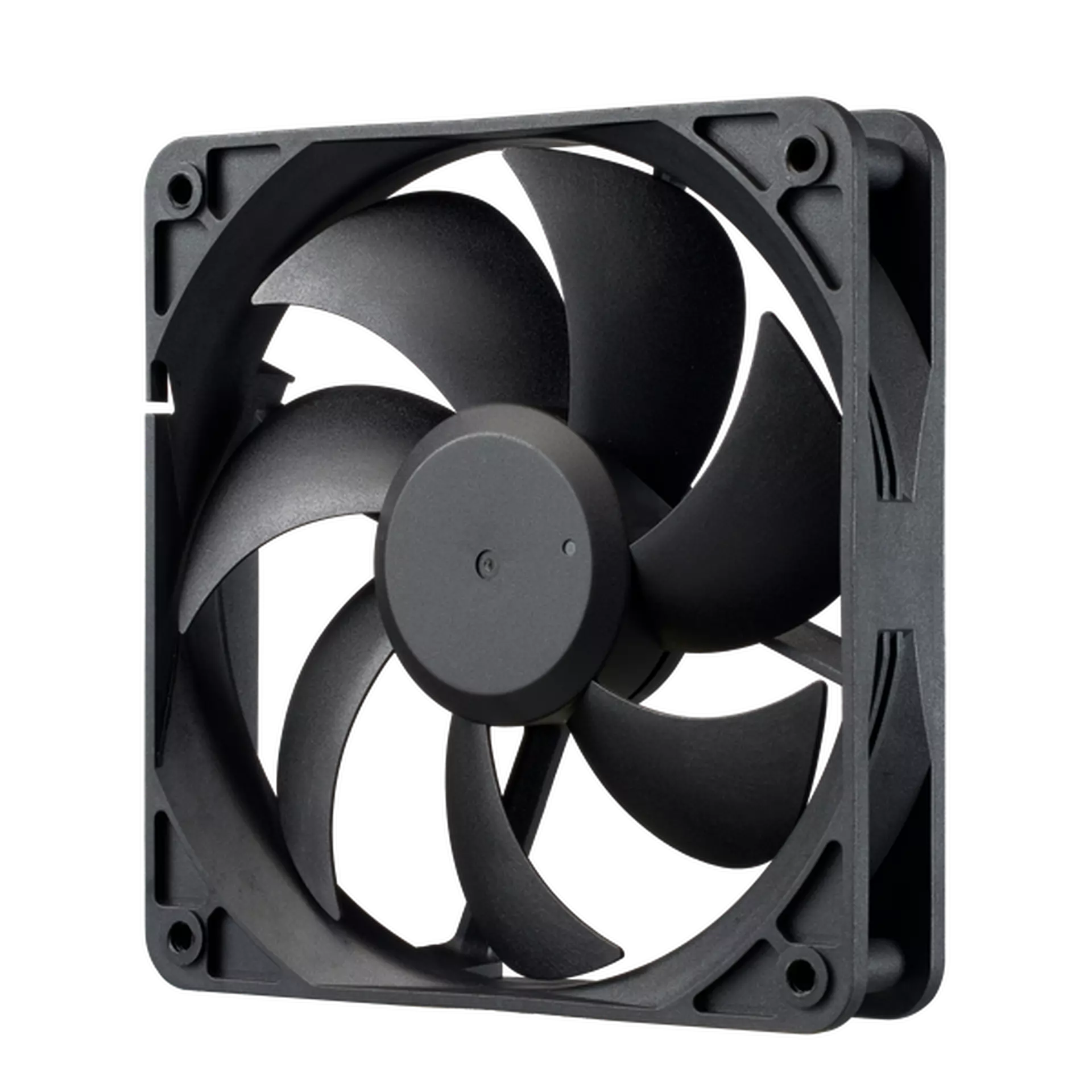

QUIET FDB FAN

The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.

*All performance stats confirmed in 25°C ambient temperature testing.QUIET FDB FANQUIET FDB FANQUIET FDB FANQUIET FDB FAN

QUIET FDB FANQUIET FDB FAN

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

*All performance stats confirmed in 25°C ambient temperature testing.

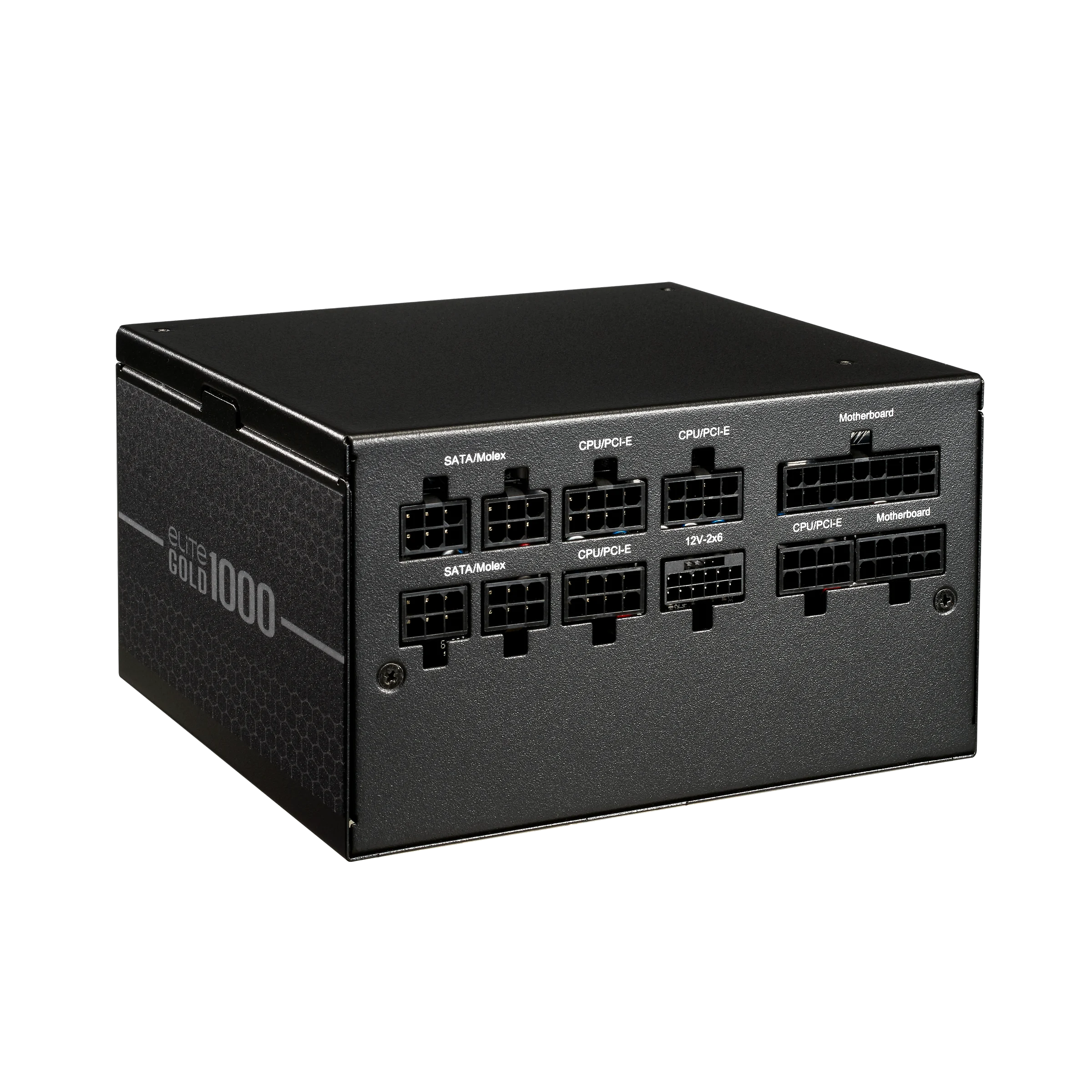

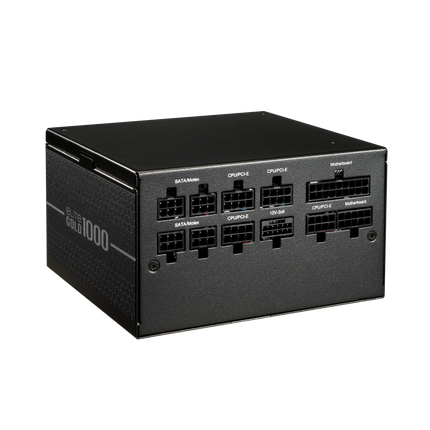

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25°C ambient temperature testing.

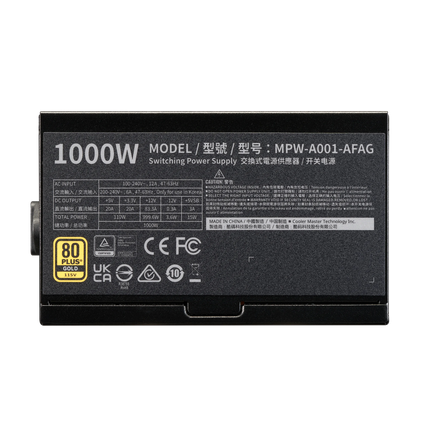

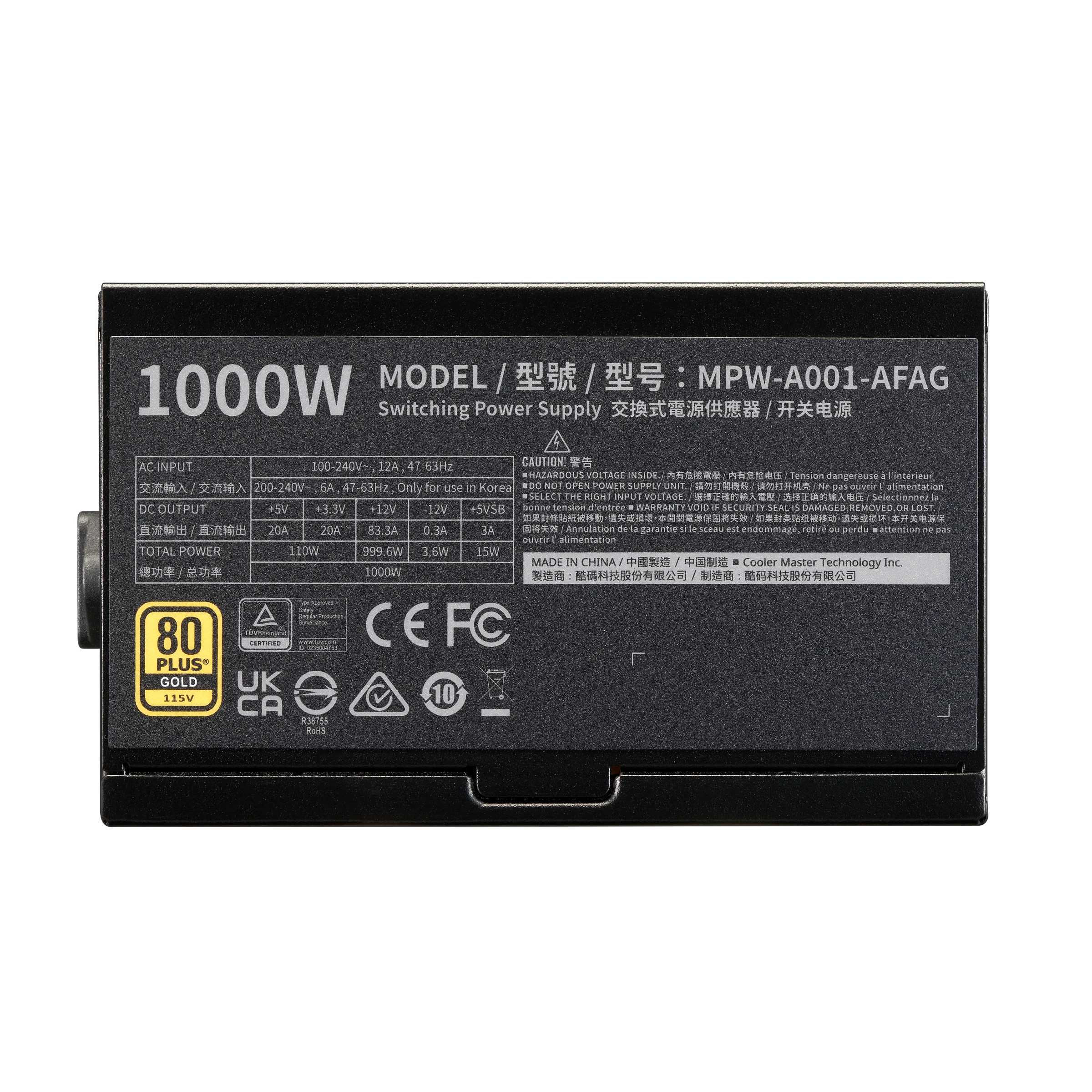

Specifications

  • Product Name: ELITE GOLD 1000
  • Model: MPW-A001-AFAG
  • ATX Version: ATX 12V Ver. 3.1
  • PFC: Active PFC
  • Input Voltage: 100-240V
  • Input Current: 6 ~ 12A
  • Input Frequency: 50-60Hz
  • Dimensions (L x W x H): 140 x 150 x 86 mm
  • Fan Size: 120mm
  • Fan Bearing: FDB
  • Efficiency: ≥90% @ Typical Load
  • 80 PLUS Rating: 80 PLUS Gold
  • ErP 2014 Lot 3: Yes
  • Operating Temperature: 0-40°C
  • Power Good Signal: 100 - 150 ms
  • Hold Up Time: ≥16ms at 80% Load
  • MTBF: >100,000 hours @ 25℃ ambient
  • Protections: UVP / OVP / OPP / OTP / SCP
  • Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
  • ATX 24 Pin Connectors: x1 = 1 (600mm)
  • EPS 4+4 Pin Connectors: x2 = 2 (700mm)
  • SATA Connectors: x9 = 3 (500+100+100mm)
  • Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
  • PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
  • 12+4 Pin Connectors: x1 = 1 (600mm)
  • Elite Series
  • Form Factor: ATX
  • Watts: 1000W
  • Fully Modular
  • 80 Plus Efficiency Gold
  • Warranty: 10 Years

Downloads


Elite Gold 1000 FM A/EU cord

Fiche produit

• Supports ATX 3.1 and PCIe Gen 5.1 standards • Ideal for RTX 50 GPUs • Stable performance under high loads at up... En savoir plus

€149.00 Incl. T.V.A.

SKU: MPW-A001-AFAG-BEU
Code-barres: 4719512160572

    • Expédié aujourd'hui ? Commandez dans : Jun 12, 2026 23:59:00 +0200

      Description

      • Supports ATX 3.1 and PCIe Gen 5.1 standards

      • Ideal for RTX 50 GPUs

      • Stable performance under high loads at up to 40°C

      • Quiet, long-life FDB fan cooling

      • 1000W output with 80 Plus Gold-certified efficiency

      • Fully modular embossed cable design

      • Reliable 10-year warranty



      ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

      Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40°C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.



      High Temperature Resilience

      Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.

      COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1

      ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.

      *All performance stats confirmed in 25°C ambient temperature testing.


      QUIET FDB FAN

      The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.

      *All performance stats confirmed in 25°C ambient temperature testing.QUIET FDB FANQUIET FDB FANQUIET FDB FANQUIET FDB FAN

      QUIET FDB FANQUIET FDB FAN

      80 PLUS GOLD CERTIFIED EFFICIENCY

      Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

      *All performance stats confirmed in 25°C ambient temperature testing.


      Fully Modular Embossed Cable Design

      The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

      *All performance stats confirmed in 25°C ambient temperature testing.

      Specifications

      • Product Name: ELITE GOLD 1000
      • Model: MPW-A001-AFAG
      • ATX Version: ATX 12V Ver. 3.1
      • PFC: Active PFC
      • Input Voltage: 100-240V
      • Input Current: 6 ~ 12A
      • Input Frequency: 50-60Hz
      • Dimensions (L x W x H): 140 x 150 x 86 mm
      • Fan Size: 120mm
      • Fan Bearing: FDB
      • Efficiency: ≥90% @ Typical Load
      • 80 PLUS Rating: 80 PLUS Gold
      • ErP 2014 Lot 3: Yes
      • Operating Temperature: 0-40°C
      • Power Good Signal: 100 - 150 ms
      • Hold Up Time: ≥16ms at 80% Load
      • MTBF: >100,000 hours @ 25℃ ambient
      • Protections: UVP / OVP / OPP / OTP / SCP
      • Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
      • ATX 24 Pin Connectors: x1 = 1 (600mm)
      • EPS 4+4 Pin Connectors: x2 = 2 (700mm)
      • SATA Connectors: x9 = 3 (500+100+100mm)
      • Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
      • PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
      • 12+4 Pin Connectors: x1 = 1 (600mm)
      • Elite Series
      • Form Factor: ATX
      • Watts: 1000W
      • Fully Modular
      • 80 Plus Efficiency Gold
      • Warranty: 10 Years

      Downloads
